2013 Lexus ES300h Owner's Manual

504
ES350 300h_OM_OM33A01U_(U)
5-4. Using the audio system

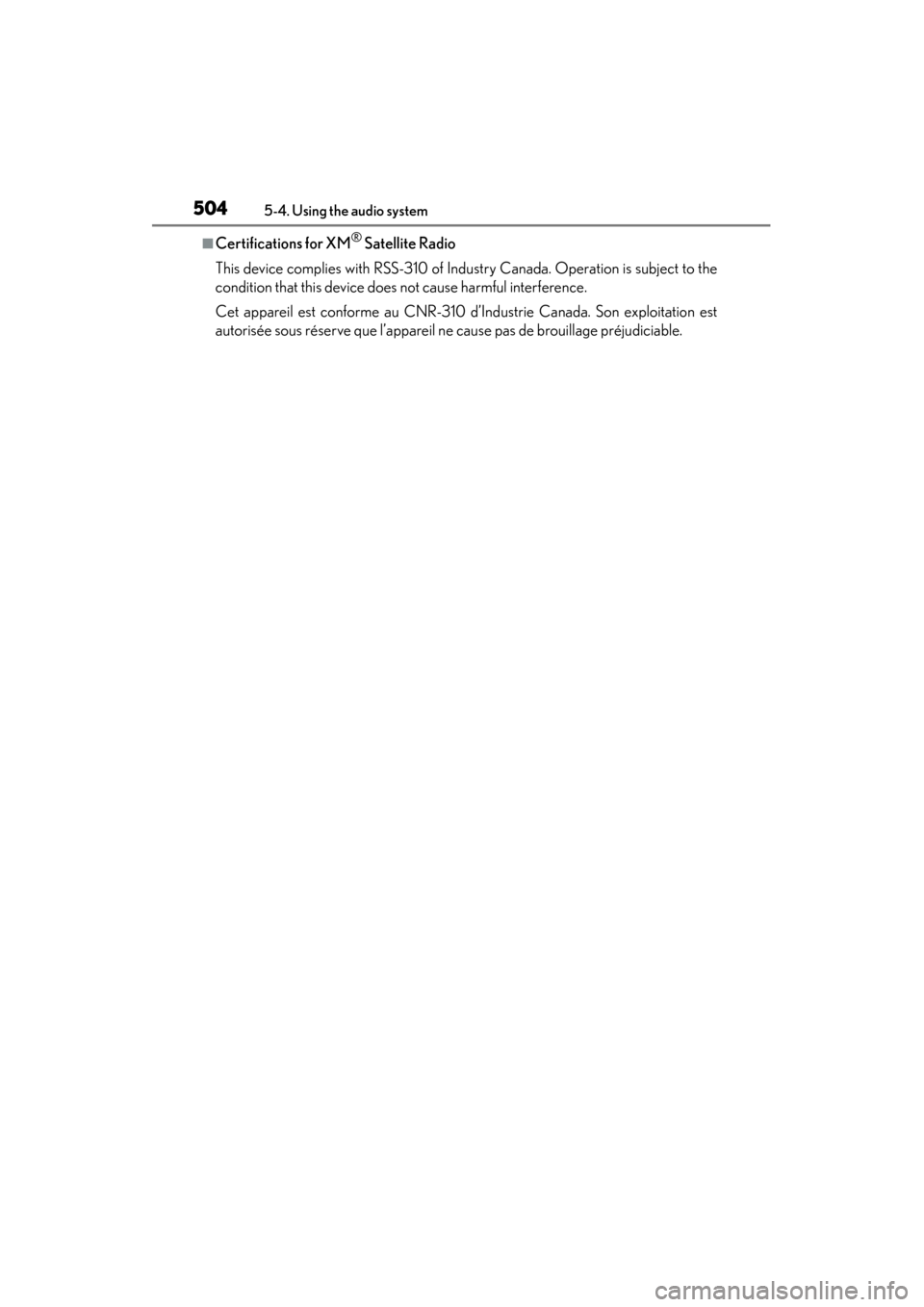

■Certifications for XM® Satellite Radio
This device complies with RSS-310 of Industry Canada. Operation is subject to the
condition that this device does not cause harmful interference.
Cet appareil est conforme au CNR-310 d’Industrie Canada. Son exploitation est
autorisée sous réserve que l’appareil ne cause pas de brouillage préjudiciable.

505
ES350 300h_OM_OM33A01U_(U)
5-4. Using the audio system
5
Interior features
Using the CD player
XTy p e A
Eject button
Load button
Playback button
Search playback button
Track selector button
CD selector buttonPlayback/Pause button
Repeat play button
Random playback button
Te x t b u t t o n
Pow e r
Vo l u m e1
2
3
4
5
6
7
8
9
10
11
12

506
ES350 300h_OM_OM33A01U_(U)
5-4. Using the audio system

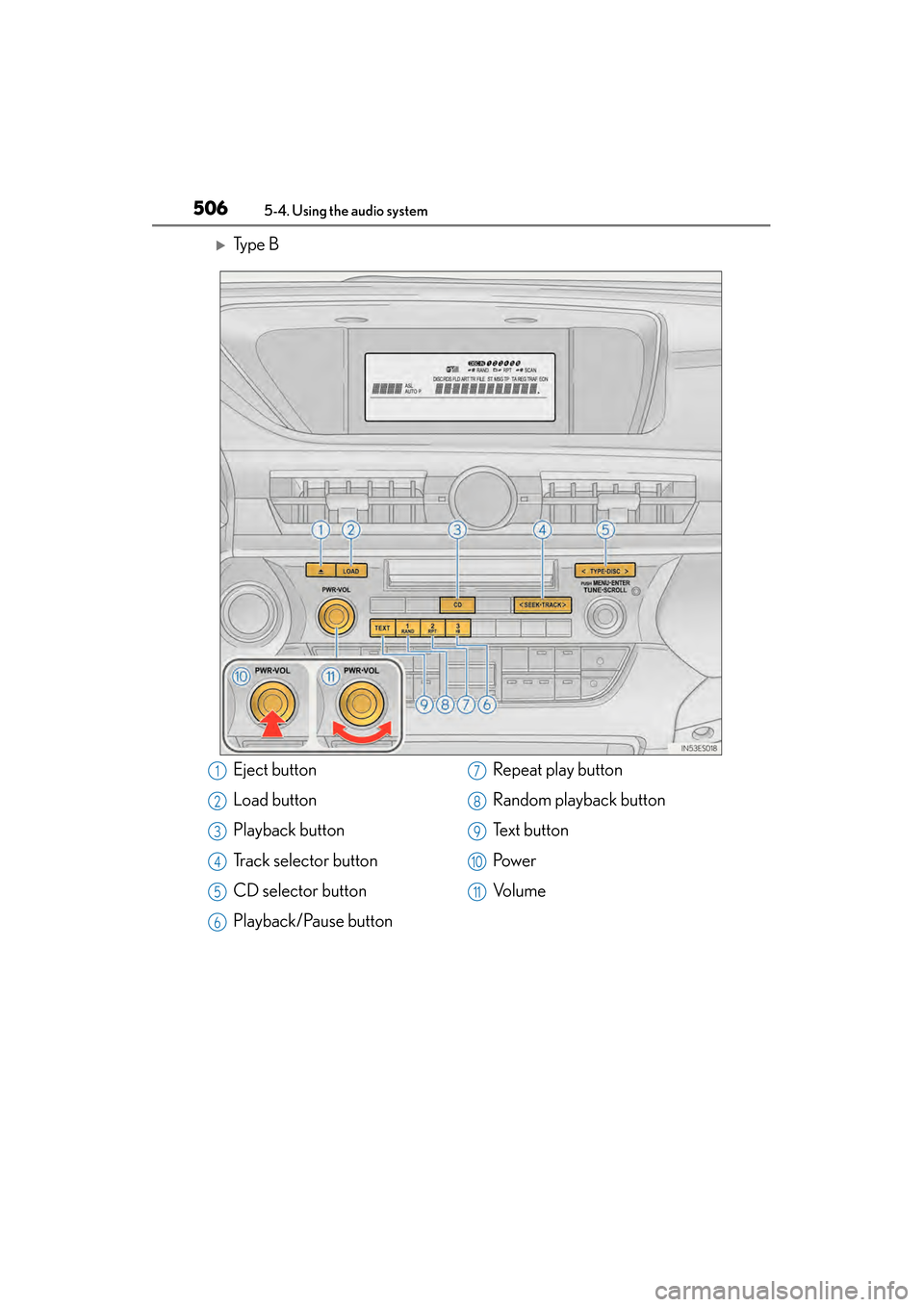

XTy p e B
Eject button
Load button
Playback button
Track selector button
CD selector button
Playback/Pause buttonRepeat play button
Random playback button
Te x t b u t t o n
Pow e r
Vo l u m e1
2
3
4
5
6
7
8
9
10
11

ES350 300h_OM_OM33A01U_(U)
5075-4. Using the audio system
5
Interior features
■Loading a CDPress .
“WAIT” is shown on the display.
When the indicator on the slot turns from amber to green, insert a
CD.
The display changes from “WAIT” to “LOAD”.
■Loading multiple CDsPress and hold until you hear a beep.
“WAIT” is shown on the display.
When the indicator on the slot turns from amber to green, insert a
CD.
The display changes from “WAIT” to “LOAD”.
The indicator on the slot turns to amber when the CD is being inserted.
When the indicator on the slot turns from amber to green, insert the
next CD.
Repeat the procedure for the remaining CDs.
To cancel the operation, press . If you do not insert a disc within 15 sec-
onds, loading will be canceled automatically.
Loading a CD
1
2
1
2
3

508
ES350 300h_OM_OM33A01U_(U)
5-4. Using the audio system
■Ejecting a CDTo select the CD to be ejected,
press “ >” or “ <” on .
The selected disc number is
shown on the display.
Press and remove the CD.
■Ejecting all the CDs
Press and hold until you hear a beep, and then remove the CDs.
■Selecting a track
Press “ >” to move up or “ <” to move down using until the
desired track number is displayed.
■Fast-forwarding and reversing tracks
To fast-forward or reverse, press and hold “ >” or “ <” on until
you hear a beep.
■Scanning tracks (type A)
Press .
The first ten seconds of each track will be played.
To cancel, press again.
Press the button again when the desired track is reached.
Ejecting CDs
1
Selecting, fast-forwarding, reversing and scanning tracks
2
1
2

ES350 300h_OM_OM33A01U_(U)
5095-4. Using the audio system
5
Interior features
■Selecting a CD to play
To select the desired CD, press “>” or “ <” on .
■Scanning loaded CDs (type A)
Press and hold until you hear a beep.
The first ten seconds of the first track on each CD will be played.
To cancel, press again.
Press the button again when the desired CD is reached.
To play or pause a track, press .
■Current CD
Press .
Songs are played in random order.
To cancel, press again.
■All CDs
Press and hold until you hear a beep.
Tracks on all loaded CDs are played in random order.
To cancel, press again.
Selecting a CD
Playing and pausing tracks
Random playback
1
2

510
ES350 300h_OM_OM33A01U_(U)
5-4. Using the audio system
■Repeating a track
Press .
To cancel, press again.
■Repeating all of the tracks on a CD
Press and hold until you hear a beep.
To cancel, press again.
Press .
Each time the button is pressed, the display changes in the following order:
Elapsed time → CD title → Track title
Repeat play
Switching the display

ES350 300h_OM_OM33A01U_(U)
5115-4. Using the audio system
5
Interior features
■CD player protection feature
To protect the internal components, playback is automatically stopped when a prob-
lem is detected.
■Display
Up to 12 characters can be displayed at a time.
If there are 13 or more characters, pressing and holding until you hear a beep
enables to display the remaining characters.
A maximum of 24 characters can be displayed.
If is pressed until you hear a beep again or has not been operated for more
than 6 seconds, the display will return to the first 12 characters.
Depending on the contents recorded, the characters may not be displayed properly
or may not be displayed at all.
■When “ERROR” or “WAIT” is shown on the display
“ERROR”:
This indicates a problem either in the CD or inside the player. The CD may be dirty,
damaged, or inserted up-side down.
“WAIT”:
This indicates that operation is stopped due to a high temperature inside the player.
Wait for a while and then press or . If the CD still cannot be played
back, contact your Lexus dealer.
■Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc features, or
due to scratches, dirt or deterioration.
CDs with copy-protection features may not be used.
■Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
■If discs are left inside the CD player or in the ejected position for extended periods
of time
The discs may be damaged and may not play properly.
