5678-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)
8
When trouble arises
If you think something is wrong
Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)
Flat-looking tires or uneven tire wear
High coolant temperature warning light flashes or comes on
Changes in exhaust sound
Excessive tire squeal when cornering
Strange noises related to the suspension system
Pinging or other noises related to the hybrid system
Engine missing, stumbling or running roughly
Appreciable loss of power
Vehicle pulls heavily to one side when braking
Vehicle pulls heavily to one side when driving on a level road
Loss of brake effectiveness, spongy feeling, pedal almost touches the
floor
If you notice any of the following symptoms, your vehicle probably
needs adjustment or repair. Contact any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional as soon as
possible.
Visible symptoms
Audible symptoms
Operational symptoms

5688-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)
If a warning light turns on or a warning buzzer sounds
Calmly perform the following actions if any of the warning lights comes
on or flashes. If a light comes on or flashes, but then goes off, this does
not necessarily indicate a malfunction in the system. However, if this
continues to occur, have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
Warning light and warning buzzer list
Warning lightWarning light/Details/Actions
Brake system warning light and warning buzzer (red indica-
tor)
*1
Indicates that:
• The brake fluid level is low; or
• The brake system is malfunctioning
This light also comes on when the parking brake is not
released. If the light turns off after the parking brake is fully
released, the system is operating normally.
Immediately stop the vehicle in a safe place and contact any
authorized Lexus dealer or repairer, or another duly quali-
fied and equipped professional. Continuing to drive the
vehicle may be dangerous.
Brake system warning light (yellow indicator)
Indicates a malfunction in:
• The regenerative braking system; or
• The electronically controlled brake system
Have the vehicle inspected by any authorized Lexus dealer
or repairer, or another duly qualified and equipped profes-
sional immediately.
Charging system warning light
Indicates a malfunction in the vehicle’s charging system
Immediately stop the vehicle in a safe place and contact any
authorized Lexus dealer or repairer, or another duly quali-
fied and equipped professional.
Low engine oil pressure warning light
Indicates that the engine oil pressure is too low
Immediately stop the vehicle in a safe place and contact any
authorized Lexus dealer or repairer, or another duly quali-
fied and equipped professional.

5698-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)
8
When trouble arises

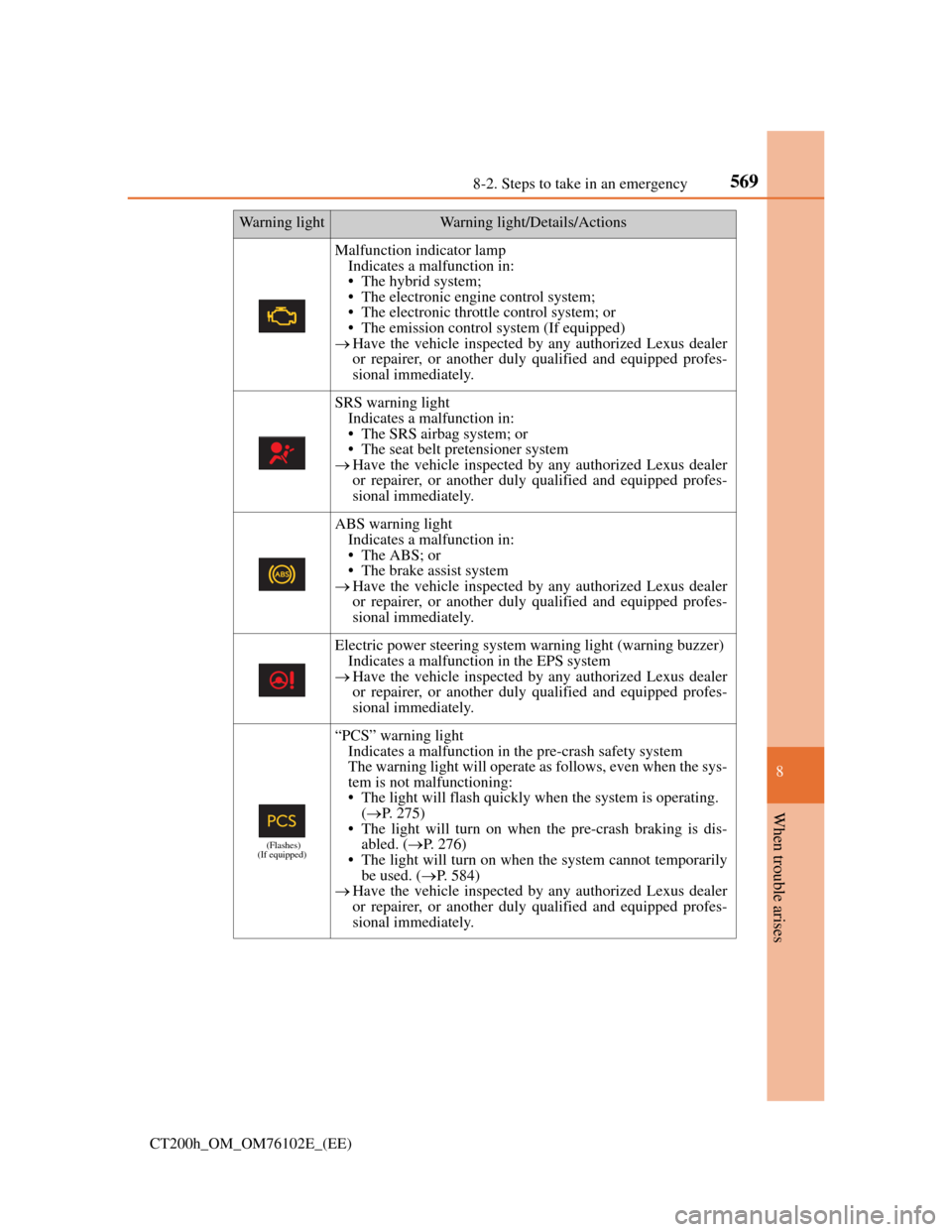

Malfunction indicator lamp
Indicates a malfunction in:
• The hybrid system;
• The electronic engine control system;
• The electronic throttle control system; or
• The emission control system (If equipped)
Have the vehicle inspected by any authorized Lexus dealer
or repairer, or another duly qualified and equipped profes-
sional immediately.
SRS warning light
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system
Have the vehicle inspected by any authorized Lexus dealer
or repairer, or another duly qualified and equipped profes-
sional immediately.
ABS warning light
Indicates a malfunction in:
•The ABS; or
• The brake assist system
Have the vehicle inspected by any authorized Lexus dealer
or repairer, or another duly qualified and equipped profes-
sional immediately.
Electric power steering system warning light (warning buzzer)
Indicates a malfunction in the EPS system
Have the vehicle inspected by any authorized Lexus dealer
or repairer, or another duly qualified and equipped profes-
sional immediately.
(Flashes)
(If equipped)
“PCS” warning light
Indicates a malfunction in the pre-crash safety system
The warning light will operate as follows, even when the sys-
tem is not malfunctioning:
• The light will flash quickly when the system is operating.
(P. 275)
• The light will turn on when the pre-crash braking is dis-
abled. (P. 276)
• The light will turn on when the system cannot temporarily
be used. (P. 584)
Have the vehicle inspected by any authorized Lexus dealer
or repairer, or another duly qualified and equipped profes-
sional immediately.
Warning lightWarning light/Details/Actions

5708-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)
Slip indicator light
Indicates a malfunction in:
• The VSC system;
• The TRC system; or
• The hill-start assist control system
The light will flash when the above systems and/or ABS are
operating.
Have the vehicle inspected by any authorized Lexus dealer
or repairer, or another duly qualified and equipped profes-
sional immediately.
(If equipped)
Automatic headlight leveling system warning light
Indicates a malfunction in the automatic headlight leveling
system
Have the vehicle inspected by any authorized Lexus dealer
or repairer, or another duly qualified and equipped profes-
sional immediately.
High coolant temperature warning light
Changes from a flashing to a solid light when the engine
coolant temperature increases
Stop and check. (P. 629)
Open door warning light (warning buzzer)*2
Indicates that a door is not fully closed
Check that all the doors are closed.
Low fuel level warning light
Indicates that remaining fuel is approximately 6.8 L (1.8
gal., 1.5 Imp.gal.) or less
Refuel the vehicle.
Driver’s and front passenger’s seat belt reminder light (warn-
ing buzzer)
*3
Warns the driver and/or front passenger to fasten their seat
belts
Fasten the seat belt.
If the front passenger’s seat is occupied, the front passen-
ger’s seat belt also needs to be fastened to make the warning
light (warning buzzer) turn off.
Rear passengers’ seat belt reminder lights (warning buzzer)*4
Warns the rear passengers to fasten their seat belts in the fol-
lowing situations:
• A rear door is opened and closed.
*5
• A rear passenger fastens their seat belt and then unfastens
it.
Fasten the seat belt.
Warning lightWarning light/Details/Actions

5868-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)
Interior
buzzerExterior
buzzerWarning messageDetails/Actions
Power was turned off due to the
automatic power off function.
Next time when starting the
hybrid system, increase the
engine speed slightly and
maintain that level for approx-
imately 5 minutes to recharge
the 12-volt battery.
Con-
tinu-
ous
The driver’s door was opened
while any shift position other
than P was selected without turn-
ing off the power switch.
Shift the shift position to P.
Con-
tinu-
ousCon-
tinu-
ous
The electronic key was carried
outside the vehicle and the
driver’s door was opened and
closed while any shift position
other than P was selected without
turning off the power switch.
Shift the shift position to P.
Bring the electronic key back
into the vehicle.
(Flashes)
(Displayed alternately)
(Displayed alternately)
(Flashes)

6038-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)
8
When trouble arises
WA R N I N G
When using the compact spare tire
Remember that the spare tire provided is specifically designed for use with
your vehicle. Do not use your spare tire on another vehicle.
Do not use more than one spare tire simultaneously.
Replace the spare tire with a standard tire as soon as possible.
Avoid sudden acceleration, abrupt steering, sudden braking and shifting oper-
ations that cause sudden engine braking.
When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following systems
may not operate correctly:
Speed limit when using the compact spare tire
Do not drive at speeds in excess of 80 km/h (50 mph) when a compact spare
tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure to
observe this precaution may lead to an accident causing death or serious injury.
• ABS & Brake assist
•VSC
•TRC
• Cruise control (if equipped)
• Dynamic radar cruise control
(if equipped)
• PCS (Pre-Crash Safety system)
(if equipped)•EPS
• Rear view monitor system
(if equipped)
• Lexus parking assist monitor
(if equipped)
• Lexus parking assist-sensor
(if equipped)
• Navigation system (if equipped)

6268-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)
Start the engine of the second vehicle. Increase the engine speed
slightly and maintain at that level for approximately 5 minutes to
recharge the 12-volt battery of your vehicle.
Open and close any of the doors of your vehicle with the power switch
off.
Maintain the engine speed of the second vehicle and start the hybrid
system of your vehicle by turning the power switch to ON mode.
Make sure the “READY” indicator comes on. If the indicator light
does not come on, contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
Once the hybrid system has started, remove the jumper cables in the
exact reverse order from which they were connected.
Close the exclusive jump starting terminal cover, and reinstall the fuse
box cover to its original position.
Once the hybrid system starts, have the vehicle inspected at any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped
professional as soon as possible.
Starting the hybrid system when the 12-volt battery is discharged
The hybrid system cannot be started by push-starting.
To prevent 12-volt battery discharge
Turn off the headlights and the audio system while the hybrid system is off.
Turn off any unnecessary electrical components when the vehicle is running at
a low speed for an extended period, such as in heavy traffic.
When the 12-volt battery is removed or discharged
The hybrid system may not start. (P. 507)
If the 12-volt battery discharges while the shift position is in P, it may not be
possible to shift the shift position to other positions. In this case, the vehicle
cannot be towed without lifting both front wheels because the front wheels will
be locked. (P. 562)
When the 12-volt battery is reconnected, start the hybrid system and confirm
that the shift position can be changed to each position using the shift position
indicator.
Make sure that the key is not inside the vehicle when recharging or replacing
the 12-volt battery. The key may be locked in the vehicle if the alarm is acti-
vated. (P. 9 3 )
4
5
6
7
8
9

6328-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)
Start the hybrid system and check for the multi-information display.
If the message does not disappear:
Stop the hybrid system and contact any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
If the message is not displayed:
Have the vehicle inspected at the nearest any authorized Lexus
dealer or repairer, or another duly qualified and equipped profes-
sional.
WA R N I N G
To prevent an accident or injury when inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
If steam is seen coming from under the hood, do not open the hood until the
steam has subsided. The engine compartment may be very hot.
After the hybrid system has been turned off, check that the indicator on the
power switch and the “READY” indicator are off.
When the hybrid system is operating, the gasoline engine may automatically
start, or the cooling fan may suddenly operate even if the gasoline engine
stops. Do not touch or approach rotating parts such as the fan, which may lead
to fingers or clothing (especially a tie, a scarf or a muffler) getting caught,
resulting in serious injury.
Do not loosen the coolant reservoir cap while the hybrid system and radiator
are hot.
High temperature steam or coolant could spray out.
NOTICE
When adding engine/power control unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently. Add-
ing cool coolant to a hot hybrid system too quickly can cause damage to the
hybrid system.
To prevent damage to the cooling system
Observe the following precautions:
Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
Do not use any coolant additive.
6
