6128-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)

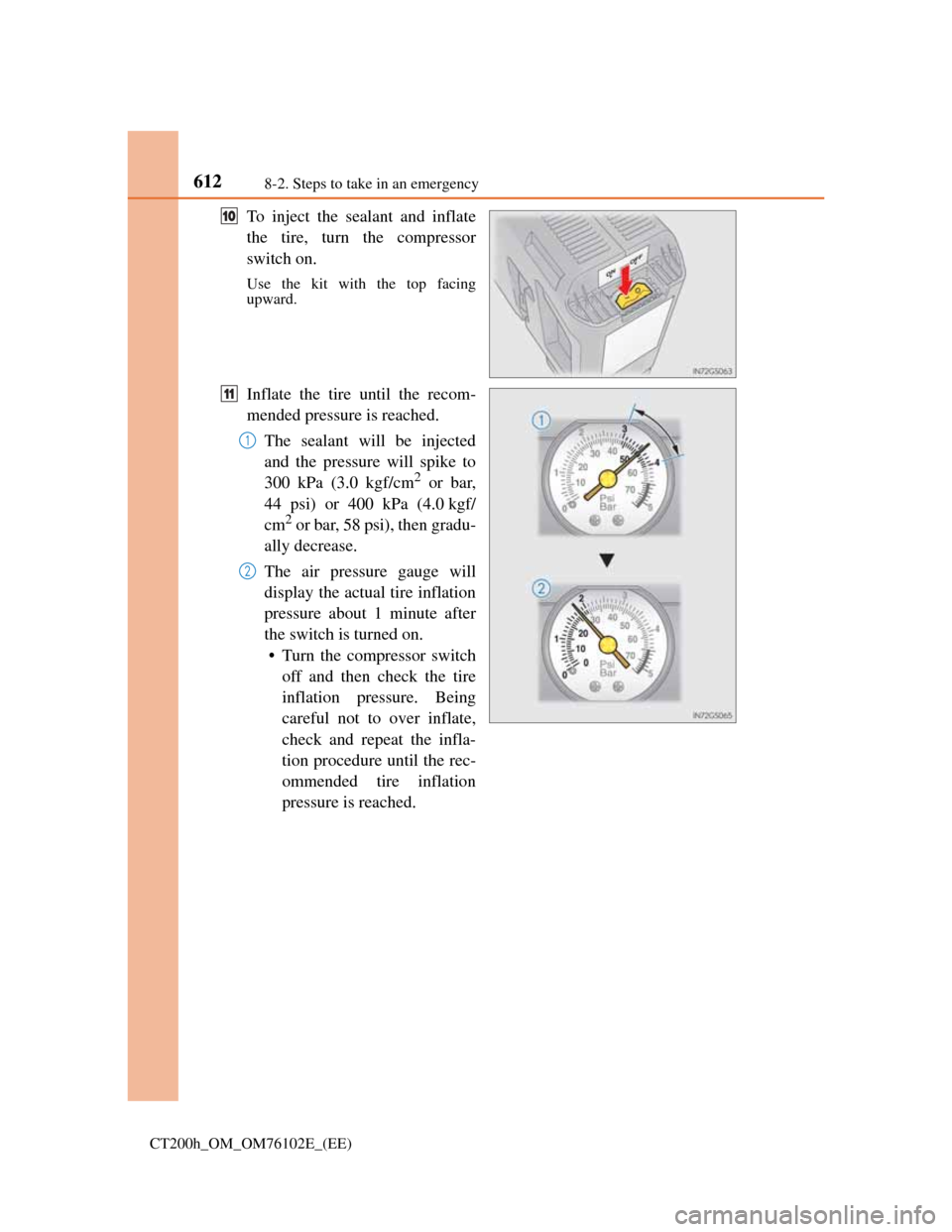

To inject the sealant and inflate
the tire, turn the compressor
switch on.
Use the kit with the top facing
upward.
Inflate the tire until the recom-
mended pressure is reached.
The sealant will be injected
and the pressure will spike to
300 kPa (3.0 kgf/cm
2 or bar,
44 psi) or 400 kPa (4.0 kgf/
cm
2 or bar, 58 psi), then gradu-
ally decrease.
The air pressure gauge will
display the actual tire inflation
pressure about 1 minute after
the switch is turned on.
• Turn the compressor switch
off and then check the tire
inflation pressure. Being
careful not to over inflate,
check and repeat the infla-
tion procedure until the rec-
ommended tire inflation
pressure is reached.
10
11
1
2

6298-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)
8
When trouble arises
If your vehicle overheats
If the high coolant temperature warning light comes on or flashes
Stop the vehicle in a safe place and turn off the air conditioning sys-
tem, and then stop the hybrid system.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the hybrid system has cooled down sufficiently, inspect the
hoses and radiator core (radiator) for any leaks.
Radiator
Cooling fans
If a large amount of coolant
leaks, immediately contact any
authorized Lexus dealer or
repairer, or another duly quali-
fied and equipped professional.
The following may indicate that your vehicle is overheating.
The high coolant temperature warning light (P. 570) comes on or
flashes, or a loss of hybrid system power is experienced. (For exam-
ple, the vehicle speed does not increase.)
The warning message indicating overheats is shown on the multi-
information display. (P. 583)
Steam comes out from under the hood.
Correction procedures
1
2
3
1
2

6318-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)
8
When trouble arises
If the warning message indicating overheats is shown on the multi-
information display
Stop the vehicle in a safe place.
Stop the hybrid system and carefully lift the hood.
After the hybrid system has cooled down, inspect the hoses and radi-
ator core (radiator) for any leaks.
Radiator
Cooling fans
If a large amount of coolant
leaks, immediately contact any
authorized Lexus dealer or
repairer, or another duly quali-
fied and equipped professional.
The coolant level is satisfactory if it is between the “FULL” and
“LOW” lines on the reservoir.
Reservoir
“FULL” line
“LOW” line
Add coolant if necessary.
Water can be used in an emer-
gency if coolant is unavailable.
1
2
3
1
2
4
1
2
3
5

6328-2. Steps to take in an emergency
CT200h_OM_OM76102E_(EE)
Start the hybrid system and check for the multi-information display.
If the message does not disappear:
Stop the hybrid system and contact any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
If the message is not displayed:
Have the vehicle inspected at the nearest any authorized Lexus
dealer or repairer, or another duly qualified and equipped profes-
sional.
WA R N I N G
To prevent an accident or injury when inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
If steam is seen coming from under the hood, do not open the hood until the
steam has subsided. The engine compartment may be very hot.
After the hybrid system has been turned off, check that the indicator on the
power switch and the “READY” indicator are off.
When the hybrid system is operating, the gasoline engine may automatically
start, or the cooling fan may suddenly operate even if the gasoline engine
stops. Do not touch or approach rotating parts such as the fan, which may lead
to fingers or clothing (especially a tie, a scarf or a muffler) getting caught,
resulting in serious injury.
Do not loosen the coolant reservoir cap while the hybrid system and radiator
are hot.
High temperature steam or coolant could spray out.
NOTICE
When adding engine/power control unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently. Add-
ing cool coolant to a hot hybrid system too quickly can cause damage to the
hybrid system.
To prevent damage to the cooling system
Observe the following precautions:
Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
Do not use any coolant additive.
6

641
9 9-1. Specifications
Vehicle specifications
CT200h_OM_OM76102E_(EE)
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for eas-
ier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is oper-
ated at high speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil containers to
help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designation
by American Petroleum Institute
(API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The International Lubricant Spec-
ification Advisory Committee
(ILSAC) Certification Mark is
displayed on the front of the con-
tainer.
1
2

6509-2. Customization
CT200h_OM_OM76102E_(EE)
Customizable features
Some function settings are changed simultaneously with other functions
being customized. Contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional for further details.
When customizing vehicle features, ensure that the vehicle is parked in a
safe place with the shift position in P and the parking brake set.
Changing using the Remote Touch
Press the “MENU” button on the Remote Touch.
Select “Setup” on the “Menu” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
Changing using the Lexus Display Audio controller
Press the “MENU” button on the Lexus Display Audio controller.
Select “Setup” on the “MENU” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
Your vehicle includes a variety of electronic features that can be person-
alized to suit your preferences. The settings of these features can be
changed using the multi-information display, the Remote Touch or Lexus
Display Audio controller, or at any authorized Lexus dealer or repairer,
or another duly qualified and equipped professional.
Customizing vehicle features
1
2
1
2

6519-2. Customization
CT200h_OM_OM76102E_(EE)
9
Vehicle specifications
Changing using the multi-information display
Vehicles with monochrome display
Press the “DISP” switch to display the “SETTINGS” screen while
the vehicle is stopped, and then press and hold the “DISP” switch
to display the customize mode screen.
Press the “DISP” switch and select the item, and then press and
hold the “DISP” switch.
Press the “DISP” switch and select the desired setting, and then
press and hold the “DISP” switch.
To go back to the previous screen or exit the customize mode, press
the “DISP” switch to select the “EXIT”, and then press and hold the
“DISP” switch.
Vehicles with color display
Press or of the meter control switches, select , and then
press .
Press or of the meter control switches, select the item, and
then press .
Press or of the meter control switches, select the desired
setting, and then press .
To go back to the previous screen or exit the customize mode, press
.
1
2
3
1
2
3

6529-2. Customization
CT200h_OM_OM76102E_(EE)
Vehicles with a navigation system or Lexus Display Audio: Settings
that can be changed using the Remote Touch or Lexus Display Audio
controller
Vehicles with a navigation system or Lexus Display Audio: Settings
that can be changed using the multi-information display
Vehicles without a navigation system or Lexus Display Audio: Settings
that can be changed using the multi-information display
Settings that can be changed by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
Definition of symbols: O = Available, – =Not available
Door lock (P. 132, 622)
Customizable Features
1
2
3
4
FunctionDefault
settingCustomized
setting
Allows all doors to be
unlocked by turning the
mechanical key once in the
driver’s doorOff
(All doors
unlocked in
first step)On
(Driver’s door
unlocked in
first step, all
doors unlocked
in second step)
O––O
Speed linked door locking
functionOnOffO–OO
Shift position linked door
locking functionOffOnO–OO
Shift position linked door
unlocking functionOffOnO–OO
Driver’s door linked door
unlocking functionOnOffO–OO
1234
