UNDERSTANDING YOUR INSTRUMENT PANEL

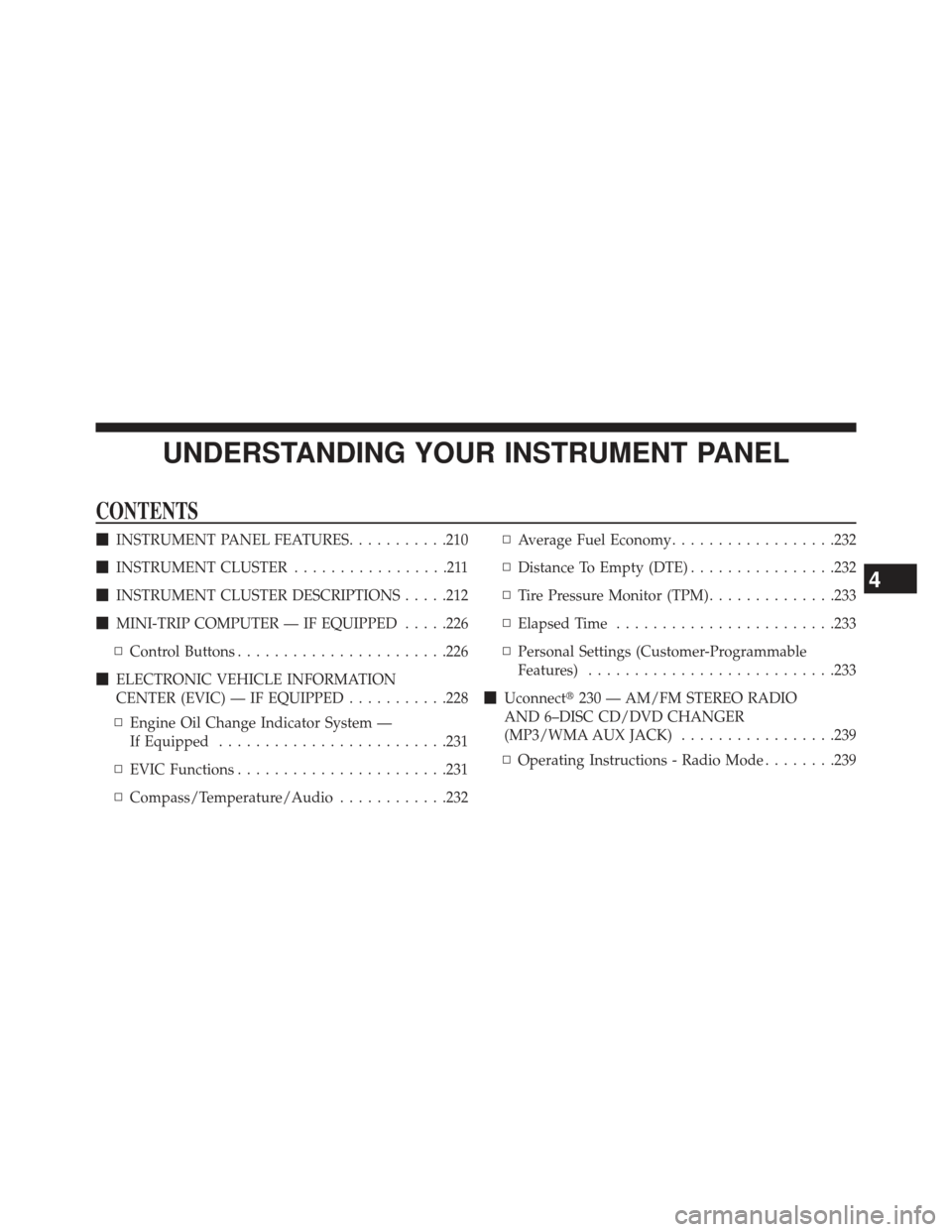

CONTENTS
INSTRUMENT PANEL FEATURES ...........210
 INSTRUMENT CLUSTER .................211
 INSTRUMENT CLUSTER DESCRIPTIONS .....212
 MINI-TRIP COMPUTER — IF EQUIPPED .....226
▫ Control Buttons ...................... .226
 ELECTRONIC VEHICLE INFORMATION
CENTER (EVIC) — IF EQUIPPED ...........228
▫ Engine Oil Change Indicator System —
If Equipped ........................ .231
▫ EVIC Functions ...................... .231
▫ Compass/Temperature/Audio ............232▫
Average Fuel Economy ..................232
▫ Distance To Empty (DTE) ................232
▫ Tire Pressure Monitor (TPM) ..............233
▫ Elapsed Time ....................... .233
▫ Personal Settings (Customer-Programmable
Features) .......................... .233

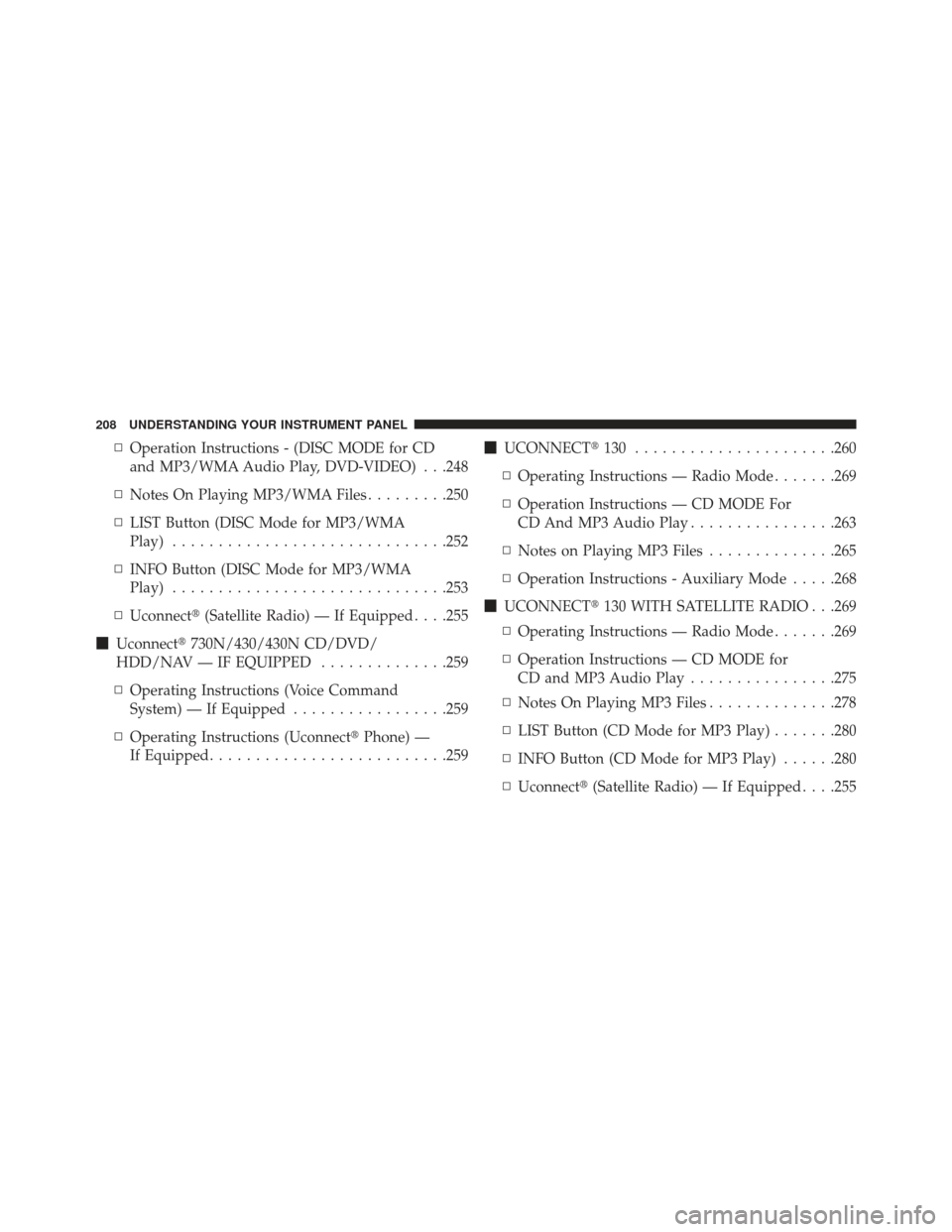

 Uconnect 230 — AM/FM STEREO RADIO
AND 6–DISC CD/DVD CHANGER
(MP3/WMA AUX JACK) .................239
▫ Operating Instructions - Radio Mode ........239
4

▫Operation Instructions - (DISC MODE for CD
and MP3/WMA Audio Play, DVD-VIDEO) . . .248
▫ Notes On Playing MP3/WMA Files .........250
▫ LIST Button (DISC Mode for MP3/WMA
Play) ............................. .252
▫ INFO Button (DISC Mode for MP3/WMA
Play) ............................. .253
▫ Uconnect (Satellite Radio) — If Equipped . . . .255
 Uconnect 730N/430/430N CD/DVD/
HDD/NAV — IF EQUIPPED ..............259
▫ Operating Instructions (Voice Command
System) — If Equipped .................259
▫ Operating Instructions (Uconnect Phone) —
If Equipped ......................... .259
UCONNECT 130 ..................... .260
▫ Operating Instructions — Radio Mode .......269
▫ Operation Instructions — CD MODE For
CD And MP3 Audio Play ................263
▫ Notes on Playing MP3 Files ..............265
▫ Operation Instructions - Auxiliary Mode .....268
 UCONNECT 130 WITH SATELLITE RADIO . . .269
▫ Operating Instructions — Radio Mode .......269
▫ Operation Instructions — CD MODE for
CD and MP3 Audio Play ................275
▫ Notes On Playing MP3 Files ..............278
▫ LIST Button (CD Mode for MP3 Play) .......280
▫ INFO Button (CD Mode for MP3 Play) ......280
▫ Uconnect (Satellite Radio) — If Equipped . . . .255
208 UNDERSTANDING YOUR INSTRUMENT PANEL

iPod/USB/MP3 CONTROL — IF EQUIPPED . . .286
▫Connecting The iPod Or External USB
Device ............................ .286
▫ Using This Feature .....................287
▫ Controlling The iPod Or External
USB Device Using Radio Buttons ..........287
▫ Play Mode ......................... .287
▫ List Or Browse Mode ...................289
▫ Bluetooth Streaming Audio (BTSA) .........291
 STEERING WHEEL AUDIO CONTROLS ......293
▫ Radio Operation ..................... .293
▫ CD Player .......................... .294
CD/DVD DISC MAINTENANCE ...........294
RADIO OPERATION AND MOBILE PHONES . . .295
 CLIMATE CONTROLS ...................295
▫ Manual Heating And Air Conditioning ......296
▫ Automatic Temperature Control (ATC) —
If Equipped ........................ .300
▫ Operating Tips ...................... .306
4
UNDERSTANDING YOUR INSTRUMENT PANEL 209

INSTRUMENT PANEL FEATURES
1 — Air Outlet5 — Storage Bin9 — Heated Seat Switch – If Equipped
2 — Demisters 6 — Glove Compartment10 — Hazard Warning Flasher
3 — Instrument Cluster 7 — Climate Controls11 — ESC OFF Switch – If Equipped
4 — Radio 8 — Power Outlet12 — Heated Seat Switch – If Equipped
210 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT CLUSTER
4
UNDERSTANDING YOUR INSTRUMENT PANEL 211

INSTRUMENT CLUSTER DESCRIPTIONS
1. Fuel Gauge/Fuel Door ReminderWhen the ignition switch is in the ON/RUN
position, the pointer will show the level of fuel
remaining in the fuel tank. The fuel pump
symbol points to the side of the vehicle where
the fuel door is located.
2. Charging System Light
This light shows the status of the electrical charg-
ing system. The light should come on when the
ignition switch is first turned to ON/RUN and remain on
briefly as a bulb check. If the light stays on or comes on
while driving, turn off some of the vehicle’s non-essential
electrical devices or increase engine speed (if at idle). If
the charging system light remains on, it means that the
vehicle is experiencing a problem with the charging
system. Obtain SERVICE IMMEDIATELY. See an autho-
rized dealer. If jump starting is required, refer to “Jump Starting
Procedures” in “What To Do In Emergencies”.
3. Electronic Throttle Control (ETC) Light
This light informs you of a problem with the
Electronic Throttle Control (ETC) system. If a
problem is detected, the light will come on
while the engine is running. Cycle the ignition
key when the vehicle has completely stopped and the
shift lever is placed in the PARK position. The light
should turn off. If the light remains lit with the engine
running, your vehicle will usually be drivable; however,
see an authorized dealer for service as soon as possible. If
the light is flashing when the engine is running, imme-
diate service is required and you may experience reduced
performance, an elevated/rough idle or engine stall and
your vehicle may require towing. The light will come on
when the ignition is first turned to ON/RUN and remain
212 UNDERSTANDING YOUR INSTRUMENT PANEL

on briefly as a bulb check. If the light does not come on
during starting, have the system checked by an autho-
rized dealer.

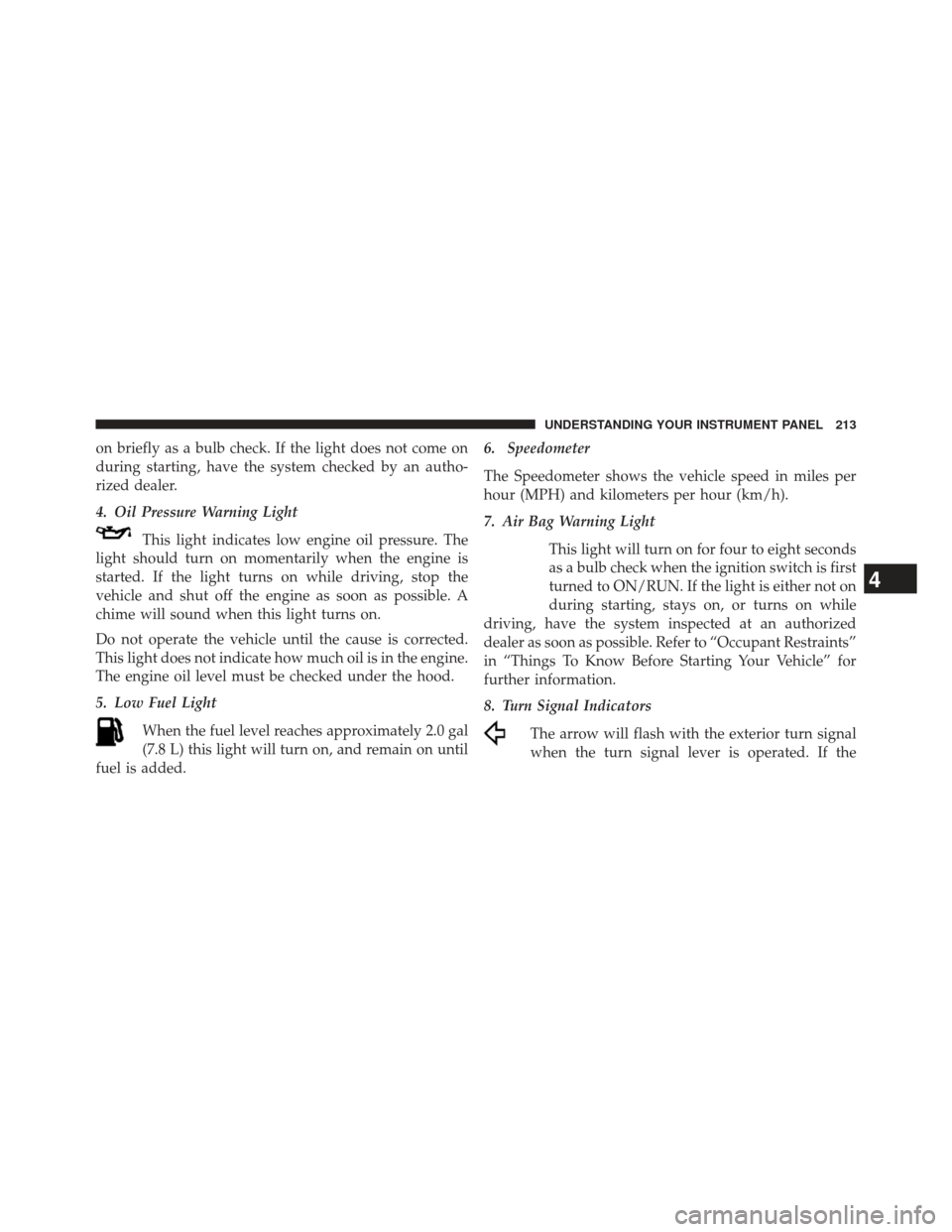

4. Oil Pressure Warning LightThis light indicates low engine oil pressure. The
light should turn on momentarily when the engine is
started. If the light turns on while driving, stop the
vehicle and shut off the engine as soon as possible. A
chime will sound when this light turns on.
Do not operate the vehicle until the cause is corrected.
This light does not indicate how much oil is in the engine.
The engine oil level must be checked under the hood.
5. Low Fuel Light
When the fuel level reaches approximately 2.0 gal
(7.8 L) this light will turn on, and remain on until
fuel is added. 6. Speedometer
The Speedometer shows the vehicle speed in miles per
hour (MPH) and kilometers per hour (km/h).
7. Air Bag Warning Light
This light will turn on for four to eight seconds
as a bulb check when the ignition switch is first
turned to ON/RUN. If the light is either not on
during starting, stays on, or turns on while
driving, have the system inspected at an authorized
dealer as soon as possible. Refer to “Occupant Restraints”
in “Things To Know Before Starting Your Vehicle” for
further information.
8. Turn Signal Indicators
The arrow will flash with the exterior turn signal
when the turn signal lever is operated. If the
4
UNDERSTANDING YOUR INSTRUMENT PANEL 213

vehicle is driven more than 1 mile (1.6 km) with either
turn signal on, a continuous chime will sound to alert
you to turn the signals off.
NOTE:If either indicator flashes at a rapid rate, check
for a defective outside light bulb.

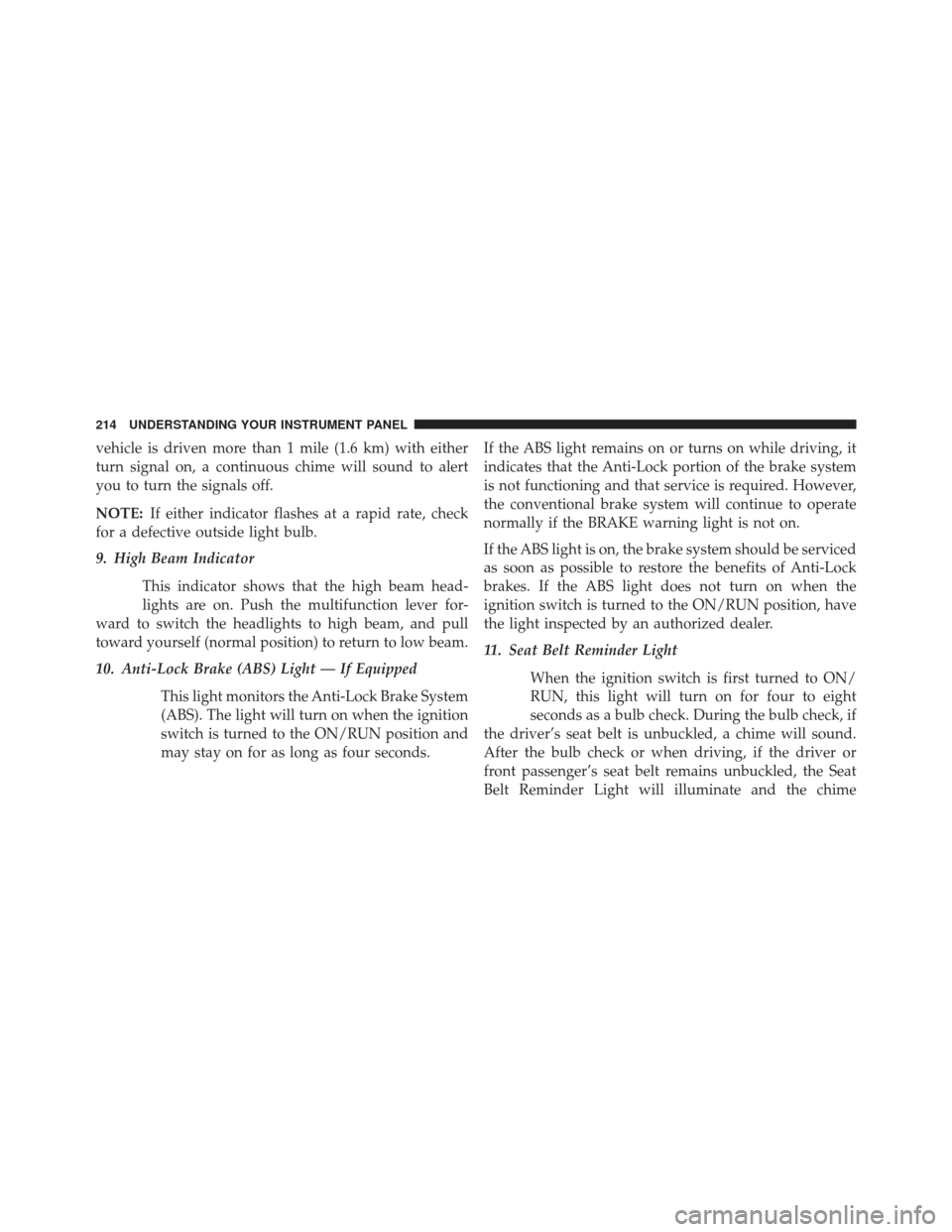

9. High Beam Indicator
This indicator shows that the high beam head-
lights are on. Push the multifunction lever for-
ward to switch the headlights to high beam, and pull
toward yourself (normal position) to return to low beam.
10. Anti-Lock Brake (ABS) Light — If Equipped
This light monitors the Anti-Lock Brake System
(ABS). The light will turn on when the ignition
switch is turned to the ON/RUN position and
may stay on for as long as four seconds. If the ABS light remains on or turns on while driving, it
indicates that the Anti-Lock portion of the brake system
is not functioning and that service is required. However,
the conventional brake system will continue to operate
normally if the BRAKE warning light is not on.
If the ABS light is on, the brake system should be serviced
as soon as possible to restore the benefits of Anti-Lock
brakes. If the ABS light does not turn on when the
ignition switch is turned to the ON/RUN position, have
the light inspected by an authorized dealer.
11. Seat Belt Reminder Light
When the ignition switch is first turned to ON/
RUN, this light will turn on for four to eight
seconds as a bulb check. During the bulb check, if
the driver’s seat belt is unbuckled, a chime will sound.
After the bulb check or when driving, if the driver or
front passenger’s seat belt remains unbuckled, the Seat
Belt Reminder Light will illuminate and the chime
