2013 JEEP PATRIOT Owners Manual

Exterior Bulbs
Bulb Number
Low Beam/High Beam
Headlamp H13
Front Park/Turn Signal/
Side Marker Lamp 3757KA
Front Fog Lamp PSX24W
Center High Mounted
Stop Lamp (CHMSL) LED Assembly (Serviced
At Authorized Dealer)
Rear Tail/Turn/Stop
Lamp 3157
Backup Lamp W16W (921)
License Lamp W5W
BULB REPLACEMENT
Headlamps
1. Raise the hood and locate the connector behind the
headlamp.
2. Reach into engine compartment and pull red lock out at connector.
3. Remove the green connector from the back of the bulb by pulling straight back.
4. Twist the bulb to the left.
5. Pull bulb outward from assembly.
NOTE: These are halogen bulbs. Take care not to touch
the bulb with your fingers. Body oils from your fingers
could cause excessive heat buildup which reduces bulb
life.
7
MAINTAINING YOUR VEHICLE 479

Fog Lamps
Refer to the Service Manual or see your authorized dealer
for bulb replacement.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
Rear Tail, Turn Signal And Backup Lamps
1. Raise the liftgate.
2. Remove the two push-pins from the taillamp housing.3. Grasp the taillamp and pull firmly to disengage the
light from the aperture panel.
4. Twist and remove socket from the light.
5. Remove bulb from socket and replace.
License Lamps
1. Use a screw driver to gently pry against the side of the snap tab to remove the lamp from the liftgate.
2. Rotate the socket 1/4 turn counterclockwise.
3. Pull the bulb from the socket.
Center High-Mounted Stoplamp
This light is an LED assembly. See your authorized dealer
for replacement.
480 MAINTAINING YOUR VEHICLE

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate) 13.6 Gallons51.5 Liters
Engine Oil with Filter
2.0L and 2.4L Engine
(SAE 5W-20, API Certified) 4.5 Quarts
4.26 Liters
Cooling System *
2.0L and 2.4L Engine
(MOPAR Antifreeze/Engine
Coolant 10 Year/150,000 Mile
Formula or equivalent) 7.2 Quarts
6.8 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
7
MAINTAINING YOUR VEHICLE 481

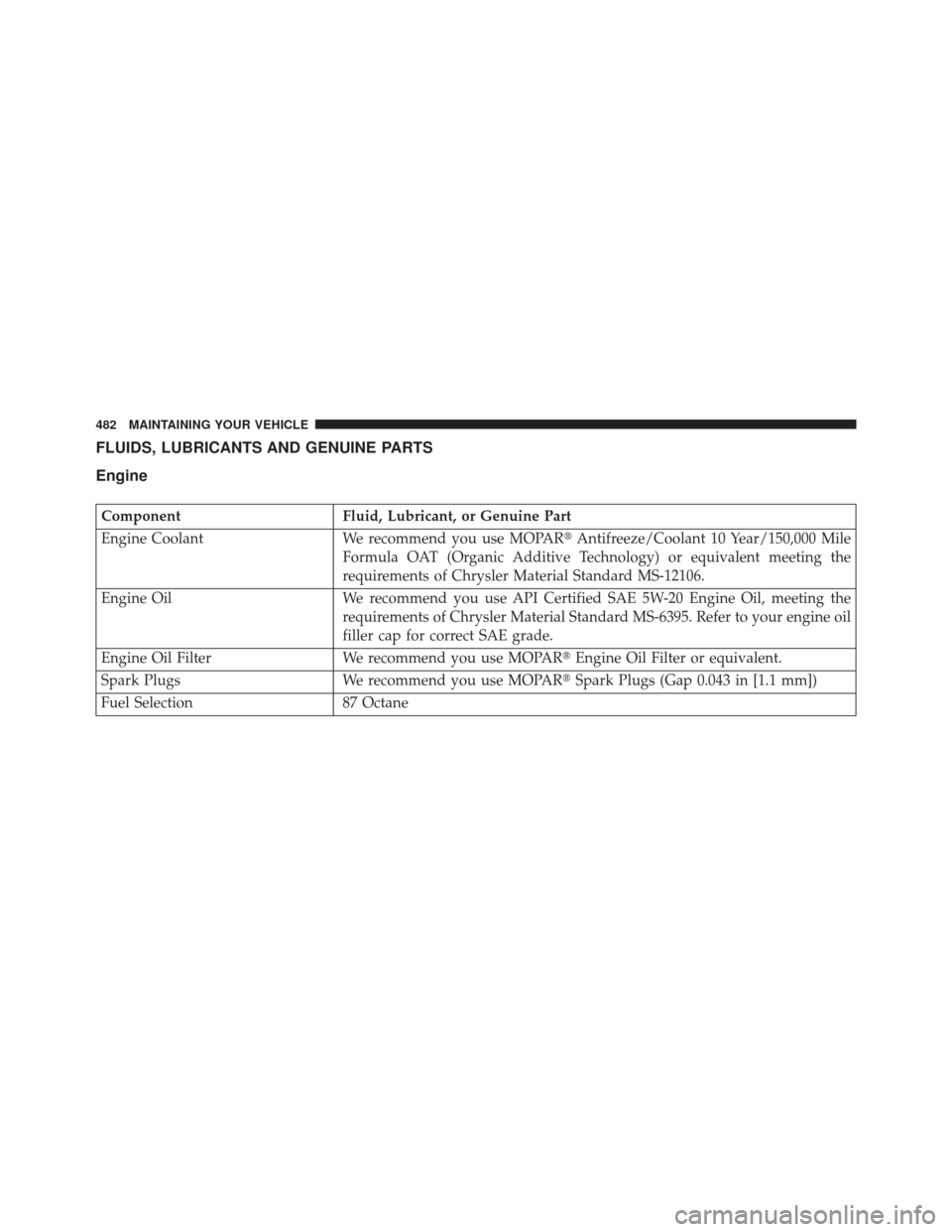

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use MOPARAntifreeze/Coolant 10 Year/150,000 Mile
Formula OAT (Organic Additive Technology) or equivalent meeting the
requirements of Chrysler Material Standard MS-12106.
Engine Oil We recommend you use API Certified SAE 5W-20 Engine Oil, meeting the
requirements of Chrysler Material Standard MS-6395. Refer to your engine oil
filler cap for correct SAE grade.
Engine Oil Filter We recommend you use MOPAREngine Oil Filter or equivalent.
Spark Plugs We recommend you use MOPARSpark Plugs (Gap 0.043 in [1.1 mm])
Fuel Selection 87 Octane
482 MAINTAINING YOUR VEHICLE

Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic Transmission (CVT) – If Equipped We recommend you use MOPAR CVTF+4 Continuously
Variable Transmission Fluid.
Manual Transmission – If Equipped We recommend you use MOPARATF+4 Automatic Transmis-
sion Fluid.
Rear Drive Assembly (RDA) We recommend you use MOPARGear & Axle Lubricant
SAE 80W-90 API GL 5.
Power Transfer Unit (PTU) We recommend you use MOPARGear & Axle Lubricant
SAE 80W-90 API GL 5.
Brake Master Cylinder We recommend you use MOPARDOT 3, SAE J1703 should
be used. If DOT 3, SAE J1703 brake fluid is not available, then
DOT 4 is acceptable.
Power Steering Reservoir We recommend you useMOPARPower Steering Fluid +4,
MOPAR ATF+4Automatic Transmission Fluid.
7
MAINTAINING YOUR VEHICLE 483

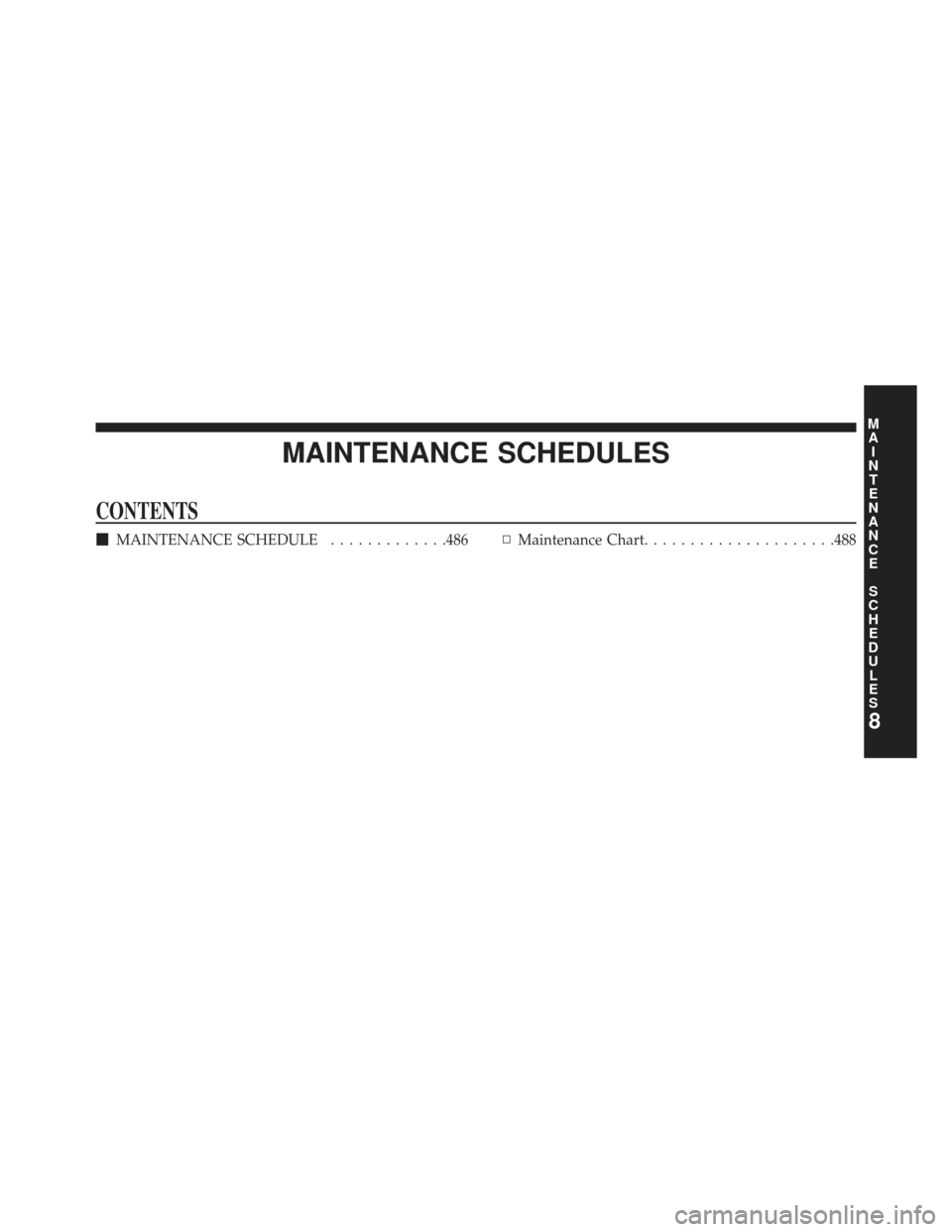

MAINTENANCE SCHEDULES
CONTENTS
MAINTENANCE SCHEDULE .............486▫Maintenance Chart .....................488
8
M
A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
S

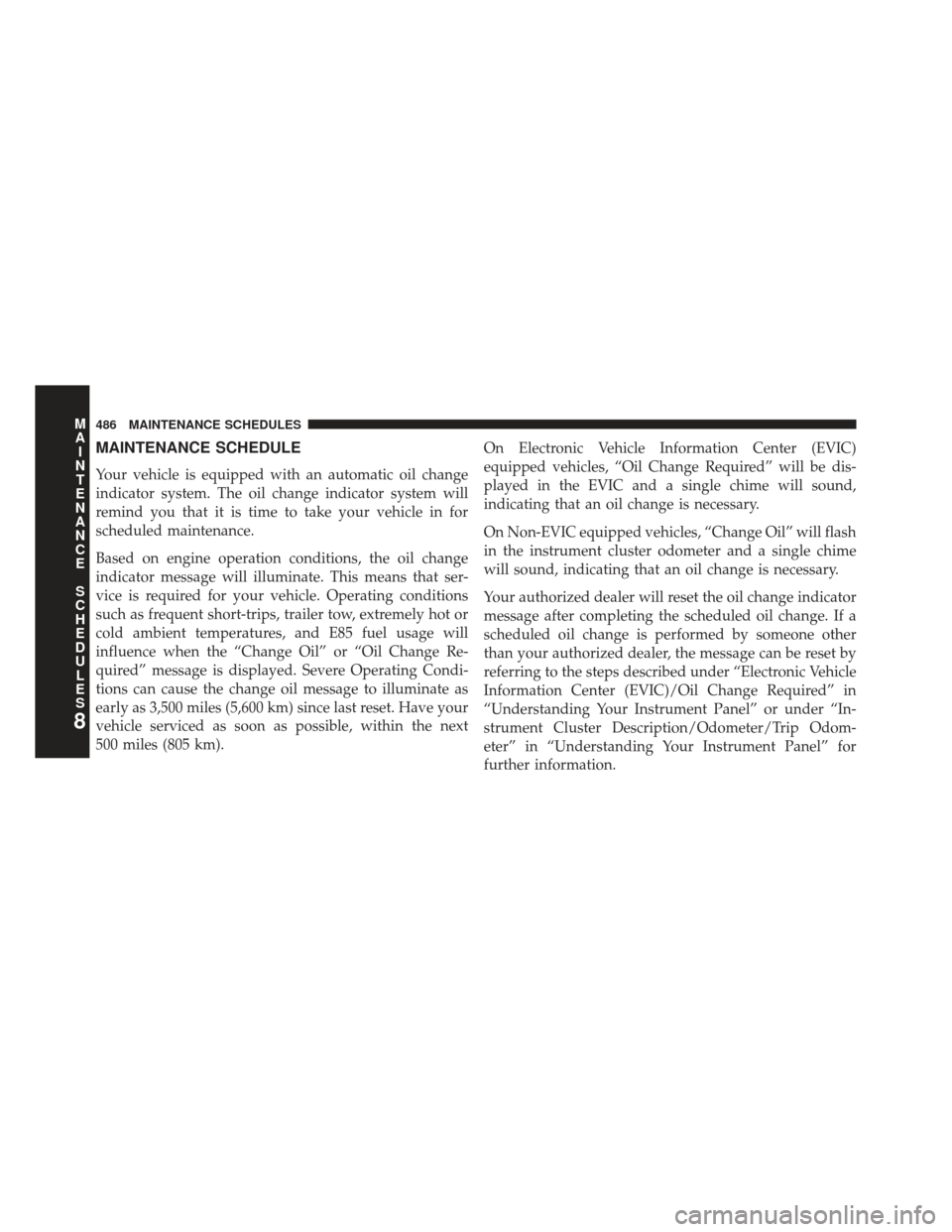

MAINTENANCE SCHEDULE
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, extremely hot or
cold ambient temperatures, and E85 fuel usage will
influence when the “Change Oil” or “Oil Change Re-
quired” message is displayed. Severe Operating Condi-
tions can cause the change oil message to illuminate as
early as 3,500 miles (5,600 km) since last reset. Have your
vehicle serviced as soon as possible, within the next
500 miles (805 km).On Electronic Vehicle Information Center (EVIC)
equipped vehicles, “Oil Change Required” will be dis-
played in the EVIC and a single chime will sound,
indicating that an oil change is necessary.
On Non-EVIC equipped vehicles, “Change Oil” will flash
in the instrument cluster odometer and a single chime
will sound, indicating that an oil change is necessary.
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other
than your authorized dealer, the message can be reset by
referring to the steps described under “Electronic Vehicle
Information Center (EVIC)/Oil Change Required” in
“Understanding Your Instrument Panel” or under “In-
strument Cluster Description/Odometer/Trip Odom-
eter” in “Understanding Your Instrument Panel” for
further information.
8
M
A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
S486 MAINTENANCE SCHEDULES
