2013 HONDA RIDGELINE Owners Manual

µ
µ µ
´µ These modes adjust
the strength of the sound coming
f rom each speaker. Lef t/Right
balance adjusts the side-to-side
strength, while Front/Rear f ader
adjusts the front-to-back strength.
To adjust the left/right balance,
touch the ‘‘L’’ or ‘‘R’’ icon. To adjust
the f ront/rear f ader, touch the ‘‘FR’’
or ‘‘RR’’ icon. The audio system can also be
operated by voice control. See the
navigation system manual f or
complete details.
To adjust the treble
and bass, touch or on each
side of the treble or bass adjustment
bar. The adjustment bar shows you
the current setting. Adjusts the
strength of sound f rom the
subwoof er speaker.
To see the audio display when you
are f inished adjusting the sound,
wait 5 seconds. You can use the instrument panel
brightness control dial to adjust the
illumination of the audio system (see
page ). The audio system
illuminates when the parking lights
are on, even if the radio is of f .
98On models with navigation system
L ef t/Right Balance and Front/
Rear Fader
Voice Control System
Treble/Bass SUBWOOFERA udio System L ighting
Playing the AM/FM Radio
164
12/08/09 16:21:11 31SJC670_171
Features

The radio can receive the complete
AM and FM bands.
Those bands cover these
frequencies:
AM band: 530 to 1,710 kHz
FM band: 87.7 to 107.9 MHz
Radio stations on the AM band are
assigned f requencies at least 10 kHz
apart (530, 540, 550). Stations on the
FM band are assigned f requencies at
least 0.2 MHz apart (87.9, 88.1, 88.3).Driving very near the transmitter of
a station that is broadcasting on a
f requency close to the f requency of
the station you are listening to can
also af f ect your radio’s reception.
You may temporarily hear both
stations,orhearonlythestationyou
are close to.
How well the radio receives stations
is dependent on many f actors, such
as the distance from the station’s
transmitter, nearby large objects,
atmospheric conditions, and even
items stored on the roof rack.
A radio station’s signal gets weaker
as you get f arther away f rom its
transmitter. If you are listening to an
AM station, you will notice the sound
volume becoming weaker, and the
stationdriftinginandout.If youare
listening to an FM station, you will
see the stereo indicator f lickering of f
and on as the signal weakens.
Eventually, the stereo indicator will
go of f and the sound will f ade
completely as you get out of range of
the station’s signal.
Stations must use these exact
f requencies. It is f airly common f or
stations to round-of f the f requency in
their advertising, so your radio could
display a f requency of 100.9 even
though the announcer may identif y
the station as ‘‘FM101.’’
CONT INUED
Radio Frequencies
Radio Reception
A M/FM Radio Reception
165
12/08/09 16:21:19 31SJC670_172
Features

Radio signals, especially on the FM
band, are def lected by large objects
such as buildings and hills. Your
radio then receives both the direct
signal f rom the station’s transmitter,
and the def lected signal. This causes
the sound to distort or flutter. This is
a main cause of poor radio reception
in city driving.Radio reception can be af f ected by
atmospheric conditions such as
thunderstorms, high humidity, and
even sunspots. You may be able to
receive a distant radio station one
day and not receive it the next day
because of a change in conditions.
Electrical interf erence f rom passing
vehicles and stationary sources can
cause temporary reception problems.This device complies with the
appropriate requirements or the
required standards. See page f or
more inf ormation.
400
A M/FM Radio Reception
166
12/08/09 16:21:25 31SJC670_173
Features

CONT INUED

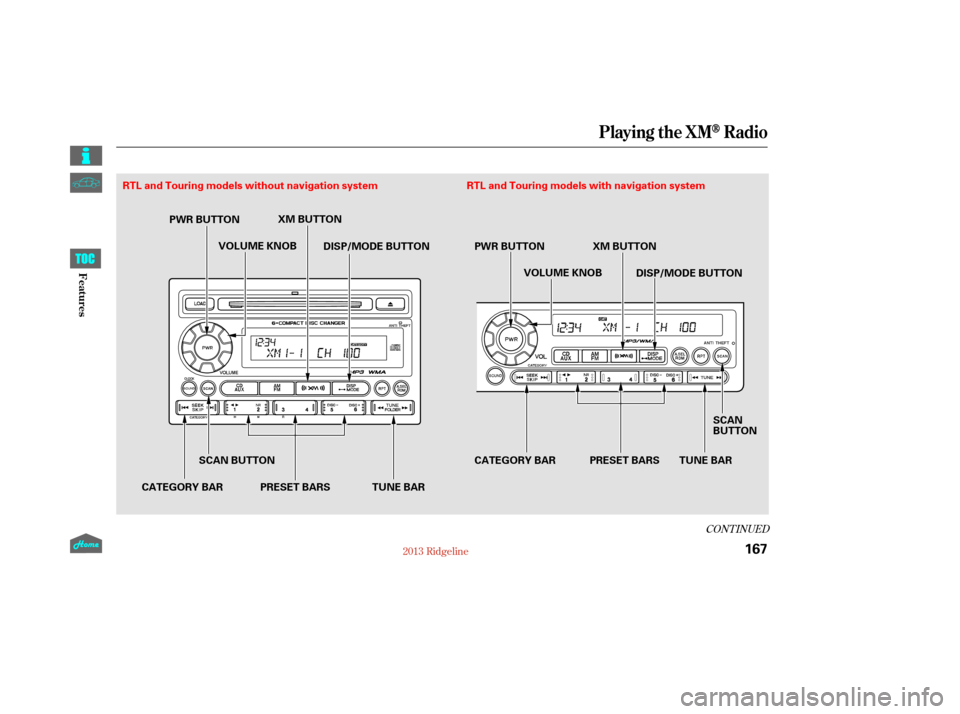

Playing the XMRadio
167
TUNE BAR
CATEGORY BAR CATEGORY BAR PRESET BARSSCAN
BUTTON
TUNE BAR
PRESET BARS XM BUTTON
XM BUTTON
VOLUME KNOB
VOLUME KNOB
SCAN BUTTON
RTL and Touring models without navigation system
RTL and Touring models with navigation system
PWR BUTTON DISP/MODE BUTTON PWR BUTTON DISP/MODE BUTTON
12/08/09 16:21:31 31SJC670_174
Features

µOn the audio display, you will see the
selected CHANNEL (number),
CATEGORY, NAME (artist name),
and TITLE (music title).
You may experience periods when
XM Radio does not transmit the
artist’s name and song title
inf ormation. If this happens, there is
nothing wrong with your system.
XM Radio receives signals f rom two
satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, XM Radio
allows you to view channel and
category selections in the display.
The navigation system screen also
shows all XM inf ormation when the
AUDIO button is pressed.
To listen to XM radio, turn the
ignition switch to the ACCESSORY
(I) or ON (II) position. Push the
PWR button to turn on the audio system, and press the XM button.
Adjust the volume by turning the
volume knob. The last channel you
listened to will show in the display.
Each time you press and release the
DISP/MODE button, the display
changes in the f ollowing sequence:
Channel name, channel number,
category, artist name, and music title. In channel mode, you can select all
of the available channels. In category
mode, such as Jazz, Rock, Classical,
etc., you can select all of the
channels within that category.
To switch between
channel mode and category mode,
press and hold the DISP/MODE
button until the mode changes. You can also change to the XM
Radio while you are listening to an
FM station, AM station, CD, etc. by
touching the XM1 or XM2 icon on
the audio display (navigation
system screen).
Your vehicle is capable of receiving
XM
Radio anywhere in the United
States and Canada, except Hawaii,
Alaska,andPuertoRico.XMisa
registered trademark of Sirius XM
Radio
,Inc.andXMCANADAis a
registered business name of
Canadian Satellite Radio Inc.
On RTL and Touring models
Playing the XMRadio
Operating the XM Radio MODE
168
On vehicles with navigation system
12/08/09 16:21:39 31SJC670_175
Features

µµ
µ µ
Press the TUNE bar to
change channel selections. Press f or higher numbered channels
and f or lower numbered
channels. In the category mode,
Press either side of the CATEGORY
bar ( or ) to select
The scan function gives
mode, only the channels within that
category are scanned. To activate
scan, press the SCAN button or
touch the SCAN icon on the screen.
The system plays each channel in
numerical order for a few seconds,
then selects the next channel. When
you hear a channel you want
to listen to, press the button or
touch the icon again. Youcanstoreupto12
preset channels using each side of
the preset bar or preset icons on the
screen. Each side of the bar stores
one channel f rom the XM1 band and
one channel f rom the XM2 band. Pick a preset number (icon) you
want for that channel. Press and
hold the bar (icon) until you hear
a beep.
Repeat steps 2 and 3 to store the
f irst six channels.
Once a channel is stored, press and
release the proper side of the preset
bar (icon) to tune to it.
To store a channel:
Press the XM button. Either XM1
or XM2 will show in the display.
Usethetune,seek,orscan
function to tune to a desired
channel. Press the XM button again or
touch the other XM icon (XM1 or
XM2) on the audio display. Store
the next six channels using steps 2
and 3.
In category mode, only channels
within that category can be
selected. In channel mode,
all channels can be selected. 1.
2. 3.
4.
5.
TUNE
SEEK /SK IP (CA T EGORY)
SCAN Preset
Playing the XMRadio
169
12/08/09 16:21:49 31SJC670_176
Featuresthat category. you can only select channels within
another category.
you a sampling of all channels while
in the channel mode. In the category

µµ
µ µ µ
µ
XM is loading the
audio or program inf ormation. The signal is
currently too weak. Move the vehicle
to an area away from tall buildings,
and with an unobstructed view of the
southern horizon.
The channel
currently selected is no
The encryption
code is being updated. Wait until the
encryption code is f ully updated.
Channels 0 and 1 should still The selected channel
number does not exist, or is not part
of your subscription, or this channel
has no artist or title inf ormation at
this time.
There is a problem
with the XM antenna. Please consult
your dealer.
XM Radio Display Messages
‘‘L OA DING’’
‘‘NO SIGNA L ’’
‘‘OFF A IR’’
‘‘UPDA T ING’’ ‘‘----’’
‘‘A NT ENNA ’’
Playing the XMRadio
170
12/08/09 16:21:54 31SJC670_177
Featureslonger broadcasting.
work normally.

The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate f or this, ground-based
repeaters are placed in major
metropolitan areas.
Satellite signals are more likely to be
blocked by tall buildings and
mountains the f arther north you
travel f rom the equator. Carrying
large items on a roof rack can also
block the signal.
CONT INUED
Playing the XMRadio
171
Signal may be blocked by
mountains or large obstacles to
the south.Signal weaker in
these areas.
SATELLITE GROUND REPEATER
12/08/09 16:21:59 31SJC670_178
Features
