2013 HONDA RIDGELINE Owners Manual

You can adjust the direction of the
air coming from the rear vents in the
back of the center console by
moving the tab in the center of each
vent up-and-down and side-to-side.
You can also adjust the amount of
airf low by turning the dial between
the vents.
For your saf ety, make sure you have
a clear view through all the windows
bef ore driving.
When the indicator in the button is
on, the passenger’s side temperature
automatically adjusts to the driver’s
side temperature.
Your vehicle has heating wires at the
bottom of the windshield to help
heat the wiper blades and the
windshield. If the outside
temperature is near f reezing, the
heater turns on automatically when
you turn the ignition switch to the
ON (II) position. The heater turns
of f automatically when the outside
temperature is above f reezing.
This f unction helps to increase wiper
perf ormance when the wiper arms
sit in the parked position in snowy or
icy conditions.Rear Ventilation
Automatic Heated Wiper Zone
Climate Control System
156
TABS DIAL
12/08/09 16:20:10 31SJC670_163
Features

The temperatures of the driver’s side
and the front passenger’s side are
controlled independently.
To adjust each temperature, turn
either of the temperature control
dials on the climate control panel.
When you set each temperature to
its lower limit or its upper limit, it will
be displayed as ‘‘ ’’ or ‘‘ .’’
Climate Control System
Dual Temperature Control
157
Driver’s SidePassenger’s Side
12/08/09 16:20:16 31SJC670_164
Features

Theclimatecontrolsystemhastwo
sensors. A sunlight sensor is in the
top of the dashboard, and a
temperature sensor is under the
steering column. Do not cover the
sensors or spill any liquid on them. Sunlight and
Temperature Sensors
Climate Control System
158
SUNLIGHT SENSORTEMPERATURE SENSOR
12/08/09 16:20:21 31SJC670_165
Features

CONT INUED

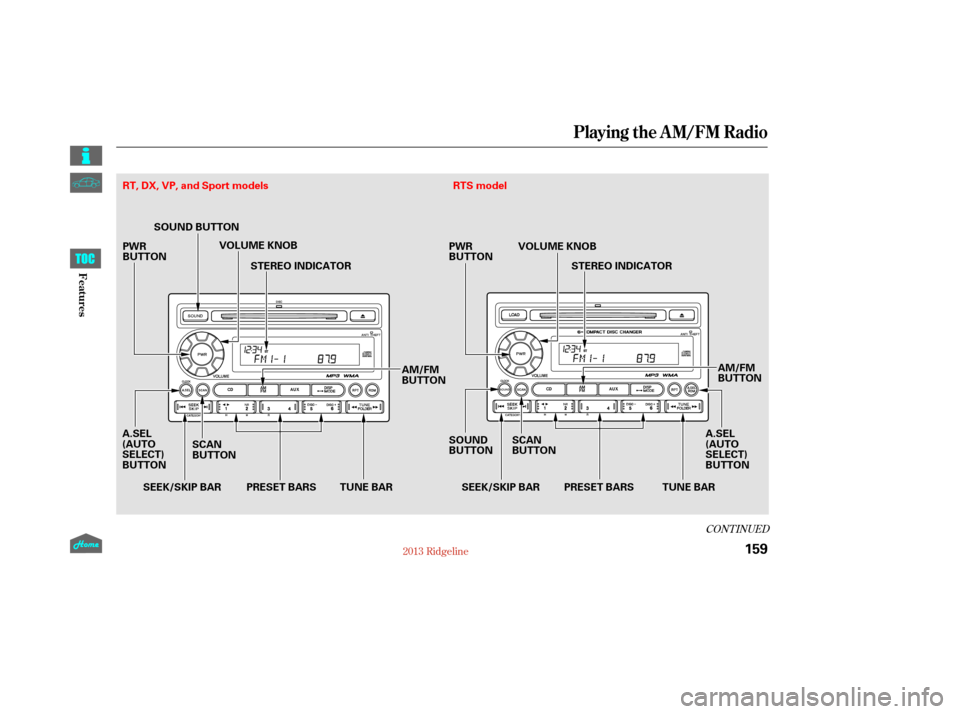

Playing the AM/FM Radio
159
AM/FM
BUTTON
SCAN
BUTTON SEEK/SKIP BAR
SOUND BUTTON
VOLUME KNOB
STEREO INDICATOR
TUNE BAR PRESET BARS TUNE BAR
A.SEL
(AUTO
SELECT)
BUTTON
SOUND
BUTTONRTS model
VOLUME KNOBSTEREO INDICATOR
SCAN
BUTTON AM/FM
BUTTON
A.SEL
(AUTO
SELECT)
BUTTON
PRESET BARS
SEEK/SKIP BAR
PWR
BUTTON
PWR
BUTTON
RT, DX, VP, and Sport models
12/08/09 16:20:28 31SJC670_166
Features

Playing the AM/FM Radio
160
SCAN
BUTTONTUNE BAR
PRESET BARS
SEEK/SKIP BAR
SOUND
BUTTON STEREO INDICATOR
TUNE BAR VOLUME KNOB
STEREO INDICATOR
AM/FM BUTTON
A.SEL (AUTO SELECT) BUTTON
SEEK/SKIP BAR
SOUND
BUTTON
AM/FM
BUTTON
VOLUME KNOB
A.SEL
(AUTO
SELECT)
BUTTON SCAN
BUTTON
PRESET BARS

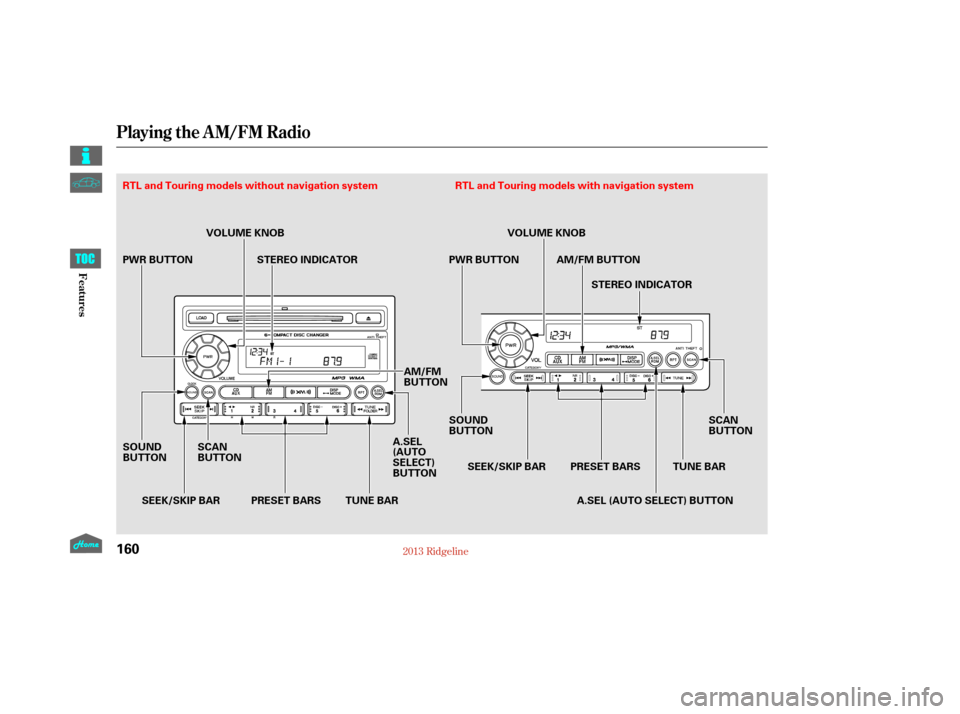

RTL and Touring models without navigation system
RTL and Touring models with navigation system
PWR BUTTON PWR BUTTON
12/08/09 16:20:34 31SJC670_167
Features

µ
µ
µ
µµ
µ
You can use any of f ive methods to
f ind radio stations on the selected
band: tune, seek, scan, the preset
bars, and auto select.
Use the TUNE bar to tune
the radio to a desired f requency.
Press the side of the bar to tune
to a higher f requency, and press the side to tune to a lower
f requency.
The scan f unction samples
all stations with strong signals on the
selected band. To activate it, press
the SCAN button, then release it.
You will see SCAN in the display.
When the system finds a strong signal, it will stop and play that
station f or about 10 seconds.
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
PWR button or the AM/FM button.
Adjust the volume by turning the
volume knob.
Pushing the AUDIO button will also
turn on the system (see page ).
The band and f requency that the
radio was last tuned to are displayed.
To change bands, press the AM/FM
button. On the FM band, ST will be
displayed if the station is
broadcasting in stereo. Stereo
reproduction in AM is not available.
On the AM band, AM noise
reduction turns on automatically. The SEEK f unction
searches up and down from the
current f requency to f ind a station
with a strong signal. To activate it,
press the or side of the
SEEK/SKIP bar, then release it. If you do nothing, the system will
scan f or the next strong station and
play it f or 10 seconds. When it plays
a station that you want to listen to,
press the SCAN button again.
Each side of the bars (1
6) can store one f requency on AM
and two f requencies on FM.
Usethetune,seek,orscan
function to tune the radio to a
desired station. Select the desired band, AM or
FM. FM1 and FM2 let you store
six stations each.
Pick a preset number (1 6),
then press and hold it
until you hear a beep.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM.
1.
2.
3.
4.
163
CONT INUED
On models with navigation system
T o Play the A M/FM Radio
T o Select a Station
TUNE
SCAN SEEK Preset
Playing the AM/FM Radio
161
12/08/09 16:20:45 31SJC670_168
Features

µµ
µ µ
µ
µ
If you do not like the stations auto
select has stored, you can store
other f requencies on the preset bars
as previously described.
,pressthe
A. SEL (auto select) button. This
restores the presets you
originally set.
If you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area.
Press the A.SEL button. ‘‘A.SEL’’
f lashes in the display, and the system
goes into scan mode f or several
seconds. It stores the f requencies of
six AM, and twelve FM stations in
the preset bars.
You will see a ‘‘0’’ displayed af ter
pressing a preset bar if auto select
cannot f ind a strong station f or every
preset bar. Adjusts the
strength of sound f rom the
subwoof er speaker.
Adjusts the bass.Adjusts the treble.
Adjusts the front-to-back
strength of the sound.
Adjusts the side-to-
side strength of the sound.
For inf ormation on FM/AM radio
f requencies and reception, see
page .
Press the SOUND button repeatedly
to display the SUBWOOFER (if
equipped), BASS, TREBLE, FADER,
and BALANCE settings. Eachmodeisshowninthedisplayas
it changes. Turn the VOLUME knob
to adjust the setting to your liking.
When the level reaches the center,
youwillsee‘‘ ’’inthedisplay.
The system will automatically return
the display to the selected audio
mode about 10 seconds af ter you
stop adjusting a mode.
165
To turn of f auto select
If equipped
AUTO SELECT
SUBWOOFER
BASS
TREBLE
FADER
BAL ANCE
Adjusting the Sound
Playing the AM/FM Radio
162
12/08/09 16:20:56 31SJC670_169
Features

µ
µ
In addition to the knobs, buttons,
and bars on the radio control
panel, you can operate some of the
radio controls on the navigation
system screen. To adjust the sound, push the
AUDIO button, then enter the sound
grid by touching the SOUND icon on
the display.
While you are listening to the radio,
you can change to another band by
pressing the AUDIO button next to
the navigation system screen, and
then touching the desired band icon
(FM1, FM2, or AM).
AUTO SELECT, SCAN, and SOUND
are adjustable f rom the navigation
screen. For an explanation of these
f unctions, see pages and .
Touch the
A.SEL icon to activate the auto select
f unction. You will see A.SEL f lashing
on the display.
Touch the SCAN icon to
activate the scan function. You will
see SCAN on the display. Touch the
icon again to deactivate it. 161 162
CONT INUED
On models with navigation system
Operating the Radio on the
Navigation System Screen
AUTO SELECT
SCANA djust ing t he Sound
Playing the AM/FM Radio
163
AUDIO BUTTON
12/08/09 16:21:04 31SJC670_170
Features
