2013 HONDA CROSSTOUR Owners Manual

544
Handling the Unexpected
When You Cannot Open the Tailgate
If you cannot open the tailgate, use the following procedure.1.Use a flat-tip screwdriver and remove the
cover on the inside of the tailgate.
uWrap the flap-tip screwdriver with a
cloth to prevent scratches.
2. To open the tailgate, push the tailgate
while sliding the lever to the side using a
flat-tip screwdriver.
■What to Do When Unab le to Open the Tailgate1What to Do When Unable to Open the Tailgate
What to do-Following up
After taking these steps, contact a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
Cover
Lever
Main MenuTable of contents

545

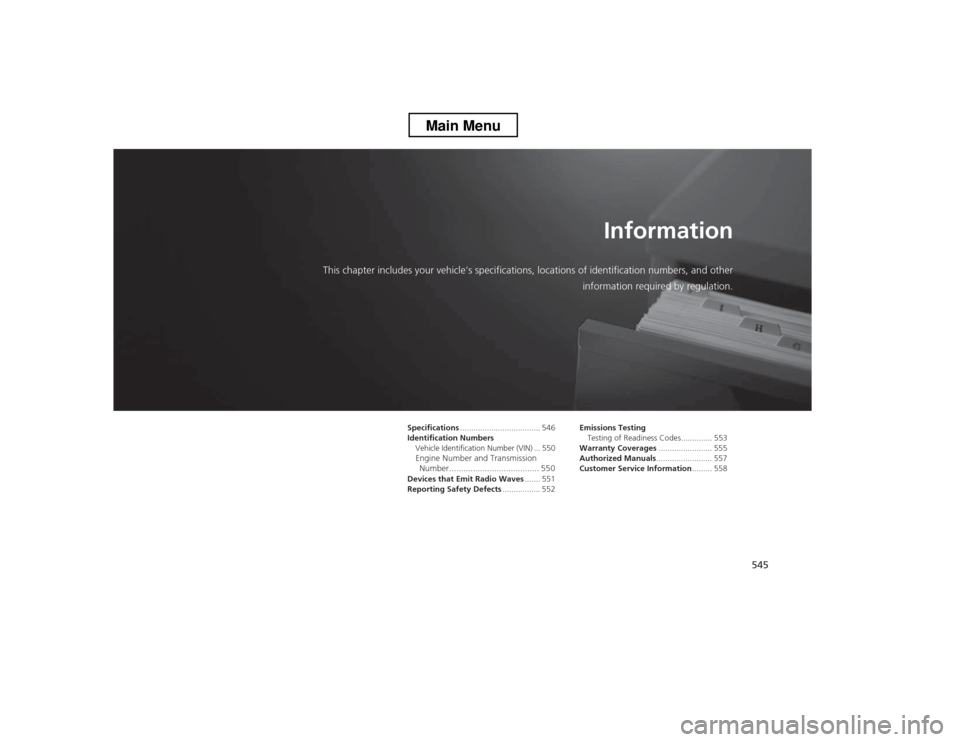

Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other information required by regulation.
Specifications.................................... 546
Identification Numbers
Vehicle Identification Number (VIN) ... 550
Engine Number and Transmission
Number...................................... 550
Devices that Emit Radio Waves ....... 551
Reporting Safety Defects ................. 552Emissions Testing
Testing of Readiness Codes.............. 553
Warranty Coverages ........................ 555
Authorized Manuals ......................... 557
Customer Service Information ......... 558
Main Menu

546
Information
Specifications
■Vehicle SpecificationsModelCrosstour
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating U.S.: 4,784 lbs (2,170 kg)
Canada: 2,170 kg
Gross Axle Weight
Rating (Front)U.S.: 2,469 lbs (1,120 kg)
Canada: 1,120 kg
Gross Axle Weight
Rating (Rear)U.S.: 2,381 lbs (1,080 kg)
Canada: 1,080 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 14.1 – 15.9 oz (400 – 450 g)
Lubricant Type ND-OIL 8
4-cylinder models■Engine Specifications
■Fuel
■Battery
*1: Canadian models
■Washer Fluid
Displacement144 cu-in (2,354 cm 3
)
Spark Plugs NGK ILZKR7B11S
DENSO SXU22HCR11S
Fuel: TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 18.5 US gal (70 ℓ)
Capacity/Type38AH(5)/47AH(20)
52AH(5)/65AH(20) *1
Tank Capacity5.3 US qt (5.0 ℓ)
■Light BulbsHeadlights (Low Beam)55W (H11)
Headlights (High Beam) 60W (HB3)
Fog Lights55W (H11)
Front Side Marker Lights 5W
Front Turn Signal/Parking Lights24/2.2CP (Amber)
Brake/Taillights 21/5W
Rear Side Marker Lights3CP
Back-Up Lights 21W
Rear Turn Signal Lights21W (Amber)
High-Mount Brake Light LED
Rear License Plate Lights5W
Cargo Area Light 5W
Interior LightsMap Lights8WCeiling Light8WVanity Mirror Lights1.4WGlove Box Light1.4WAmbient LightLEDCourtesy Lights2CP
Main MenuTable of contents

547
uuSpecificationsu
Continued
Information
■Brake Fluid
■Automatic Transmission Fluid
■Power Steering Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda ATF DW-1
(automatic transmission fluid)
Capacity Change 2.6 US qt (2.5 ℓ)
SpecifiedHonda Power Steering Fluid
■Engine Oil
■Engine Coolant
Recommended

548
uuSpecificationsu
Information
■Vehicle Specifications
*1: 2WD models
*2: 4WD modelsModelCrosstour
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating U.S.: 4,938 lbs (2,240 kg) *1
5,115 lbs (2,320 kg) *2
Canada: 2,240 kg *1
2,320 kg *2
Gross Axle Weight
Rating (Front)U.S.: 2,623 lbs (1,190 kg)
*1
2,668 lbs (1,210 kg) *2
Canada: 1,190 kg *1
1,210 kg *2
Gross Axle Weight
Rating (Rear)U.S.: 2,381 lbs (1,080 kg) *1
2,513 lbs (1,140 kg) *2
Canada: 1,080 kg *1
1,140 kg *2
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 14.1 – 15.9 oz (400 – 450 g)
Lubricant Type ND-OIL 8
6-cylinder models■Engine Specifications
■Fuel
■Battery
■Washer Fluid
Displacement212 cu-in (3,471 cm 3
)
Spark Plugs NGK ILZKR7B11
DENSO SXU22HCR11
Fuel: TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 18.5 US gal (70 ℓ)
Capacity/Type60AH(5)/72AH(20)
Tank Capacity5.3 US qt (5.0 ℓ)
■Light BulbsHeadlights (Low Beam)55W (H11)
Headlights (High Beam) 60W (HB3)
Fog Lights55W (H11)
Front Side Marker Lights 5W
Front Turn Signal/Parking Lights24/2.2CP (Amber)
Brake/Taillights 21/5W
Rear Side Marker Lights3CP
Back-Up Lights 21W
Rear Turn Signal Lights21W (Amber)
High-Mount Brake Light LED
Rear License Plate Lights5W
Cargo Area Light 5W
Interior LightsMap Lights8WCeiling Light8WVanity Mirror Lights1.4WGlove Box Light1.4WAmbient LightLEDCourtesy Lights2CP
Main MenuTable of contents

549
uuSpecificationsu
Information
■Brake Fluid
■Automatic Transmission Fluid
■Rear Differential Fluid
■Transfer Assembly Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda ATF DW-1
(automatic transmission fluid)
Capacity Change 3.28 US qt (3.1 ℓ)
SpecifiedHonda Dual Pump Fluid II
Capacity Change 1.3 US qt (1.2 ℓ)
Specified

550
Information

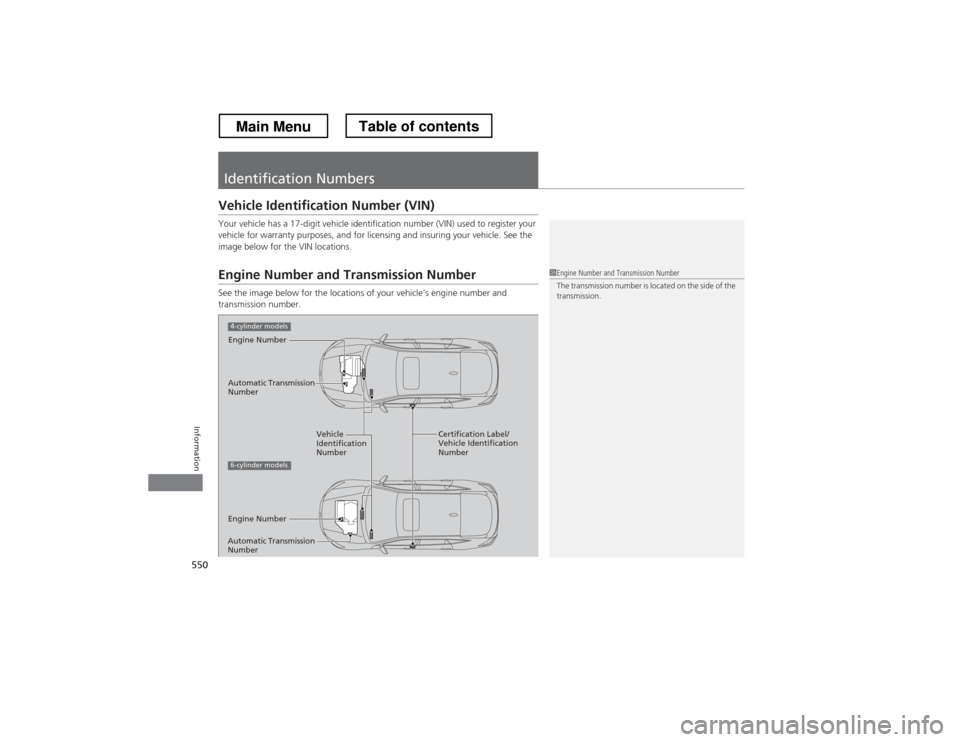

Identification Numbers
Vehicle Identification Number (VIN)
Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle. See the
image below for the VIN locations.
Engine Number and Transmission Number
See the image below for the locations of your vehicle’s engine number and
transmission number.1Engine Number and Transmission Number
The transmission number is located on the side of the
transmission.
Vehicle
Identification
Number
Engine Number
Certification Label/Vehicle Identification
Number
Automatic Transmission
Number
6-cylinder models
4-cylinder models
Engine Number
Automatic Transmission
Number
Main MenuTable of contents

551
Information
Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in operation.
Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below: As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with Industry Canada Standard RSS-Gen/210/310. Operation is
subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Audio SystemBluetooth ® AudioBluetooth ® HandsFreeLink ®HomeLink® Universal TransceiverImmobilizer SystemSmart Entry SystemRemote TransmitterTire Pressure Monitoring System (TPMS)
