uuIndicator, Coming On/BlinkinguIf the Brake System Indicator (Red) Comes On
Handling the Unexpected
If the Brake System Indicator (Red) Comes On■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■ What to do when the indicator comes on while driving
Press the brake pedal lightly to check pedal pressure. • If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate action. If necessary, downshift the
transmission to slow the ve hicle using engine braking.
If the EPS System Indicator Comes On
■Reasons for the indicator to come on
• Comes on when there is a problem with EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
■ What to do when the indicator comes on
Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle inspected by a dealer.
1If the Brake System Indicator (Red) Comes On
Have your vehicle repaired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe place. If necessary downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the electronic brake distribution
system is not working. This can result in vehicle
instability under sudden braking.
Have your vehicle inspected by a dealer immediately.U.S.
Canada
1If the EPS System Indicator Comes On
NOTICEIf you repeatedly turn the steering wheel at an
extremely low speed, or hold the steering wheel on
the full left or right position for a while, the system
heats up. The system goes into a protective mode,
and limits its performance. The steering wheel
becomes harder and harder to operate. Once the
system cools down, EPS is restored. Repeated
operation under these conditions can eventually
damage the system.6-cylinder models
Main MenuTable of contents

537

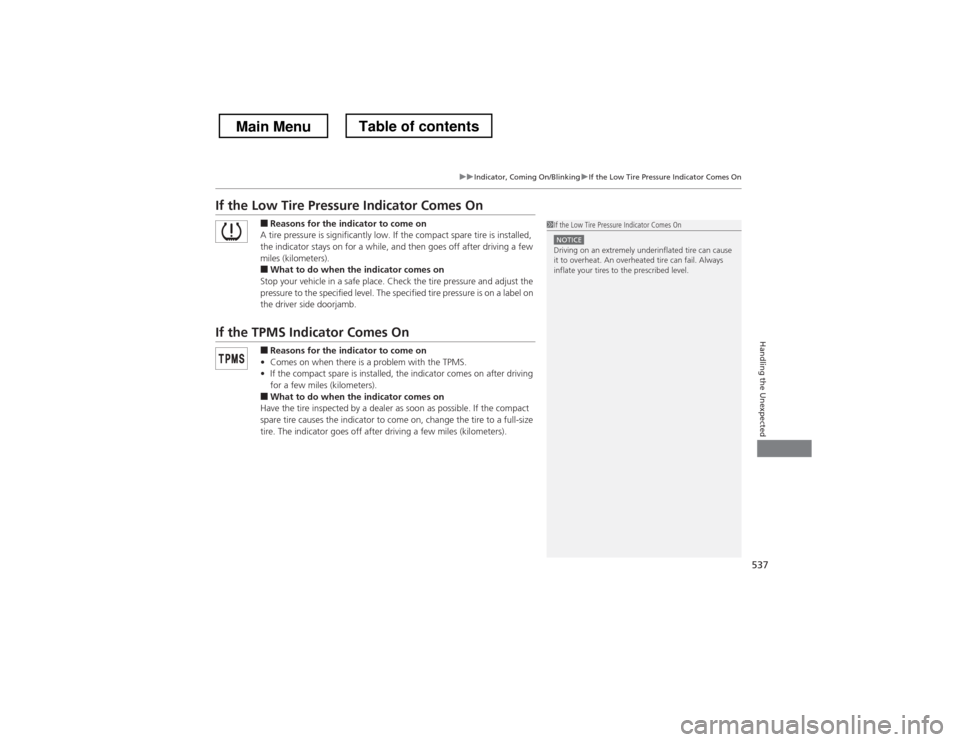

uuIndicator, Coming On/BlinkinguIf the Low Tire Pressure Indicator Comes On
Handling the Unexpected
If the Low Tire Pressure Indicator Comes On■Reasons for the indicator to come on
A tire pressure is significantly low. If the compact spare tire is installed,
the indicator stays on for a while, and then goes off after driving a few
miles (kilometers).
■ What to do when the indicator comes on
Stop your vehicle in a safe place. Check the tire pressure and adjust the
pressure to the specified level. The specified tire pressure is on a label on
the driver side doorjamb.
If the TPMS Indicator Comes On
■Reasons for the indicator to come on
• Comes on when there is a problem with the TPMS.
• If the compact spare is installed, the indicator comes on after driving
for a few miles (kilometers).
■ What to do when the indicator comes on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indicator to come on, change the tire to a full-size
tire. The indicator goes off after driving a few miles (kilometers).
1If the Low Tire Pressure Indicator Comes On
NOTICEDriving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
Main MenuTable of contents

538
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK
(0*1
and
check to see if any applicable fuse is blown.
Located near the brake fluid reservoir. Push
the tabs to open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse Box
■ Circuit protected and fuse rating
Circuit ProtectedAmps
1Battery120 A *3Battery100 A
*2Passenger’s Fuse Box40 A
2
ESP MTR70 AVSA SFR40 AVSA Motor30 AAS F/B OP40 AHeadlight washer *30 A−−
3
IG Main50 A−−Passenger Side Light Main30 ADR F/B STD60 ADriver Side Light Main30 AMain Fan30 AWiper Motor30 ASub Fan30 A
4 Fan Relay 7.5 A
5Rear Defroster40 A
6 Sub Fan Motor *2
20 A
*1:Models with the smart entry system have an
ENGINE START/STOP button instead of an
ignition switch.
*2:4-cylinder models
*3:6-cylinder models
7Hazard15 A
8 Horn, STOP 20 A
9−−
10 Trailer 15 A
11IG Coil15 A
12 FI Sub 15 A
13IGI Main 1 *330 A
14 IGI Main 2 *3
30 A
15Back up10 A
16 Interior Lights 7.5 A
17FI Main15 A
18 DBW 15 A
19ACM *320 A
20 Heater Motor 40 A
21MG Clutch7.5 A
Circuit ProtectedAmps
* Not available on all models
Main MenuTable of contents

539
uuFusesuFuse Locations
Continued
Handling the Unexpected
Locate the fuse in question by the fuse
number and label number.
Located under the dashboard.
Fuse locations are shown on the label under the dashboard.
■Interior Fuse Box
Fuse Label
Fuse Box
Driver side
Located on the lower side panel. Take off the cover to open.
Fuse locations are shown on the fuse box
cover.Passenger side
■Circuit protected and fuse rating
Circuit ProtectedAmps1−−2Seat Memory *7.5 A3Washer15 A4Wiper10 A5ODS7.5 A6ABS/VSA7.5 A7−−8−−9Fuel Pump20 A10VB SOL 210 A11Meter7.5 A12ACG15 A13SRS10 A14−−15Daytime Running Lights7.5 A16A/C7.5 A
Driver side
* Not available on all models
Main MenuTable of contents

540
uuFusesuFuse Locations
Handling the Unexpected
*1:4-cylinder models
*2:6-cylinder models
*3:Sub fuse box
17Accessory, Key, Lock7.5 A18Accessory7.5 A19Left Power Seat Sliding20 A20Moonroof20 A21Left Power Seat Reclining20 A22Rear Left Power Window20 A
23Front Accessory Power Socket15 A
24Front Left Power Window20 A25Left Door Lock15 A26Front Left Fog Light10 A27Left Small Lights (Exterior)10 A28Left Headlight High Beam10 A29TPMS7.5 A30Left Headlight Low Beam15 A31−−
32*3 ST MG DIODE
*, *1
7.5 A
Stop *, *2
7.5 A
33*3STRLD *7.5 A
Circuit ProtectedAmps
Circuit ProtectedAmps1Right Headlight High Beam10 A2Right Small Lights (Exterior)10 A3Front Right Fog Light10 A4Right Headlight Low Beam15 A5−−6Interior Lights7.5 A7−−8Right Power Seat Reclining20 A9Right Power Seat Sliding20 A10Right Door Lock10 A11Rear Right Power Window20 A12SMART *10 A13Front Right Power Window20 A14−−15Audio Amp20 A
16Accessory Power Socket
(Cargo Area)15 A
17−−18Power Lumbar *7.5 A19Seat Heaters
*15 A20−−21−−22−−
Passenger side
* Not available on all models
Main MenuTable of contents

541
uuFusesuInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses1.Turn the ignition switch to LOCK
(0 *1
. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
uIf the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
uIf there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1Inspecting and Changing Fuses
NOTICEReplacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 538 to 540.
There is a fuse puller on the back of the engine compartment fuse box cover.
Combined Fuse Blown Fuse
Fuse Puller
Main MenuTable of contents

542
Handling the Unexpected

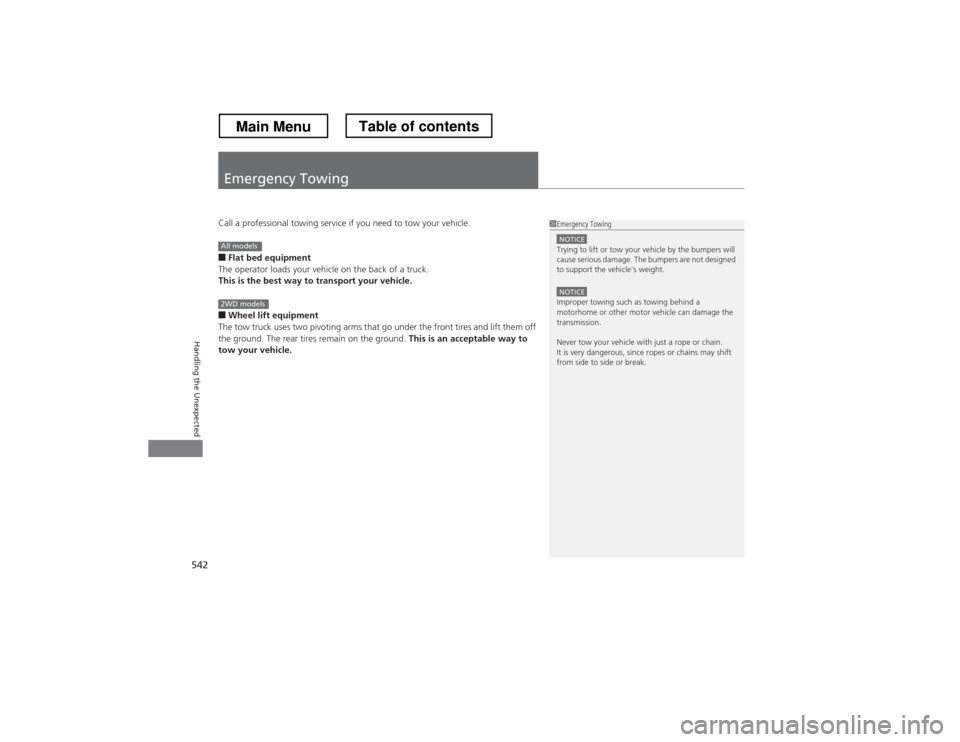

Emergency Towing
Call a professional towing service if you need to tow your vehicle. ■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■ Wheel lift equipment
The tow truck uses two pivoting arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.1Emergency Towing
NOTICETrying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.
NOTICEImproper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.
All models
2WD models
Main MenuTable of contents

543
Handling the Unexpected
When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.1.Open the tailgate.
2. Pry on the front edge of the cover using a
flat-tip screwdriver to remove the cover.
uWrap the flat-tip screwdriver with a cloth
to prevent scratches.
3. Pull the release lever towards you.
uThe release lever unlocks and opens the
fuel fill door when it is pulled.
■What to Do When Unable to Unlock the Fuel Fill Door1What to Do When Unable to Unlock the Fuel Fill Door
After taking these steps, contact a dealer to have the
vehicle checked.
Cover
Release Lever
