2013 HONDA CR-Z snow chains

210
uuBrakinguABS (Anti-lock Brake System)
Driving
ABS (Anti-lock Brake System)
Helps prevent the wheels from locking up, and helps you retain steering control by
pumping the brakes rapidly, much faster than you.
The electronic brake distribution (EBD) system, which is part of the ABS, also
balances the front-to-rear braking distribution according to vehicle loading.
You should never pump the brake pedal. Let the ABS work for you by always
keeping firm, steady pressure on the brake pedal. This is sometimes referred to as
“stomp and steer.” ■ ABS operation
The brake pedal may pulsate slightly when the ABS is working. Keep holding the
pedal firmly down. On dry pavement, you will need to press on the brake pedal very
hard before the ABS activates. However, you may feel the ABS activate immediately
if you are trying to stop on snow or ice.
When the vehicle speed goes under 6 mph (10 km/h), the ABS stops.
■ABS1ABS (Anti-lock Brake System)
NOTICE
The ABS may not function correctly if you use an
incorrect tire type and size.
When the ABS indicator comes on while driving,
there may be a problem with the system.
While normal braking is not affected, there is a
possibility of the ABS not operating. Have the vehicle
checked by a dealer immediately.
The ABS does not reduce the time or distance it takes
to stop the vehicle. It only helps with steering control
during hard braking.
In the following cases, your vehicle may need more
stopping distance than a vehicle without the ABS: • When driving on rough road surfaces, including
when driving on uneven surfaces, such as gravel or snow.
• When tire chains are installed.
You may hear a motor sound coming from the
engine compartment while system checks are being
performed immediatel y after starting the engine or
while driving. This is normal.
Main MenuTable of Contents

261

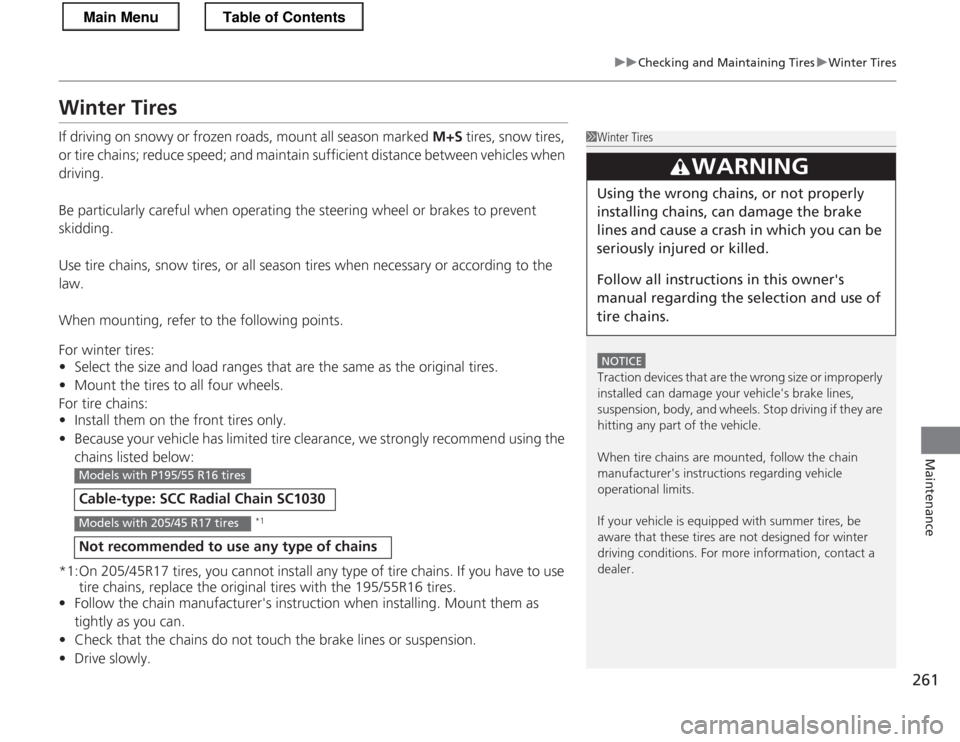

uuChecking and Maintaining TiresuWinter Tires
Maintenance
Winter Tires
If driving on snowy or frozen roads, mount all season marked M+S tires, snow tires,
or tire chains; reduce speed; and maintain sufficient distance between vehicles when driving.
Be particularly careful when operating the steering wheel or brakes to prevent
skidding.
Use tire chains, snow tires, or all season tires when necessary or according to the law.
When mounting, refer to the following points.
For winter tires: • Select the size and load ranges that are the same as the original tires.
• Mount the tires to all four wheels.
For tire chains:• Install them on the front tires only.
• Because your vehicle has limited tire clearance, we strongly recommend using the
chains listed below:
*1
*1:On 205/45R17 tires, you cannot install any type of tire chains. If you have to use tire chains, replace the original tires with the 195/55R16 tires.
• Follow the chain manufacturer's instruction when installing. Mount them as
tightly as you can.
• Check that the chains do not touch the brake lines or suspension.
• Drive slowly.
Cable-type: SCC Radial Chain SC1030
Not recommended to use any type of chains
1Winter Tires
NOTICE
Traction devices that are the wrong size or improperly
installed can damage your vehicle's brake lines,
suspension, body, and wheels. Stop driving if they are
hitting any part of the vehicle.
When tire chains are mounted, follow the chain
manufacturer's instructions regarding vehicle operational limits.
If your vehicle is equipped with summer tires, be
aware that these tires are not designed for winter
driving conditions. For more information, contact a
dealer.
3WARNING
Using the wrong chains, or not properly
installing chains, can damage the brake
lines and cause a crash in which you can be
seriously injured or killed.
Follow all instruc tions in this owner's
manual regarding the selection and use of
tire chains.
Models with P195/55 R16 tires
Models with 205/45 R17 tires
Main MenuTable of Contents

323
Index
Checking .................................................. 38
Fastening .................................................. 35
Installing a Child Seat................................ 58
Pregnant Women...................................... 37
Reminder .................................................. 33
Warning Indicator ............................... 33, 68
Seat Heaters ............................................. 133
Security System
Immobilizer System Indicator..................... 75
Security System Alarm Indicator ................ 75
SEL/RESET Button ....................................... 90
Selecting a Child Seat ................................ 57
Selector Knob (Audio) ............................. 143
Setting the Clock ........................................ 98
Shift Lever .................................................. 19
Automatic Transmission (CVT)................. 183
Operation ................................................. 19
Operation (Automatic Transmission)........ 184
Operation (Manual Transmission) ............ 188
Releasing ................................................ 289
Won’t Move ........................................... 289
Shift Lever Position Indicator .................. 184
Shifting Automatic Transmission (CVT)................. 183
Manual Transmission .............................. 188
Side Airbags ............................................... 46
Cutoff System ........................................... 48
Off Indicator ............................................. 48
Side Curtain Airbags .................................. 49
Snow Tires ................................................ 261
Spare Tire ......................................... 271, 307 Spark Plugs
................................................ 306
Specifications ............................................ 306
Specified Fuel .................................... 216, 306
Speedometer .............................................. 81
SPORT Mode ....................................... 76, 197
SRS Airbags (Airbags) ................................. 39
Starting the Engine .................................. 178
Does Not Start ......................................... 286
Engine Switch Buzzer .............................. 110
Jump Starting .......................................... 287
Steering Wheel ......................................... 118
Adjusting ................................................. 118
Stopping .................................................... 212
Supplemental Restraint System (SRS) ........ 42
Switches (Around the Steering Wheel) ........ 2, 3, 110
System Message Indicator .......................... 72
T
Tachometer ................................................. 81
Tailgate Release Button ........................................ 105
Tailgate Release Button ........................... 105
Temperature High Temperature Indicator ....................... 72
Low Temperature Indicator ........................ 73
Temperature Sensor ................................. 136
Temporarily Repairing a Flat Tire ............ 277
Time (Setting) ............................................. 98 Tire Pressure Monitoring System
(TPMS) ..................................................... 205
Indicator............................................ 71, 296
Tires ........................................................... 253
Air Pressure ..................................... 254, 307
Checking and Maintaining ...................... 253
Compact Spare Tire ......................... 271, 307
Inspection ............................................... 253
Labeling .................................................. 254
Puncture (Flat Tire) .................................. 271
Regulations ............................................. 256
Rotation .................................................. 260
Tire Chains .............................................. 261
Wear Indicators ....................................... 258
Winter..................................................... 261
Tools .......................................................... 270
Towing a Trailer ....................................... 177
Towing Hook ............................................ 302
Towing Your Vehicle ................................ 177
Emergency .............................................. 301
TPMS
(Tire Pressure Monitoring System) ........ 205
Indicator............................................ 71, 296
Transmission
Automatic (CVT)...................................... 183
Fluid ................................................ 238, 239
Manual ................................................... 188
Number................................................... 308
Shift Lever Position Indicator.................... 184
Trip Meter ................................................... 84
Main Menu

324
Index
Troubleshooting....................................... 269
Blown Fuse ...................................... 297, 298
Brake Pedal Vibrates .................................. 24
Buzzer Sounds When Opening Door .......... 24
Emergency Towing .................................. 301
Engine Does Not Start.............................. 286
Noise When Braking .................................. 24
Overheating............................................. 290
Puncture/Flat Tire ..................................... 271
Regular Gasoline.............................. 216, 306
Shift Lever Won’t Move ........................... 289
Unable to Open the Hatch ....................... 303
Warning Indicators .................................... 66
Turn Signals ............................................... 111
Indicators (Instrument Panel) ...................... 74 U
Unlocking the Doors
................................ 100
USB Adapter Cable ................................... 139
USB Flash Drive ......................................... 157
VVanity Mirrors ............................................... 5
Vehicle Identification Number ................ 308
Vehicle Stability Assist (VSA ®).................. 203
Off Button............................................... 204
Off Indicator.............................................. 70
System Indicator ........................................ 70
Ventilation ................................................ 134
Viscosity (Oil) .................................... 231, 307
VSA ® (Vehicle Stability Assist) .................. 203W
Warning and Information Messages
........ 78
Warning Indicator On/Blinking ............... 292
Warning Labels .......................................... 63
Warranties (Warranty M anual provided
separately) .............................................. 313
Watts ........................................................ 306
Wear Indicators (Tire) .............................. 258
Wheel Nut Wrench (Jack Handle) ........... 274
Window Washers ..................................... 114
Adding/Refilling Fluid .............................. 241
Switch .................................................... 114
Windows (Opening and Closing) ............ 108
Windshield ............................................... 114
Cleaning ................................................. 268
Defrosting/Defogging ............................. 135
Washer Fluid ........................................... 241
Wiper Blades................................... 250, 252
Wipers and Washers ............................... 114
Winter Tires .............................................. 261
Snow Tires .............................................. 261
Tire Chains.............................................. 261
Wipers and Washers ................................ 114
Checking and Maintaining Wiper Blades ................................................... 250
WMA ................................................. 147, 151
Main Menu
