2013 HONDA CR-Z headlight bulb

111
uuOperating the Switches Around the Steering WheeluTurn Signals
Continued
Controls
Turn SignalsThe turn signals can be used when the ignition
switch is in ON
(w.
Light Switches
Rotating the light switch turns the lights on
and off, regardless of the position of the
ignition switch. ■High beams
Push the lever forward until you hear a click. ■ Low beams
When in high beams, pull the lever back to
return to low beams. ■ Flashing the high beams
Pull the lever back, and release it.
Right Turn
Left Turn
■Manual Operation
1Light Switches
If you remove the key fr om the ignition switch while
the lights are on, a chime sounds when the driver’s door is opened.
Do not leave the lights on when the engine is off
because it will cause the battery to discharge.
Repeatedly turning the headlights on and off reduces
the life of the HID headlight bulbs.
If you sense that the level of the headlights is
abnormal, have the vehicle inspected by a dealer.
Models with high voltage discharge tube bulbs
High Beams
Flashing the high beams
Low Beams
Turns on parking, side marker,
tail, and rear license plate lights
Turns on headlights, parking, side
marker, tail, and rear license plate
lights
Main MenuTable of Contents

113

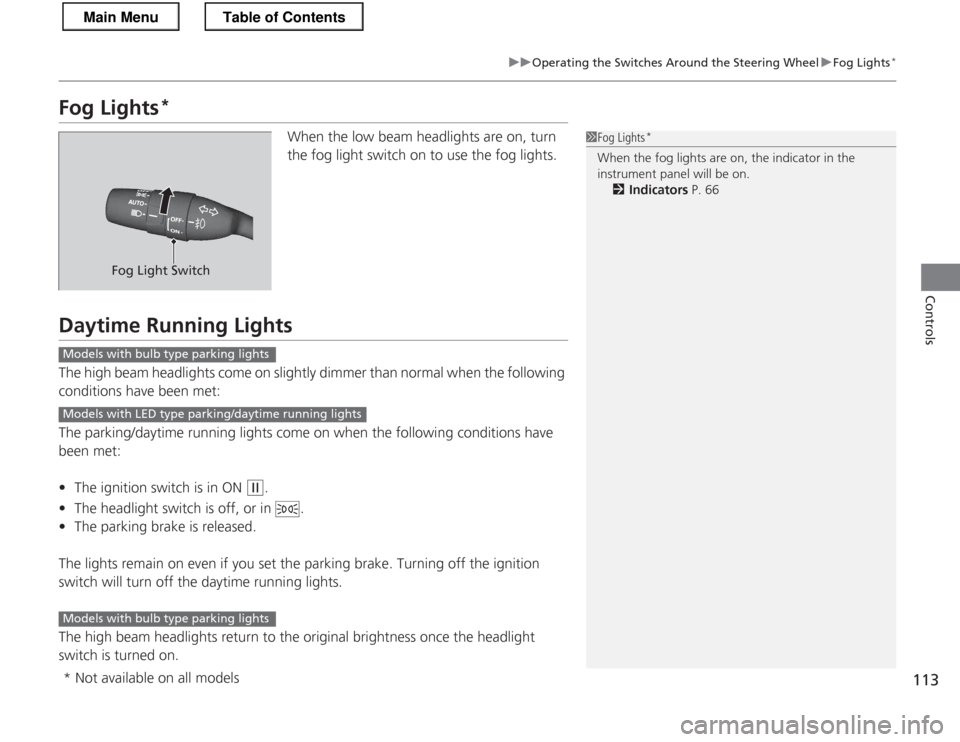

uuOperating the Switches Around the Steering WheeluFog Lights*
Controls
Fog Lights *
When the low beam headlights are on, turn
the fog light switch on to use the fog lights.
Daytime Running Lights
The high beam headlights come on slightly dimmer than normal when the following
conditions have been met:
The parking/daytime running lights come on when the following conditions have
been met: •The ignition switch is in ON
(w .
• The headlight switch is off, or in .
• The parking brake is released.
The lights remain on even if you set the parking brake. Turning off the ignition
switch will turn off the daytime running lights.
The high beam headlights return to the original brightness once the headlight
switch is turned on.
1Fog Lights *
When the fog lights are on, the indicator in the
instrument panel will be on. 2 Indicators P. 66
Fog Light Switch
Models with bulb type parking lights
Models with LED type parking/daytime running lights
Models with bulb type parking lights
* Not available on all models
Main MenuTable of Contents

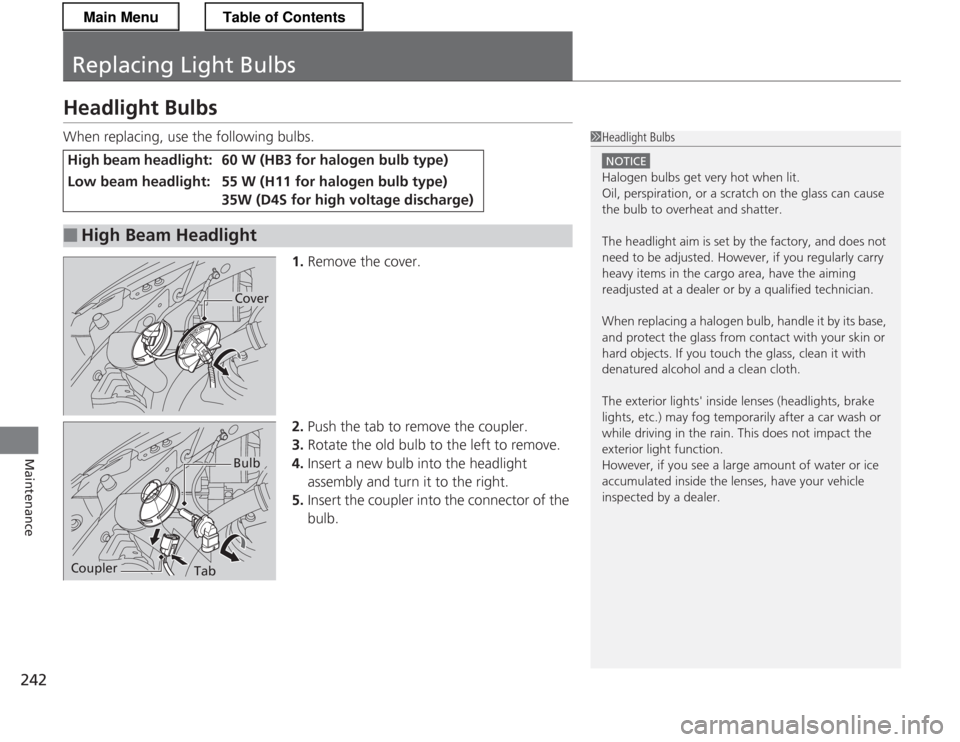

242
Maintenance
Replacing Light Bulbs
Headlight Bulbs
When replacing, use the following bulbs.1.Remove the cover.
2. Push the tab to remove the coupler.
3. Rotate the old bulb to the left to remove.
4. Insert a new bulb into the headlight
assembly and turn it to the right.
5. Insert the coupler into the connector of the
bulb.
High beam headlight:60 W (HB3 for halogen bulb type)
Low beam headlight:55 W (H11 for halogen bulb type)
35W (D4S for high voltage discharge)
■High Beam Headlight
1Headlight Bulbs
NOTICE
Halogen bulbs get very hot when lit.
Oil, perspiration, or a scratch on the glass can cause
the bulb to overheat and shatter.
The headlight aim is set by the factory, and does not
need to be adjusted. However, if you regularly carry
heavy items in the cargo area, have the aiming
readjusted at a dealer or by a qualified technician.
When replacing a halogen bulb, handle it by its base,
and protect the glass from contact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.
The exterior lights' inside lenses (headlights, brake
lights, etc.) may fog temporarily after a car wash or
while driving in the rain. This does not impact the
exterior light function.
However, if you see a large amount of water or ice
accumulated inside the lenses, have your vehicle
inspected by a dealer.
Cover
TabCoupler
Bulb
Main MenuTable of Contents

243

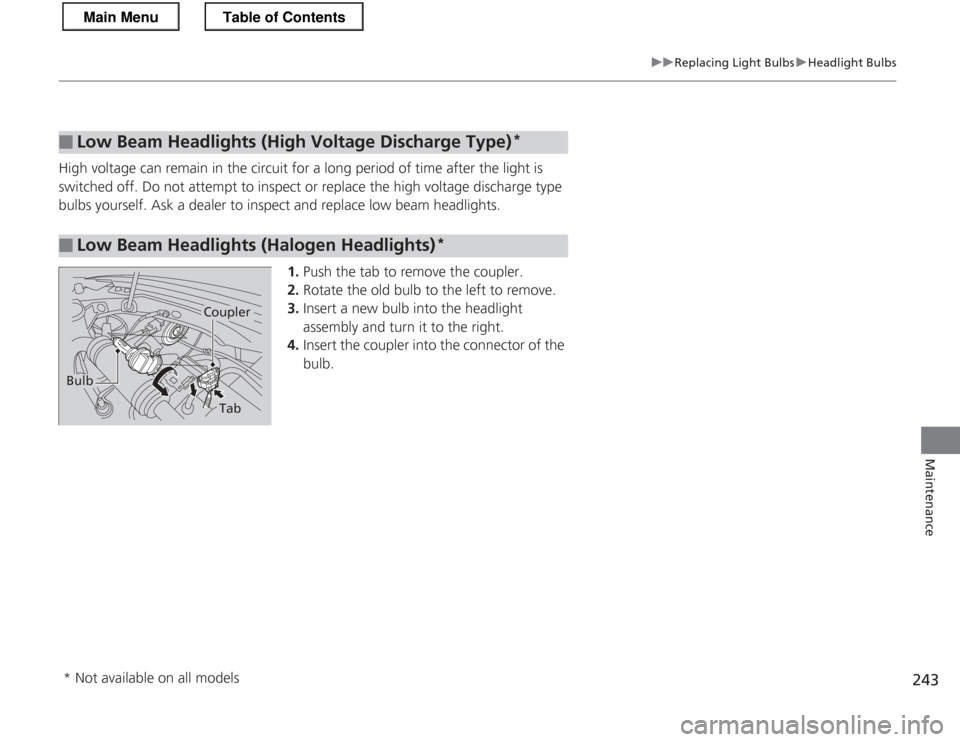

uuReplacing Light BulbsuHeadlight Bulbs
Maintenance
High voltage can remain in the circuit for a long period of time after the light is
switched off. Do not attempt to inspect or replace the high voltage discharge type
bulbs yourself. Ask a dealer to inspect and replace low beam headlights.1.Push the tab to remove the coupler.
2. Rotate the old bulb to the left to remove.
3. Insert a new bulb into the headlight
assembly and turn it to the right.
4. Insert the coupler into the connector of the
bulb.
■Low Beam Headlights (High Vol tage Discharge Type)*
■Low Beam Headlights (Halogen Headlights)
*
Bulb
Coupler
Tab
* Not available on all models
Main MenuTable of Contents

298
uuFusesuFuse Locations
Handling the Unexpected
Located under the driver side dashboard.
Fuse locations are shown on the label on
the back side of the cover.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Box
Fuse LabelCover
Fuse Box
■ Circuit protected and fuse rating
Circuit ProtectedAmps
1Back UP15 A
2TPMS *17.5 A
3Driver’s Power Window20 A
4−−
5Back-Up Light10 A
6SRS10 A
7Transmission SOL *210 A
8SRS7.5 A
9Fog Light*20 A
10 A/C 7.5 A
11ABS/VSA ®7.5 A
12 IMA 10 A
13Accessory Power Socket20 A
14 Radio 7.5 A
15Daytime Running Lights7.5 A
16 Rear Wiper 10 A
17Passenger’s Power Window20 A
18 − −
19−−
20 Fuel Pump 15 A
*1:U.S. models only
*2:Automatic transmission (CVT)
*3:Vehicle with halogen bulb low beam headlights
*4:Vehicle with discharge headlights
Circuit ProtectedAmps
21Washer15 A
22 Meter 7.5 A
23Hazard10 A
24 Stop/Horn 10 A
25Audio AMP *20 A
26 LAF 10 A
27Door Lock Main20 A
28 Headlight Main 20 A
29Small Light10 A
30 Main Fan Motor 30 A
31IGPS7.5 A
32 Right Headlight Low
*3
10 A
Right Headlight Low (HID) *4
15 A
33Ignition Coil15 A
34 Left Headlight Low
*3
10 A
Left Headlight High *4
10 A
35Door Lock7.5 A
36 Door Lock 10 A
37ABS FSR/VSA ® FSR30 A
38 − −
* Not available on all models
Main MenuTable of Contents

299
uuFusesuFuse Locations
Handling the Unexpected

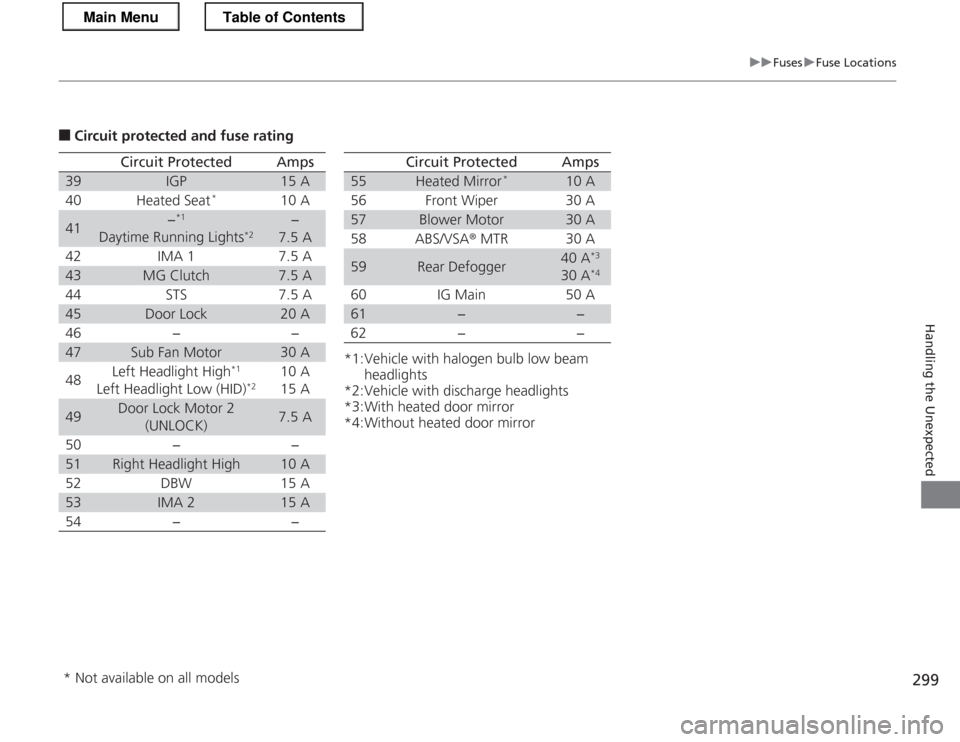

■Circuit protec ted and fuse rating
Circuit ProtectedAmps
39IGP15 A
40 Heated Seat *
10 A
41−*1
Daytime Running Lights *2−
7.5 A
42 IMA 1 7.5 A
43MG Clutch7.5 A
44 STS 7.5 A
45Door Lock20 A
46 − −
47Sub Fan Motor30 A
48 Left Headlight High
*1
Left Headlight Low (HID) *210 A 15 A
49Door Lock Motor 2
(UNLOCK)7.5 A
50 − −
51Right Headlight High10 A
52 DBW 15 A
53IMA 215 A
54 − −
*1:Vehicle with halogen bulb low beam headlights
*2:Vehicle with discharge headlights
*3:With heated door mirror
*4:Without heated door mirror
Circuit ProtectedAmps
55Heated Mirror *10 A
56 Front Wiper 30 A
57Blower Motor30 A
58 ABS/VSA ® MTR 30 A
59Rear Defogger40 A *3
30 A *4
60 IG Main 50 A
61−−
62 − −
* Not available on all models
Main MenuTable of Contents

306
Information

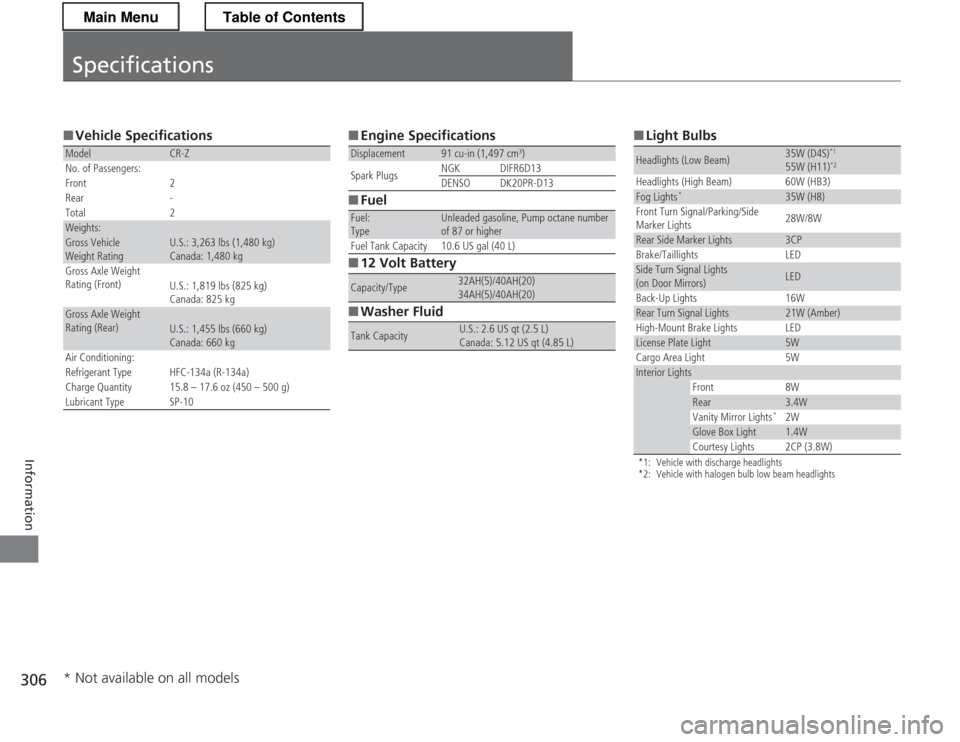

Specifications
■Vehicle Specifications
ModelCR-Z
No. of Passengers:
Front 2
Rear -
Total 2
Weights:
Gross Vehicle
Weight Rating U.S.: 3,263 lbs (1,480 kg)
Canada: 1,480 kg
Gross Axle Weight
Rating (Front)
U.S.: 1,819 lbs (825 kg)
Canada: 825 kg
Gross Axle Weight
Rating (Rear)
U.S.: 1,455 lbs (660 kg)
Canada: 660 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 15.8 – 17.6 oz (450 – 500 g)
Lubricant Type SP-10
■Engine Specifications
■Fuel
■12 Volt Battery
■Washer Fluid
Displacement91 cu-in (1,497 cm 3
)
Spark Plugs NGK DIFR6D13
DENSO DK20PR-D13
Fuel: TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 10.6 US gal (40 L)
Capacity/Type32AH(5)/40AH(20)
34AH(5)/40AH(20)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 5.12 US qt (4.85 L)
■Light Bulbs
*1: Vehicle with discharge headlights
*2: Vehicle with halogen bulb low beam headlights
Headlights (Low Beam)35W (D4S) *1
55W (H11) *2
Headlights (High Beam) 60W (HB3)
Fog Lights *35W (H8)
Front Turn Signal/Parking/Side
Marker Lights 28W/8W
Rear Side Marker Lights3CP
Brake/Taillights LED
Side Turn Signal Lights
(on Door Mirrors)LED
Back-Up Lights 16W
Rear Turn Signal Lights21W (Amber)
High-Mount Brake Lights LED
License Plate Light5W
Cargo Area Light 5W
Interior Lights
Front 8W
Rear3.4W
Vanity Mirror Lights *
2W
Glove Box Light1.4W
Courtesy Lights 2CP (3.8W)
* Not available on all models
Main MenuTable of Contents

318
Index
B
Back-Up Light............................................ 247
Battery ....................................................... 262
Charging System Indicator ................. 67, 293
Jump Starting .......................................... 287
Maintenance
(Checking the 12 Volt Battery) ............... 262
Maintenance
(Replacing the Button Battery)................ 263
Battery Charge in Progress (CHRG)............ 82
Belts (Seat) .................................................. 32
Beverage Holders ...................................... 128
Bluetooth ® HandsFreeLink ®............... 88, 158
Booster Seats (For Children) ....................... 61
Brake System ............................................. 208
Anti-lock Brake System (ABS) ................... 210
Brake Assist System ................................. 211
Brake System Indicator............................. 295
Fluid ........................................................ 240
Foot Brake ............................................... 209
Indicator .................................................. 295
Parking Brake .......................................... 208
Brightness Control (In strument Panel).... 116
Bulb Replacement ..................................... 242
Back-Up Lights......................................... 247
Brake/Taillight .......................................... 248
Bulb Specifications ................................... 306
Fog Lights ................................................ 244 Front Turn Signal/Parking/Side Marker
Light ...................................................... 246
Headlights ............................................... 242 High-Mount Brake Light .......................... 249
Parking/Daytime Running Light................ 246
Rear License Plate Light ........................... 249
Side Turn Signal/Emergency Indicator
Light...................................................... 246
C
Carbon Monoxide Gas ............................... 62
Cargo Cover .............................................. 131
Carrying Cargo ................................. 173, 175
CD Player ................................................... 147
Certification Label .................................... 308
Changing Bulbs ........................................ 242
Charging System Indicator ................. 67, 293
Child Safety ................................................. 54
Child Seat .................................................... 54
Booster Seats ............................................ 61
Child Seat for Infants................................. 56
Child Seat for Small Children ..................... 57
Installing a Child Seat ................................ 58
Larger Children ......................................... 60
Selecting a Child Seat ................................ 57
Using a Tether ........................................... 59
CHRG Indicator ........................................... 82
Cleaning the Exterior ............................... 267
Cleaning the Interior ................................ 265
Climate Control System ............................ 134
Changing the Mode ................................ 134
Defrosting the Windshield and
Windows ............................................... 135 Dust and Pollen Filter .............................. 264
Recirculation/Fresh Air Mode................... 134
Sensors ................................................... 136
Using Automatic Climate Control............ 134
Compact Spare Tire .......................... 271, 307
Controls ...................................................... 97
Coolant (Engine) ...................................... 236
Adding to the Radiator ........................... 237
Adding to the Reserve Tank .................... 236
High Temperature Indicator ...................... 72
Low Temperature Indicator ....................... 73
Overheating ............................................ 290
Creep Aid System ..................................... 180
Creeping ................................................... 182
Cruise Control .......................................... 200
Indicator ................................................... 75
Cup Holders .............................................. 128
Customer Service Information ................ 316
Customized Features ................................. 90
D
Daytime Running Lights .......................... 113
Dead Battery ............................................ 287
Defrosting the Windshield and Windows ................................................. 135
Devices that Emit Radio Waves ............... 309
Dimming Headlights .............................................. 111
Rearview Mirror .............................. 119, 120
Dipstick (Engine Oil) ................................ 232
Main Menu
