2013 HONDA CR-Z CD player

137
Features
This chapter describes how to operate technology features.
Audio System
About Your Audio System................ 138
USB Adapter Cable .......................... 139
Auxiliary Input Jack .......................... 140
Audio System Theft Protection ......... 141
Audio Remote Controls.................... 142
Audio System Basic Operation.......... 143
Playing the AM/FM Radio ................. 145
Playing a CD .................................... 147
Playing an iPod ®............................... 149
Playing a USB Flash Drive ................. 151 Audio Error Messages
CD Player......................................... 153
iPod ®/USB Flash Drive ...................... 154
General Information on the Audio System
Recommended CDs ......................... 155
Compatible iPod® and USB Flash Drives ... 157
Bluetooth ® HandsFreeLink ®
Using HFL ........................................ 158
HFL Menus ...................................... 160
Main Menu

153
Features

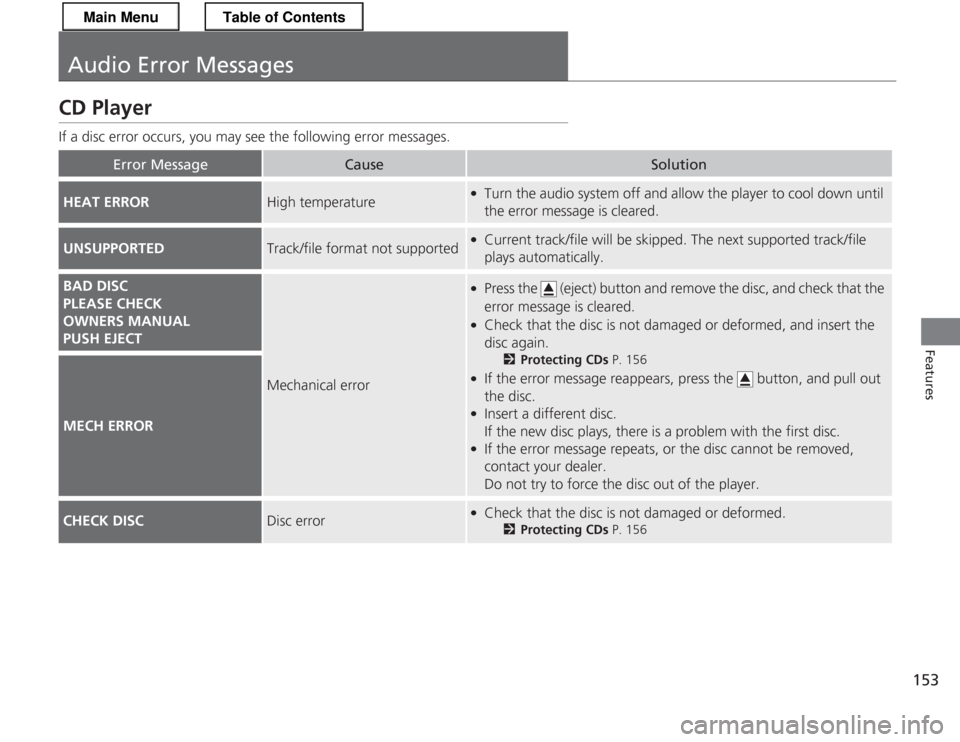

Audio Error Messages
CD Player
If a disc error occurs, you may see the following error messages.
Error MessageCauseSolution
HEAT ERRORHigh temperature●Turn the audio system off and allow the player to cool down until
the error message is cleared.
UNSUPPORTEDTrack/file format not supported●Current track/file will be skipped. The next supported track/file
plays automatically.
BAD DISC
PLEASE CHECK
OWNERS MANUAL
PUSH EJECT
Mechanical error
●
Press the (eject) button and remove the disc, and check that the
error message is cleared.
● Check that the disc is not damaged or deformed, and insert the
disc again.
2Protecting CDs P. 156
● If the error message reappears, press the button, and pull out the disc.
● Insert a different disc.
If the new disc plays, there is a problem with the first disc.
● If the error message repeats, or the disc cannot be removed,
contact your dealer.
Do not try to force the disc out of the player.
MECH ERROR
CHECK DISCDisc error●
Check that the disc is not damaged or deformed.
2Protecting CDs P. 156
Main MenuTable of Contents

uuGeneral Information on the Audio SystemuRecommended CDs
156
Features

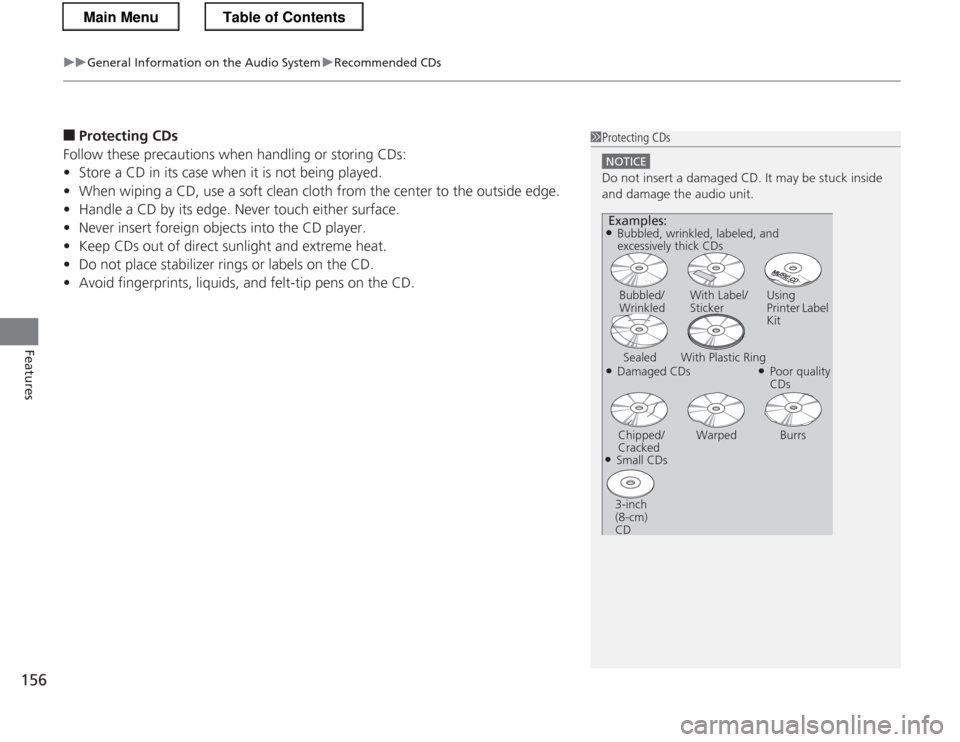

■ Protecting CDs
Follow these precautions when handling or storing CDs: • Store a CD in its case when it is not being played.
• When wiping a CD, use a soft clean cloth from the center to the outside edge.
• Handle a CD by its edge. Never touch either surface.
• Never insert foreign objects into the CD player.
• Keep CDs out of direct sunlight and extreme heat.
• Do not place stabilizer rings or labels on the CD.
• Avoid fingerprints, liquids, and felt-tip pens on the CD.1Protecting CDs
NOTICE
Do not insert a damaged CD. It may be stuck inside
and damage the audio unit.
Examples:
● Damaged CDsBubbled/
Wrinkled
With Label/
Sticker Using
Printer Label Kit
Sealed With Plastic Ring ●Poor quality
CDs
Chipped/
Cracked Warped Burrs
● Small CDs
3-inch
(8-cm) CD
●
Bubbled, wrinkled, labeled, and
excessively thick CDs
Main MenuTable of Contents

157
uuGeneral Information on the Audio SystemuCompatible iPod® and USB Flash Drives
Features
Compatible iPod ® and USB Flash Drives
• Use a recommended USB flash drive of 256 MB or higher.
• Some digital audio players may not be compatible.
• Some USB flash drives (e.g., a device with security lockout) may not work.
• Some software files may not allow for audio play or text data display.
• Some versions of MP3, WMA, or AAC formats may be unsupported.
■iPod ® Model Compatibility
Model
iPod ® (5th generation)
iPod classic ® 80GB/160GB
iPod classic ® 120GB
iPod classic ® 160GB (launch in 2009)
iPod nano ®
iPod touch ®
■USB Flash Drives
1iPod® Model Compatibility
This system may not work with all software versions
of these devices.
1USB Flash Drives
Files on the USB flash drive are played in their stored
order. This order may be different from the order
displayed on your PC or device.
Main MenuTable of Contents

318
Index
B
Back-Up Light............................................ 247
Battery ....................................................... 262
Charging System Indicator ................. 67, 293
Jump Starting .......................................... 287
Maintenance
(Checking the 12 Volt Battery) ............... 262
Maintenance
(Replacing the Button Battery)................ 263
Battery Charge in Progress (CHRG)............ 82
Belts (Seat) .................................................. 32
Beverage Holders ...................................... 128
Bluetooth ® HandsFreeLink ®............... 88, 158
Booster Seats (For Children) ....................... 61
Brake System ............................................. 208
Anti-lock Brake System (ABS) ................... 210
Brake Assist System ................................. 211
Brake System Indicator............................. 295
Fluid ........................................................ 240
Foot Brake ............................................... 209
Indicator .................................................. 295
Parking Brake .......................................... 208
Brightness Control (In strument Panel).... 116
Bulb Replacement ..................................... 242
Back-Up Lights......................................... 247
Brake/Taillight .......................................... 248
Bulb Specifications ................................... 306
Fog Lights ................................................ 244 Front Turn Signal/Parking/Side Marker
Light ...................................................... 246
Headlights ............................................... 242 High-Mount Brake Light .......................... 249
Parking/Daytime Running Light................ 246
Rear License Plate Light ........................... 249
Side Turn Signal/Emergency Indicator
Light...................................................... 246
C
Carbon Monoxide Gas ............................... 62
Cargo Cover .............................................. 131
Carrying Cargo ................................. 173, 175
CD Player ................................................... 147
Certification Label .................................... 308
Changing Bulbs ........................................ 242
Charging System Indicator ................. 67, 293
Child Safety ................................................. 54
Child Seat .................................................... 54
Booster Seats ............................................ 61
Child Seat for Infants................................. 56
Child Seat for Small Children ..................... 57
Installing a Child Seat ................................ 58
Larger Children ......................................... 60
Selecting a Child Seat ................................ 57
Using a Tether ........................................... 59
CHRG Indicator ........................................... 82
Cleaning the Exterior ............................... 267
Cleaning the Interior ................................ 265
Climate Control System ............................ 134
Changing the Mode ................................ 134
Defrosting the Windshield and
Windows ............................................... 135 Dust and Pollen Filter .............................. 264
Recirculation/Fresh Air Mode................... 134
Sensors ................................................... 136
Using Automatic Climate Control............ 134
Compact Spare Tire .......................... 271, 307
Controls ...................................................... 97
Coolant (Engine) ...................................... 236
Adding to the Radiator ........................... 237
Adding to the Reserve Tank .................... 236
High Temperature Indicator ...................... 72
Low Temperature Indicator ....................... 73
Overheating ............................................ 290
Creep Aid System ..................................... 180
Creeping ................................................... 182
Cruise Control .......................................... 200
Indicator ................................................... 75
Cup Holders .............................................. 128
Customer Service Information ................ 316
Customized Features ................................. 90
D
Daytime Running Lights .......................... 113
Dead Battery ............................................ 287
Defrosting the Windshield and Windows ................................................. 135
Devices that Emit Radio Waves ............... 309
Dimming Headlights .............................................. 111
Rearview Mirror .............................. 119, 120
Dipstick (Engine Oil) ................................ 232
Main Menu
