2013 FORD MUSTANG Shelby GT500 Supplement Manual

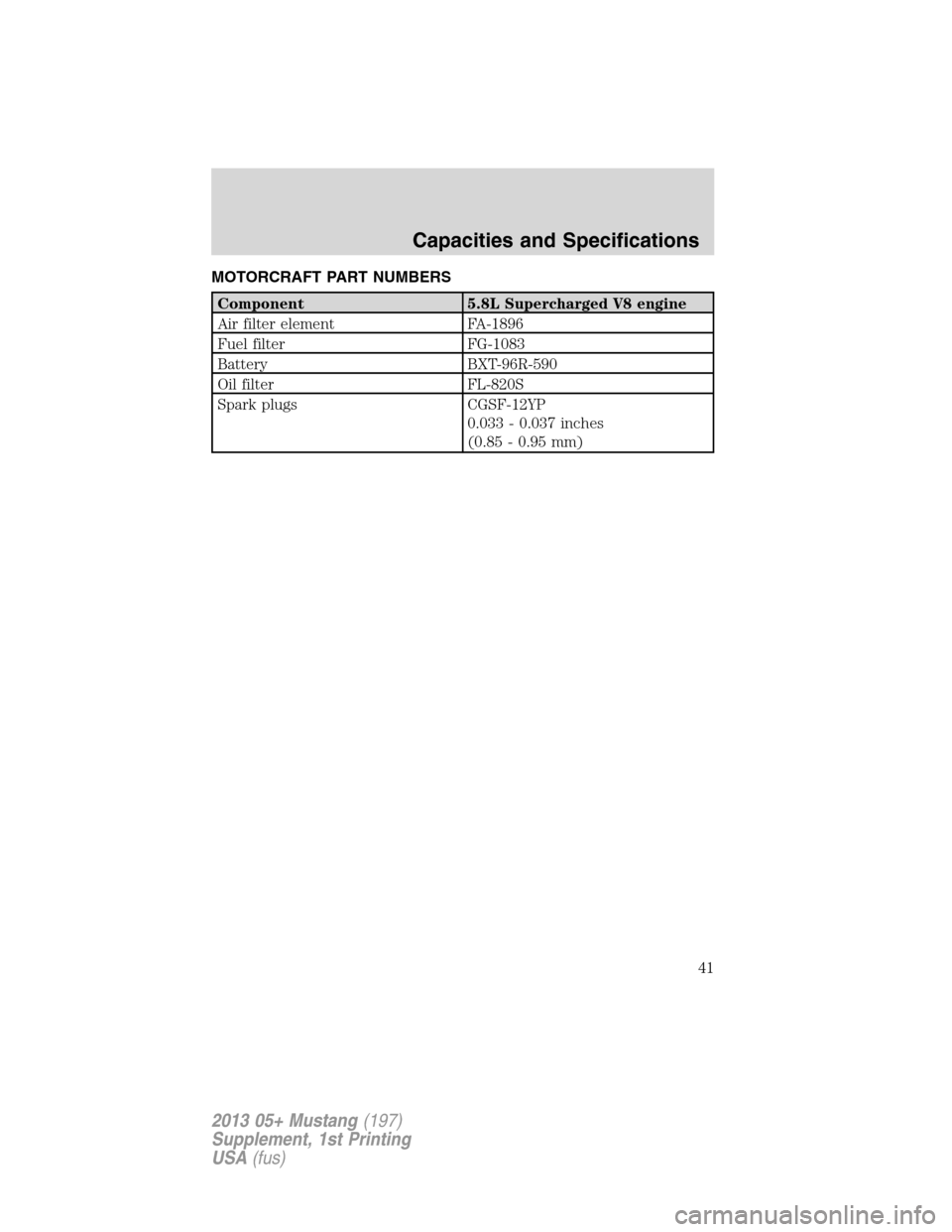

MOTORCRAFT PART NUMBERS
Component 5.8L Supercharged V8 engine
Air filter element FA-1896
Fuel filter FG-1083
Battery BXT-96R-590
Oil filter FL-820S
Spark plugs CGSF-12YP
0.033 - 0.037 inches
(0.85 - 0.95 mm)
Capacities and Specifications
41
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

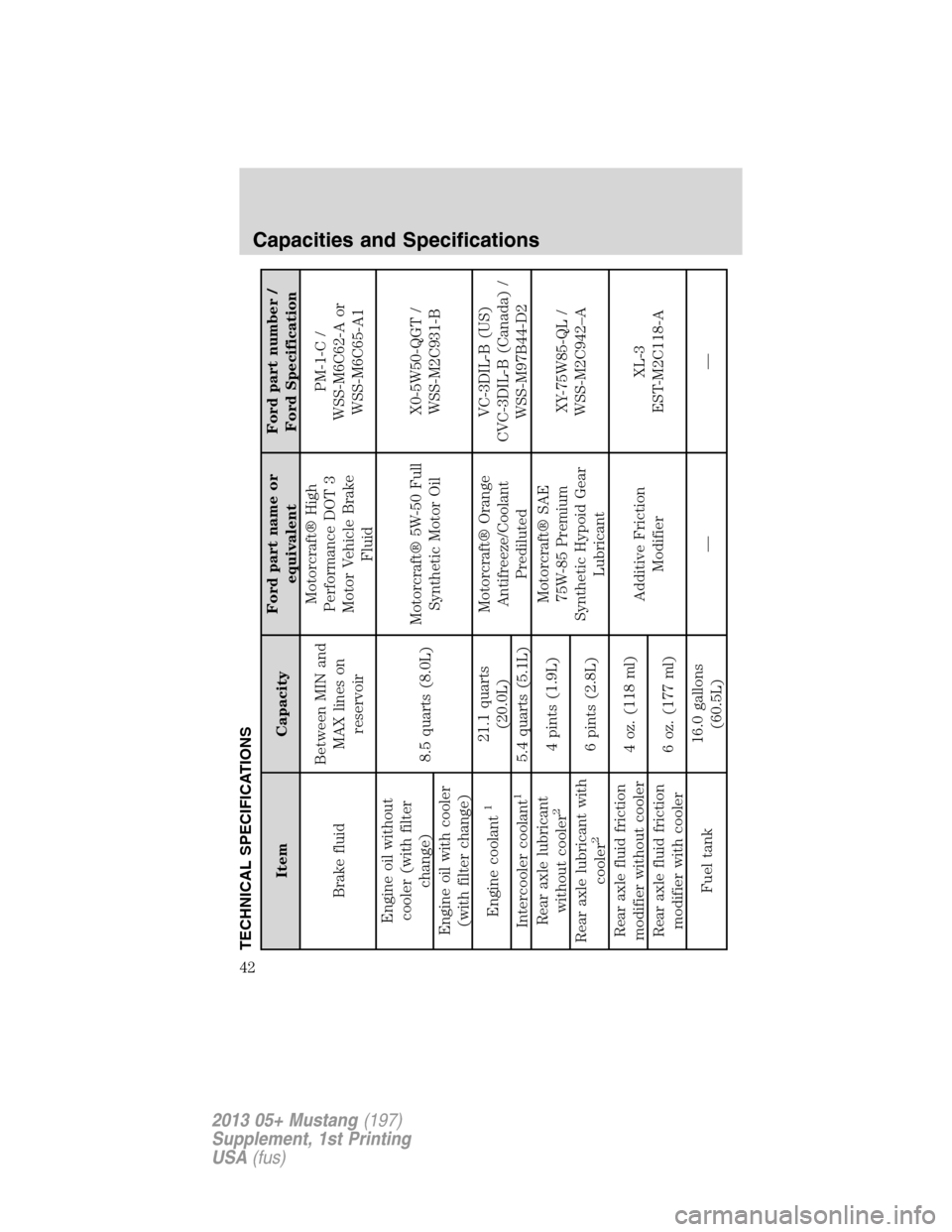

TECHNICAL SPECIFICATIONS
Item CapacityFord part name or
equivalentFord part number /
Ford Specification
Brake fluidBetween MIN and
MAX lines on
reservoirMotorcraft® High
Performance DOT 3
Motor Vehicle Brake
FluidPM-1-C /
WSS-M6C62-A or
WSS-M6C65-A1
Engine oil without
cooler (with filter
change)
8.5 quarts (8.0L)Motorcraft® 5W-50 Full
Synthetic Motor OilX0-5W50-QGT /
WSS-M2C931-B
Engine oil with cooler
(with filter change)
Engine coolant
1
21.1 quarts
(20.0L)Motorcraft® Orange
Antifreeze/Coolant
PredilutedVC-3DIL-B (US)
CVC-3DIL-B (Canada) /
WSS-M97B44-D2
Intercooler coolant
1
5.4 quarts (5.1L)
Rear axle lubricant
without cooler
2
4 pints (1.9L)Motorcraft® SAE
75W-85 Premium
Synthetic Hypoid Gear
LubricantXY-75W85-QL /
WSS-M2C942–A
Rear axle lubricant with
cooler
2
6 pints (2.8L)
Rear axle fluid friction
modifier without cooler4 oz. (118 ml)
Additive Friction
ModifierXL-3
EST-M2C118-A
Rear axle fluid friction
modifier with cooler6 oz. (177 ml)
Fuel tank16.0 gallons
(60.5L)——
Capacities and Specifications
42
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

Item CapacityFord part name or
equivalentFord part number /
Ford Specification
Transmission fluid
without cooler
3,4
3.6 quarts (3.4L)
Motorcraft®
MERCON® V ATFXT-5-QM /
MERCON® V
Transmission fluid with
cooler
3,4
4.1 quarts (3.9L)
Windshield washer fluid Fill as requiredMotorcraft® Premium
Windshield Washer
Concentrate (US) /
Premium Quality
Windshield Washer Fluid
(Canada)ZC-32-A (US)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16–A2/--
1Add the coolant type originally equipped in your vehicle.2Rear axle lubricants do not need to be checked or changed unless a leak is suspected, service is
required or the axle assembly has been submerged in water. The axle lubricant should be changed
any time the rear axle has been submerged in water. For vehicles with a cooler, the axle pump
must be running to perform the service refill.
Fill 1/4-9/16 inch (6-14 millimeters) below bottom of fill hole.3The TREMEC 6060 6-speed manual transmission on your Shelby GT500 uses MERCON® V
automatic transmission fluid. Make sure that the correct MERCON® V ATF automatic transmission
fluid is used as indicated on the label on your transmission.4Service refill capacity is determined by filling the transmission to the bottom of the filler hole with
the vehicle on a level surface. For vehicles with a transmission cooler, the engine must be running,
the clutch pedal must be released, and the transmission must be in neutral to perform the service
refill.
Capacities and Specifications
43
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

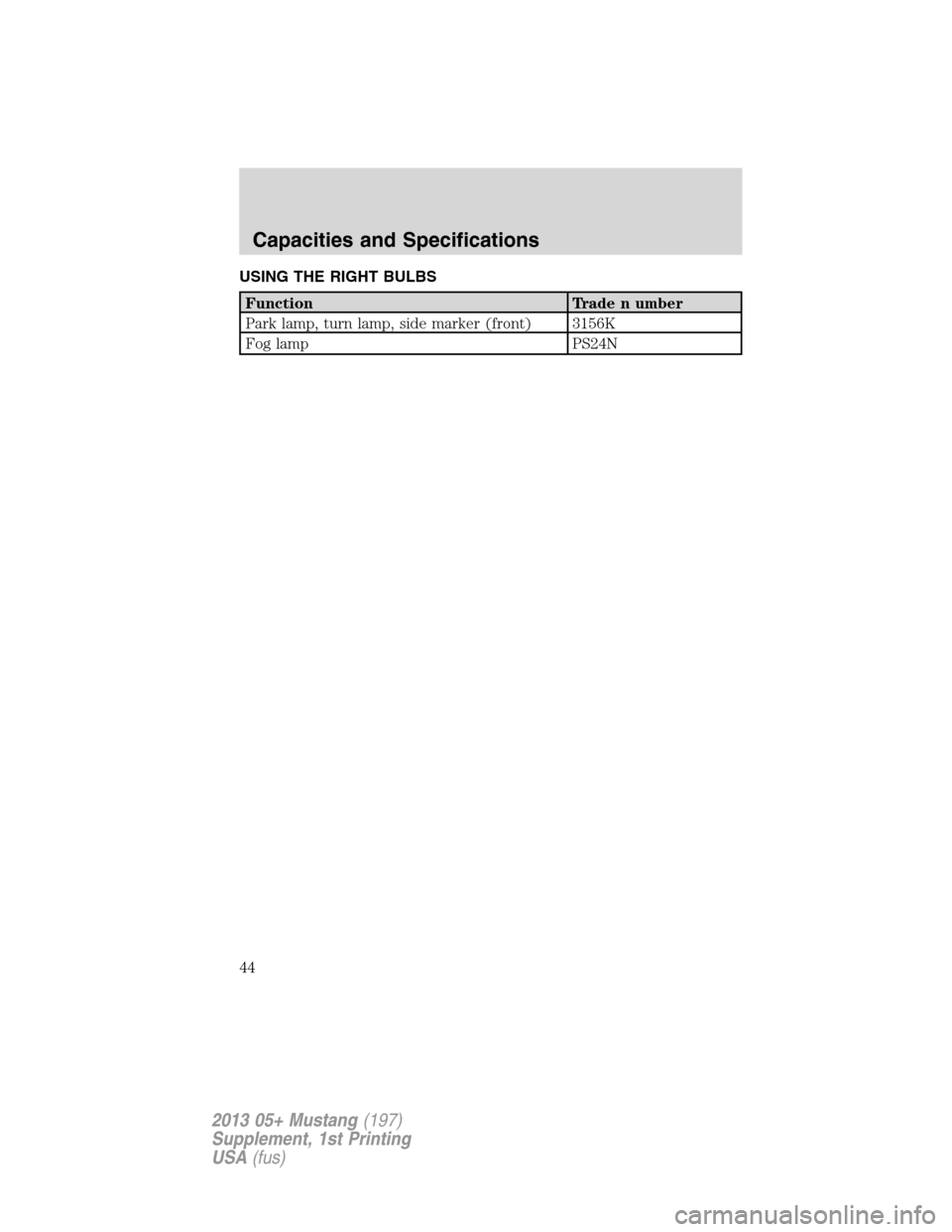

USING THE RIGHT BULBS
Function Trade n umber
Park lamp, turn lamp, side marker (front) 3156K
Fog lamp PS24N
Capacities and Specifications
44
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

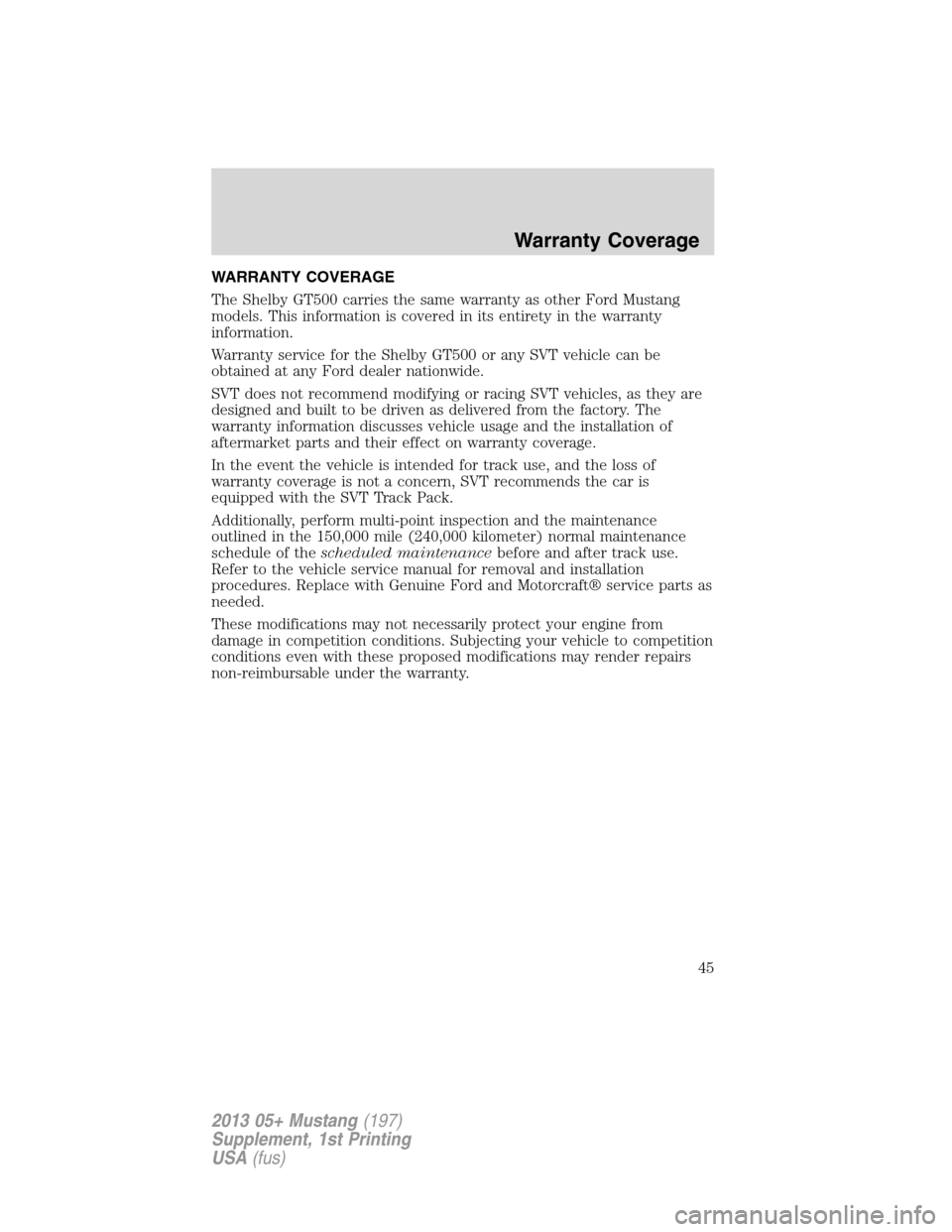

WARRANTY COVERAGE
The Shelby GT500 carries the same warranty as other Ford Mustang
models. This information is covered in its entirety in the warranty
information.
Warranty service for the Shelby GT500 or any SVT vehicle can be
obtained at any Ford dealer nationwide.
SVT does not recommend modifying or racing SVT vehicles, as they are
designed and built to be driven as delivered from the factory. The
warranty information discusses vehicle usage and the installation of
aftermarket parts and their effect on warranty coverage.
In the event the vehicle is intended for track use, and the loss of
warranty coverage is not a concern, SVT recommends the car is
equipped with the SVT Track Pack.
Additionally, perform multi-point inspection and the maintenance
outlined in the 150,000 mile (240,000 kilometer) normal maintenance
schedule of thescheduled maintenancebefore and after track use.
Refer to the vehicle service manual for removal and installation
procedures. Replace with Genuine Ford and Motorcraft® service parts as
needed.
These modifications may not necessarily protect your engine from
damage in competition conditions. Subjecting your vehicle to competition
conditions even with these proposed modifications may render repairs
non-reimbursable under the warranty.
Warranty Coverage
45
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

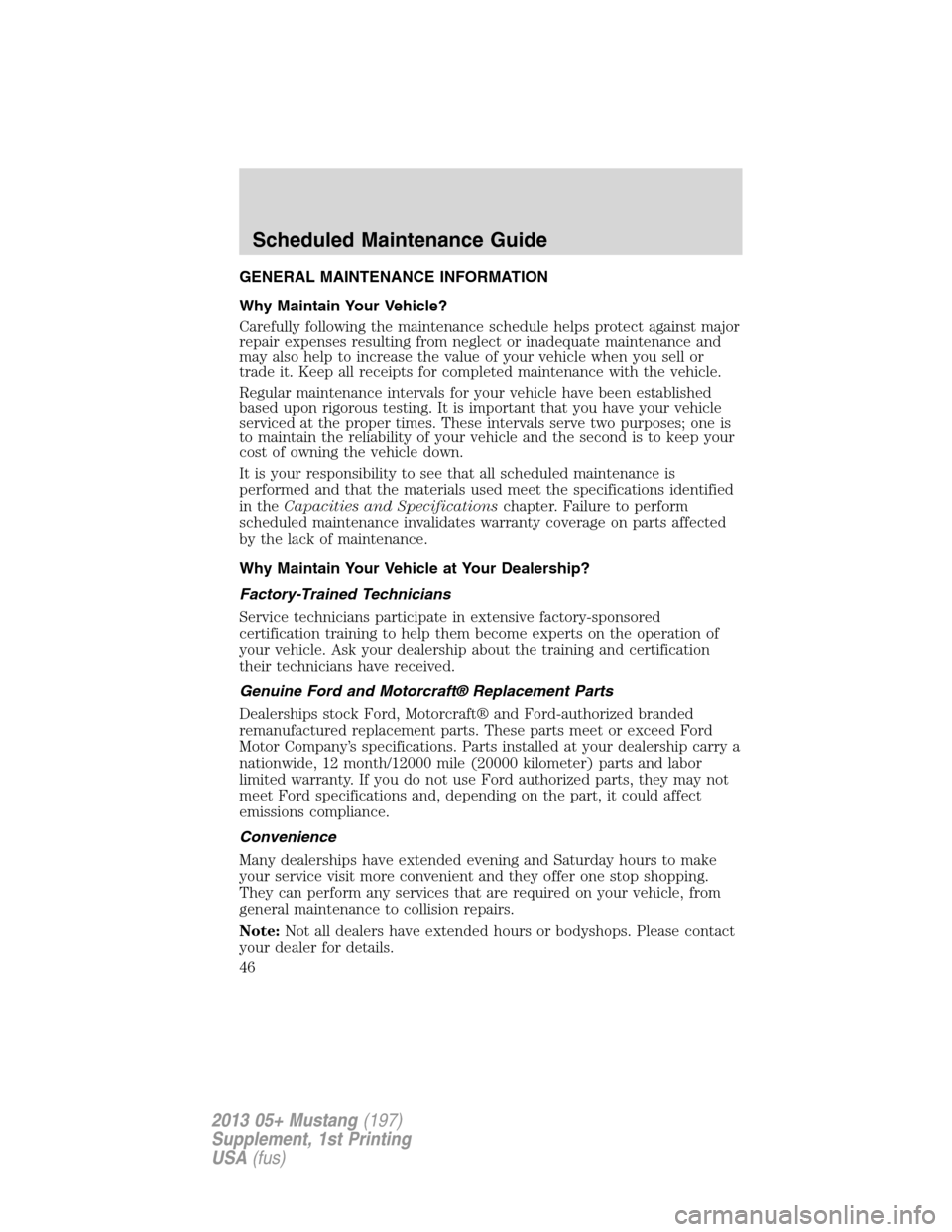

GENERAL MAINTENANCE INFORMATION
Why Maintain Your Vehicle?
Carefully following the maintenance schedule helps protect against major
repair expenses resulting from neglect or inadequate maintenance and
may also help to increase the value of your vehicle when you sell or
trade it. Keep all receipts for completed maintenance with the vehicle.
Regular maintenance intervals for your vehicle have been established
based upon rigorous testing. It is important that you have your vehicle
serviced at the proper times. These intervals serve two purposes; one is
to maintain the reliability of your vehicle and the second is to keep your
cost of owning the vehicle down.
It is your responsibility to see that all scheduled maintenance is
performed and that the materials used meet the specifications identified
in theCapacities and Specificationschapter. Failure to perform
scheduled maintenance invalidates warranty coverage on parts affected
by the lack of maintenance.
Why Maintain Your Vehicle at Your Dealership?
Factory-Trained Technicians
Service technicians participate in extensive factory-sponsored
certification training to help them become experts on the operation of
your vehicle. Ask your dealership about the training and certification
their technicians have received.
Genuine Ford and Motorcraft® Replacement Parts
Dealerships stock Ford, Motorcraft® and Ford-authorized branded
remanufactured replacement parts. These parts meet or exceed Ford
Motor Company’s specifications. Parts installed at your dealership carry a
nationwide, 12 month/12000 mile (20000 kilometer) parts and labor
limited warranty. If you do not use Ford authorized parts, they may not
meet Ford specifications and, depending on the part, it could affect
emissions compliance.
Convenience
Many dealerships have extended evening and Saturday hours to make
your service visit more convenient and they offer one stop shopping.
They can perform any services that are required on your vehicle, from
general maintenance to collision repairs.
Note:Not all dealers have extended hours or bodyshops. Please contact
your dealer for details.
Scheduled Maintenance Guide
46
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

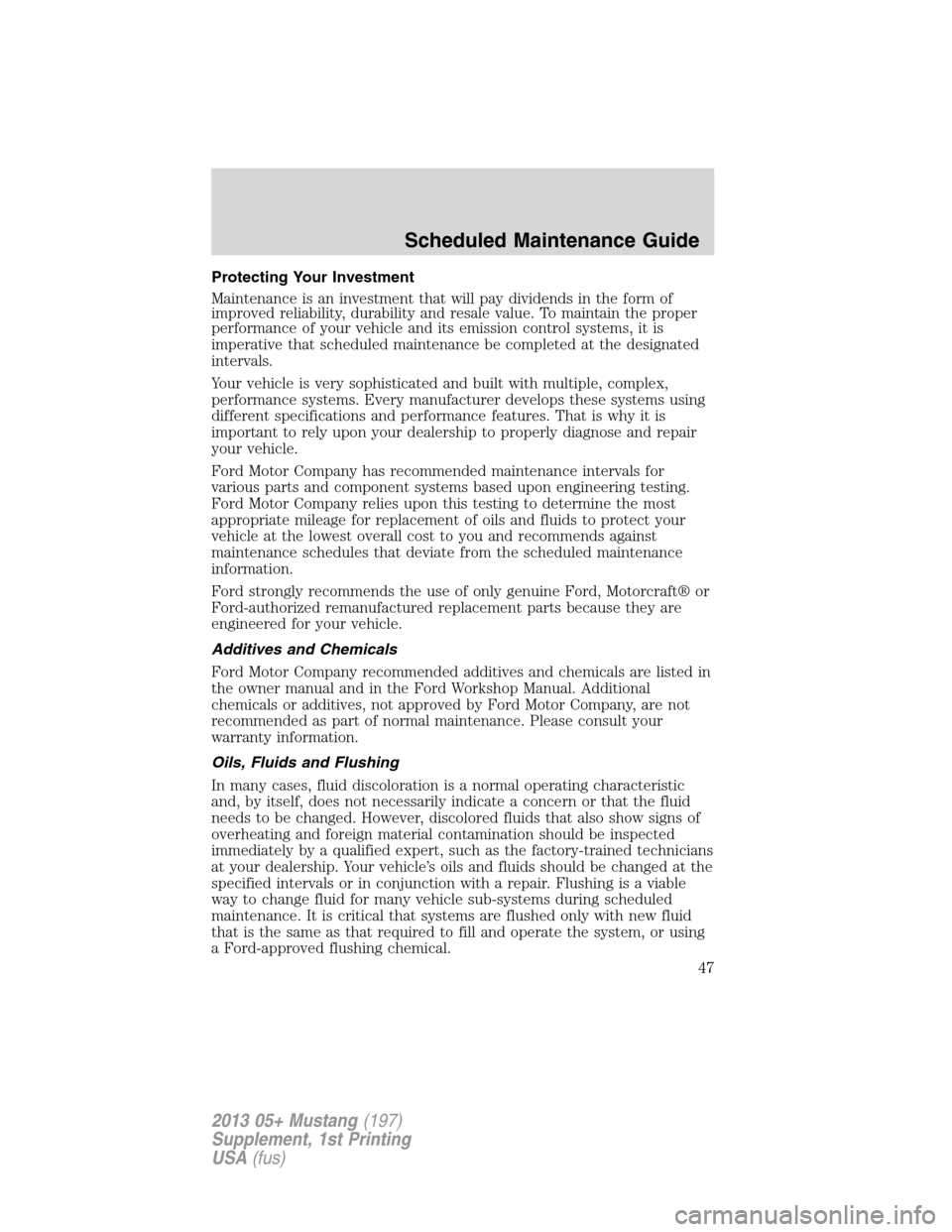

Protecting Your Investment
Maintenance is an investment that will pay dividends in the form of
improved reliability, durability and resale value. To maintain the proper
performance of your vehicle and its emission control systems, it is
imperative that scheduled maintenance be completed at the designated
intervals.
Your vehicle is very sophisticated and built with multiple, complex,
performance systems. Every manufacturer develops these systems using
different specifications and performance features. That is why it is
important to rely upon your dealership to properly diagnose and repair
your vehicle.
Ford Motor Company has recommended maintenance intervals for
various parts and component systems based upon engineering testing.
Ford Motor Company relies upon this testing to determine the most
appropriate mileage for replacement of oils and fluids to protect your
vehicle at the lowest overall cost to you and recommends against
maintenance schedules that deviate from the scheduled maintenance
information.
Ford strongly recommends the use of only genuine Ford, Motorcraft® or
Ford-authorized remanufactured replacement parts because they are
engineered for your vehicle.
Additives and Chemicals
Ford Motor Company recommended additives and chemicals are listed in
the owner manual and in the Ford Workshop Manual. Additional
chemicals or additives, not approved by Ford Motor Company, are not
recommended as part of normal maintenance. Please consult your
warranty information.
Oils, Fluids and Flushing
In many cases, fluid discoloration is a normal operating characteristic
and, by itself, does not necessarily indicate a concern or that the fluid
needs to be changed. However, discolored fluids that also show signs of
overheating and foreign material contamination should be inspected
immediately by a qualified expert, such as the factory-trained technicians
at your dealership. Your vehicle’s oils and fluids should be changed at the
specified intervals or in conjunction with a repair. Flushing is a viable
way to change fluid for many vehicle sub-systems during scheduled
maintenance. It is critical that systems are flushed only with new fluid
that is the same as that required to fill and operate the system, or using
a Ford-approved flushing chemical.
Scheduled Maintenance Guide
47
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

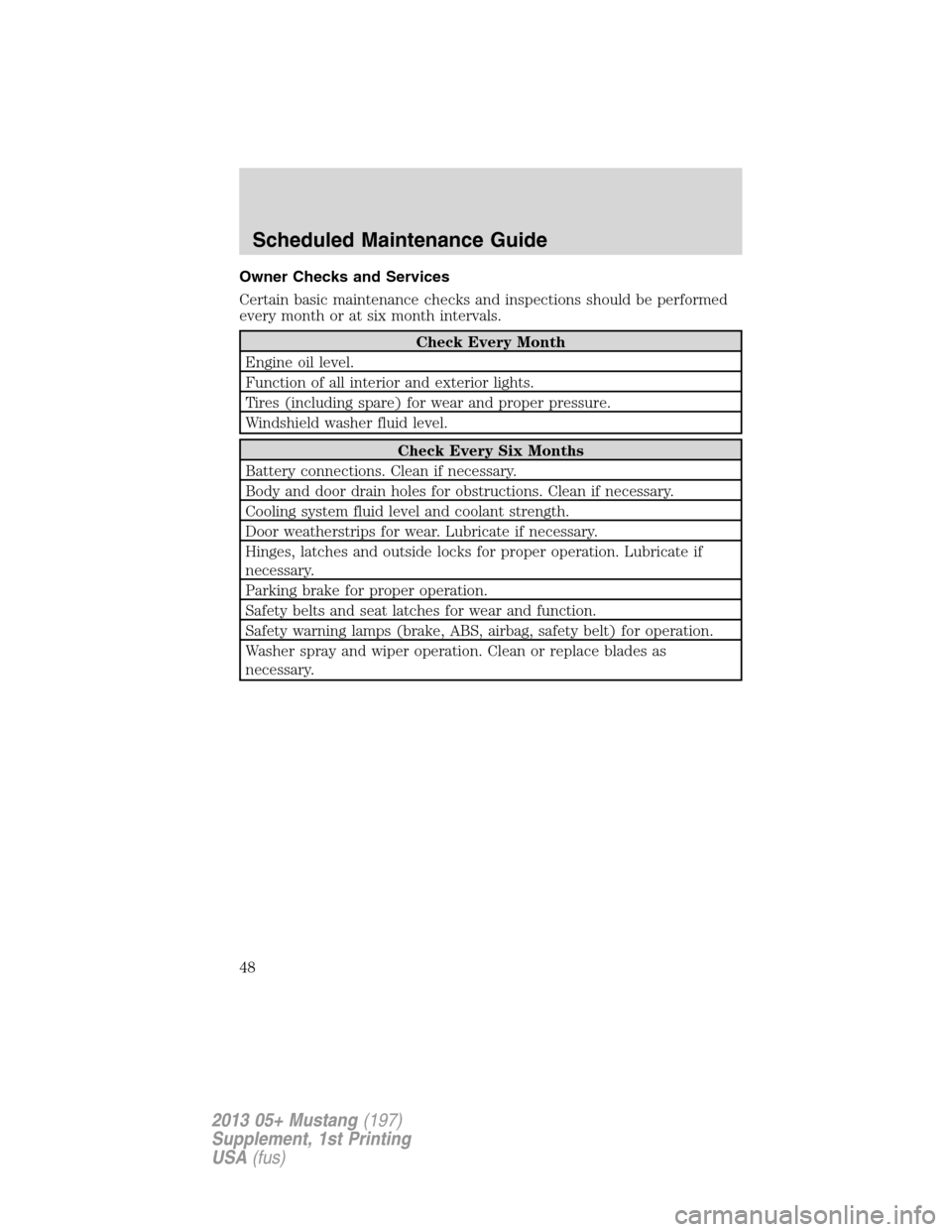

Owner Checks and Services
Certain basic maintenance checks and inspections should be performed
every month or at six month intervals.
Check Every Month
Engine oil level.
Function of all interior and exterior lights.
Tires (including spare) for wear and proper pressure.
Windshield washer fluid level.
Check Every Six Months
Battery connections. Clean if necessary.
Body and door drain holes for obstructions. Clean if necessary.
Cooling system fluid level and coolant strength.
Door weatherstrips for wear. Lubricate if necessary.
Hinges, latches and outside locks for proper operation. Lubricate if
necessary.
Parking brake for proper operation.
Safety belts and seat latches for wear and function.
Safety warning lamps (brake, ABS, airbag, safety belt) for operation.
Washer spray and wiper operation. Clean or replace blades as
necessary.
Scheduled Maintenance Guide
48
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)
