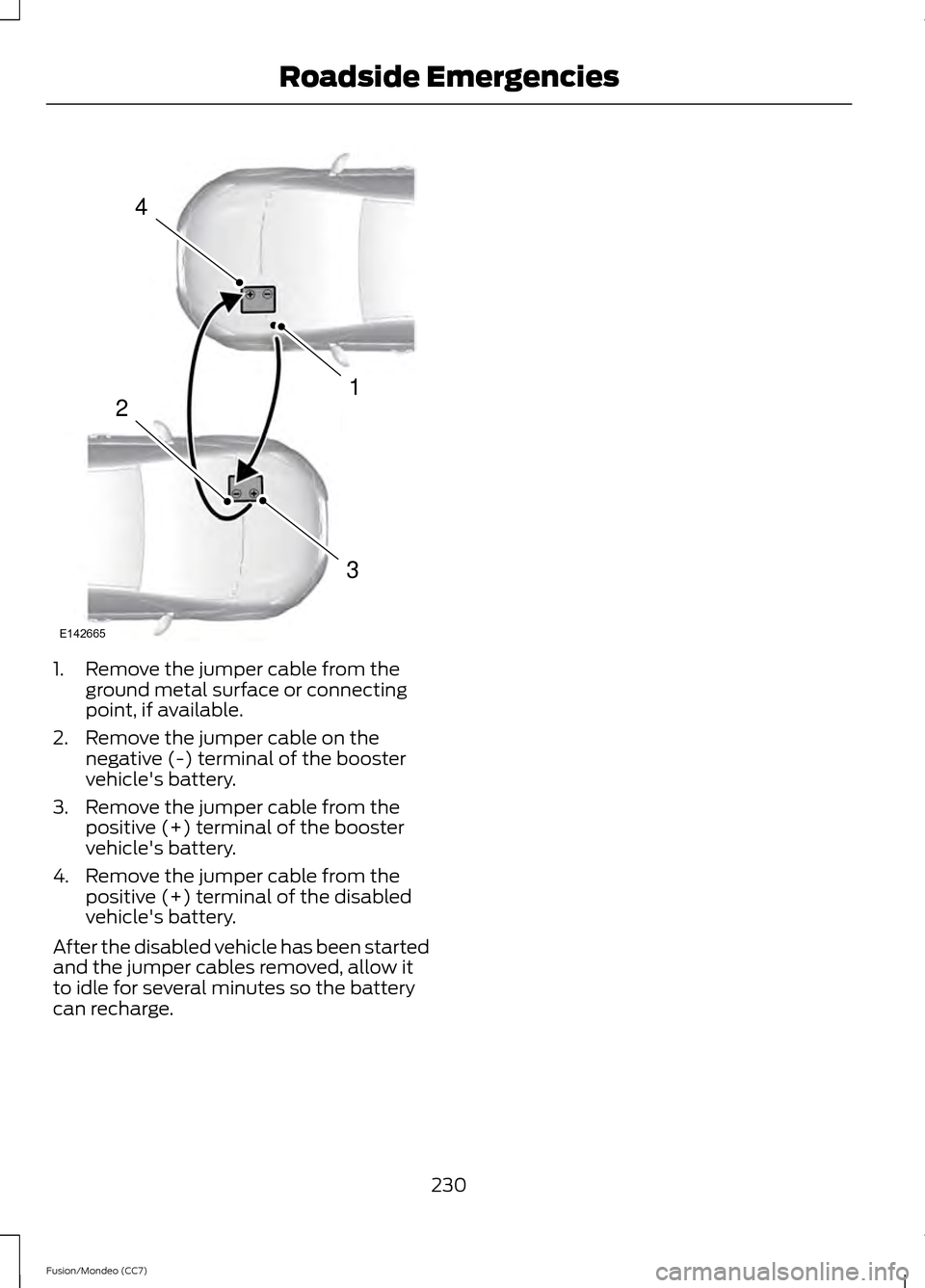

1. Remove the jumper cable from the
ground metal surface or connecting
point, if available.
2. Remove the jumper cable on the negative (-) terminal of the booster
vehicle's battery.
3. Remove the jumper cable from the positive (+) terminal of the booster
vehicle's battery.
4. Remove the jumper cable from the positive (+) terminal of the disabled
vehicle's battery.
After the disabled vehicle has been started
and the jumper cables removed, allow it
to idle for several minutes so the battery
can recharge.
230
Fusion/Mondeo (CC7) Roadside Emergencies4
1
3
2
E142665

CHANGING A FUSE
Fuses
WARNING
Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage
rating can cause severe wire damage and
could start a fire. If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.
Standard Fuse Amperage Rating and Color Color
J-type fuses
M-type fuses
Dual micro fuses
Micro fuses
Fuse rating
-
-
Tan
Tan
5A
-
-
Brown
Brown
7.5A
-
-
Red
Red
10A
-
Grey
Blue
Blue
15A
Blue
Light Blue
-
Yellow
20A
White
White
-
White
25A
Pink
Pink
-
Green
30A
Green
Green
-
-
40A
Red
-
-
-
50A
Yellow
-
-
-
60A
FUSE SPECIFICATION CHART
Power Distribution Box WARNINGS
Always disconnect the battery before
servicing high-current fuses. WARNINGS
To reduce risk of electrical shock,
always replace the cover to the
power distribution box before
reconnecting the battery or refilling fluid
reservoirs. 231
Fusion/Mondeo (CC7) FusesE142430

The power distribution box is located in
the engine compartment. It has
high-current fuses that protect your
vehicle's main electrical systems from
overloads.
If the battery has been disconnected and
reconnected, some features will need to
be reset. See Changing the 12V Battery
(page 251).The high-current fuses are coded as
follows:
Protected components
Fuse amp rating
Fuse or relay number
Wiper motor #2
25A 3
1
Starter relay
—
2
Autowipers
15A 1
3
Blower motor relay
—
4
Power point 3 - Back of console
20A 3
5
Not used
—
6
232
Fusion/Mondeo (CC7) FusesE144783

Protected components
Fuse amp rating
Fuse or relay number
Powertrain control module - vehicle power
1
20A
1
7
Powertrain control module - vehicle power
2
20A
1
8
Powertrain control module relay
—
9
Power point 1 - driver front
20A 3
10
Powertrain control module - vehicle power
4
15A
2
11
Powertrain control module - vehicle power
3
15A
2
12
Powertrain control module - vehicle power
5
10A
2
13
Powertrain control module - vehicle power
6
10A
2
14
Run/start relay
—
15
Power point 2 - console
20A 3
16
Not used
—
17
Powertrain control module - keep alive
power
10A
1
18
Run/start electronic power assist steering
10A 1
19
Run/start lighting
10A 1
20
Run/start transmission control, Transmis-
sion oil pump start/stop
15A
1
21
Air conditioner clutch solenoid
10A 1
22
Run/start: blind spot information system,
Rear view camera, Adaptive cruise control,
Heads-up display
15A
1
23
Not used
—
24
Run/start anti-lock brake system
10A 2
25
233
Fusion/Mondeo (CC7) Fuses

Protected components
Fuse amp rating
Fuse or relay number
Run/start powertrain control module
10A 2
26
Not used (spare)
10A 1
27
Not used
—
28
Not used
—
29
Not used
—
30
Not used
—
31
Electronic fan #1 relay
—
32
Air conditioner clutch relay
—
33
Not used
—
34
Not used
—
35
Not used
—
36
Not used
—
37
Electronic fan #2 relay
—
38
Electronic fan #3 relay
—
39
Fuel pump relay
—
40
Horn relay
—
41
Not used
—
42
Not used
—
43
Not used
—
44
Not used
—
45
Alternator
10A 2
46
Brake on/off switch
10A 2
47
Horn
20A 1
48
Mass air flow monitor
5A 1
49
Not used
—
50
Not used
—
51
234
Fusion/Mondeo (CC7) Fuses

Protected components
Fuse amp rating
Fuse or relay number
Not used
—
52
Power seats
10A 1
53
Not used
—
54
Not used
—
55
1 Micro fuse
2 Dual micro fuse
3 M-type fuse
Power Distribution Box - Bottom
There are fuses located on the bottom of
the fuse box. To access the bottom of the
fuse box, do the following: 1. Release the two latches, located on
both sides of the fuse box.
2. Raise the inboard side of the fuse box from the cradle.
3. Move the fuse box toward the center of the engine compartment.
4. Pivot the outboard side of the fuse box
to access the bottom side.
235
Fusion/Mondeo (CC7) FusesE145983

The high-current fuses are coded as
follows:
Protected components
Fuse amp rating
Fuse or relay number
Fuel pump feed
30A 1
56
Not used
—
57
Not used
—
58
500W Electronic fan 3
30A 1
59
500W Electronic fan 1
30A 1
60
Not used
—
61
Body control module 1
50A 2
62
500W Electronic fan 2
20A 1
63
Not used
—
64
236
Fusion/Mondeo (CC7) FusesE144949

Protected components
Fuse amp rating
Fuse or relay number
Front heated seat
20A 1
65
Not used
—
66
Body control module 2
50A 2
67
Heated rear window
40A 1
68
Anti-lock brake system valves
30A 1
69
Passenger seat
30A 1
70
Not used
—
71
Not used (spare)
30A 1
72
Not used (spare)
20A 1
73
Driver seat module
30A 1
74
Not used
—
75
Transmission oil pump #2 stop/start
20A 1
76
Not used (spare)
30A 1
77
Not used
—
78
Blower motor
40A 1
79
Not used (spare)
30A 1
80
110 volt inverter
40A 1
81
Anti-lock brake system pump
60A 2
82
Wiper motor #1
25A 1
83
Starter solenoid
30A 1
84
Not used (spare)
30A 1
85
1 M-type fuse
2 J-type fuse
237
