2013 FORD FOCUS key

Introduction 9
Child Safety 17
Child seats...........................................19
Child seat positioning...................................19
Booster seats.........................................21
Installing child safety seats...............................24
Child safety locks......................................32
Safety Belts 33
Fastening the safety belts................................35
Safety belt height adjustment.............................38
Safetybeltwarninglightandindicatorchime..................39
Safety belt-minder.....................................39
Child restraint and safety belt maintenance...................42
Personal Safety System 43
Supplementary Restraints System 44
Driver and passenger airbags.............................46
Side airbags..........................................52
Side curtain airbags....................................53
Crash sensors and airbag indicator.........................55
Airbag disposal........................................56
Keys and Remote Control 57
General information on radio frequencies.....................57
Remote control.......................................58
Keys...............................................58
Replacing a lost key or remote control.......................65
Table of Contents1
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

MyKey 66
Settings, MyKey.......................................66
Creating.............................................67
Clearing.............................................68
System status.........................................68
Remote start, MyKey...................................68
Troubleshooting, MyKey.................................70
Locks 72
Locking and unlocking..................................72
Trunk release.........................................77
Interior luggage compartment release.......................78
Security 79
SecuriLockpassive anti-theft system.......................79
Steering Wheel 82
Adjusting the steering wheel..............................82
Steering wheel controls.................................83
Wipers and Washers 86
Windshield wipers.....................................86
Windshield washers....................................87
Rear-window wiper and washer............................87
Lighting 89
Lighting control.......................................89
Autolamps...........................................90
Instrument lighting dimmer...............................90
Headlamp exit delay....................................91
Daytime running lamps..................................91
Front fog lamps.......................................92
Directionindicators ....................................92
Interior lamps........................................92
Ambient lighting.......................................94
2Table of Contents
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

Seats 151
Sitting in the correct position............................151
Head restraints.......................................152
Manual seats........................................155
Power seats.........................................157
Heated seats........................................158
Rear seats..........................................159
Auxiliary Power Points 161
Storage Compartments 162
Overhead console.....................................162
Starting and Stopping the Engine 163
Ignition switch.......................................164
Keyless starting......................................164
Engine block heater...................................167
Fuel and Refueling 169
Fuel quality.........................................171
Running out of fuel....................................172
Refueling...........................................173
Fuel consumption.....................................175
Transmission 179
Automatic transmission.................................179
Manual transmission...................................184
Hill start assist.......................................185
Brakes 187
Brakes.............................................187
Hints on driving with anti-lock brakes......................188
Parking brake........................................188
Traction Control 189
TractionControl™ ....................................189
4Table of Contents
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

PRINCIPLE OF OPERATION
The remote control allows you to:
•remotely lock or unlock the vehicle doors
•arm and disarm the anti-theft system
•remotely open the luggage compartment
•unlock the doors without actively using a key or remote control
(intelligent access only).
GENERAL INFORMATION ON RADIO FREQUENCIES
This device complies with part 15 of the FCC Rules and with Industry
Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
Note:Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment. The termICbefore the radio certification number only
signifies that Industry Canada technical specifications were met.
The typical operating range for your transmitter is approximately 33 feet
(10 meters). Vehicles with the remote start feature will have a greater
range. A decrease in operating range could be caused by:
•weather conditions
•nearby radio towers
•structures around your vehicle
•other vehicles parked next to your vehicle.
The radio frequency used by your remote control can also be used by
other short distance radio transmissions (e.g. amateur radios, medical
equipment, wireless headphones, remote controls and alarm systems). If
the frequencies are jammed, you will not be able to use your remote
control. You can lock and unlock the doors with the key.
Note:Make sure your vehicle is locked before leaving it unattended.
Note:If you are in range, the remote control will operate if you press
any button unintentionally.
Keys and Remote Control57
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

Intelligent Access (If Equipped)
The system uses a radio frequency signal to communicate with your
vehicle and authorize your vehicle to authorize your vehicle to unlock
when one of the following condition are met:
•You touch the inside of the front exterior door handle.
•You press the luggage compartment button.
•You press a button on the transmitter.
If excessive radio frequency interference is present in the area or if the
transmitter battery is low, it may be necessary to mechanically unlock
your door. You can use the mechanical key blade in your intelligent
access key open the driver’s door in this situation. Refer toRemote
Controlin this chapter for more information on the location and use of
the mechanical key blade.
REMOTE CONTROL
Integrated Keyhead Transmitters (IKTs) (If Equipped)
Your vehicle may be equipped with
two integrated keyhead transmitters.
The key blade is used to start the
vehicle and unlock or lock the
driver’s door from outside the
vehicle. The transmitter portion
functions as the remote control.
Note:Your vehicle’s keys were
issued with a security label that
provides important vehicle key cut
information. Keep the label in a safe
place for future reference.
58Keys and Remote Control
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

Intelligent Access Key (If Equipped)
Type 1
Type 2
Your vehicle may be equipped with two intelligent access keys which
operate the power locks and the remote start system. The key must be
in the vehicle to activate the push button start system.
Mechanical Key Blade
The key also contains a removable mechanical key blade that can be
used to unlock the driver door.
Type 1
To release the mechanical key blade:
1. Press and hold the push buttons
on the edges of the transmitter to
release the cover. Carefully remove
the cover.
2. Remove the key blade.
1
1
2
Keys and Remote Control59
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

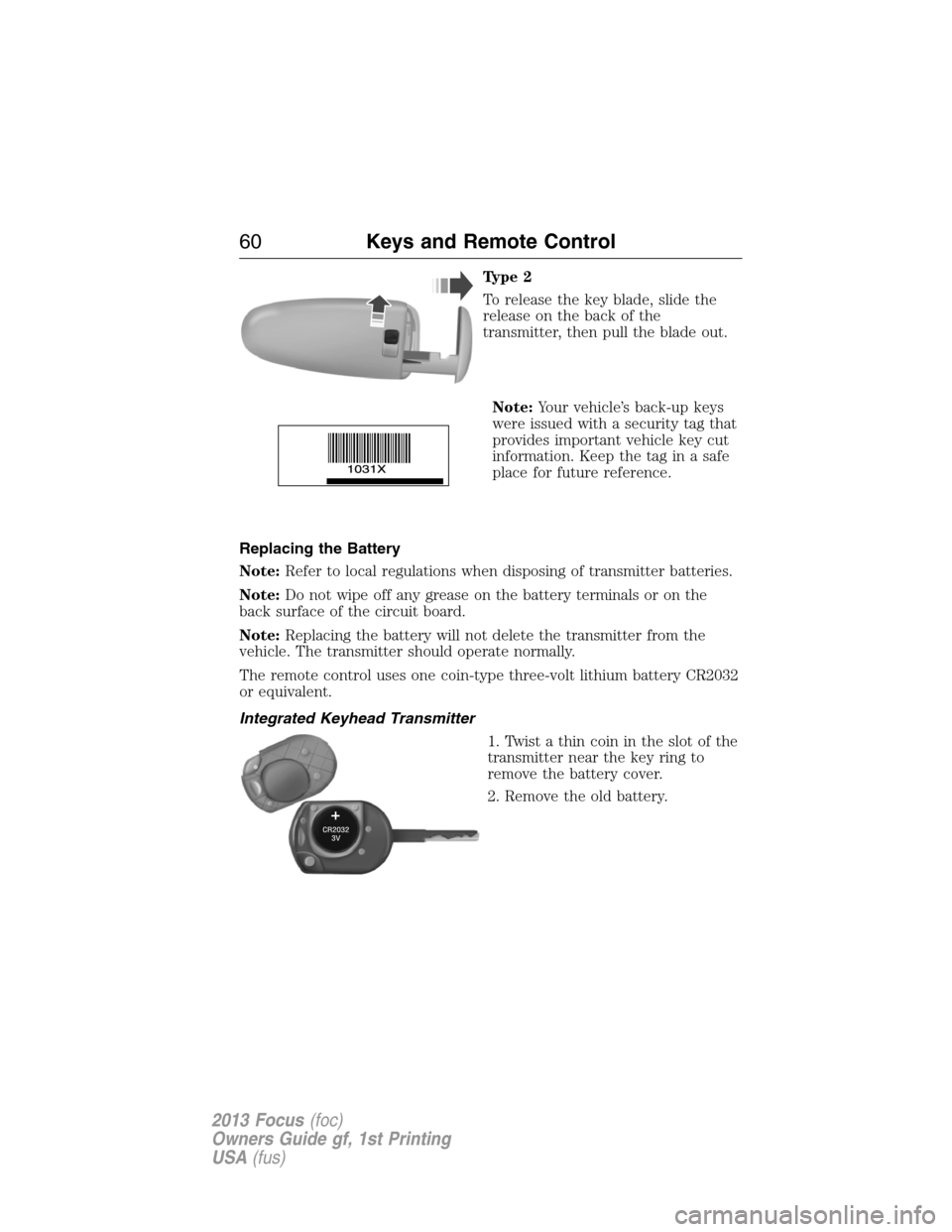

Type 2
To release the key blade, slide the
release on the back of the
transmitter, then pull the blade out.
Note:Your vehicle’s back-up keys
were issued with a security tag that
provides important vehicle key cut
information. Keep the tag in a safe
place for future reference.
Replacing the Battery
Note:Refer to local regulations when disposing of transmitter batteries.
Note:Do not wipe off any grease on the battery terminals or on the
back surface of the circuit board.
Note:Replacing the battery will not delete the transmitter from the
vehicle. The transmitter should operate normally.
The remote control uses one coin-type three-volt lithium battery CR2032
or equivalent.
Integrated Keyhead Transmitter
1. Twist a thin coin in the slot of the
transmitter near the key ring to
remove the battery cover.
2. Remove the old battery.
60Keys and Remote Control
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

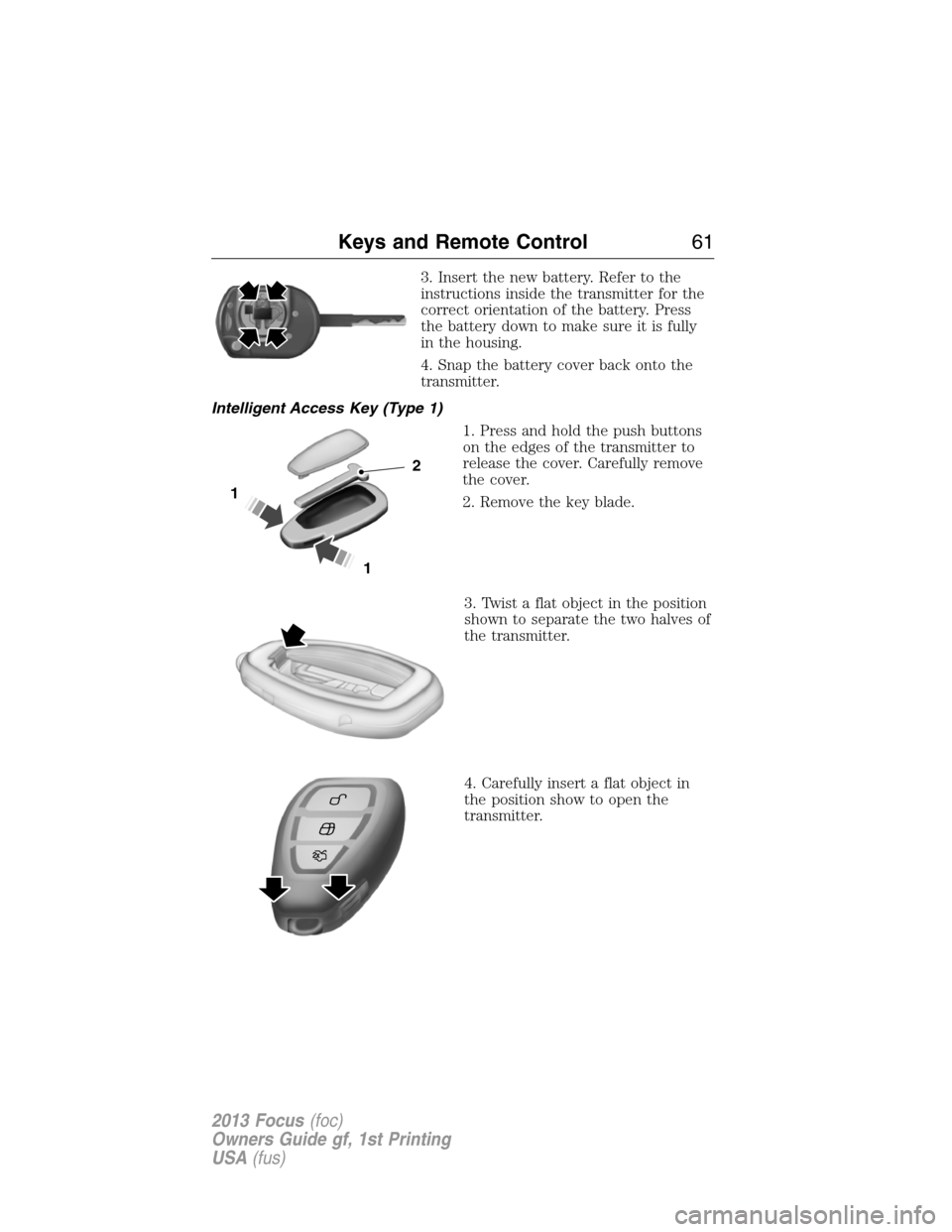

3. Insert the new battery. Refer to the
instructions inside the transmitter for the
correct orientation of the battery. Press
the battery down to make sure it is fully
in the housing.
4. Snap the battery cover back onto the
transmitter.
Intelligent Access Key (Type 1)
1. Press and hold the push buttons
on the edges of the transmitter to
release the cover. Carefully remove
the cover.
2. Remove the key blade.
3. Twist a flat object in the position
shown to separate the two halves of
the transmitter.
4. Carefully insert a flat object in
the position show to open the
transmitter.
1
1
2
Keys and Remote Control61
