2013 FORD FOCUS ELECTRIC air filter

Symbol Description Symbol Description Symbol Description
Safety alertSee Owner’s
ManualAnti-lock
braking
system
Avoid
smoking,
flames, or
sparksBatteryBattery acid
Brake fluid –
non
petroleum
baseBrake systemCabin air
filter
Check fuel
capChild Safety
Door Lock
and UnlockChild seat
lower anchor
Child seat
tether anchorCruise
controlDo not open
when hot
Engine air
filterEngine
coolantEngine
coolant
temperature
Engine oilExplosive gasFan warning
Fasten safety
beltFront airbagFront fog
lamps
Fuel pump
resetFuse
compartmentHazard
warning
flasher
Heated rear
windowInterior
luggage
compartment
releaseJack
14Introduction
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

CABIN AIR FILTER
Note:A cabin air filter must be installed at all times to prevent foreign
objects from entering the system. Running the system without a filter in
place could result in degradation or damage to the system.
Your cabin air filter is located in the passenger foot well area. The cabin
air filter element is designed to reduce the concentration of airborne
particles such as dust, spores and pollen in the air being supplied to the
interior of the vehicle. The presence of a particulate filter element
provides the following benefits:
•Improves your driving comfort by reducing particle concentration.
•Improves the interior compartment cleanliness.
•Protects the climate control components from particle deposits.
For replacement intervals regarding the cabin air filter, see the
Scheduled Maintenancechapter. For more information regarding your
filter, see your authorized dealer.
128Climate Control
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

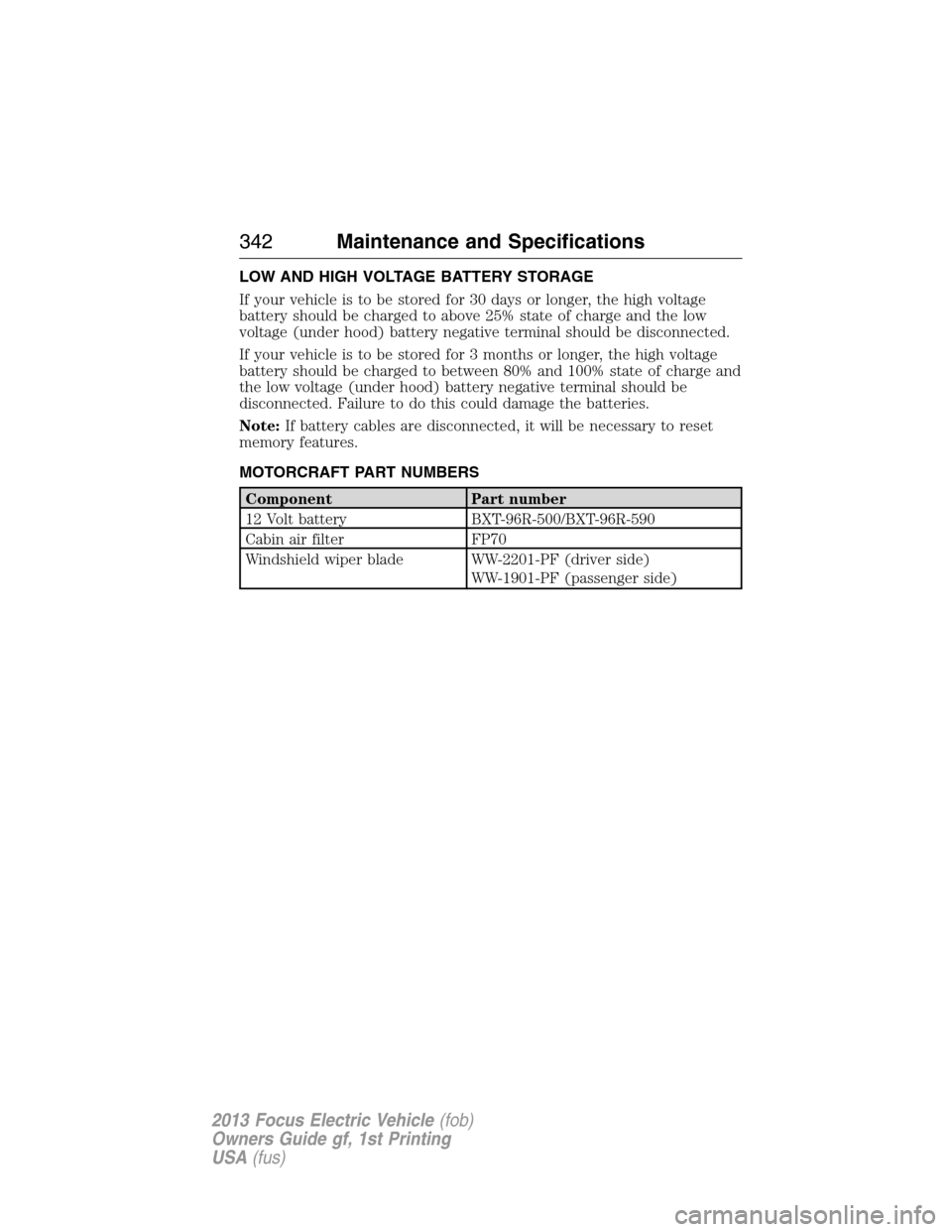

LOW AND HIGH VOLTAGE BATTERY STORAGE
If your vehicle is to be stored for 30 days or longer, the high voltage
battery should be charged to above 25% state of charge and the low
voltage (under hood) battery negative terminal should be disconnected.
If your vehicle is to be stored for 3 months or longer, the high voltage
battery should be charged to between 80% and 100% state of charge and
the low voltage (under hood) battery negative terminal should be
disconnected. Failure to do this could damage the batteries.
Note:If battery cables are disconnected, it will be necessary to reset
memory features.
MOTORCRAFT PART NUMBERS
Component Part number
12 Volt battery BXT-96R-500/BXT-96R-590
Cabin air filter FP70
Windshield wiper blade WW-2201-PF (driver side)
WW-1901-PF (passenger side)
342Maintenance and Specifications
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

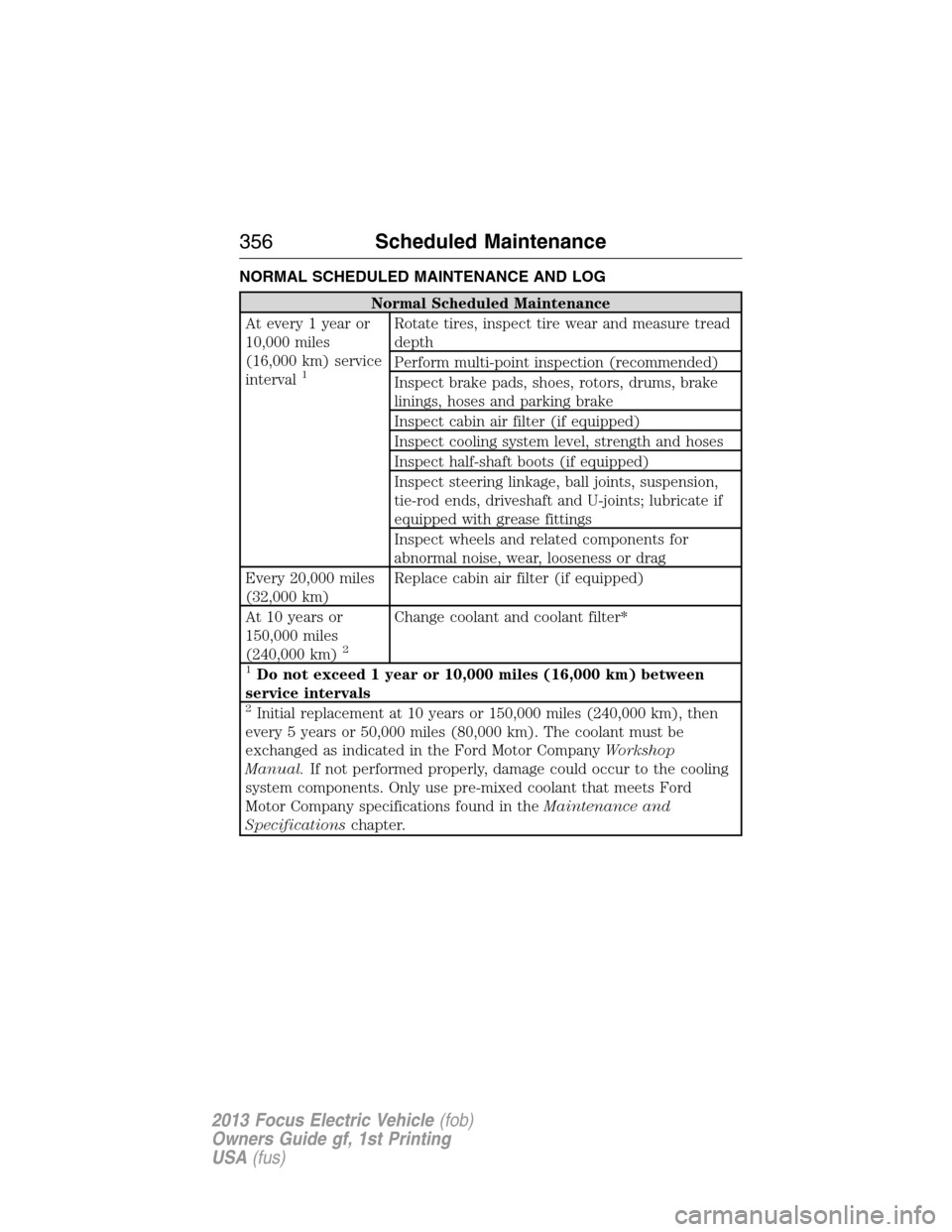

NORMAL SCHEDULED MAINTENANCE AND LOG
Normal Scheduled Maintenance
At every 1 year or
10,000 miles
(16,000 km) service
interval
1
Rotate tires, inspect tire wear and measure tread
depth
Perform multi-point inspection (recommended)
Inspect brake pads, shoes, rotors, drums, brake
linings, hoses and parking brake
Inspect cabin air filter (if equipped)
Inspect cooling system level, strength and hoses
Inspect half-shaft boots (if equipped)
Inspect steering linkage, ball joints, suspension,
tie-rod ends, driveshaft and U-joints; lubricate if
equipped with grease fittings
Inspect wheels and related components for
abnormal noise, wear, looseness or drag
Every 20,000 miles
(32,000 km)Replace cabin air filter (if equipped)
At 10 years or
150,000 miles
(240,000 km)
2
Change coolant and coolant filter*
1Do not exceed 1 year or 10,000 miles (16,000 km) between
service intervals
2Initial replacement at 10 years or 150,000 miles (240,000 km), then
every 5 years or 50,000 miles (80,000 km). The coolant must be
exchanged as indicated in the Ford Motor CompanyWorkshop
Manual.If not performed properly, damage could occur to the cooling
system components. Only use pre-mixed coolant that meets Ford
Motor Company specifications found in theMaintenance and
Specificationschapter.
356Scheduled Maintenance
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

911 Assist™ ................................94
A
Accessing and using your USB
port ..............................................74
Accessing your calendar ............94
Accessory delay ........................144
Adding (pairing) a phone ..........81
AdvanceTrac ..............................261
Airbag supplemental restraint
system ................194–195, 203, 205
and child safety seats ............196
description ..............195, 203, 205
disposal ....................................209
driver airbag ............197, 204, 207
indicator light .................202, 209
operation .................197, 204, 207
passenger airbag .....197, 204, 207
side airbag ...............................203
Air filter, cabin ..........................342
Ambient mood/lighting .............134
AM/FM .........................................60
Anti-lock brake system
(see Brakes) ..............................259
Anti-theft system ..............168–169
arming the system ..........169–170
disarming a triggered
system .....................................170
triggering .................................170
Audio system
Single CD ..................................39
Audio system (see Radio) .........39
Automatic transaxle
fluid, adding ............................340
fluid, checking ........................340
Automatic transmission ............267fluid, refill capacities ..............343
fluid, specification ..................343
Auxiliary Input Jack ...................70
Auxiliary powerpoint ................142
A/V inputs ..............................40, 78
B
Battery .......................................328
acid, treating emergencies .....328
jumping a disabled battery ....303
maintenance-free ....................328
replacement, specifications ...342
servicing ..................................328
traction battery pack
assembly ..................................330
Belt-Minder.............................190
Blind spot mirror ......................276
Booster seats .............................223
Brakes ................................258–259
anti-lock ...................................259
anti-lock brake system (ABS)
warning light ...........................259
fluid, checking and adding ....340
fluid, refill capacities ..............343
fluid, specifications .................343
lubricant specifications ..........343
parking ....................................261
shift interlock ..........................265
Break-in period .............................6
Bulbs ..........................................134
C
Capacities for refilling fluids ....343
Cargo management system ......152
CD ................................................39
CD player ....................................72
380Index
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)
