2013 FORD FOCUS ELECTRIC light

•(1) 8 feet (2.4 meters)
•(2) Center height of lamp to
ground
•(3) 25 feet (7.6 meters)
•(4) Horizontal reference line
2. Measure the height of the
headlamp bulb center from the
ground and mark an 8 foot
(2.4 meter) horizontal reference line
on the vertical wall or screen at this
height.
3. Turn on the low beam headlamps to illuminate the wall or screen and
open the hood.
To see a clearer light pattern for adjusting, you may want to block the
light from one headlamp while adjusting the other.
There is a distinct cut-off (change
from light to dark) in the left
portion of the beam pattern. The
top edge of this cut-off should be
positioned two inches (5 cm) below
the horizontal reference line.
4. Locate the vertical adjuster on
each headlamp. Using a Phillips #2
screwdriver or 13 millimeter
wrench/socket, turn the adjuster
either clockwise or
counterclockwise in order to adjust
the vertical aim of the headlamp.
5. Close the hood and turn off the lamps.
HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS
NOT ADJUSTABLE.
132Lighting
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

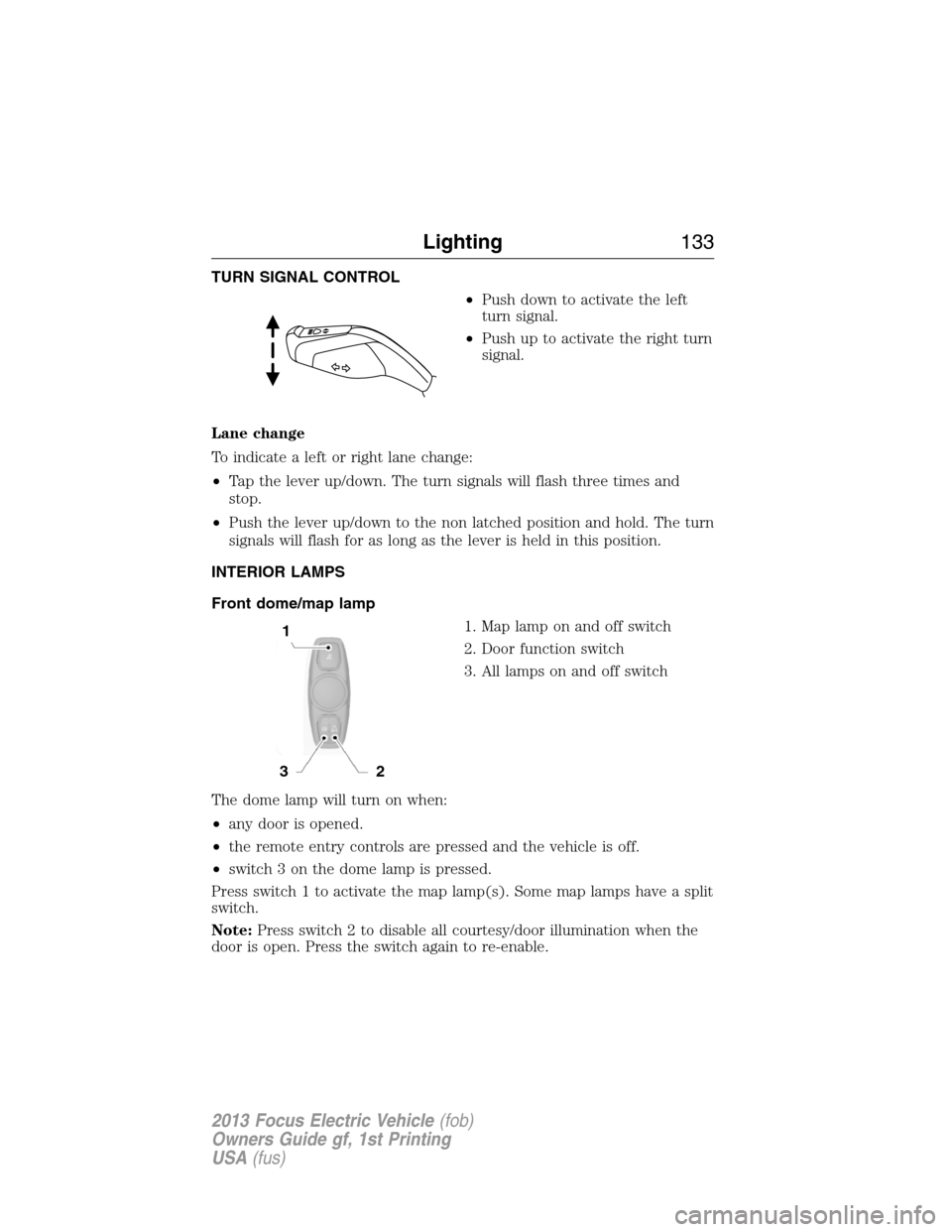

TURN SIGNAL CONTROL
•Push down to activate the left
turn signal.
•Push up to activate the right turn
signal.
Lane change
To indicate a left or right lane change:
•Tap the lever up/down. The turn signals will flash three times and
stop.
•Push the lever up/down to the non latched position and hold. The turn
signals will flash for as long as the lever is held in this position.
INTERIOR LAMPS
Front dome/map lamp
1. Map lamp on and off switch
2. Door function switch
3. All lamps on and off switch
The dome lamp will turn on when:
•any door is opened.
•the remote entry controls are pressed and the vehicle is off.
•switch 3 on the dome lamp is pressed.
Press switch 1 to activate the map lamp(s). Some map lamps have a split
switch.
Note:Press switch 2 to disable all courtesy/door illumination when the
door is open. Press the switch again to re-enable.
1
32
Lighting133
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

Rear dome/map lamp (if equipped)
The dome lamp will turn on when:
•any door is opened.
•any of the remote entry controls are pressed and the vehicle
is off.
•switch 3 on the front dome/map lamp is pressed.
Press
to manually turn on the map lamp(s) (if equipped):
Ambient lighting (if equipped)
Illuminates the interior with a
choice of several colors. The
ambient lighting control switch is
located in the overhead console.
•Rotate the control knob past the
first detent to activate and adjust
to the desired brightness.
•Press the left color pallet switch
to cycle through the color
choices.
•Press the right search mode switch to activate all dome lamps and all
ambient lighting. Press the search mode switch again to deactivate the
dome lamps and return the ambient lighting to the previously selected
color.
The ambient lights come on whenever the vehicle is on, the headlamps
are on and the outside ambient light level is low.
Note:The ambient lights will stay on until the vehicle is turned off and
the vehicle is locked or the accessory delay timer expires.
BULB REPLACEMENT
Lamp Assembly Condensation
Exterior lamps are vented to accommodate normal changes in pressure.
Condensation can be a natural by-product of this design. When moist air
enters the lamp assembly through the vents, there is a possibility that
134Lighting
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

condensation can occur when the temperature is cold. When normal
condensation occurs, a thin film of mist can form on the interior of the
lens. The thin mist eventually clears and exits through the vents during
normal operation. Clearing time may take as long as 48 hours under dry
weather conditions.
These are examples of acceptable condensation:
•Presence of thin mist (no streaks, drip marks or droplets).
•Fine mist covers less than 50% of the lens.
These are examples of unacceptable moisture (usually caused by a lamp
water leak):
•Water puddle inside the lamp.
•Large water droplets, drip marks or streaks present on the interior of
the lens.
Take your vehicle to a dealer for service if any of the above conditions of
unacceptable moisture are present.
Using the right bulbs
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized “D.O.T.” for North America to ensure
lamp performance, light brightness and pattern and safe visibility. The
correct bulbs will not damage the lamp assembly or void the lamp
assembly warranty and will provide quality bulb burn time.
Function Trade number
Headlamps high beam H1
* Headlamp low beam (HID) D8S
Parking lamp/turn signal lamp (front) W21W
* Side marker lamp (front) LED
Brake lamp 3157K
Tail lamp 3157K
Turn lamp 3757AK
Reverse lamp 921
* License plate lamp LED
* High-mount brake lamp LED
* To replace these lamps - see your authorized dealer.
To replace all instrument panel lights - see your authorized dealer
Lighting135
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

Replacing headlamp bulbs
1. Make sure the headlamp control
is in the off position.
2. Open the hood.
3. Remove the two screw from the
headlamp assembly.
4. Carefully pull the headlamp
assembly up and away from the
vehicle.
Low beam headlamp bulb:
The low beam headlamps on your vehicle use a “high intensity discharge”
(HID) source. These lamps operate at a high voltage. When the bulb is
burned out, the bulb and starter capsule assembly must be replaced by
your authorized dealer.
High beam headlamp bulb:
•Remove service cap.
•Remove bulb by removing the
electrical wire connector (lift up
on the bottom latch).
WARNING:Handle a halogen headlamp bulb carefully and keep
out of children’s reach. Grasp the bulb by only its plastic base
and do not touch the glass. The oil from your hand could cause the
bulb to break the next time the headlamps are operated.
Note:If the bulb is accidentally touched, it should be cleaned with
rubbing alcohol before being used.
136Lighting
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

Replacing front parking lamp/turn signal bulbs:
•Remove service cap on the
bottom of the lamp by turning it
counterclockwise
•Remove the bulb socket from the
headlamp assembly by turning it
counterclockwise.
Replacing side marker bulbs:
Your vehicle is equipped with an LED side marker bulb. It is designed to
last the life of the vehicle. If replacement is required, it is recommended
that you see your authorized dealer.
Replacing rear lamps
1. Make sure the headlamp control
is in the off position.
2. Open the trunk.
3. Remove the trim panel from
inside the luggage compartment.
4. Remove the two nuts from the
lamp assembly.
Lighting137
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

5. Gently pull the lamp assembly away from the vehicle.
6. Remove bulbs by turning the bulb socket counterclockwise. Gently
pull the bulb straight out of the socket.
•Brake lamp (1)
•Reverse lamp (2)
•Tail lamp (3)
•Turn signal (4)
Install the new bulb in reverse order.
Replacing license plate lamp assembly
Your vehicle is equipped with an LED license plate lamp assembly. It is
designed to last the life of the vehicle. If replacement is required, it is
recommended that you see your authorized dealer.
Replacing high-mount brake lamp assembly
Your vehicle is equipped with an LED center high-mount stop lamp. It is
designed to last the life of the vehicle. If replacement is required, it is
recommended that you see your authorized dealer.
1
2
43
138Lighting
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

WINDSHIELD WIPERS
Move the lever down for a single
wipe.
Move the control up one
position for intermittent operation.
Adjust the rotary control to the
desired speed.
Move the control up two positions
for low-speed wiping or three positions for high-speed wiping.
The wipers may be moved manually with the vehicle off. They may
automatically return to their normal position when the vehicle is turned
on.
When wiping on dry glass, the wipers may switch to the next lower
operating mode (low-speed or intermittent). The previous operation
mode may resume after the windshield becomes wet again.
Rain-Sensing Wipers (If Equipped)
The rain-sensing wipers will automatically activate when moisture is
present on the windshield and control is intermittent operation position.
Adjust the rotary control to the desired moisture sensitivity settings. The
speed of the rain-sensitive wipers will vary based on the amount of
moisture detected on the windshield and the sensitivity setting. There
are no interval (intermittent wipe) settings on vehicles with rain-sensing
wipers. The wipers will continue to wipe as long as the presence of
moisture is detected on the windshield. More or less wiping may occur
depending on humidity, mist or light rain, or road spray.
Keep the outside of the windshield clean, especially the area around the
rear view mirror where the sensor is located or rain sensor performance
may be affected.
Note:During winter driving conditions with ice, snow or a salty road
mist, inconsistent or unexpected wiping or smearing may occur. In these
conditions, you can lower the sensitivity to reduce the amount of
smearing or override the feature by selecting low- or high-speed wiping
or turning the wiper system off.
Note:The wipers must be turned off before entering a car wash.
Windshield Washer
Pull the control toward you to activate the windshield washer.
Release the control to stop washer fluid spray. The wipers will operate
for a short time after the washer is turned off.
