2013 FORD FOCUS ELECTRIC light

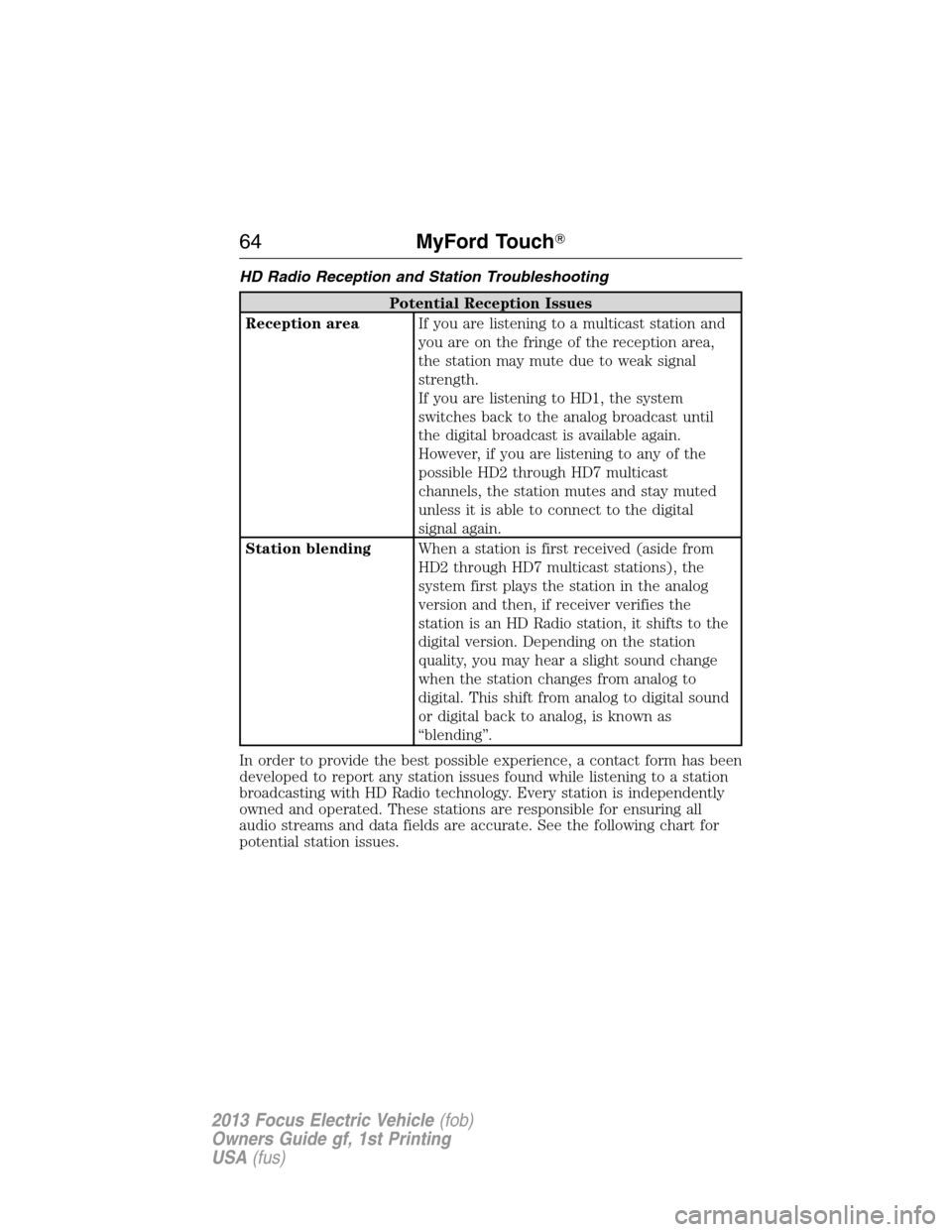

HD Radio Reception and Station Troubleshooting
Potential Reception Issues
Reception areaIf you are listening to a multicast station and
you are on the fringe of the reception area,
the station may mute due to weak signal
strength.
If you are listening to HD1, the system
switches back to the analog broadcast until
the digital broadcast is available again.
However, if you are listening to any of the
possible HD2 through HD7 multicast
channels, the station mutes and stay muted
unless it is able to connect to the digital
signal again.
Station blendingWhen a station is first received (aside from
HD2 through HD7 multicast stations), the
system first plays the station in the analog
version and then, if receiver verifies the
station is an HD Radio station, it shifts to the
digital version. Depending on the station
quality, you may hear a slight sound change
when the station changes from analog to
digital. This shift from analog to digital sound
or digital back to analog, is known as
“blending”.
In order to provide the best possible experience, a contact form has been
developed to report any station issues found while listening to a station
broadcasting with HD Radio technology. Every station is independently
owned and operated. These stations are responsible for ensuring all
audio streams and data fields are accurate. See the following chart for
potential station issues.
64MyFord Touch
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

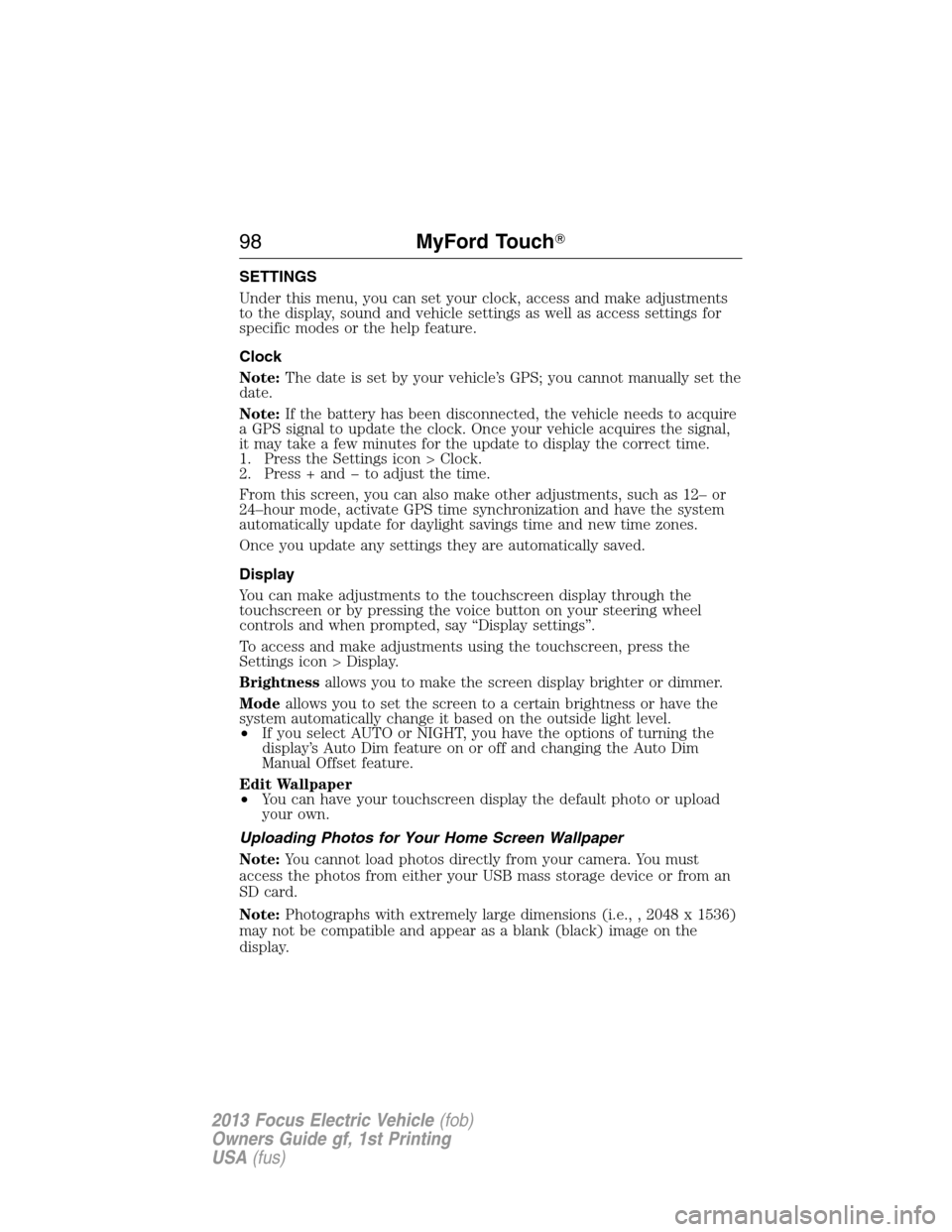

SETTINGS
Under this menu, you can set your clock, access and make adjustments
to the display, sound and vehicle settings as well as access settings for
specific modes or the help feature.
Clock
Note:The date is set by your vehicle’s GPS; you cannot manually set the
date.
Note:If the battery has been disconnected, the vehicle needs to acquire
a GPS signal to update the clock. Once your vehicle acquires the signal,
it may take a few minutes for the update to display the correct time.
1. Press the Settings icon > Clock.
2. Press + and to adjust the time.
From this screen, you can also make other adjustments, such as 12– or
24–hour mode, activate GPS time synchronization and have the system
automatically update for daylight savings time and new time zones.
Once you update any settings they are automatically saved.
Display
You can make adjustments to the touchscreen display through the
touchscreen or by pressing the voice button on your steering wheel
controls and when prompted, say “Display settings”.
To access and make adjustments using the touchscreen, press the
Settings icon > Display.
Brightnessallows you to make the screen display brighter or dimmer.
Modeallows you to set the screen to a certain brightness or have the
system automatically change it based on the outside light level.
•If you select AUTO or NIGHT, you have the options of turning the
display’s Auto Dim feature on or off and changing the Auto Dim
Manual Offset feature.
Edit Wallpaper
•You can have your touchscreen display the default photo or upload
your own.
Uploading Photos for Your Home Screen Wallpaper
Note:You cannot load photos directly from your camera. You must
access the photos from either your USB mass storage device or from an
SD card.
Note:Photographs with extremely large dimensions (i.e., , 2048 x 1536)
may not be compatible and appear as a blank (black) image on the
display.
98MyFord Touch
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

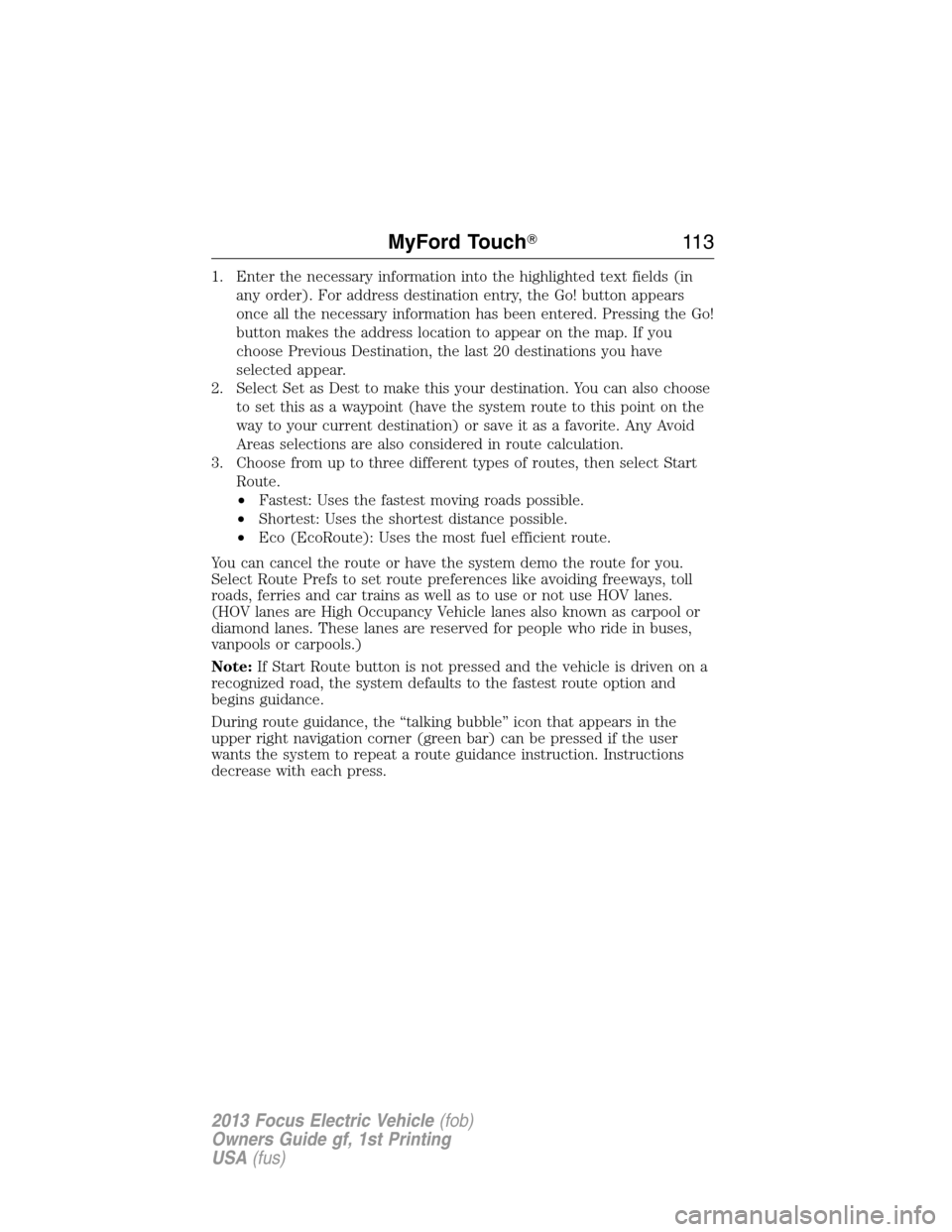

1. Enter the necessary information into the highlighted text fields (in
any order). For address destination entry, the Go! button appears
once all the necessary information has been entered. Pressing the Go!
button makes the address location to appear on the map. If you
choose Previous Destination, the last 20 destinations you have
selected appear.
2. Select Set as Dest to make this your destination. You can also choose
to set this as a waypoint (have the system route to this point on the
way to your current destination) or save it as a favorite. Any Avoid
Areas selections are also considered in route calculation.
3. Choose from up to three different types of routes, then select Start
Route.
•Fastest: Uses the fastest moving roads possible.
•Shortest: Uses the shortest distance possible.
•Eco (EcoRoute): Uses the most fuel efficient route.
You can cancel the route or have the system demo the route for you.
Select Route Prefs to set route preferences like avoiding freeways, toll
roads, ferries and car trains as well as to use or not use HOV lanes.
(HOV lanes are High Occupancy Vehicle lanes also known as carpool or
diamond lanes. These lanes are reserved for people who ride in buses,
vanpools or carpools.)
Note:If Start Route button is not pressed and the vehicle is driven on a
recognized road, the system defaults to the fastest route option and
begins guidance.
During route guidance, the “talking bubble” icon that appears in the
upper right navigation corner (green bar) can be pressed if the user
wants the system to repeat a route guidance instruction. Instructions
decrease with each press.
MyFord Touch11 3
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

H.Instrument panel:Press to distribute air through the instrument
panel air vents.
I.Footwell:Press to distribute air through the footwell air vents.
J.Air conditioning:Press to switch the air conditioning on or off. Air
conditioning cools your vehicle using outside air. To improve air
conditioning when starting your vehicle, drive with the windows slightly
open for two to three minutes.
Temperature Control
You can set the temperature between 60°F (15.5°C) and 85°F (29.5°C)
in 1°F (0.5°C) increments. In position LO, 59°F (15°C), the system
switches to permanent cooling. In position HI, 86°F (30°C), the system
switches to permanent heating.
Note:If you select either position LO or HI, the system does not
regulate a stable temperature.
Mono Mode
In this mode, the temperature settings for both the driver’s side and
passenger’s side are linked. If you adjust the setting using the rotary
control on the driver’s side, the system adjusts the temperature on the
passenger side.
Switching Mono Mode Off
Select a temperature for the passenger’s side using the rotary control on
the passenger’s side. Mono mode automatically switches off. The
temperature on the driver’s side remains unchanged. You can now adjust
the driver’s side and passenger’s side temperatures independently of
each another. The temperature settings for each are shown in the
display.
124Climate Control
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

•Defrost mode automatically turns the air conditioning on to
dehumidify the air, and cannot be switched off. If defogging or
defrosting is not necessary, select a non-defrost mode and disengage
air conditioning to extend vehicle range.
•Air conditioning and heating functions are automatically switched off
(unless in defrost mode) when driving distance to empty is zero miles
(zero km). The interior fan continues to operate, however.
Touchscreen Features
Your vehicle is equipped with a touchscreen system. You can access
climate features using the touchscreen and voice commands. Refer to
Touchscreen climate controlsin theMyFord Touchchapter for more
information.
REAR WINDOW DEFROSTER
Note:The vehicle must be in Ready to Drive for this feature to work.
The rear window defroster control is located on the climate control panel
and works to clear the rear window of fog and thin ice.
Press
Rto turn the rear window defroster on. An indicator light on the
control will illuminate when active. The rear window defroster turns off
automatically after a predetermined amount of time, if a low battery
condition is detected or when the ignition is turned off or to the
accessory position. To manually turn off the rear window defroster at any
time, press the control again.
If your vehicle is equipped with both rear defroster and heated mirrors,
the same control will activate both. Refer toHeated outside mirrorsin
theDriver Controlschapter.
Do not use razor blades or other sharp objects to clean the inside
of the rear window or to remove decals from the inside or the
rear window. This may cause damage to the heated grid lines and
will not be covered by your warranty.
Climate Control127
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

HEADLAMP CONTROL
Turns the lamps off.
Turns on the parking
lamps, instrument panel lamps,
license plate lamps and tail lamps.
Turns the headlamps on.
Note:The head lamp indicator will illuminate when the head lamps are
activated.
Autolamp control (if equipped)
The autolamp system provides light
sensitive automatic on-off control of
the exterior lights normally
controlled by the headlamp control.
•To turn autolamps on, rotate the
control to
.
•To turn autolamps off, rotate the
control from the autolamp
position.
Note:If the vehicle is equipped with autolamps, it will have the
windshield wiper rainlamp feature.When the windshield wipers are
turned to low- or high-speed wiping during daylight, and the headlamp
control is in the autolamp position, the exterior lamps will turn on after a
brief delay and will remain on until the wipers are turned off.
Autolamp delay system (if equipped)
If your vehicle is equipped with autolamps, you can set the delay time to
keep the headlights on for up to one minute after the key is turned off.
The home light delay settings are adjusted through the message center
in the instrument cluster. The default delay time from the factory is set
to 20 seconds.
Note:The headlamps can be activated manually by pulling the high
beam/flash-to-pass lever toward you. The headlamps are deactivated
after 30 seconds or three minutes if any door is open.
A
A
Lighting129
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

High beams
•Push the lever toward the
instrument panel to activate.
•Push the lever toward the
instrument panel again or pull
the lever towards you to
deactivate.
Flash-to-pass
Pull toward you slightly to activate
and release to deactivate.
DAYTIME RUNNING LAMPS (DRL) (IF EQUIPPED)
WARNING:Always remember to turn on your headlamps in low
light situations or during inclement weather. The system does not
activate the tail lamps and may not provide adequate lighting during
these conditions. Failure to activate your headlamps under these
conditions may result in a collision.
The system turns the headlamps on.
To switch the system on, switch the vehicle to Ready to Drive mode and
switch the headlamp control to the off or parking lamp position.
130Lighting
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

PANEL DIMMER CONTROL
Use to adjust the brightness of the
instrument panel and all applicable
lit components in the vehicle during
headlamp and parking lamp
operation.
•Tap the right control to brighten
all interior lit components
incrementally, or
•Press and hold the right control
until the desired lighting level is
reached.
•Tap the left control to dim all
interior lit components
incrementally, or
•Press and hold the left control
until the desired lighting level is
reached.
Note:If the low voltage battery under the hood is disconnected,
discharged, or a new low voltage battery is installed, the dimmer will set
the illuminated components to the maximum setting automatically. This
will ensure that your displays are visible under all lighting conditions.
The brightness can then be adjusted to the users preference.
AIMING THE HEADLAMPS
The headlamps on your vehicle are properly aimed at the assembly plant.
If your vehicle has been in an accident, the alignment of your headlamps
should be checked by your authorized dealer.
Vertical aim adjustment
1. Park the vehicle directly in front of a wall or screen on a level surface,
approximately 25 feet (7.6 meters) away.
Lighting131
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)
