2013 FORD FOCUS ELECTRIC washer fluid

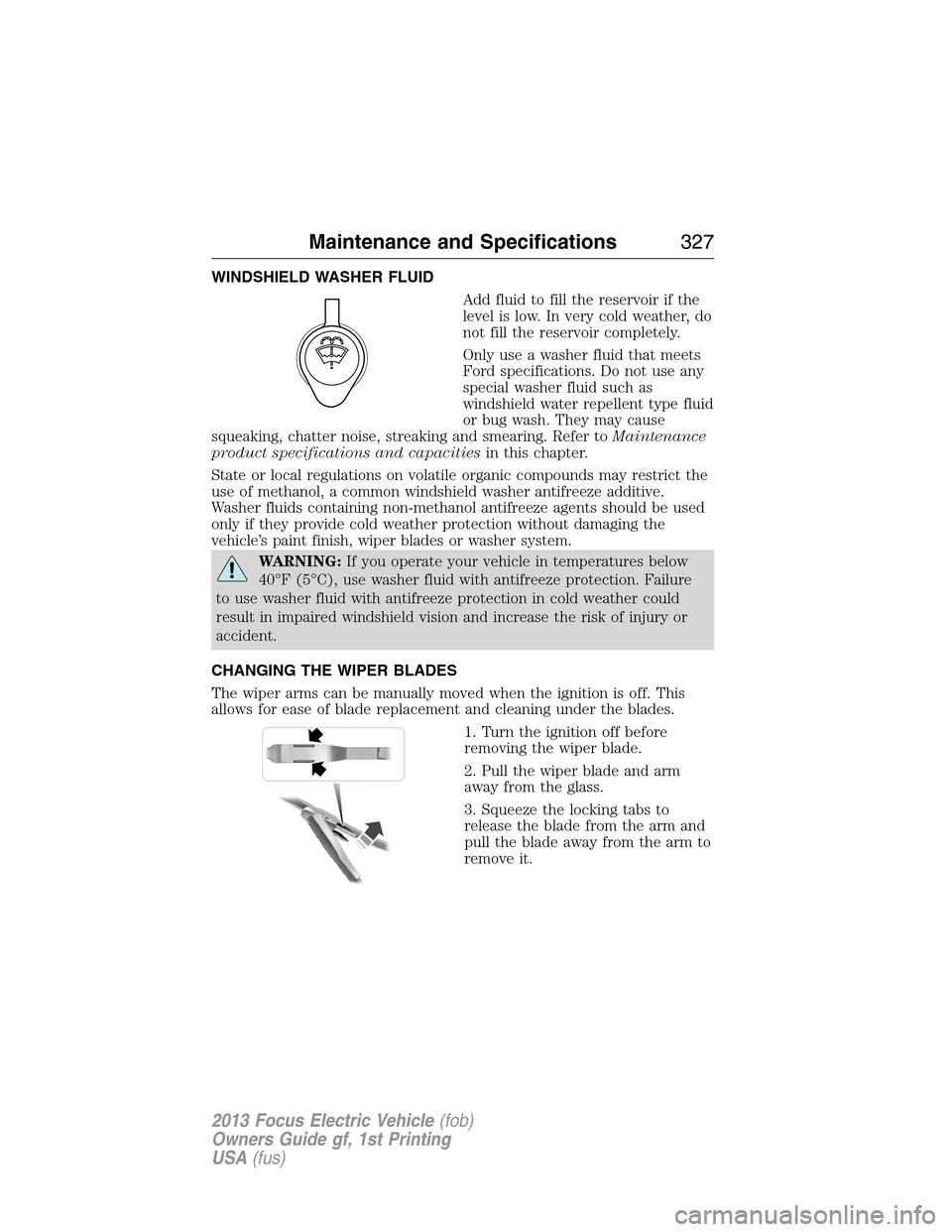

WINDSHIELD WASHER FLUID
Add fluid to fill the reservoir if the
level is low. In very cold weather, do
not fill the reservoir completely.
Only use a washer fluid that meets
Ford specifications. Do not use any
special washer fluid such as
windshield water repellent type fluid
or bug wash. They may cause
squeaking, chatter noise, streaking and smearing. Refer toMaintenance
product specifications and capacitiesin this chapter.
State or local regulations on volatile organic compounds may restrict the
use of methanol, a common windshield washer antifreeze additive.
Washer fluids containing non-methanol antifreeze agents should be used
only if they provide cold weather protection without damaging the
vehicle’s paint finish, wiper blades or washer system.
WARNING:If you operate your vehicle in temperatures below
40°F (5°C), use washer fluid with antifreeze protection. Failure
to use washer fluid with antifreeze protection in cold weather could
result in impaired windshield vision and increase the risk of injury or
accident.
CHANGING THE WIPER BLADES
The wiper arms can be manually moved when the ignition is off. This
allows for ease of blade replacement and cleaning under the blades.
1. Turn the ignition off before
removing the wiper blade.
2. Pull the wiper blade and arm
away from the glass.
3. Squeeze the locking tabs to
release the blade from the arm and
pull the blade away from the arm to
remove it.
Maintenance and Specifications327
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

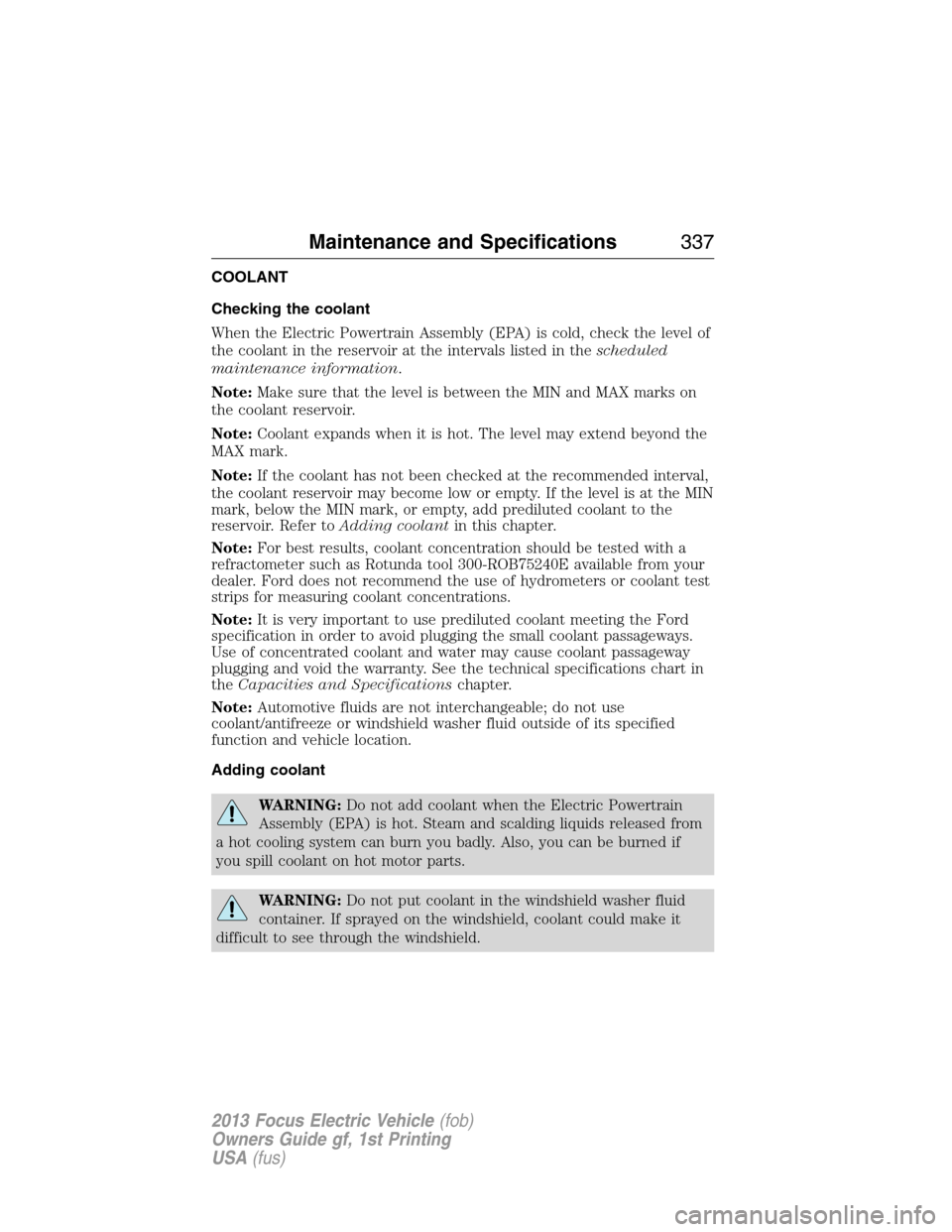

COOLANT
Checking the coolant
When the Electric Powertrain Assembly (EPA) is cold, check the level of
the coolant in the reservoir at the intervals listed in thescheduled
maintenance information.
Note:Make sure that the level is between the MIN and MAX marks on
the coolant reservoir.
Note:Coolant expands when it is hot. The level may extend beyond the
MAX mark.
Note:If the coolant has not been checked at the recommended interval,
the coolant reservoir may become low or empty. If the level is at the MIN
mark, below the MIN mark, or empty, add prediluted coolant to the
reservoir. Refer toAdding coolantin this chapter.
Note:For best results, coolant concentration should be tested with a
refractometer such as Rotunda tool 300-ROB75240E available from your
dealer. Ford does not recommend the use of hydrometers or coolant test
strips for measuring coolant concentrations.
Note:It is very important to use prediluted coolant meeting the Ford
specification in order to avoid plugging the small coolant passageways.
Use of concentrated coolant and water may cause coolant passageway
plugging and void the warranty. See the technical specifications chart in
theCapacities and Specificationschapter.
Note:Automotive fluids are not interchangeable; do not use
coolant/antifreeze or windshield washer fluid outside of its specified
function and vehicle location.
Adding coolant
WARNING:Do not add coolant when the Electric Powertrain
Assembly (EPA) is hot. Steam and scalding liquids released from
a hot cooling system can burn you badly. Also, you can be burned if
you spill coolant on hot motor parts.
WARNING:Do not put coolant in the windshield washer fluid
container. If sprayed on the windshield, coolant could make it
difficult to see through the windshield.
Maintenance and Specifications337
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

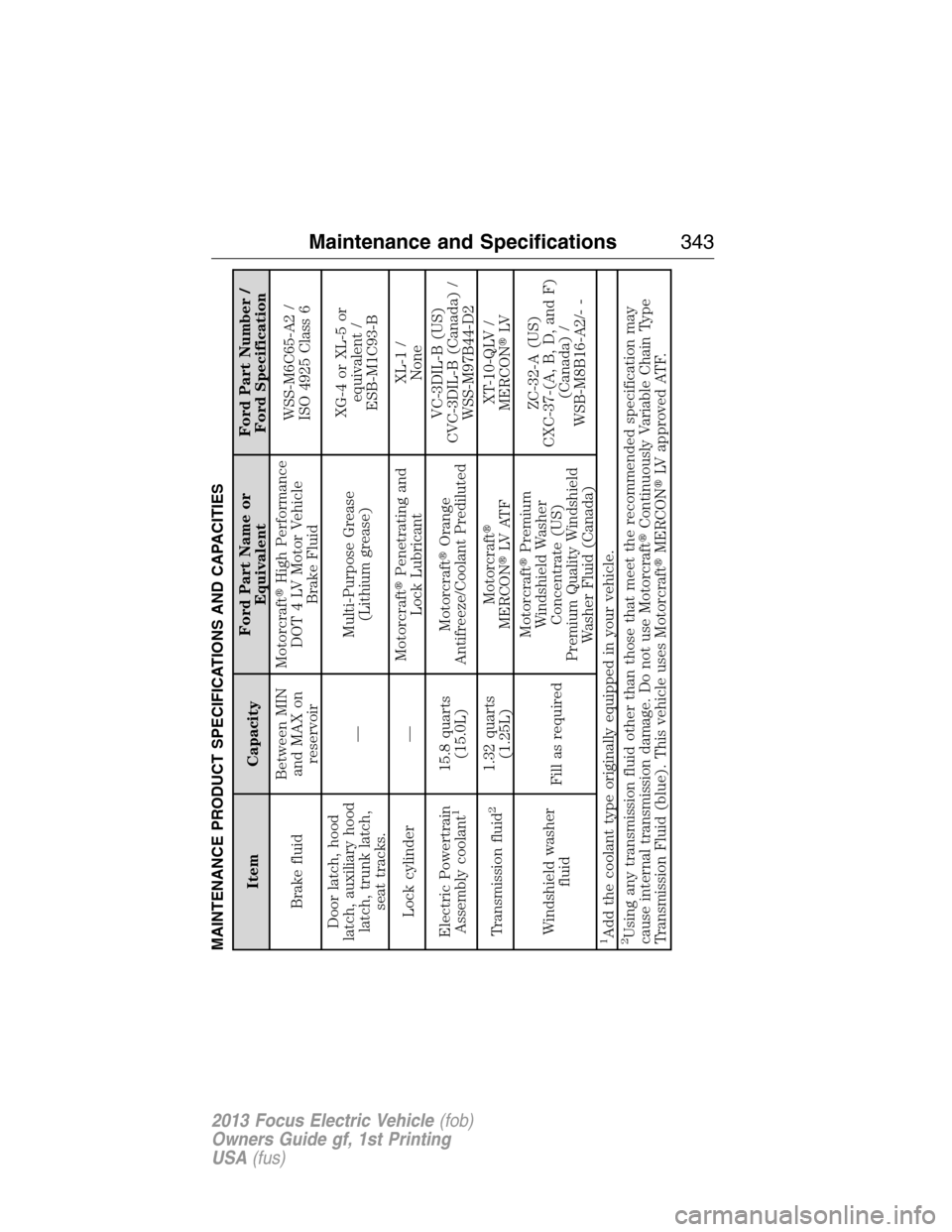

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item CapacityFord Part Name or
EquivalentFord Part Number /
Ford Specification
Brake fluidBetween MIN
and MAX on
reservoirMotorcraftHigh Performance
DOT 4 LV Motor Vehicle
Brake FluidWSS-M6C65-A2 /
ISO 4925 Class 6
Door latch, hood
latch, auxiliary hood
latch, trunk latch,
seat tracks.—Multi-Purpose Grease
(Lithium grease)XG-4 or XL-5 or
equivalent /
ESB-M1C93-B
Lock cylinder —MotorcraftPenetrating and
Lock LubricantXL-1 /
None
Electric Powertrain
Assembly coolant
1
15.8 quarts
(15.0L)MotorcraftOrange
Antifreeze/Coolant PredilutedVC-3DIL-B (US)
CVC-3DIL-B (Canada) /
WSS-M97B44-D2
Transmission fluid
2
1.32 quarts
(1.25L)Motorcraft
MERCONLV AT FXT-10-QLV /
MERCONLV
Windshield washer
fluidFill as requiredMotorcraftPremium
Windshield Washer
Concentrate (US)
Premium Quality Windshield
Washer Fluid (Canada)ZC-32-A (US)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2/- -
1Add the coolant type originally equipped in your vehicle.2Using any transmission fluid other than those that meet the recommended specification may
cause internal transmission damage. Do not use MotorcraftContinuously Variable Chain Type
Transmission Fluid (blue). This vehicle uses MotorcraftMERCONLV approved ATF.
Maintenance and Specifications343
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

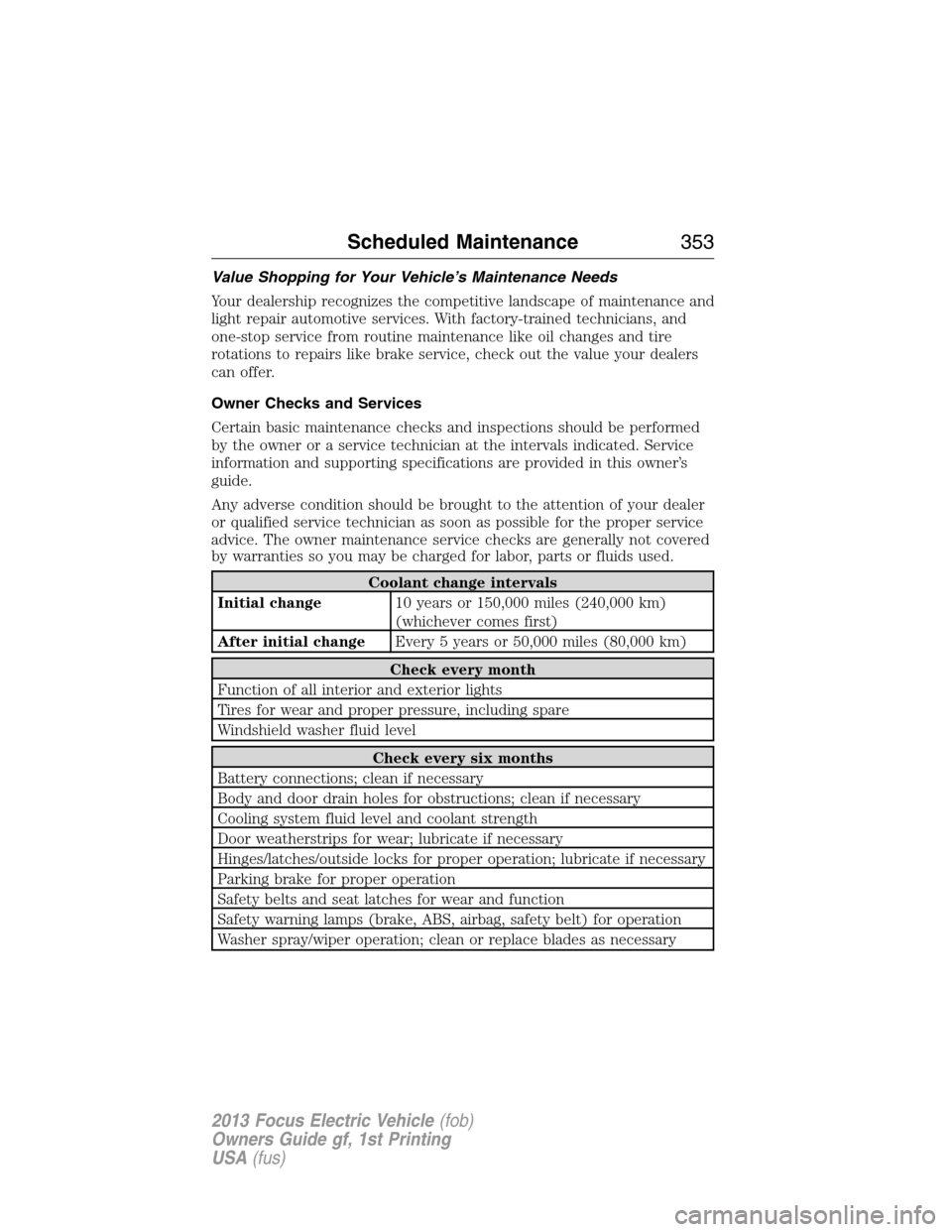

Value Shopping for Your Vehicle’s Maintenance Needs
Your dealership recognizes the competitive landscape of maintenance and
light repair automotive services. With factory-trained technicians, and
one-stop service from routine maintenance like oil changes and tire
rotations to repairs like brake service, check out the value your dealers
can offer.
Owner Checks and Services
Certain basic maintenance checks and inspections should be performed
by the owner or a service technician at the intervals indicated. Service
information and supporting specifications are provided in this owner’s
guide.
Any adverse condition should be brought to the attention of your dealer
or qualified service technician as soon as possible for the proper service
advice. The owner maintenance service checks are generally not covered
by warranties so you may be charged for labor, parts or fluids used.
Coolant change intervals
Initial change10 years or 150,000 miles (240,000 km)
(whichever comes first)
After initial changeEvery 5 years or 50,000 miles (80,000 km)
Check every month
Function of all interior and exterior lights
Tires for wear and proper pressure, including spare
Windshield washer fluid level
Check every six months
Battery connections; clean if necessary
Body and door drain holes for obstructions; clean if necessary
Cooling system fluid level and coolant strength
Door weatherstrips for wear; lubricate if necessary
Hinges/latches/outside locks for proper operation; lubricate if necessary
Parking brake for proper operation
Safety belts and seat latches for wear and function
Safety warning lamps (brake, ABS, airbag, safety belt) for operation
Washer spray/wiper operation; clean or replace blades as necessary
Scheduled Maintenance353
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

Multi-Point Inspection
In order to keep your vehicle running right, it is important to have the
systems on your vehicle checked regularly. This can help identify
potential issues and prevent major problems. Ford Motor Company
recommends the following multi-point inspection be performed at every
scheduled maintenance interval to help make sure your vehicle keeps
running great.
Multi-point inspection – Recommended each visit
Battery performance Radiator, cooler, heater and A/C hoses
Exterior lamps and hazard
warning system operationSuspension component for leaks or
damage
Fluid levels*; fill if necessary Tires for wear and proper pressure,
including spare
For oil and fluid leaks Steering and linkage
Half-shaft dust boots (if
equipped)Windshield for cracks, chips or pits
Horn operation Washer spray and wiper operation
*Brake, coolant recovery reservoir and window washer
Be sure to ask your dealership service advisor or technician about the
multi-point vehicle inspection. It’s a comprehensive way to perform a
thorough inspection of your vehicle. It’s your checklist that gives you
immediate feedback on the overall condition of your vehicle. You’ll know
what’s been checked, what’s okay, as well as those things that may
require future or immediate attention. The multi-point vehicle inspection
is one more way to keep your vehicle running great!
354Scheduled Maintenance
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

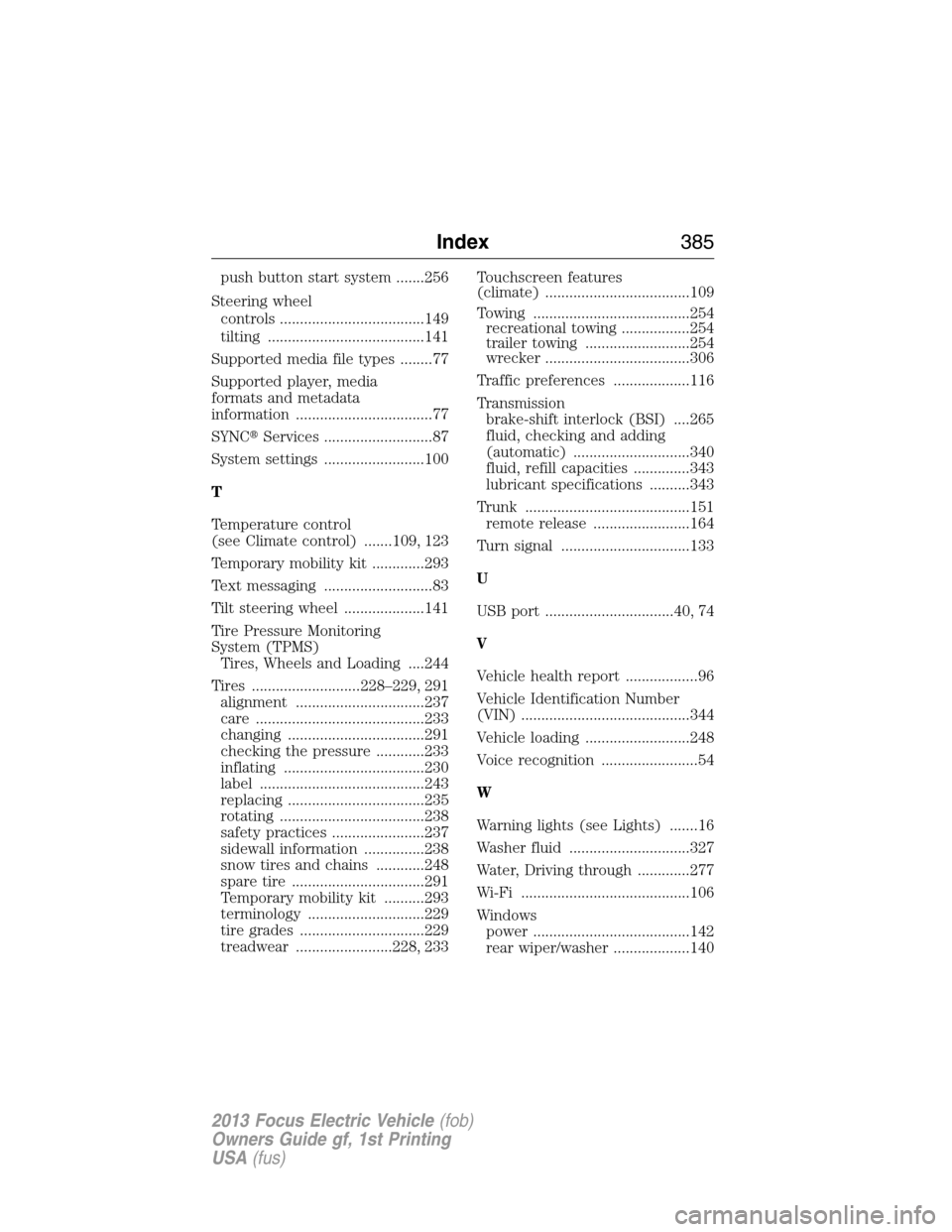

push button start system .......256
Steering wheel
controls ....................................149
tilting .......................................141
Supported media file types ........77
Supported player, media
formats and metadata
information ..................................77
SYNCServices ...........................87
System settings .........................100
T
Temperature control
(see Climate control) .......109, 123
Temporary mobility kit .............293
Text messaging ...........................83
Tilt steering wheel ....................141
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....244
Tires ...........................228–229, 291
alignment ................................237
care ..........................................233
changing ..................................291
checking the pressure ............233
inflating ...................................230
label .........................................243
replacing ..................................235
rotating ....................................238
safety practices .......................237
sidewall information ...............238
snow tires and chains ............248
spare tire .................................291
Temporary mobility kit ..........293
terminology .............................229
tire grades ...............................229
treadwear ........................228, 233Touchscreen features
(climate) ....................................109
Towing .......................................254
recreational towing .................254
trailer towing ..........................254
wrecker ....................................306
Traffic preferences ...................116
Transmission
brake-shift interlock (BSI) ....265
fluid, checking and adding
(automatic) .............................340
fluid, refill capacities ..............343
lubricant specifications ..........343
Trunk .........................................151
remote release ........................164
Turn signal ................................133
U
USB port ................................40, 74
V
Vehicle health report ..................96
Vehicle Identification Number
(VIN) ..........................................344
Vehicle loading ..........................248
Voice recognition ........................54
W
Warning lights (see Lights) .......16
Washer fluid ..............................327
Water, Driving through .............277
Wi-Fi ..........................................106
Windows
power .......................................142
rear wiper/washer ...................140
Index385
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

Windshield washer fluid and
wipers
checking and adding fluid .....327
operation .................................139replacing wiper blades ...327–328
Wrecker towing .........................306
386Index
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)
