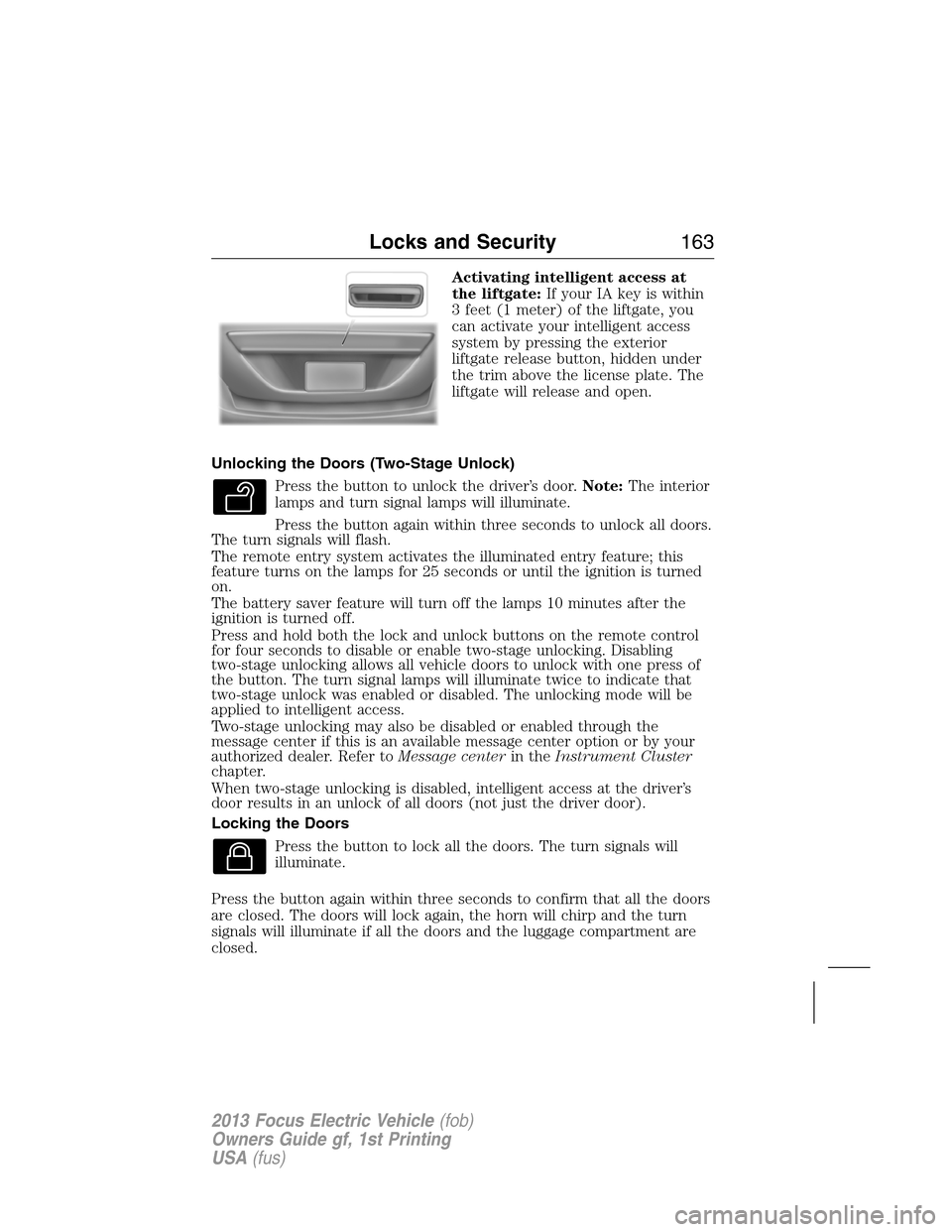

Activating intelligent access at
the liftgate:If your IA key is within
3 feet (1 meter) of the liftgate, you
can activate your intelligent access
system by pressing the exterior
liftgate release button, hidden under
the trim above the license plate. The
liftgate will release and open.
Unlocking the Doors (Two-Stage Unlock)
Press the button to unlock the driver’s door.Note:The interior
lamps and turn signal lamps will illuminate.
Press the button again within three seconds to unlock all doors.
The turn signals will flash.
The remote entry system activates the illuminated entry feature; this
feature turns on the lamps for 25 seconds or until the ignition is turned
on.
The battery saver feature will turn off the lamps 10 minutes after the
ignition is turned off.
Press and hold both the lock and unlock buttons on the remote control
for four seconds to disable or enable two-stage unlocking. Disabling
two-stage unlocking allows all vehicle doors to unlock with one press of
the button. The turn signal lamps will illuminate twice to indicate that
two-stage unlock was enabled or disabled. The unlocking mode will be
applied to intelligent access.
Two-stage unlocking may also be disabled or enabled through the
message center if this is an available message center option or by your
authorized dealer. Refer toMessage centerin theInstrument Cluster
chapter.
When two-stage unlocking is disabled, intelligent access at the driver’s
door results in an unlock of all doors (not just the driver door).
Locking the Doors
Press the button to lock all the doors. The turn signals will
illuminate.
Press the button again within three seconds to confirm that all the doors
are closed. The doors will lock again, the horn will chirp and the turn
signals will illuminate if all the doors and the luggage compartment are
closed.
Locks and Security163
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

Intelligent Access Transmitter
1. Remove the backup key from the transmitter.
2. Twist a thin coin in the slot
hidden behind the backup key slot
to remove the battery cover.
3. Remove the old battery.
4. Insert the new battery with the+facing downward. Press the battery
down to make sure it is fully in the housing.
5. Snap the battery cover back onto the transmitter and install the
backup key.
Replacing lost remote entry transmitters
If you would like to have additional intelligent access keys programmed
to your vehicle, please contact your authorized dealer.
Illuminated Entry
The interior lamps and select exterior lamps illuminate when the remote
entry system is used to unlock the door(s).
The illuminated entry system will turn off the lights if:
•the ignition is on,
•the remote transmitter lock control is pressed, or
•after 25 seconds of illumination.
Locks and Security165
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

Push Button Start System
The power button is located on the
instrument panel to the right of the
steering wheel.
Starting the Vehicle
Note:To start your vehicle, your intelligent access key (IA key) must be
present inside the vehicle.
1. Press the power button (for any length of time) while applying the
brake pedal.
2. Release the parking brake, apply the brake, shift into gear and drive.
There may be areas inside your vehicle where the IA key is not detected.
If the message KEY NOT DETECTED appears on your multifunction
display when you press the power button, it may be necessary to move
your IA key to another area within the vehicle. The IA key may not be
detected near the roof (between the driver or passenger sun visor and
the roof, or in the overhead console area) or in the extreme corners of
the rear package tray, near your audio speakers. It is not recommended
that you stow the IA key in these locations. If you move the IA key to a
location where it has been detected before and you still see the KEY
NOT DETECTED message, your IA key’s battery may be low or you may
be in an area with excessive radio frequency interference. If this occurs,
you can use the backup method to start your vehicle.
256Driving
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

Type 1
Type 2
Backup Starting Method
Your IA key uses a radio frequency signal to communicate with your
vehicle and authorize your vehicle to start when you press the power
button and apply the brake pedal. If excessive radio frequency
interference is present in the area, or if the battery in your IA key is low,
it may be necessary to start your car by placing the IA key at the backup
location on the steering column. After placing the IA key at the backup
location, use the power button and brake pedal to start your vehicle as
usual. The vehicle should respond normally as long as the IA key is at
the backup location on the steering column. Once the vehicle is started,
the IA key can be moved from the backup location, if desired.
Fast Restart
The fast restart feature allows you to re-start your vehicle within
10 seconds of switching the vehicle off, if a valid IA key is not present
when the vehicle is switched off. You can re-start the vehicle (by
applying the brake pedal and pressing the power button) for up to
10 seconds, even though the IA key is not present. After 10 seconds
have expired, you can no longer start your vehicle without the IA key
present inside the vehicle. If the driver door is opened within this
10 seconds, the fast restart timer expires immediately.
Driving257
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

Switching the Vehicle Off When Not in P (Park)
It is recommended that you shift into the P (Park) position before
switching your vehicle off. If you switch your vehicle off with the shifter
in any position other than P (Park), the message SHIFT TO PARK is
displayed in the multifunction display. If the vehicle is left in this state,
your key in ignition chime activates when the driver door is opened, and
you may drain your vehicle’s battery. In order to avoid draining your
battery, it is recommended that you always shift to P (Park) before or
immediately after switching your vehicle off.
Absence of the Intelligent Access Key
Once the vehicle has started, the vehicle remains running until being
turned off by the power button, even if the IA key is no longer found in
the vehicle. Whenever a door is opened and then closed while the
vehicle is running, the system searches for an IA key inside the vehicle
and the multifunction display reads KEY OUTSIDE CAR if the IA key is
no longer present. This message is a reminder that someone else in the
vehicle may have taken the IA key when exiting the vehicle. If the IA key
is no longer present in the vehicle, you cannot start your vehicle outside
of the Fast Restart time (seeFast restartabove). It is important to be
aware of where your IA key is located in the vehicle, to avoid becoming
stranded without an IA key.
BRAKES
Occasional brake noise is normal. If a metal-to-metal, continuous grinding
or continuous squeal sound is present, the brake linings may be worn-out
and should be inspected by an authorized dealer. If the vehicle has
continuous vibration or shudder in the steering wheel while braking, the
vehicle should be inspected by an authorized dealer.
Refer toWarning lights and indicatorsin theInstrument
Clusterchapter for information on the brake system warning
light.
Under normal operating conditions, brake dust may accumulate on the
wheels. Some brake dust is inevitable as brakes wear and does not
contribute to brake noise. The use of modern friction materials with
emphasis on improved performance and environmental considerations
can lead to more dust than in the past. Brake dust can be cleaned by
weekly washing with soapy water and a soft sponge. Heavier deposits can
be removed with MotorcraftWheel and Tire Cleaner. See theCleaning
chapter for more information.
258Driving
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

ROADSIDE ASSISTANCE
Vehicles sold in the U.S. : Getting roadside assistance
To fully assist you should you have a vehicle concern, Ford Motor
Company offers a complimentary roadside assistance program. This
program is separate from the New Vehicle Limited Warranty. The service
is available:
•24-hours, seven days a week
•for the coverage period listed on the Roadside Assistance Card
included in your Owner manual portfolio.
Roadside assistance will cover:
•a flat tire change with a good spare (except vehicles that have been
supplied with a tire inflation kit).
•battery jump start.
•lock-out assistance (key replacement cost is the customer’s
responsibility).
•fuel delivery – Independent Service Contractors, if not prohibited by
state, local or municipal law shall deliver up to 2.0 gallons (7.5L) of
gasoline or 5.0 gallons (18.9L) of diesel fuel to a disabled vehicle. Fuel
delivery service is limited to two no-charge occurrences within a
12-month period.
•winch out – available within 100 feet (30.5 meters) of a paved or
county maintained road, no recoveries.
•towing – Ford and Lincoln eligible vehicles towed to an authorized
dealer within 35 miles (56 km) of the disablement location or to the
nearest authorized dealer. If a member requests to be towed to an
authorized dealer more than 35 miles (56 km) from the disablement
location, the member shall be responsible for any mileage costs in
excess of 35 miles (56 km).
Trailers shall be covered up to $200 if the disabled eligible vehicle
requires service at the nearest authorized dealer. If the trailer is disabled,
but the towing vehicle is operational, the trailer does not qualify for any
roadside services.
278Roadside Emergencies
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

SERVICE RECOMMENDATIONS
To help you service your vehicle, we providescheduled maintenance
informationwhich makes tracking routine service easy.
If your vehicle requires professional service, your authorized dealer can
provide the necessary parts and service. Check yourWarranty Guideto
find out which parts and services are covered.
Use only recommended lubricants, fluids and service parts conforming to
specifications. Motorcraftparts are designed and built to provide the
best performance in your vehicle.
PRECAUTIONS WHEN SERVICING YOUR VEHICLE
Be especially careful when inspecting or servicing your vehicle.
•Make sure that loose clothing, jewelry or long hair does not get caught
in moving parts.
•Keep all open flames and other burning (cigarettes) material away
from the battery and all related parts.
HIGH VOLTAGE INFORMATION
WARNING:Exposure to high voltage may result in severe
personal injury or death. High voltage components must be
serviced by a trained service technician.
Your vehicle consists of various high voltage components and wiring. All
of the high voltage power flows through specific wiring assemblies which
are labeled as such and/or are covered with a solid orange convolute or
orange stripe tape. Do not come in contact with these components.
Working with the High Voltage system off
1. Set the parking brake and ensure the gearshift is securely latched in P
(Park).
2. Turn off and remove the key.
3. Block the wheels to prevent the vehicle from moving unexpectedly.
324Maintenance and Specifications
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

Charge Port and Light Ring
Note:Do not force the charge port door open or closed. Forcing the
door open or closed will damage the charge port.
The light ring located around the charge port indicates the charge status
of your battery while connected to a charge station or convenience cord.
The charge port light ring is divided into four quadrants that inform you
of the charge status.
There is a cord acknowledgement feature that will be activated when a
charge cycle is initiated. The four light quadrants will each individually
flash clockwise starting with the top right light and ending with the top
left, two full times confirming a charging coupler has been detected.
You can use your keyfob to view the vehicles charge status at any time
by pressing the unlock button. The light ring will light up the
corresponding quadrant(s) so that the current state of the vehicles
charge can be determined. If the charge is below 25 percent the light
ring will not illuminate. Don’t forget to press the lock button on your
keyfob to re-lock the vehicle.
Different sequences of the light ring will represent the status of the
charge.
Maintenance and Specifications333
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)
