Cruise Control 46
Usingcruisecontrol....................................46
Load Carrying 48
Vehicle loading........................................48
Towing 54
Trailertowing.........................................54
Wrecker towing.......................................59
Driving Hints 60
Economical driving.....................................60
Roadside Emergencies 62
Getting roadside assistance...............................62
Hazard flasher control..................................63
Jump-starting the vehicle................................64
Customer Assistance 67
Reporting safety defects (U.S. only)........................73
Reporting safety defects (Canada only)......................73
Fuses 74
Changing a fuse.......................................74
Fuse specification chart.................................75
Maintenance 83
General information....................................83
Under hood overview...................................84
Engine oil dipstick.....................................86
Engine oil check.......................................86
Engine coolant check...................................87
Automatic transmission fluid check.........................91
Fuel filter...........................................97
Battery .............................................98
Air filter(s).........................................100
2Table of Contents
2013 Motorhome(mot)
Owners Guide gf, 1st Printing
USA(fus)

Symbol Description Symbol Description Symbol Description
Brake fluid –
non
petroleum
baseBrake systemCabin air
filter
Check fuel
capChild Safety
Door Lock
and UnlockChild seat
lower anchor
Child seat
tether anchorCruise
controlDo not open
when hot
Engine air
filterEngine
coolantEngine
coolant
temperature
Engine oilExplosive gasFan warning
Fasten safety
beltFront airbagFront fog
lamps
Fuel pump
resetFuse
compartmentHazard
warning
flasher
Heated rear
windowInterior
luggage
compartment
releaseJack
Lighting
controlLow tire
pressure
warningMaintain
correct fluid
level
Panic alarmParking aid
systemParking
brake system
Introduction5
2013 Motorhome(mot)
Owners Guide gf, 1st Printing
USA(fus)

GAUGES
A. Engine oil pressure gauge
B. Tachometer
C. Information display. SeeInformation displaysfor more information.
D. Speedometer. Vehicle speed is limited to either 65 mph (105 km/h) or
75 mph (120 km/h).
E. Transmission fluid temperature gauge
F. Engine coolant temperature gauge
G. Fuel gauge
Engine Oil Pressure Gauge
Indicates engine oil pressure. The needle should stay in the normal
operating range (between “L” and “H”). If the needle falls below the
normal range, stop the vehicle, turn off the engine and check the engine
oil level. Add oil if needed. If the oil level is correct, have your vehicle
checked by your authorized dealer.
ABDEC
GF
16Instrument Cluster
2013 Motorhome(mot)
Owners Guide gf, 1st Printing
USA(fus)

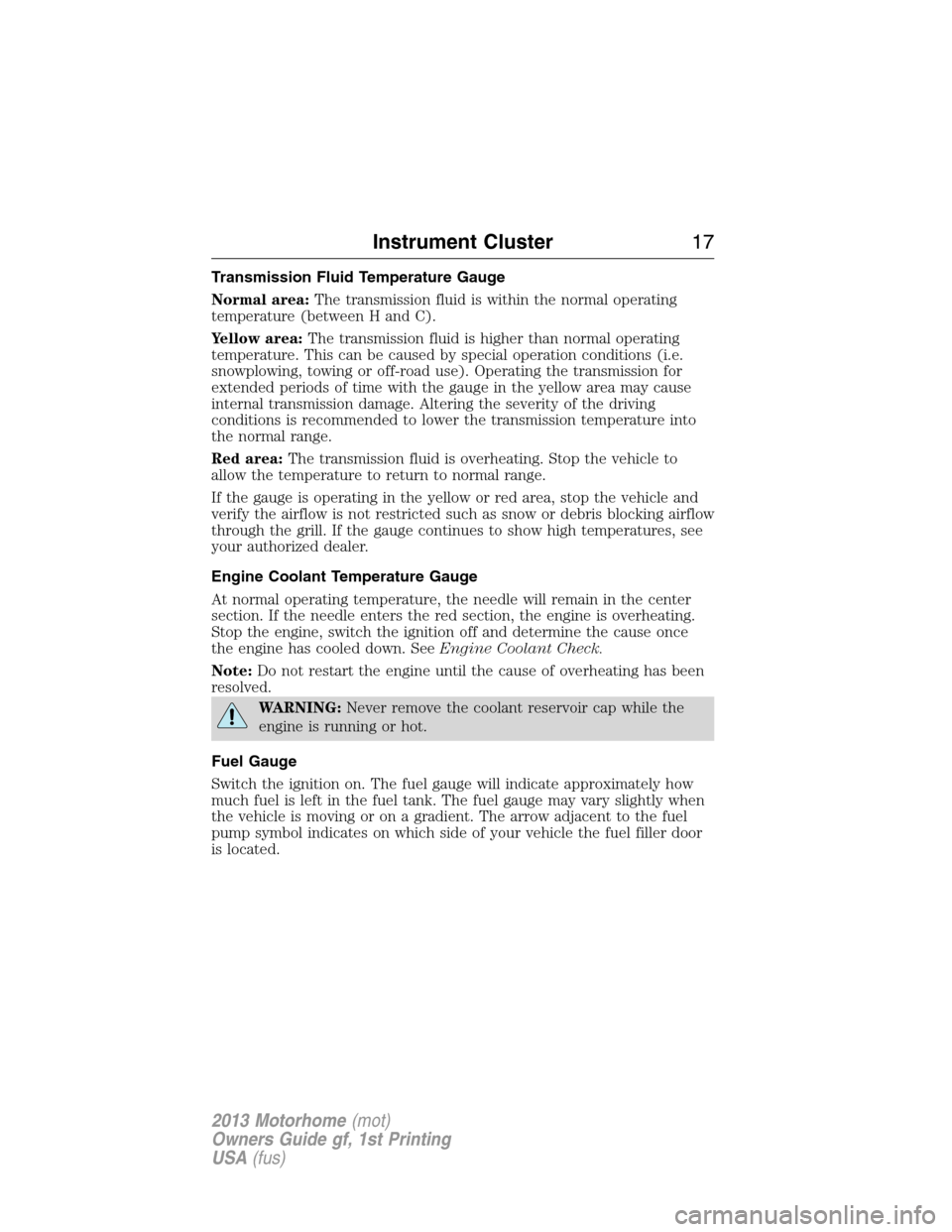

Transmission Fluid Temperature Gauge
Normal area:The transmission fluid is within the normal operating
temperature (between H and C).
Yellow area:The transmission fluid is higher than normal operating
temperature. This can be caused by special operation conditions (i.e.
snowplowing, towing or off-road use). Operating the transmission for
extended periods of time with the gauge in the yellow area may cause
internal transmission damage. Altering the severity of the driving
conditions is recommended to lower the transmission temperature into
the normal range.
Red area:The transmission fluid is overheating. Stop the vehicle to
allow the temperature to return to normal range.
If the gauge is operating in the yellow or red area, stop the vehicle and
verify the airflow is not restricted such as snow or debris blocking airflow
through the grill. If the gauge continues to show high temperatures, see
your authorized dealer.
Engine Coolant Temperature Gauge
At normal operating temperature, the needle will remain in the center
section. If the needle enters the red section, the engine is overheating.
Stop the engine, switch the ignition off and determine the cause once
the engine has cooled down. SeeEngine Coolant Check.
Note:Do not restart the engine until the cause of overheating has been
resolved.
WARNING:Never remove the coolant reservoir cap while the
engine is running or hot.
Fuel Gauge
Switch the ignition on. The fuel gauge will indicate approximately how
much fuel is left in the fuel tank. The fuel gauge may vary slightly when
the vehicle is moving or on a gradient. The arrow adjacent to the fuel
pump symbol indicates on which side of your vehicle the fuel filler door
is located.
Instrument Cluster17
2013 Motorhome(mot)
Owners Guide gf, 1st Printing
USA(fus)

AUDIBLE WARNINGS AND INDICATORS
Headlamps On Warning Chime
Sounds when the headlamps or parking lamps are on, the ignition is off
(the key is not in the ignition) and the driver’s door is opened.
Fail-Safe Cooling Warning Chime
Sounds when the coolant gauge pointer has moved to hot. There are
three stages of chimes:
•Stage 1 is a single chime when the engine temperature begins to
overheat.
•Stage 2 is multiple chimes and engine power becomes limited in order
to help cool the engine.
•Stage 3 is multiple chimes and the engine will shut down.
Key In Ignition Warning Chime
Sounds when the key is left in the ignition in the off or accessory
position and the driver’s door is opened.
Information Display Chime
Sounds when some warning messages appear in the display for the first
time.
Parking Brake On Warning Chime
Sounds when you have left the parking brake on and you drive your
vehicle. If the warning chime remains on after you have released the
parking brake, have the system checked by your authorized dealer
immediately.
Instrument Cluster21
2013 Motorhome(mot)
Owners Guide gf, 1st Printing
USA(fus)

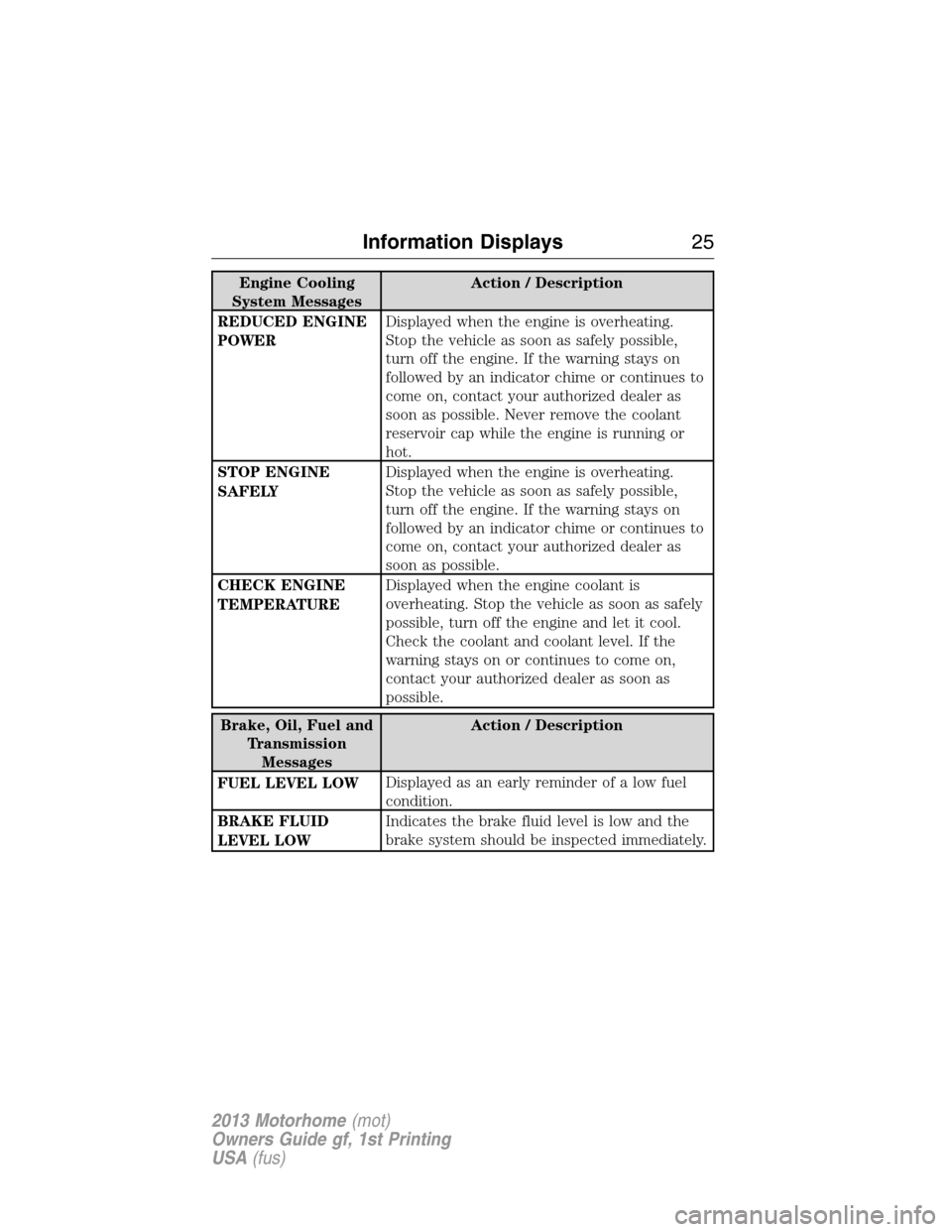

Engine Cooling
System MessagesAction / Description
REDUCED ENGINE
POWERDisplayed when the engine is overheating.
Stop the vehicle as soon as safely possible,
turn off the engine. If the warning stays on
followed by an indicator chime or continues to
come on, contact your authorized dealer as
soon as possible. Never remove the coolant
reservoir cap while the engine is running or
hot.
STOP ENGINE
SAFELYDisplayed when the engine is overheating.
Stop the vehicle as soon as safely possible,
turn off the engine. If the warning stays on
followed by an indicator chime or continues to
come on, contact your authorized dealer as
soon as possible.
CHECK ENGINE
TEMPERATUREDisplayed when the engine coolant is
overheating. Stop the vehicle as soon as safely
possible, turn off the engine and let it cool.
Check the coolant and coolant level. If the
warning stays on or continues to come on,
contact your authorized dealer as soon as
possible.
Brake, Oil, Fuel and
Transmission
MessagesAction / Description
FUEL LEVEL LOWDisplayed as an early reminder of a low fuel
condition.
BRAKE FLUID
LEVEL LOWIndicates the brake fluid level is low and the
brake system should be inspected immediately.
Information Displays25
2013 Motorhome(mot)
Owners Guide gf, 1st Printing
USA(fus)

UNDER HOOD OVERVIEW
6.8L V10 engine
1. Engine coolant reservoir
2. Engine oil filler cap
3. Automatic transmission fluid dipstick
4. Power distribution box
5. Air filter assembly
6. Engine oil dipstick
7. Brake fluid reservoir
8. Power steering fluid reservoir
12345768
84Maintenance
2013 Motorhome(mot)
Owners Guide gf, 1st Printing
USA(fus)

6.8L V10 engine (commercial stripped chassis)
1. Engine coolant reservoir
2. Engine oil filler cap
3. Automatic transmission fluid dipstick
4. Power distribution box
5. Engine oil dipstick
6. Brake fluid reservoir
7. Air filter assembly
8. Power steering fluid reservoir
12345678
Maintenance85
2013 Motorhome(mot)
Owners Guide gf, 1st Printing
