2013 FORD F SERIES MOTORHOME AND COMMERCIAL CHASSIS engine coolant

Oils, Fluids and Flushing
In many cases, fluid discoloration is a normal operating characteristic
and, by itself, does not necessarily indicate a concern or that the fluid
needs to be changed. However, discolored fluids that also show signs of
overheating and/or foreign material contamination should be inspected
immediately by a qualified expert such as the factory-trained technicians
at your dealership. Your vehicle’s oils and fluids should be changed at the
specified intervals or in conjunction with a repair. Flushing is a viable
way to change fluid for many vehicle sub-systems during scheduled
maintenance. It is critical that systems are flushed only with new fluid
that is the same as that required to fill and operate the system, or using
a Ford-approved flushing chemical.
Owner Checks and Services
Certain basic maintenance checks and inspections should be performed
every month or at six months intervals.
Check Every Month
Engine oil level.
Function of all interior and exterior lights.
Tires (including spare) for wear and proper pressure.
Windshield washer fluid level.
Check Every Six Months
Battery connections. Clean if necessary.
Body and door drain holes for obstructions. Clean if necessary.
Cooling system fluid level and coolant strength.
Door weatherstrips for wear. Lubricate if necessary.
Hinges, latches and outside locks for proper operation. Lubricate if
necessary.
Parking brake for proper operation.
Safety belts and seat latches for wear and function.
Safety warning lamps (brake, ABS, airbag, safety belt) for operation.
Washer spray and wiper operation. Clean or replace blades as
necessary.
Scheduled Maintenance139
2013 Motorhome(mot)
Owners Guide gf, 1st Printing
USA(fus)

Multi-point Inspection
In order to keep your vehicle running right, it is important to have the
systems on your vehicle checked regularly. This can help identify
potential issues and prevent major problems. Ford Motor Company
recommends the following multi-point inspection be performed at every
scheduled maintenance interval to help make sure your vehicle keeps
running great.
Multi-point inspection
Accessory drive belt(s) Horn operation
Battery performance Radiator, cooler, heater and A/C hoses
Engine air filter Suspension component for leaks or
damage
Exhaust system Steering and linkage
Exterior lamps and hazard
warning system operationTires for wear and proper pressure,
including spare
Fluid levels*; fill if necessary Windshield for cracks, chips or pits
For oil and fluid leaks Washer spray and wiper operation
*Brake, coolant recovery reservoir, automatic transmission, power
steering and window washer
Be sure to ask your dealership service advisor or technician about the
multi-point vehicle inspection. It’s a comprehensive way to perform a
thorough inspection of your vehicle. It’s your checklist that gives you
immediate feedback on the overall condition of your vehicle. You’ll know
what’s been checked, what’s okay, as well as those things that may
require future or immediate attention. The multi-point vehicle inspection
is one more way to keep your vehicle running great!
140Scheduled Maintenance
2013 Motorhome(mot)
Owners Guide gf, 1st Printing
USA(fus)

Additional Maintenance Items
Every 30000 miles
(48000 km)Replace engine air filter.
Every 60000 miles
(96000 km)Change automatic transmission fluid and filter.
Consult dealer for requirements.
Replace front wheel bearing grease and grease
seal if non-sealed bearings are used.
Every 97500 miles
(156000 km)Replace spark plugs.
Every 105000 miles
(168000 km)Change engine coolant.
*
Replace rear axle fluid.
Inspect accessory drive belt(s).**
Every 150000 miles
(240000 km)Replace accessory drive belt(s) if not replaced
within the last 100000 miles (160000 km).
Replace front wheel bearings and seals if
non-sealed bearings are used.
*Initial replacement at six years or 105000 miles (168000 kilometers),
then every three years or 45000 miles (72000 kilometers).
**Perform a follow-up inspection at 120000 miles (192000 kilometers).
Scheduled Maintenance143
2013 Motorhome(mot)
Owners Guide gf, 1st Printing
USA(fus)

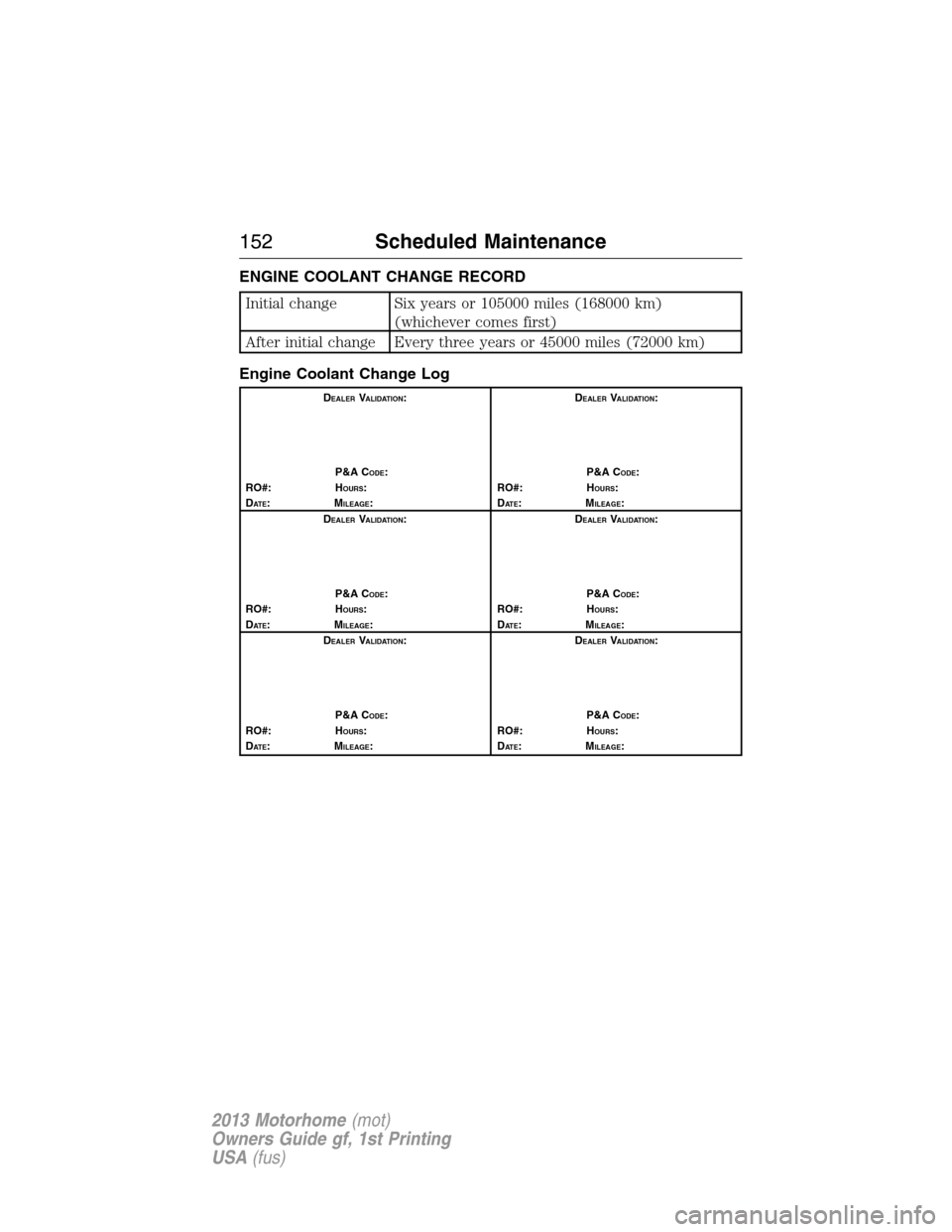

ENGINE COOLANT CHANGE RECORD
Initial change Six years or 105000 miles (168000 km)
(whichever comes first)
After initial change Every three years or 45000 miles (72000 km)
Engine Coolant Change Log
DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
152Scheduled Maintenance
2013 Motorhome(mot)
Owners Guide gf, 1st Printing
USA(fus)

A
Air cleaner filter .......100–101, 132
Ambulance packages ....................9
Antifreeze
(see Engine coolant) ..................87
Automatic transmission
driving an automatic
overdrive ...................................39
fluid, adding ..............................91
fluid, checking ..........................91
fluid, refill capacities ..............128
fluid, specification ..................128
Axle
lubricant specifications ..........128
refill capacities ........................128
B
Battery .........................................98
acid, treating emergencies .......98
jumping a disabled battery ......64
maintenance-free ......................98
replacement, specifications ...132
servicing ....................................98
Brakes ..........................................44
fluid, checking and
adding ..................................94–95
fluid, refill capacities ..............128
fluid, specifications .................128
lubricant specifications ..........128
shift interlock ............................42
C
Capacities for refilling fluids ....128
Cell phone use ............................10
Changing a tire .........................121
Cleaning your vehicle ...............101
engine compartment ..............101wheels ......................................101
Coolant ........................................87
checking and adding ................87
refill capacities ........................128
specifications ..........................128
Cruise control .............................46
Customer Assistance ..................62
Ford Extended Service
Plan ..................................134, 136
Getting assistance outside
the U.S. and Canada ................70
Getting roadside assistance .....62
Getting the service you need ..67
Ordering additional owner’s
literature ...................................72
Utilizing the
Mediation/Arbitration
Program .....................................70
D
Dipstick
automatic transmission fluid ...91
engine oil ...................................86
Driving under special
conditions ....................................43
through water ...........................61
E
Electronic message center .........22
Emergencies, roadside
jump-starting ............................64
Emergency Flashers ...................63
Emission control system ............36
Engine ........................................127
cleaning ...................................101
coolant .......................................87
fail-safe cooling .........................90
idle speed control .....................98
