Battery relearn
Because your vehicle’s engine is electronically controlled by a computer,
some control conditions are maintained by power from the battery. When
the battery is disconnected or a new battery is installed, the engine must
relearn its idle and fuel trim strategy for optimum driveability and
performance. To begin this process:
1. With the vehicle at a complete stop, set the parking brake.
2. Put the gearshift lever in P (Park), turn off all accessories and start
the engine.
3. Run the engine until it reaches normal operating temperature.
4. Allow the engine to idle for at least one minute.
5. Turn the A/C on and allow the engine to idle for at least one minute.
6. Drive the vehicle to complete the relearning process.
•The vehicle may need to be driven to relearn the idle and fuel trim
strategy.
•Note:If you do not allow the engine to relearn its idle trim, the idle
quality of your vehicle may be adversely affected until the idle trim is
eventually relearned.
When the battery is disconnected or a new battery installed, the
transmission must relearn its adaptive strategy. As a result of this, the
transmission may shift firmly. This operation is considered normal and
will not affect function or durability of the transmission. Over time the
adaptive learning process will fully update transmission operation to its
optimum shift feel.
If the battery has been disconnected or a new battery has been installed,
the clock and the preset radio stations must be reset once the battery is
reconnected.
Always dispose of automotive batteries in a responsible manner. Follow
your local authorized standards for disposal. Call your local authorized
recycling center to find out more about recycling automotive batteries.
Battery management system
The battery management system (BMS) monitors battery conditions and
takes actions to extend battery life. If excessive battery drain is detected,
the system may temporarily disable certain electrical features to protect
the battery. Those electrical accessories affected include rear defrost,
heated /cooled seats, climate control fan, heated steering wheel, audio
and navigation system. A message may be displayed on the instrument
338Maintenance
2013 Explorer(exp)
Owners Guide gf, 1st Printing
USA(fus)

Vehicle Health Report Privacy Notice
When you run a Vehicle Health Report, Ford Motor Company may collect
your cellular phone number (to process your report request) and diagnostic
information about your vehicle. Certain versions or updates to Vehicle
Health Report may also collect additional vehicle information. Ford may use
the vehicle information it collects for any purpose. If you do not want to
disclose your cellular phone number or vehicle information, do not run the
feature or set up your Vehicle Health Report profile at
www.SYNCMyRide.com. Refer to www.SYNCMyRide.com - Vehicle Health
Report Terms and Conditions, and Privacy Statement - for more information.
SYNCServices: Traffic, Directions & Information (TDI)
Note:SYNCServices requires activation prior to use. Visit
www.SYNCMyRide.com to register and check your eligibility for
complimentary services. Standard phone and message rates may apply.
Subscription may be required. You must also have the active SYNC
Services Bluetooth-enabled cellular phone paired and connected to the
system in order to connect to, and use, SYNCServices. Refer to the
Phone featuresfor pairing instructions.
Note:This feature does not function properly if you have enabled caller
ID blocking on your mobile phone. Make sure your mobile phone is not
blocking caller ID before using SYNC Services.
Note:The driver is ultimately responsible for the safe operation of the
vehicle, and therefore, must evaluate whether it is safe to follow the
suggested directions. Any navigation features are provided only as an aid.
Make your driving decisions based on your observations of local conditions
and existing traffic regulations. Do not follow the route suggestions if doing
so would result in an unsafe or illegal maneuver, if you would be placed in
an unsafe situation, or if you would be directed into an area that you
consider unsafe. Maps used by this system may be inaccurate because of
errors, changes in roads, traffic conditions or driving conditions.
Note:When you connect, the service uses GPS technology and advanced
vehicle sensors to collect the vehicle’s current location, travel direction and
speed to help provide you with the directions, traffic reports, or business
searches you request. Further, to provide the services you request and for
continuous improvement, the service may collect and record call details and
voice communications. For more information, see SYNCServices Terms and
Conditions at www.SYNCMyRide.com. If you do not want Ford or its service
providers to collect the vehicle travel information or other information
identified in the Terms and Conditions, do not activate or use the service.
SYNC451
2013 Explorer(exp)
Owners Guide gf, 1st Printing
USA(fus)

Receiving Turn-by-Turn Directions
1. When connected to SYNC Services, say “Directions” or “Business
Search”. To find the closest business or type of business to your
current location just say “Business Search” and then “Search Near
Me”. If you need further assistance in finding a location you can say
“Operator” at any time within a Directions or Business search to
speak with a live operator. You may also be prompted to speak with
an operator. The live operator can assist you by searching for
businesses by name or by category, residential addresses by street
address or by name or specific street intersections. Operator Assist is
a feature of your SYNC Services subscription. For more information
on Operator Assist visit www.SYNCMyRide.com/support.
2. Follow the voice prompts to select your Destination. After the route
download is complete, the phone call is automatically ended.
If your vehicle is not equipped with the navigation feature:
•Turn-by-turn directions appear in the infotainment display, in the
status bar of your touchscreen system and also on the SYNC Services
screen. You also receive driving instructions from audible prompts.
•When on an active route, you can select Route Summary or Route
Status using the touchscreen controls or voice commands to view the
Route summary turn list or the Route Status ETA. You can also turn
voice guidance on or off, cancel the route or update the route.
If you miss a turn, SYNC automatically asks if you want the route
updated. Just say, “Yes” when prompted and a new route will be
delivered to your vehicle.
If your vehicle is equipped with the navigation feature, SYNC Services
downloads your requested destination to the navigation system. The
navigation system then calculates the route and provides driving
instructions. Refer to theNavigation Featuressection for more
information.
518MyFord Touch™
2013 Explorer(exp)
Owners Guide gf, 1st Printing
USA(fus)

Disconnecting from SYNC Services
1. Press and hold the phone button on the steering wheel.
2. Say “Goodbye” from the SYNC Services main menu.
TDI options
PersonalizingYou can personalize your services feature to
provide quicker access to your most used or
favorite information. You can save address points
such as, work or home. You can also save
favorite information like sports teams, such as
Detroit Lions, or a news category. To learn more,
log onto www.SYNCMyRide.com.
Push to interruptPress the voice button at any time (while you
are connected to SYNC TDI Services) to
interrupt a voice prompt or an audio clip (such
as a sports report) and say your voice command.
PortableYour subscription is associated with your
Bluetooth-enabled cellular phone number, not
your VIN (Vehicle Identification Number). You
can pair and connect your phone to any vehicle
equipped with Traffic, Directions and
Information and continue enjoying your
personalized services.
SYNC Services Voice Commands
When a route has been downloaded (non-navigation systems),
press the voice button on the steering wheel controls. When
prompted, say any of the following commands:
“SYNC SERVICES”
“Cancel route”
“Navigation voice off”
“Navigation voice on”
“Next turn”
“Route status”
“Route summary”
“Services”
“Update route”
“Help”
MyFord Touch™519
2013 Explorer(exp)
Owners Guide gf, 1st Printing
USA(fus)

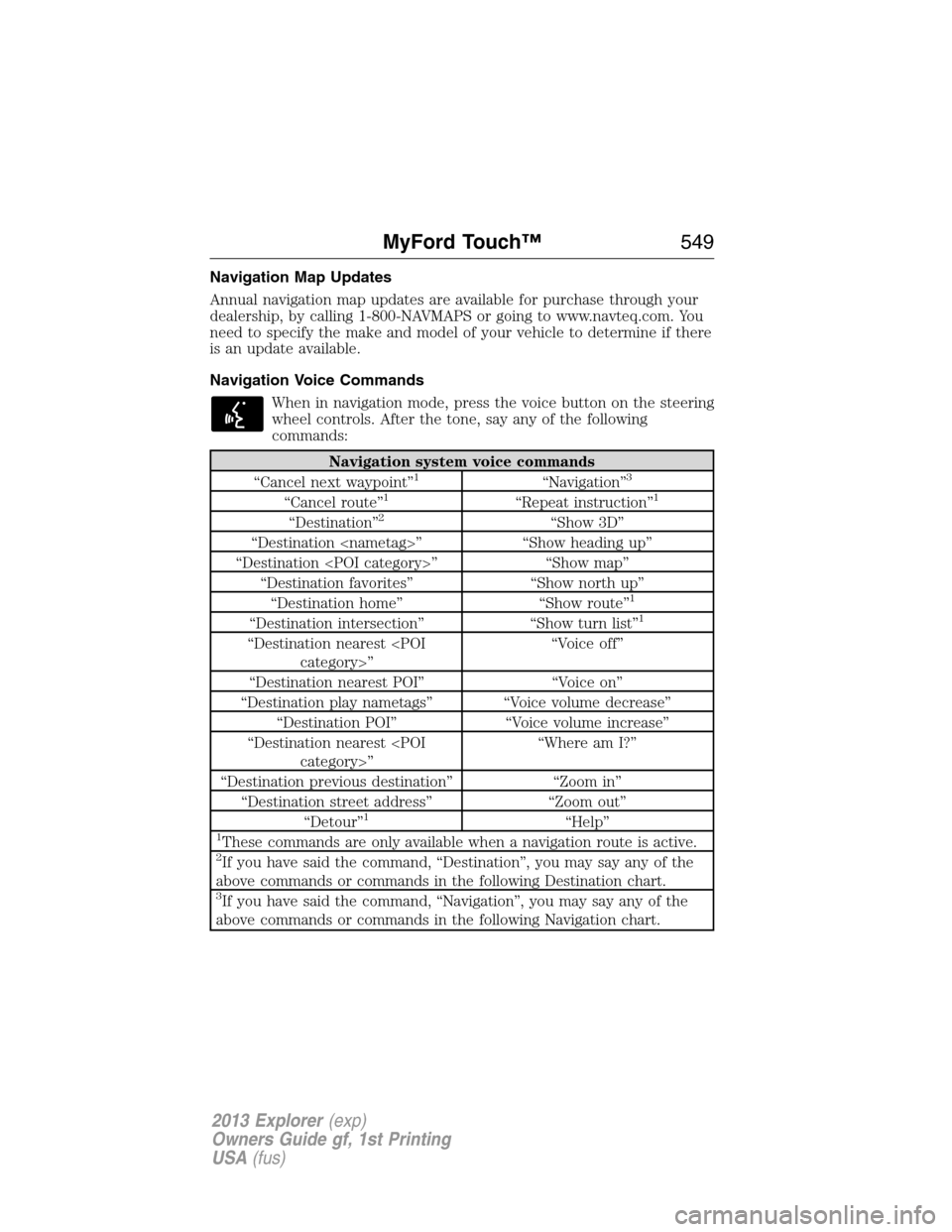

Navigation Map Updates
Annual navigation map updates are available for purchase through your
dealership, by calling 1-800-NAVMAPS or going to www.navteq.com. You
need to specify the make and model of your vehicle to determine if there
is an update available.
Navigation Voice Commands
When in navigation mode, press the voice button on the steering
wheel controls. After the tone, say any of the following
commands:
Navigation system voice commands
“Cancel next waypoint”1“Navigation”3
“Cancel route”1“Repeat instruction”1
“Destination”2“Show 3D”
“Destination ” “Show heading up”
“Destination ” “Show map”
“Destination favorites” “Show north up”
“Destination home” “Show route”
1
“Destination intersection” “Show turn list”1
“Destination nearest category>”“Voice off”
“Destination nearest POI” “Voice on”
“Destination play nametags” “Voice volume decrease”
“Destination POI” “Voice volume increase”
“Destination nearest category>”“Where am I?”
“Destination previous destination” “Zoom in”
“Destination street address” “Zoom out”
“Detour”
1“Help”1These commands are only available when a navigation route is active.2If you have said the command, “Destination”, you may say any of the
above commands or commands in the following Destination chart.
3If you have said the command, “Navigation”, you may say any of the
above commands or commands in the following Navigation chart.
MyFord Touch™549
2013 Explorer(exp)
Owners Guide gf, 1st Printing
USA(fus)

Loading pictures ....................... 527
Load limits ................................. 280
Locks
autolock ..................................... 78
childproof .................................. 36
doors .......................................... 75
Lubricant specifications ........... 393
Lug nuts .................................... 391
M
Making and receiving calls ....... 510
MAP DVD - Loading and
Unloading .................................. 510
Map icons .................................. 546
Map mode .................................. 545
Map preferences ....................... 544
Map updates .............................. 549
Media Bluetooth menu options
(adding, connecting, deleting,
turning on/off) .......................... 463
Message center ......................... 122
warning messages ........... 126, 133
Mirrors ............................... 108, 111
fold away ................................. 108
programmable memory ............ 64
side view mirrors (power) ..... 108
Moon roof .................................. 112
Motorcraftparts .............. 350, 397
MyFord Touch™ system .......... 472
MyKey .......................................... 69
N
Navigation features ................... 539
Navigation voice commands .... 549Notifications .............................. 522
O
Overdrive ................................... 225
P
Pairing other phones ........ 432, 510
Pairing your phone ................... 509
Pairing your phone for
the first time ..................... 431, 509
Parental MyKey programming ... 69
Park Assist ................................ 244
Parking brake ............................ 235
Parts
(see Motorcraftparts) ........... 397
Passenger Occupant
Classification Sensor ................... 53
Phone Bluetooth menu options
(adding, connecting, deleting,
turning on/off) .......................... 443
Phone redial .............................. 436
Phone settings .................. 514, 531
Phone voice commands ............ 515
Playing music (by artist,
album, genre, playlist,
tracks, similar) .......................... 461
POI categories ........................... 541
Point of Interest (POI) ............. 541
Power distribution box
(see Fuses) ............................... 314
Power door locks ........................ 75
Power liftgate .............................. 81
Power mirrors ........................... 108
Powerpoint ................................ 199
Index573
2013 Explorer(exp)
Owners Guide gf, 1st Printing
USA(fus)
