2013 FORD EXPLORER relay

Fuse/Relay
NumberFuse Amp
RatingProtected Components
19 20A Memory seat power
20 20A Locks
21 10A Intelligent access (IA), Keypad
22 20A Horn relay
23 15A Steering wheel control module,
IA, Headlamp switch
24 15A Datalink connector, Steering
wheel control module
25 15A Liftgate release
26 5A Radio frequency module
27 20A IA module
28 15A Ignition switch, Push button start
switch
29 20A Radio, Global positioning system
module
30 15A Front park lamps
31 5A Trailer tow brake controller
32 15A 110V AC power point, Power
folding mirror, Power mirrors, One
touch up/down front windows,
Door lock illumination, Memory
switch illumination
33 10A Occupant classification sensor
34 10A Blind spot monitor, Rearview
camera, Reverse sensing system,
Lane departure warning module
35 5A Heads-up display, Climate control
humidity sensor, Terrain
management system, Hill descent
switch, Headlamp switch IGN
sense
36 10A Heated steering wheel
Fuses321
2013 Explorer(exp)
Owners Guide gf, 1st Printing
USA(fus)

Fuse/Relay
NumberFuse Amp
RatingProtected Components
37 10A Restraints control module
38 10A Auto-dimming rear view mirror,
Moon roof
39 15A High beam headlamp shutters
40 10A Rear park lamps, License plate
lamps, TT park lamps
41 7.5A Overdrive cancel, Tow/haul
42 5A Not used (spare)
43 10A Not used (spare)
44 10A Not used (spare)
45 5A Not used (spare)
46 10A Climate control module
47 15A Fog lamps, left and right turn
signal mirror feed
48 30A Circuit
BreakerRear power windows, Passenger
power window, One touch down
(driver side only), Driver window
switch
49 Delayed
accessory relayBody control module
322Fuses
2013 Explorer(exp)
Owners Guide gf, 1st Printing
USA(fus)

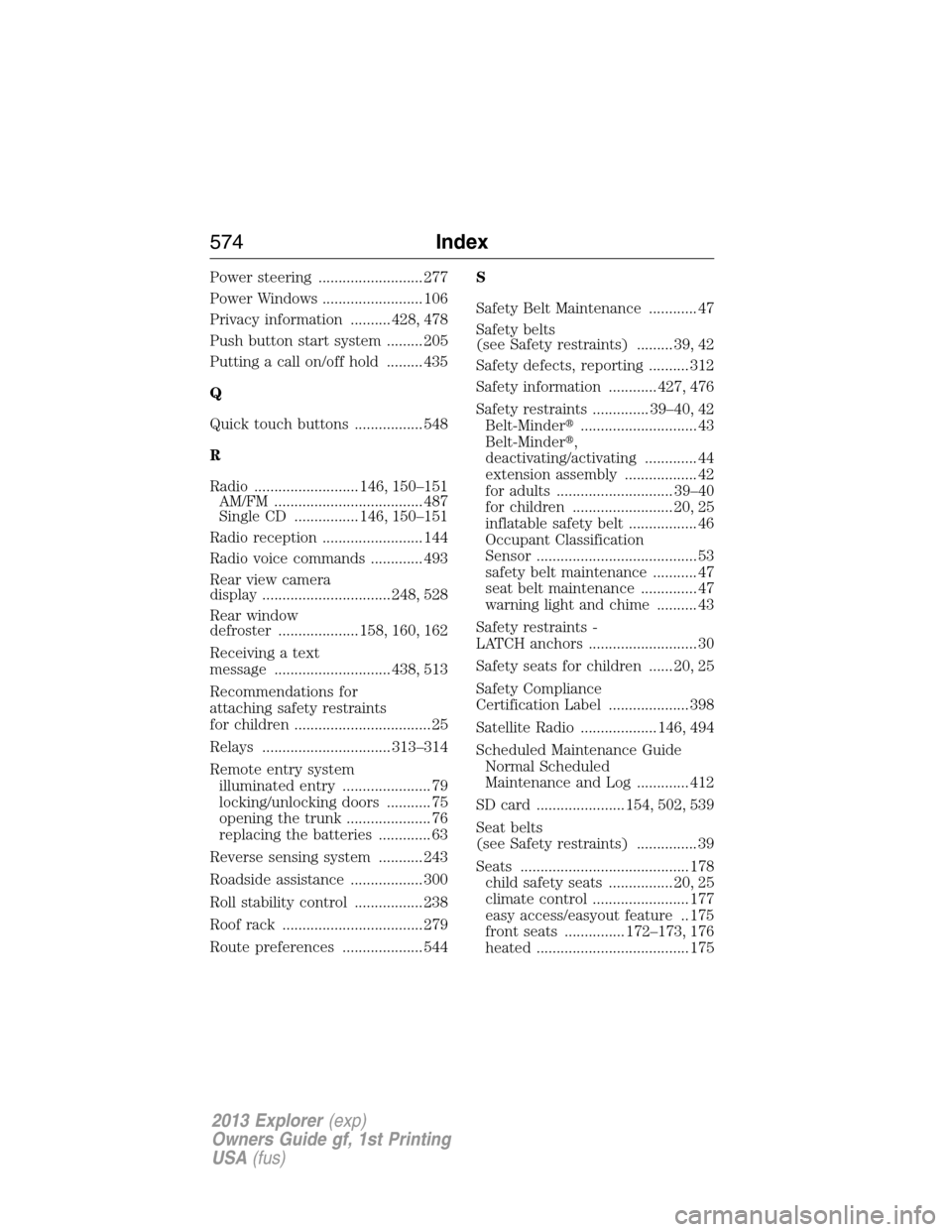

Power steering .......................... 277
Power Windows ......................... 106
Privacy information .......... 428, 478
Push button start system ......... 205
Putting a call on/off hold ......... 435
Q
Quick touch buttons ................. 548
R
Radio .......................... 146, 150–151
AM/FM ..................................... 487
Single CD ................ 146, 150–151
Radio reception ......................... 144
Radio voice commands ............. 493
Rear view camera
display ................................ 248, 528
Rear window
defroster .................... 158, 160, 162
Receiving a text
message ............................. 438, 513
Recommendations for
attaching safety restraints
for children .................................. 25
Relays ................................ 313–314
Remote entry system
illuminated entry ...................... 79
locking/unlocking doors ........... 75
opening the trunk ..................... 76
replacing the batteries ............. 63
Reverse sensing system ........... 243
Roadside assistance .................. 300
Roll stability control ................. 238
Roof rack ................................... 279
Route preferences .................... 544S
Safety Belt Maintenance ............ 47
Safety belts
(see Safety restraints) ......... 39, 42
Safety defects, reporting .......... 312
Safety information ............ 427, 476
Safety restraints .............. 39–40, 42
Belt-Minder............................. 43
Belt-Minder,
deactivating/activating ............. 44
extension assembly .................. 42
for adults ............................. 39–40
for children ......................... 20, 25
inflatable safety belt ................. 46
Occupant Classification
Sensor ........................................ 53
safety belt maintenance ........... 47
seat belt maintenance .............. 47
warning light and chime .......... 43
Safety restraints -
LATCH anchors ........................... 30
Safety seats for children ...... 20, 25
Safety Compliance
Certification Label .................... 398
Satellite Radio ................... 146, 494
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log ............. 412
SD card ...................... 154, 502, 539
Seat belts
(see Safety restraints) ............... 39
Seats .......................................... 178
child safety seats ................ 20, 25
climate control ........................ 177
easy access/easyout feature .. 175
front seats ............... 172–173, 176
heated ...................................... 175
574Index
2013 Explorer(exp)
Owners Guide gf, 1st Printing
USA(fus)
