2013 DODGE GRAND CARAVAN Owners Manual

NOTE:It is illegal to remove or alter the VIN.
VEHICLE MODIFICATIONS/ALTERATIONS
WARNING!
Any modifications or alterations to this vehicle could
seriously affect its roadworthiness and safety and
may lead to a collision resulting in serious injury or
death.

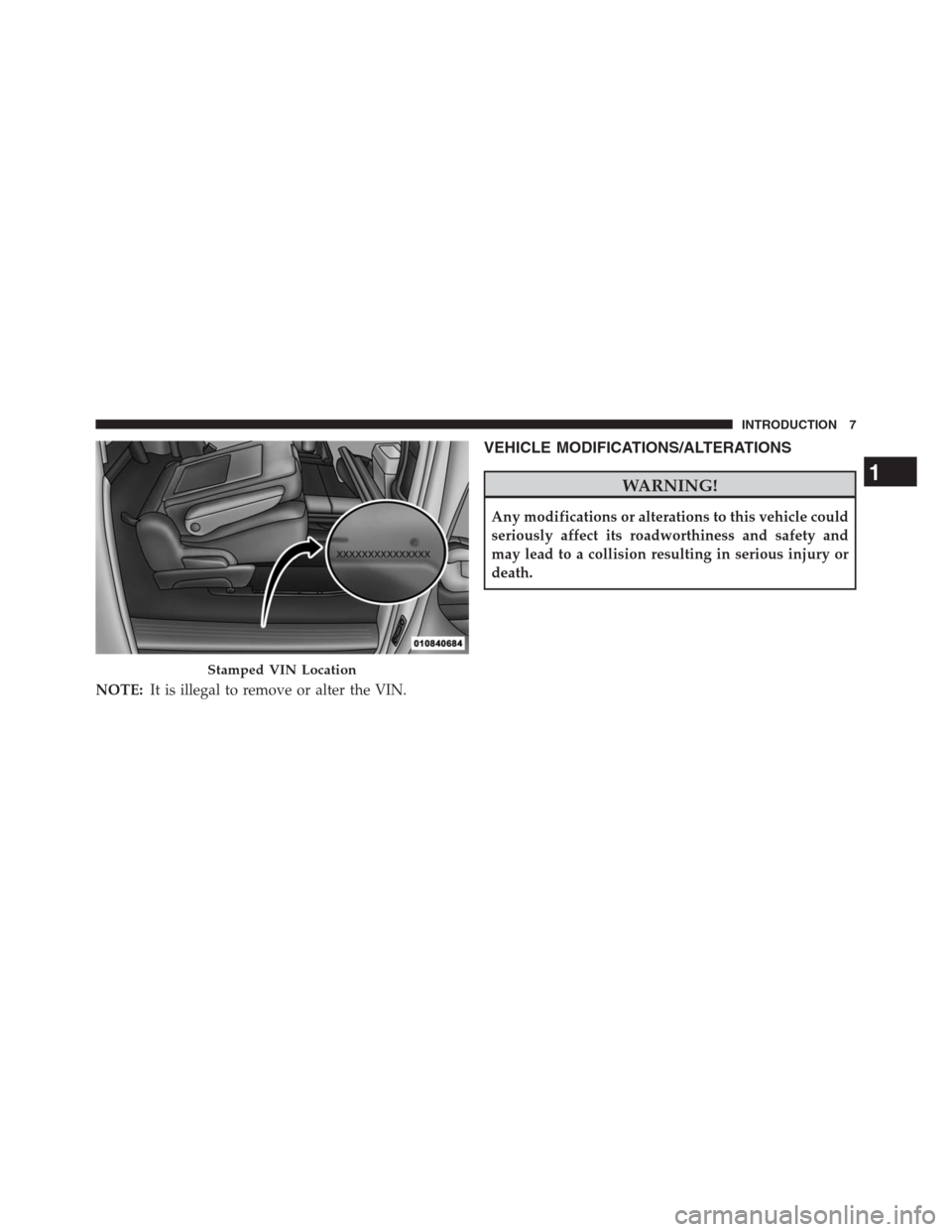

Stamped VIN Location
1
INTRODUCTION 7

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A WORD ABOUT YOUR KEYS.............12
▫Wireless Ignition Node (WIN).............12
▫KeyFob.............................13
▫Removing Key Fob From Ignition..........14
▫Key-In-Ignition Reminder................15
SENTRY KEY®.........................15
▫Replacement Keys.....................16
VEHICLE SECURITY ALARM — IF
EQUIPPED............................17
▫Rearming Of The System.................18▫To Arm The System.....................18
▫To Disarm The System...................18
▫Tamper Alert.........................19
▫Security System Manual Override...........19
ILLUMINATED ENTRY — IF EQUIPPED......20
REMOTE KEYLESS ENTRY (RKE) — IF
EQUIPPED............................20
▫Using The RKE Transmitter...............21

REMOTE STARTING SYSTEM — IF EQUIPPED . . .30
▫How To Use Remote Start................31
2

DOOR LOCKS.........................35
▫Manual Door Locks.....................35
▫Power Door Locks — If Equipped..........37
WINDOWS...........................39
▫Power Vent Windows — If Equipped........39
▫Power Windows.......................40
SLIDING SIDE DOOR....................44
▫Power Sliding Side Door — If Equipped......45
▫Sliding Side Door Child Protection Lock......49
LIFTGATE............................52
▫Power Liftgate — If Equipped.............53
OCCUPANT RESTRAINTS................56
▫Lap/Shoulder Belts....................60▫Seat Belts In Passenger Seating Positions......66
▫Automatic Locking Retractor Mode (ALR) — If
Equipped............................67
▫Energy Management Feature..............68
▫Seat Belt Pretensioners..................68
▫Supplemental Active Head Restraints (AHR) . . .68
▫Enhanced Seat Belt Use Reminder System
(BeltAlert®)..........................72
▫Seat Belts And Pregnant Women...........73
▫Seat Belt Extender.....................74
▫Supplemental Restraint System (SRS) —
Air Bags............................74
▫Air Bag System Components..............76
▫Advanced Front Air Bag Features...........77
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫Air Bag Deployment Sensors And Controls....81
▫Event Data Recorder (EDR)...............88
▫Child Restraints.......................89
COMMERCIAL CARGO VEHICLES (NO FACTORY
INSTALLED REAR SEATS) — IF EQUIPPED . . .113
▫Restraining Infants And Small Children In
Commercial Cargo Vehicles...............114
ENGINE BREAK-IN RECOMMENDATIONS . . .116SAFETY TIPS.........................117
▫Transporting Passengers.................117
▫Exhaust Gas.........................117
▫Safety Checks You Should Make Inside The
Vehicle.............................118
▫Periodic Safety Checks You Should Make Outside
The Vehicle.........................120
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11

A WORD ABOUT YOUR KEYS
Your vehicle uses a keyless ignition system. This system
consists of a Key Fob with Remote Keyless Entry (RKE)
transmitter and a Wireless Ignition Node (WIN) with
integral ignition switch. You can insert the Key Fob into
the ignition switch with either side up.
Wireless Ignition Node (WIN)
The Wireless Ignition Node (WIN) operates similarly to
an ignition switch. It has four operating positions, three
with detents and one that is spring-loaded. The detent
positions are OFF, ACC, and ON/RUN. The START
position is a spring-loaded momentary contact position.
When released from the START position, the switch
automatically returns to the ON/RUN position.
Wireless Ignition Node (WIN)
1 — OFF
2 — ACCESSORY
3 — ON/RUN
4 — START 12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Key Fob
The Key Fob operates the ignition switch. Insert the
square end of the key fob into the ignition switch located
on the instrument panel and rotate to the desired posi-
tion. It also contains the Remote Keyless Entry (RKE)
transmitter and an emergency key, which stores in the
rear of the Key Fob.
The emergency key allows for entry into the vehicle
should the battery in the vehicle or the RKE transmitter
go dead. The emergency key is also for locking the lower
glove compartment. You can keep the emergency key
with you when valet parking.
To remove the emergency key, slide the mechanical latch
at the top of the Key Fob sideways with your thumb and
then pull the key out with your other hand.NOTE:You can insert the double-sided emergency key
into the lock cylinder with either side up.
Emergency Key Removal
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

Removing Key Fob From Ignition
Place the shift lever in PARK. Turn the Key Fob to the
OFF position and then remove the Key Fob.
NOTE:Power window switches will also remain active
for up to 10 minutes after the ignition switch has been
turned to OFF, depending upon the accessory delay
setting. Opening the front door will cancel this feature.
WARNING!
•Before exiting a vehicle, always apply the parking
brake, shift the transmission into PARK, and push
ignition button to place ignition in OFF position.
When leaving the vehicle, always lock your vehicle.
•Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
(Continued)
WARNING!(Continued)
•Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the shift lever.
•
Do not leave the Key Fob in or near the vehicle, or in
a location accessible to children. A child could operate
power windows, other controls, or move the vehicle.
•Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove the Key Fob from the ignition and lock all
doors when leaving the vehicle unattended.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
