2013 DODGE GRAND CARAVAN Owners Manual

•Large console center storage will store headphones for
the available rear DVD entertainment system or other
items
•12 Volt DC power outlet provides continuous power
inside the console for cell phones or other electronics.
•Rear occupant accessible
•Multiple adjustments
•Removable from vehicle for additional floor space.
The top and center console sections slide forward and
rearward to provide added user comfort. A one-piece cup
holder insert for both cavities can easily be removed for
cleaning. The cupholders will also accommodate large
size cups and 20 oz (.6 L) bottles.Position 1 shows the console closed with four cupholders
and a convenient storage tray.
Console Position 1
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 287

Position 2 shows the raised storage tray revealing a large
storage area below.Dual Storage Bins
Position 3 shows the top portion of the console in a
rearward position. This is accomplished by lifting the
upper most latch at the front of the console. This provides
easy access to the storage area below and provides two of
the four cupholders for the second row passengers.
Console Position 2
Console Position 3
288 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

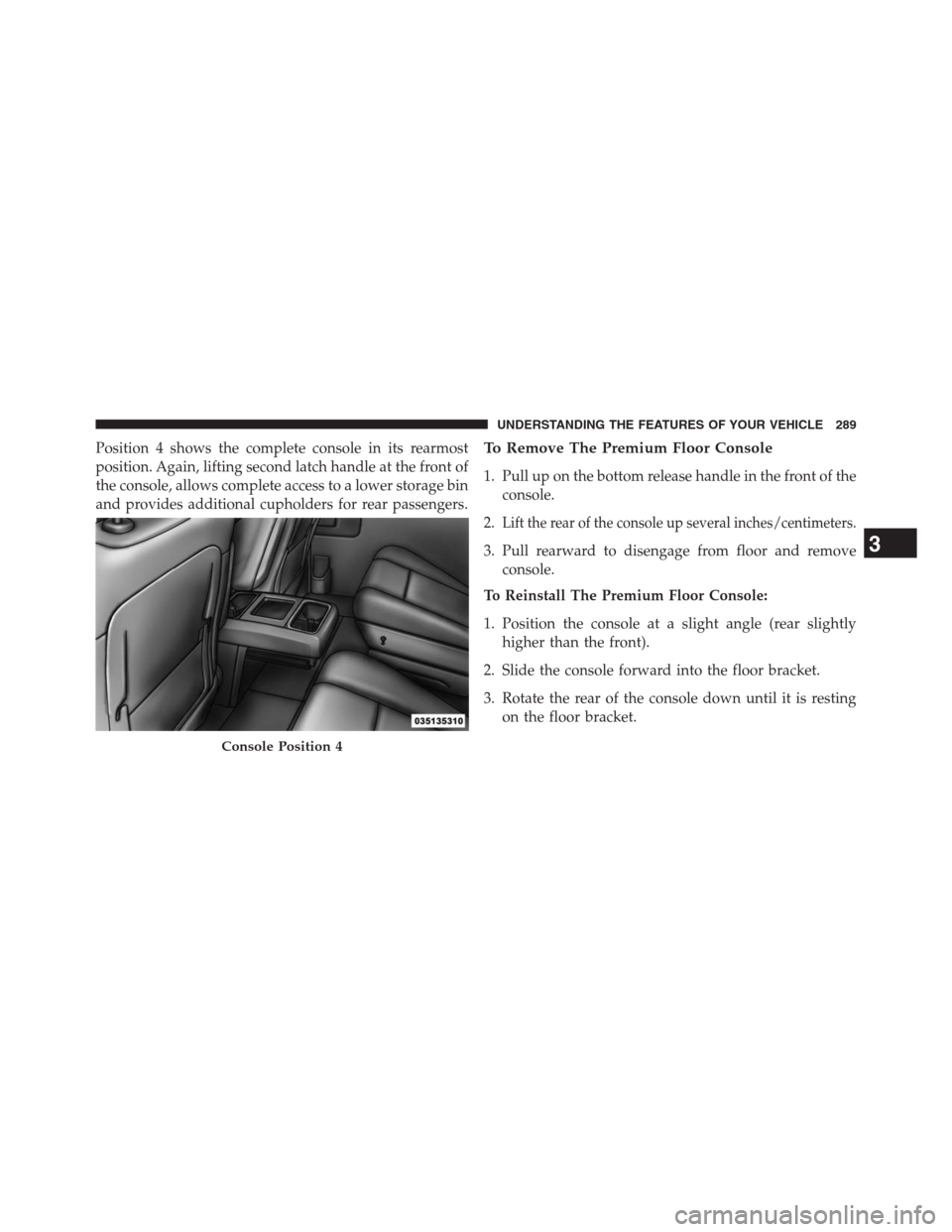

Position 4 shows the complete console in its rearmost
position. Again, lifting second latch handle at the front of
the console, allows complete access to a lower storage bin
and provides additional cupholders for rear passengers.To Remove The Premium Floor Console
1. Pull up on the bottom release handle in the front of the
console.
2.
Lift the rear of the console up several inches/centimeters.
3. Pull rearward to disengage from floor and remove
console.
To Reinstall The Premium Floor Console:
1. Position the console at a slight angle (rear slightly
higher than the front).
2. Slide the console forward into the floor bracket.
3. Rotate the rear of the console down until it is resting
on the floor bracket.
Console Position 4
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 289

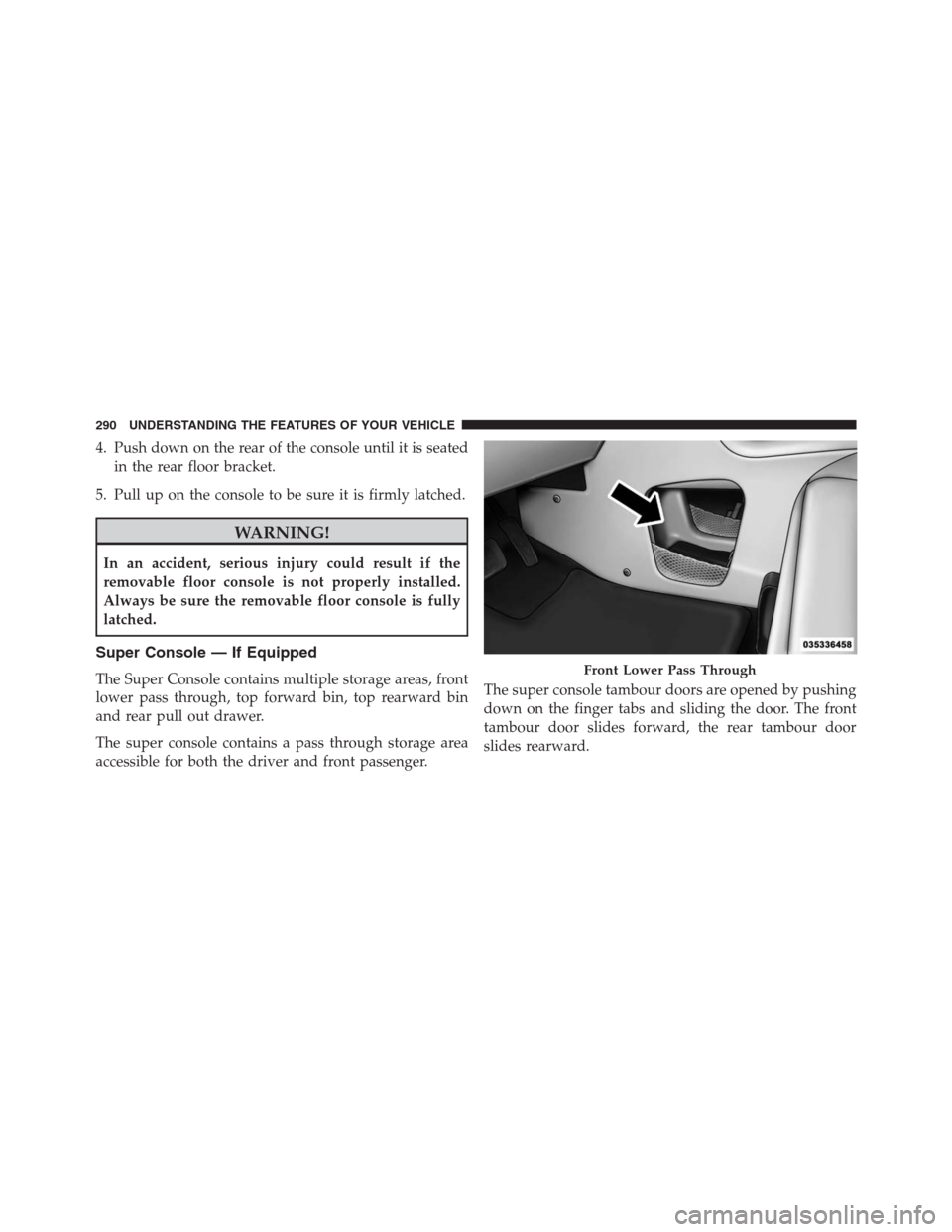

4. Push down on the rear of the console until it is seated
in the rear floor bracket.
5. Pull up on the console to be sure it is firmly latched.
WARNING!
In an accident, serious injury could result if the
removable floor console is not properly installed.
Always be sure the removable floor console is fully
latched.
Super Console — If Equipped
The Super Console contains multiple storage areas, front
lower pass through, top forward bin, top rearward bin
and rear pull out drawer.
The super console contains a pass through storage area
accessible for both the driver and front passenger.The super console tambour doors are opened by pushing
down on the finger tabs and sliding the door. The front
tambour door slides forward, the rear tambour door
slides rearward.Front Lower Pass Through
290 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

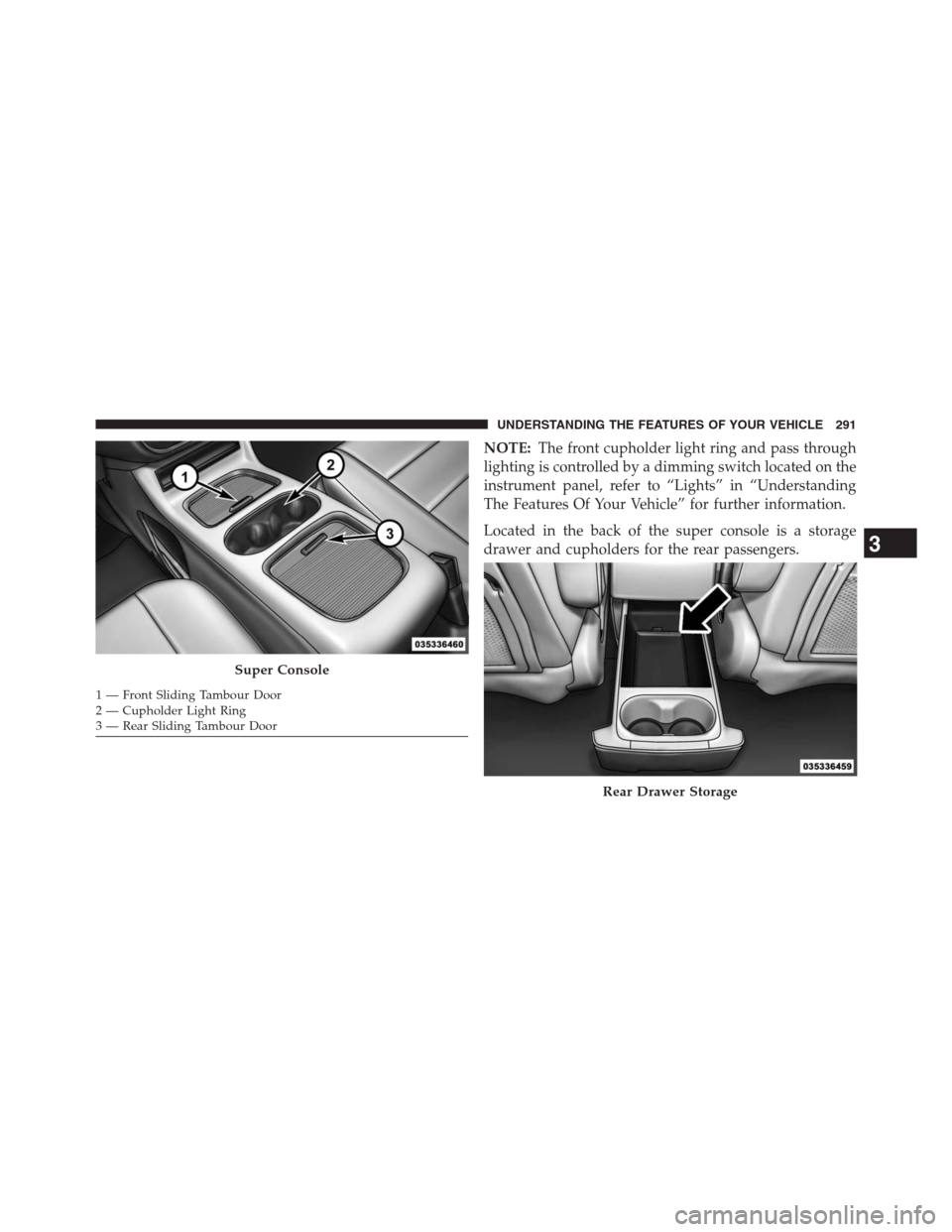

NOTE:The front cupholder light ring and pass through
lighting is controlled by a dimming switch located on the
instrument panel, refer to “Lights” in “Understanding
The Features Of Your Vehicle” for further information.
Located in the back of the super console is a storage
drawer and cupholders for the rear passengers.
Super Console
1 — Front Sliding Tambour Door
2 — Cupholder Light Ring
3 — Rear Sliding Tambour Door
Rear Drawer Storage
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 291

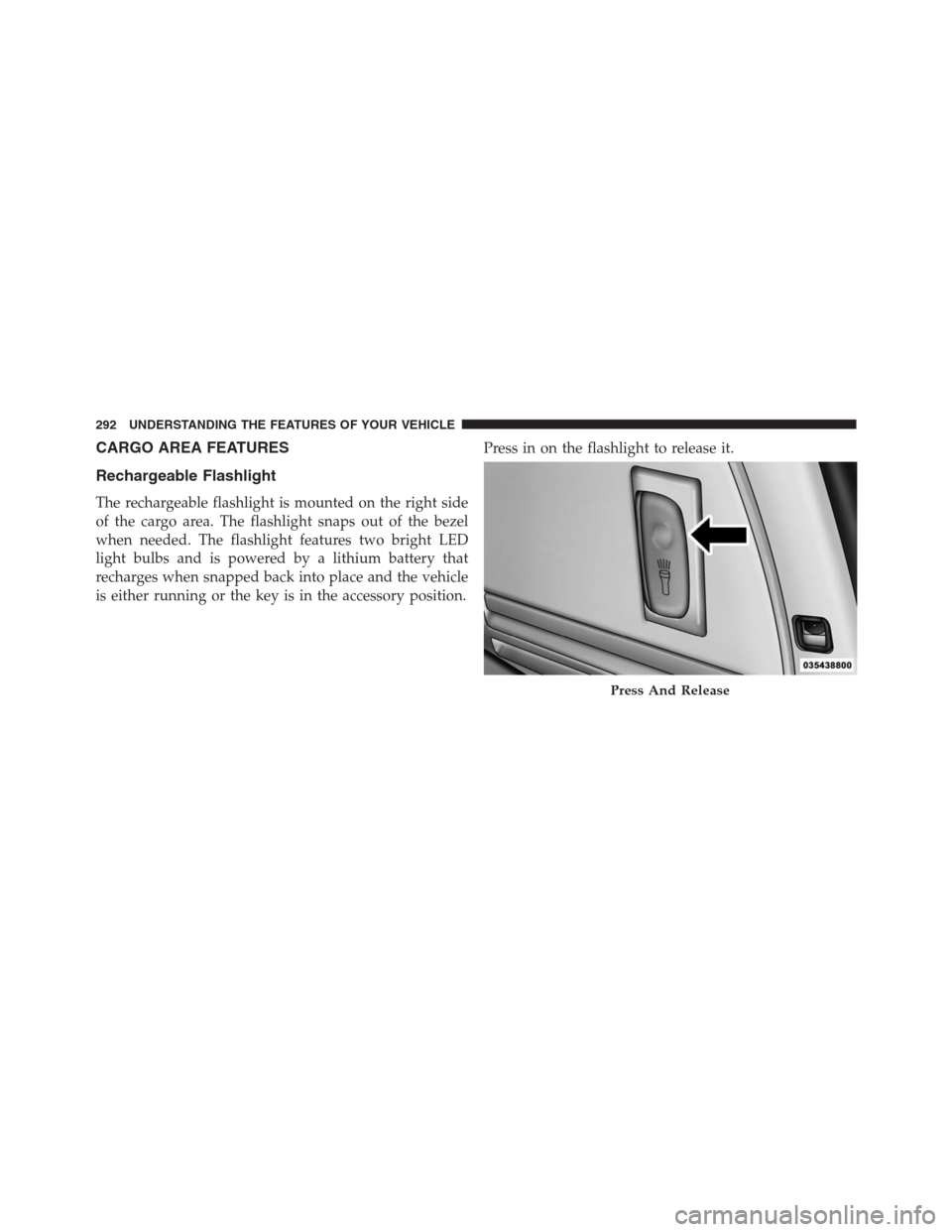

CARGO AREA FEATURES
Rechargeable Flashlight
The rechargeable flashlight is mounted on the right side
of the cargo area. The flashlight snaps out of the bezel
when needed. The flashlight features two bright LED
light bulbs and is powered by a lithium battery that
recharges when snapped back into place and the vehicle
is either running or the key is in the accessory position.Press in on the flashlight to release it.
Press And Release
292 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

To operate the flashlight, press the switch once for high,
twice for low, and a third time to return to off.REAR WINDOW FEATURES
Rear Window Defroster
The rear window defroster button is located on
the climate control (Mode) knob. Press this button
to turn on the rear window defroster and the heated
outside mirrors (if equipped). An indicator in the button
will illuminate when the rear window defroster is on. The
rear window defroster automatically turns off after ap-
proximately 10 minutes. For an additional five minutes of
operation, press the button a second time.
NOTE:
•
You can turn off the heated mirror feature at anytime by
pressing the rear window defroster switch a second
time.
•To prevent excessive battery drain, use the rear win-
dow defroster only when the engine is operating.
Three-Press Switch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 293

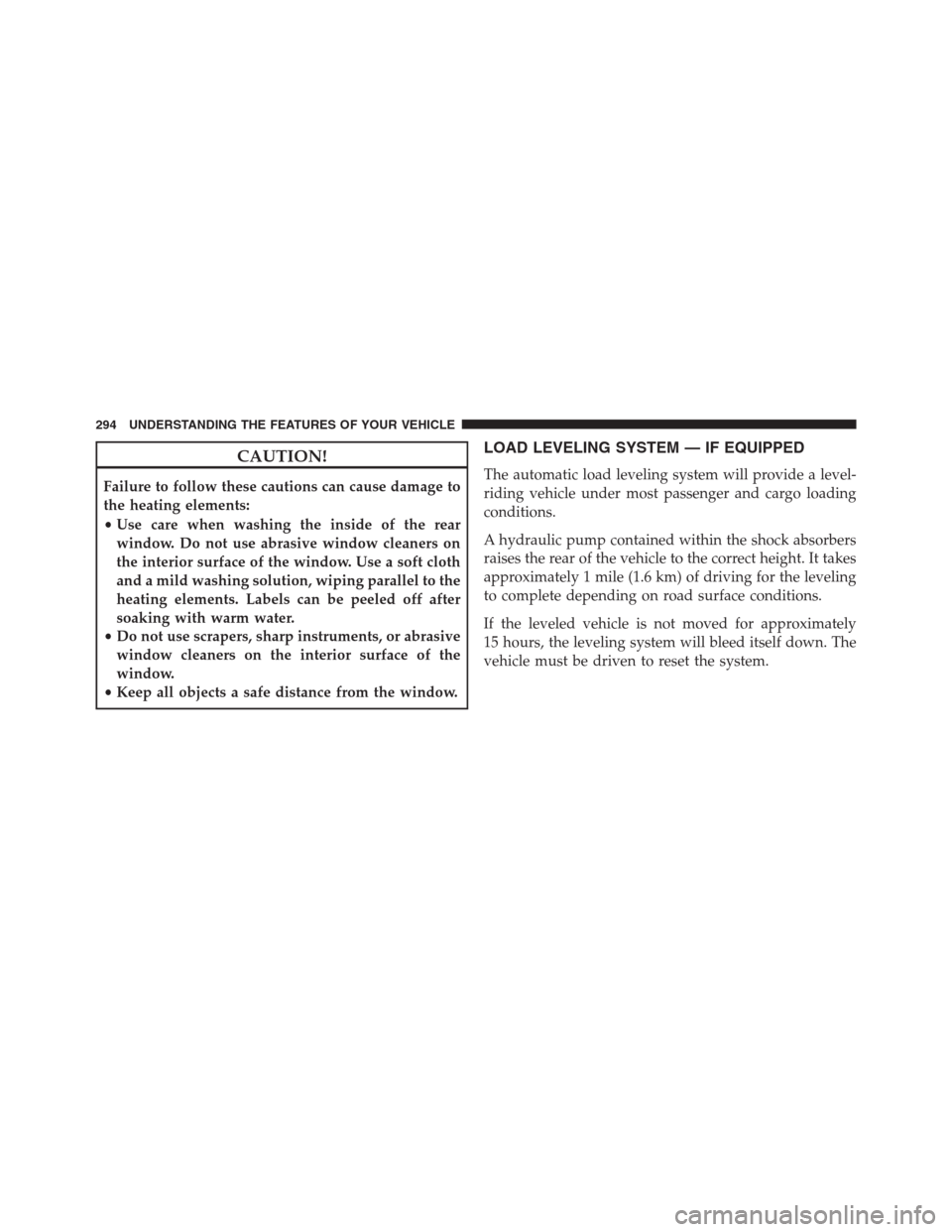

CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
•Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to the
heating elements. Labels can be peeled off after
soaking with warm water.
•Do not use scrapers, sharp instruments, or abrasive
window cleaners on the interior surface of the
window.
•Keep all objects a safe distance from the window.
LOAD LEVELING SYSTEM — IF EQUIPPED
The automatic load leveling system will provide a level-
riding vehicle under most passenger and cargo loading
conditions.
A hydraulic pump contained within the shock absorbers
raises the rear of the vehicle to the correct height. It takes
approximately 1 mile (1.6 km) of driving for the leveling
to complete depending on road surface conditions.
If the leveled vehicle is not moved for approximately
15 hours, the leveling system will bleed itself down. The
vehicle must be driven to reset the system.
