2013 DODGE DART maintenance

“Maintenance Schedule” for the proper maintenance
intervals. Also, if the fluid becomes contaminated (with
water, etc.) or the transmission is repaired, the fluid
should be changed.
Manual Transmission – If Equipped
Lubricant Selection
Use only the manufacturers recommended transmission
fluid. Refer to “Fluids, Lubricants, and Genuine Parts” in
“Maintaining Your Vehicle” for further information.
Fluid Level Check
Check the fluid level by removing the fill plug. The fluid
level should be between the bottom of the fill hole and a
point not more than 3/16 in (4.7 mm) below the bottom
of the hole.
Add fluid, if necessary, to maintain the proper level.
Frequency Of Fluid Change
Under normal operating conditions, the fluid installed at
the factory will give satisfactory lubrication for the life of
the vehicle. Fluid changes are not necessary unless lubri-
cant has become contaminated with water.
NOTE:If contaminated with water, the fluid should be
changed immediately.
Appearance Care And Protection From Corrosion
Protection Of Body And Paint From Corrosion
Vehicle body care requirements vary according to geo-
graphic locations and usage. Chemicals that make roads
passable in snow and ice and those that are sprayed on
trees and road surfaces during other seasons, are highly
corrosive to the metal in your vehicle. Outside parking,
which exposes your vehicle to airborne contaminants,
road surfaces on which the vehicle is operated, extreme
546 MAINTAINING YOUR VEHICLE

hot or cold weather and other extreme conditions will
have an adverse effect on paint, metal trim, and under-
body protection.
The following maintenance recommendations will enable
you to obtain maximum benefit from the corrosion
resistance built into your vehicle.
What Causes Corrosion?
Corrosion is the result of deterioration or removal of
paint and protective coatings from your vehicle.
The most common causes of corrosion are:
•Road salt, dirt and moisture accumulation.
•Stone and gravel impact.
•Insects, tree sap and tar.
•Salt in the air near sea coast localities.
•Atmospheric fallout/industrial pollutants.
Washing
•
Wash your vehicle regularly. Always wash your ve-
hicle in the shade using MOPARCar Wash or a mild
car wash soap, and rinse the panels completely with
clear water.
•If insects, tar or other similar deposits have accumu-
lated on your vehicle, use MOPAR Super Kleen Bug
and Tar Remover or equivalent to remove.
•Use a high quality cleaner wax, such as MOPAR
Cleaner Wax to remove road film, stains and to protect
your paint finish. Take care never to scratch the paint.
•Avoid using abrasive compounds and power buffing
that may diminish the gloss or thin out the paint
finish.7
MAINTAINING YOUR VEHICLE 547

Seat Belt Maintenance
Do not bleach, dye or clean the seat belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the seat belts need cleaning, use a mild soap solution or
lukewarm water. Do not remove the seat belts from the
car to wash them. Dry with a soft cloth.
Replace the seat belts if they appear frayed or worn or if
the buckles do not work properly.
FUSES
Interior Fuses
Cavity CartridgeFuseMini
Fuse Description
F1 — 20 Amp
Yellow Front Heated Seats
F2 — 20 Amp
Yellow
Rear Heated Seats,
Heated Steering Wheel
Cavity Cartridge FuseMini
Fuse Description
F3 — 10 Amp
RedPAM, Rear Camera,
LBSS, RBSS, Com-
pass
F4 — 15 Amp
BlueIPC
F5 — 10 Amp
RedHVAC, Humidity
Sensor, In-Car Tem-
perature Sensor, In-
side Mirror Assem-
bly
F18 — 15 Amp
BlueRadio
F19 — 10 Amp
RedFuel Door
F20 — 10 Amp
RedSCCM, SAS, Switch
Bank
552 MAINTAINING YOUR VEHICLE

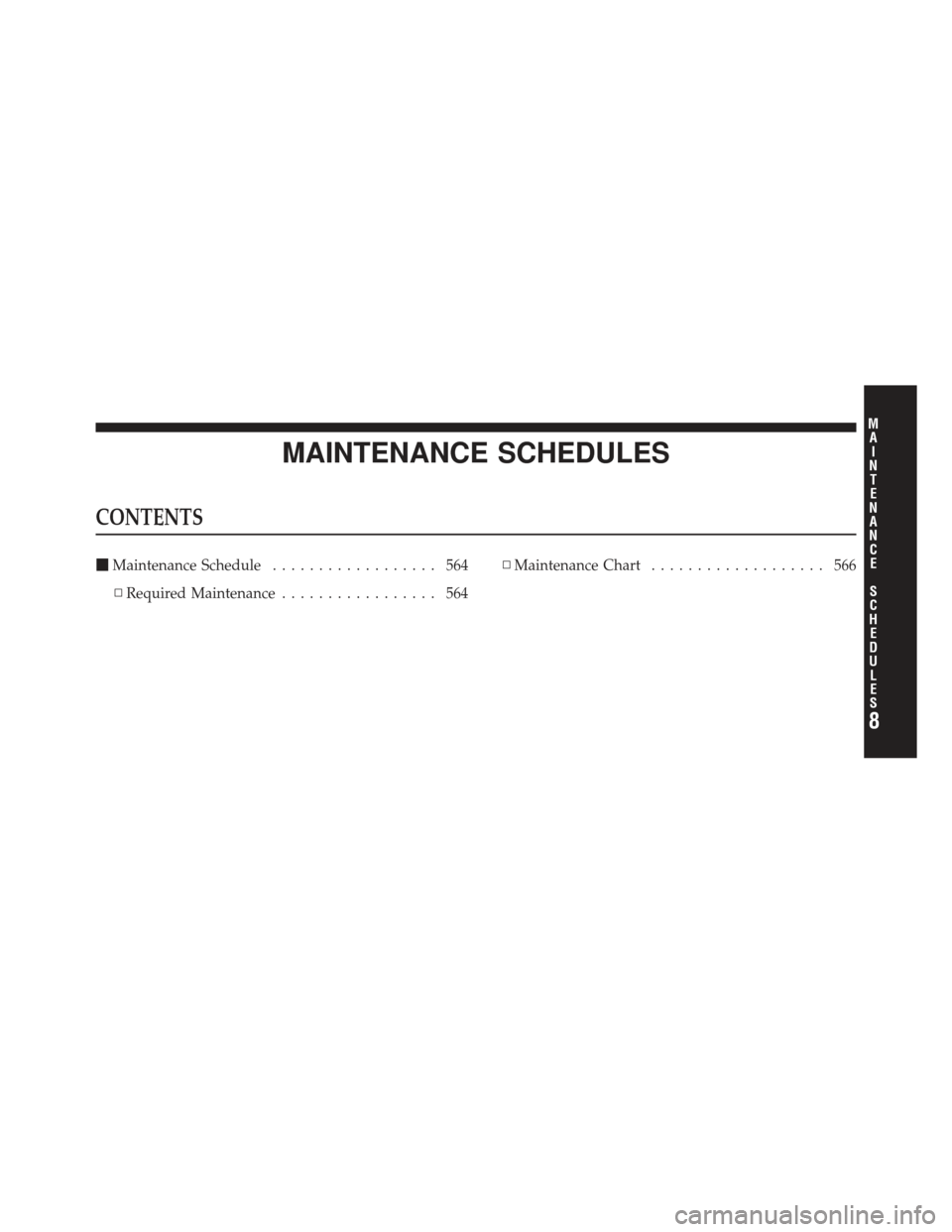

MAINTENANCE SCHEDULES
CONTENTS
Maintenance Schedule .................. 564
▫ Required Maintenance ................. 564 ▫
Maintenance Chart ................... 566
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

MAINTENANCE SCHEDULE
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow, extremely hot or
cold ambient temperatures, and E85 fuel usage will
influence when the “Change Oil” message is displayed.
Severe Operating Conditions can cause the change oil
message to illuminate as early as 3,500 miles (5,600 km)
since last reset. Have your vehicle serviced as soon as
possible, within the next 500 miles (805 km).
NOTE:Under no circumstances should oil change in-
tervals exceed 10,000 miles (16,000 km) or twelve months,
whichever comes first. Once A Month Or Before A Long Trip:•Check engine oil level.
•Check windshield washer fluid level.
•Check the tire inflation pressures and look for unusual
wear or damage.
•Check the fluid levels of the coolant reservoir, and
brake master cylinder as needed.
•Check function of all interior and exterior lights.
Required Maintenance
Refer to the Maintenance Schedules on the following
pages for required maintenance.
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S564 MAINTENANCE SCHEDULES

At Every Oil Change Interval As Indicated By Oil Change Indicator System:
•Change engine oil and filter.
•Rotate the tires.Rotate at the first sign of irregular wear, even if it occurs before the oil indicator system
turns on.
•Inspect battery and clean and tighten terminals as required.
•Inspect brake pads, shoes, rotors, drums, hoses and park brake.
•Inspect engine cooling system protection and hoses.
•Inspect exhaust system.
•Inspect engine air cleaner if using in dusty or off-road conditions.
8
M A I
N T
E
N A
N CE
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 565

Maintenance Chart
Mileage Or Time Passed
(Whichever Comes First) 20,000 30,000 40,000 50,000 60,000 70,000 80,000 90,000 100,000 110,000 120,000 130,000 140,000 150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers: 32,000 48,000 64,000 80,000 96,000 112,000 128,000 144,000 160,000 176,000 192,000 208,000 224,000 240,000
Additional Inspections
Inspect CV joint boots. XX X XX
Inspect front suspension, tie
rod ends and replace as nec-
essary. XXXXXXX
Inspect brake linings, parking
brake function. XXXXXXX
Additional Maintenance
Replace the cabin/air condi-
tioning filter. XXXXXXX
Replace the engine air
cleaner filter. XX X X X
Replace the spark plugs (1.4L
Turbo Engine).** XX X X X
Replace the spark plugs (2.0L
and 2.4L Engine).** X
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S566 MAINTENANCE SCHEDULES

Mileage Or Time Passed
(Whichever Comes First) 20,000 30,000 40,000 50,000 60,000 70,000 80,000 90,000 100,000 110,000 120,000 130,000 140,000 150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers: 32,000 48,000 64,000 80,000 96,000 112,000 128,000 144,000 160,000 176,000 192,000 208,000 224,000 240,000
Flush and replace the engine
coolant at 10 years or
150,000 miles (240,000 km)
whichever comes first. XX
Change the transmission fluid
(manual or automatic 1.4L
turbo engine only) if using
your vehicle for any of the
following: trailer towing, heavy
loading, taxi, police, delivery
service (commercial service),
off-road, desert operation or
more than 50% of your driving
is at sustained speeds during
hot weather, above 90°F
(32°C). XXX
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 567
