2013 DODGE CHARGER SRT trunk

TIREFIT Storage
The TIREFIT kit is located in the trunk.
TIREFIT Kit Components And Operation
1. Sealant Bottle
2. Deflation Button
3. Pressure GaugeTIREFIT Location
TIREFIT Components
474 WHAT TO DO IN EMERGENCIES

CAUTION!
Do not use a portable battery booster pack or any
other booster source with a system voltage greater
than 12 Volts or damage to the battery, starter motor,
alternator or electrical system may occur.
WARNING!
Do not attempt jump-starting if the battery is frozen.
It could rupture or explode and cause personal injury.
Preparations For Jump-Start
The battery is stored under an access cover in the trunk.
Remote battery posts are located on the right side of the
engine compartment for jump-starting.NOTE:
The remote battery posts are viewed by standing
on the right side of the vehicle looking over the fender.Remote Battery Posts
1 — Remote Positive (+)Post
2 — Remote Negative (-)Post
484 WHAT TO DO IN EMERGENCIES

Engine Air Cleaner Filter
Refer to the “Maintenance Schedule” for the proper
maintenance intervals.
WARNING!
The air induction system (air cleaner, hoses, etc.) can
provide a measure of protection in the case of engine
backfire. Do not remove the air induction system (air
cleaner, hoses, etc.) unless such removal is necessary
for repair or maintenance. Make sure that no one is
near the engine compartment before starting the
vehicle with the air induction system (air cleaner,
hoses, etc.) removed. Failure to do so can result in
serious personal injury.
Engine Air Cleaner Filter Selection
The quality of replacement engine air cleaner filters varies
considerably. Only high quality filters should be used to
assure most efficient service. MOPAR® engine air cleaner
filters are a high quality filter and are recommended.
Maintenance-Free Battery
Your vehicle is equipped with a maintenance-free battery.
You will never have to add water, nor is periodic main-
tenance required.
NOTE: The battery is stored under an access cover in
the trunk. Remote battery terminals are located in the
engine compartment for jump starting. Refer to “Jump-
Starting Procedures” in “What To Do In Emergencies”
for further information.
502 MAINTAINING YOUR VEHICLE

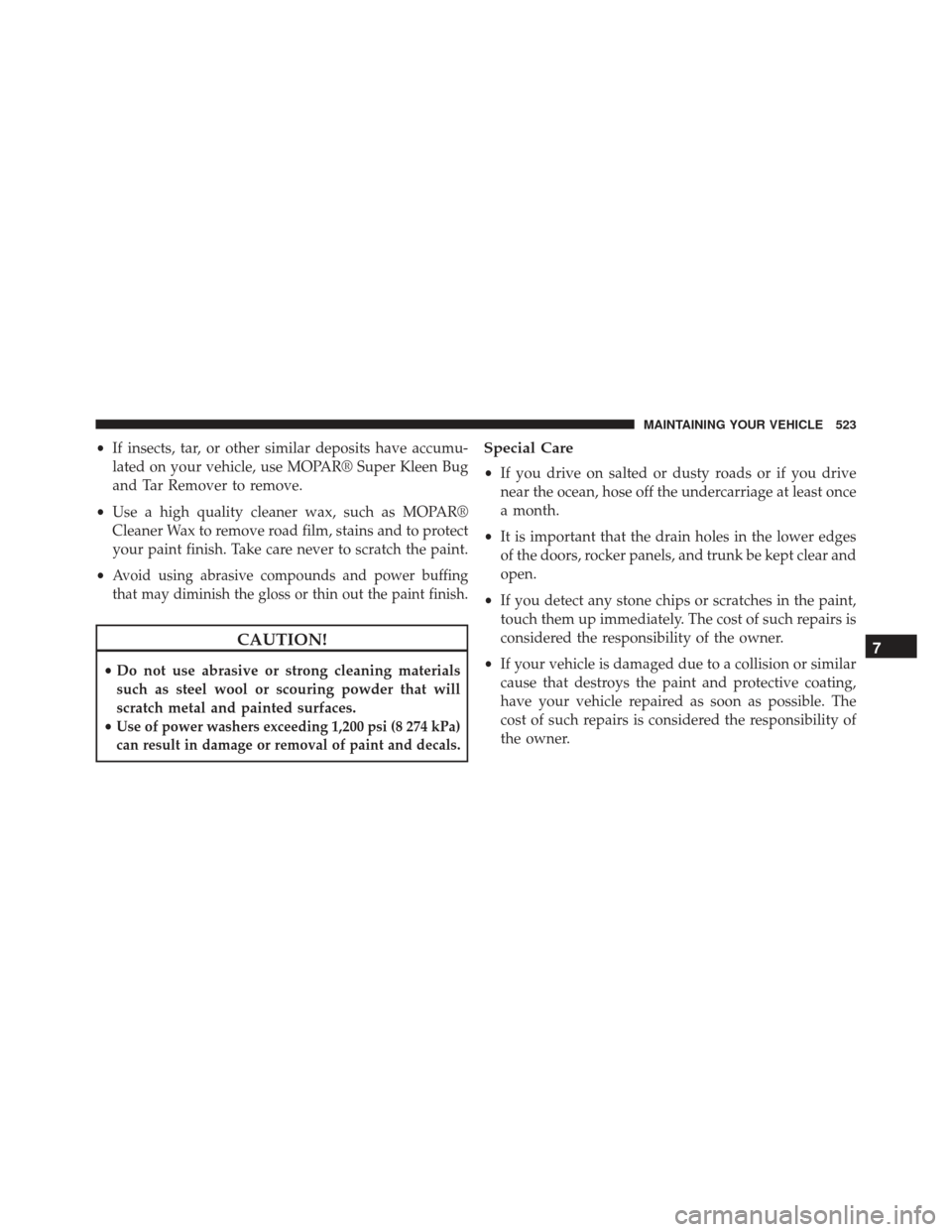

•If insects, tar, or other similar deposits have accumu-
lated on your vehicle, use MOPAR® Super Kleen Bug
and Tar Remover to remove.
• Use a high quality cleaner wax, such as MOPAR®
Cleaner Wax to remove road film, stains and to protect
your paint finish. Take care never to scratch the paint.
•
Avoid using abrasive compounds and power buffing
that may diminish the gloss or thin out the paint finish.
CAUTION!
• Do not use abrasive or strong cleaning materials
such as steel wool or scouring powder that will
scratch metal and painted surfaces.
•
Use of power washers exceeding 1,200 psi (8 274 kPa)
can result in damage or removal of paint and decals.
Special Care
• If you drive on salted or dusty roads or if you drive
near the ocean, hose off the undercarriage at least once
a month.
• It is important that the drain holes in the lower edges
of the doors, rocker panels, and trunk be kept clear and
open.
• If you detect any stone chips or scratches in the paint,
touch them up immediately. The cost of such repairs is
considered the responsibility of the owner.
• If your vehicle is damaged due to a collision or similar
cause that destroys the paint and protective coating,
have your vehicle repaired as soon as possible. The
cost of such repairs is considered the responsibility of
the owner.
7
MAINTAINING YOUR VEHICLE 523

Cavity Car-tridgeFuse Mini-
Fuse Description
49 — — Fuse – Spare
50 — — Fuse – Spare
51 — 20 Amp YellowVacuum Pump
52 — — Fuse – Spare
53 — — Fuse – SpareRear Power Distribution Center
There is also a power distribution center located in the
trunk under the spare tire access panel. This center
contains fuses and relays.
Rear Power Distribution Center
7
MAINTAINING YOUR VEHICLE 531

REPLACEMENT BULBS
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.
Interior Bulbs
Bulb Number
Rear Courtesy/Reading
Lamps W5W
Rear Compartment
(Trunk) Lamp 562
Overhead Console
Reading Lamp 578
Bulb Number
Visor Vanity Lamps A6220
Glove Box Lamp –
If Equipped 194
Door Courtesy 562
Shift Indicator Lamp JKLE14140
Optional Door Map
Pocket/Cup Holder LED (Serviced at Autho-
rized Dealer)
For lighted switches, see your authorized dealer for
replacement instructions.
7
MAINTAINING YOUR VEHICLE 537

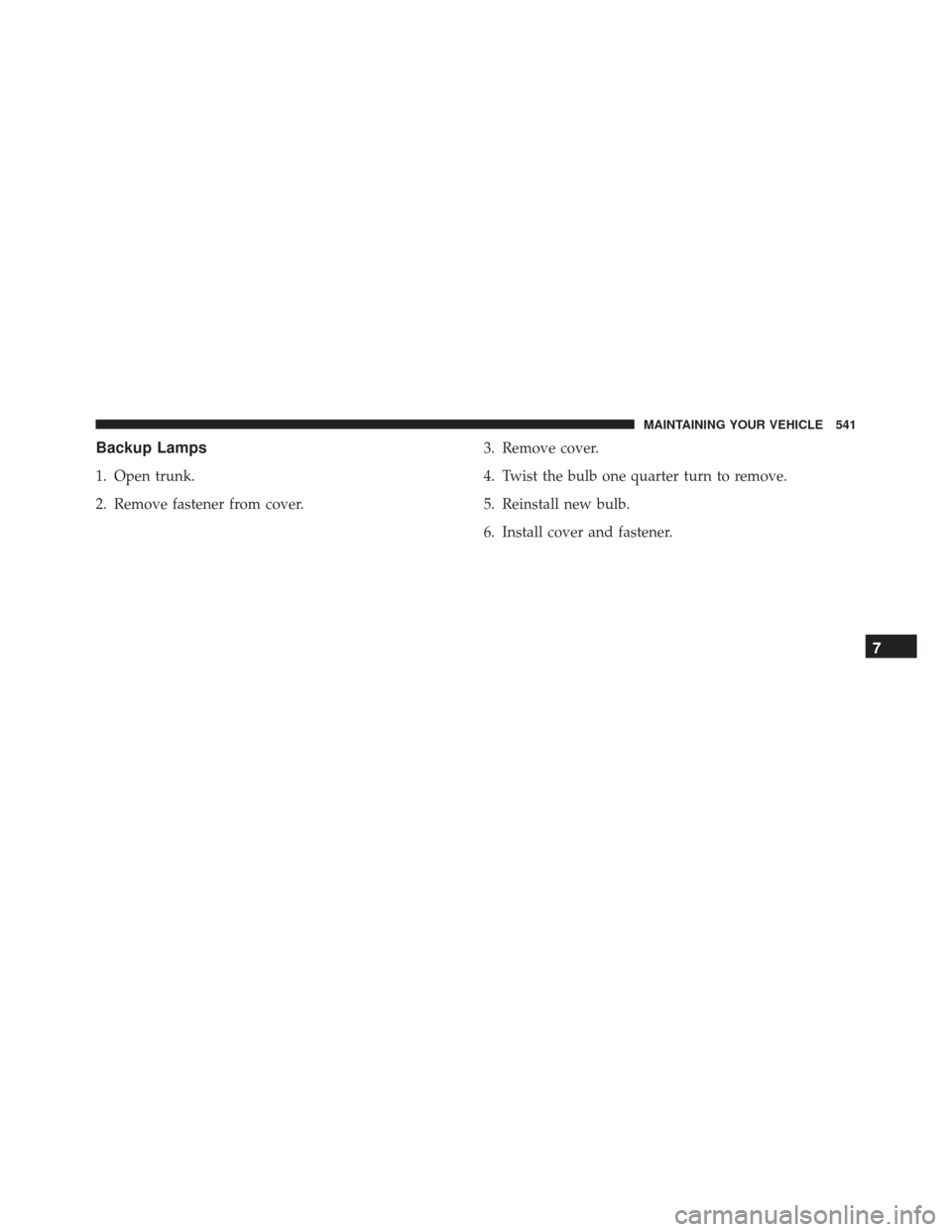

Backup Lamps
1. Open trunk.
2. Remove fastener from cover.3. Remove cover.
4. Twist the bulb one quarter turn to remove.
5. Reinstall new bulb.
6. Install cover and fastener.
7
MAINTAINING YOUR VEHICLE 541

Traction Control System...................418
Electronic Power Distribution Center (Fuses) ......527
Electronic Speed Control (Cruise Control) .....237, 241
Electronic Stability Control (ESC) ..............419
Electronic Vehicle Information Center (EVIC) ......276
Emergency Deck Lid Release ..................45
Emergency, In Case of Freeing Vehicle When Stuck ................487
Hazard Warning Flasher ..................472
Jump Starting ......................... .483
Overheating .......................... .472
Emergency Trunk Release ....................45
Emission Control System Maintenance ..........496
Engine ................................ .495
Air Cleaner .......................... .502
Block Heater ......................... .396
Break-In Recommendations .................94
Checking Oil Level ..................... .499
Compartment ......................... .495Coolant (Antifreeze)
..................512, 544
Cooling ..............................511
Exhaust Gas Caution ..................96, 462
Fails to Start .......................... .394
Flooded, Starting ...................... .394
Fuel Requirements ..................... .458
Jump Starting ......................... .483
Oil .......................... .499, 543, 544
Oil Change Interval ..................329, 500
Oil Filler Cap ......................... .501
Oil Selection ...................... .500, 543
Oil Synthetic ......................... .501
Overheating .......................... .472
Starting ............................. .391
Temperature Gauge ..................... .320
Engine Oil Viscosity ...................... .501
Enhanced Accident Response Feature ............70
Entry System, Illuminated ....................21
Ethanol ............................... .459
582 INDEX
