2013 DODGE CHARGER SRT fuses

bag system is designed to be maintenance free. If any of
the following occurs, have an authorized dealer service
the air bag system immediately.
•The Air Bag Warning Light does not come on during
the four to eight seconds when the ignition is first
cycled to the ON/RUN.
• The Air Bag Warning Light remains on after the four to
eight-second interval.
• The Air Bag Warning Light comes on intermittently or
remains on while driving.
NOTE: If the speedometer, tachometer, or any engine
related gauges are not working, the Occupant Restraint
Controller (ORC) may also be disabled. The air bags may
not be ready to inflate for your protection. Promptly
check the fuse block for blown fuses. Refer to “Fuses” in
“Maintaining Your Vehicle” for the proper air bag fuses.
See your authorized dealer if the fuse is good.Event Data Recorder (EDR)
This vehicle is equipped with an event data recorder
(EDR). The main purpose of an EDR is to record, in
certain crash or near crash-like situations, such as an air
bag deployment or hitting a road obstacle, data that will
assist in understanding how a vehicle’s systems per-
formed. The EDR is designed to record data related to
vehicle dynamics and safety systems for a short period of
time, typically 30 seconds or less. The EDR in this vehicle
is designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts
were buckled/fastened;
• How far (if at all) the driver was depressing the
accelerator and/or brake pedal; and,
• How fast the vehicle was traveling.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 73

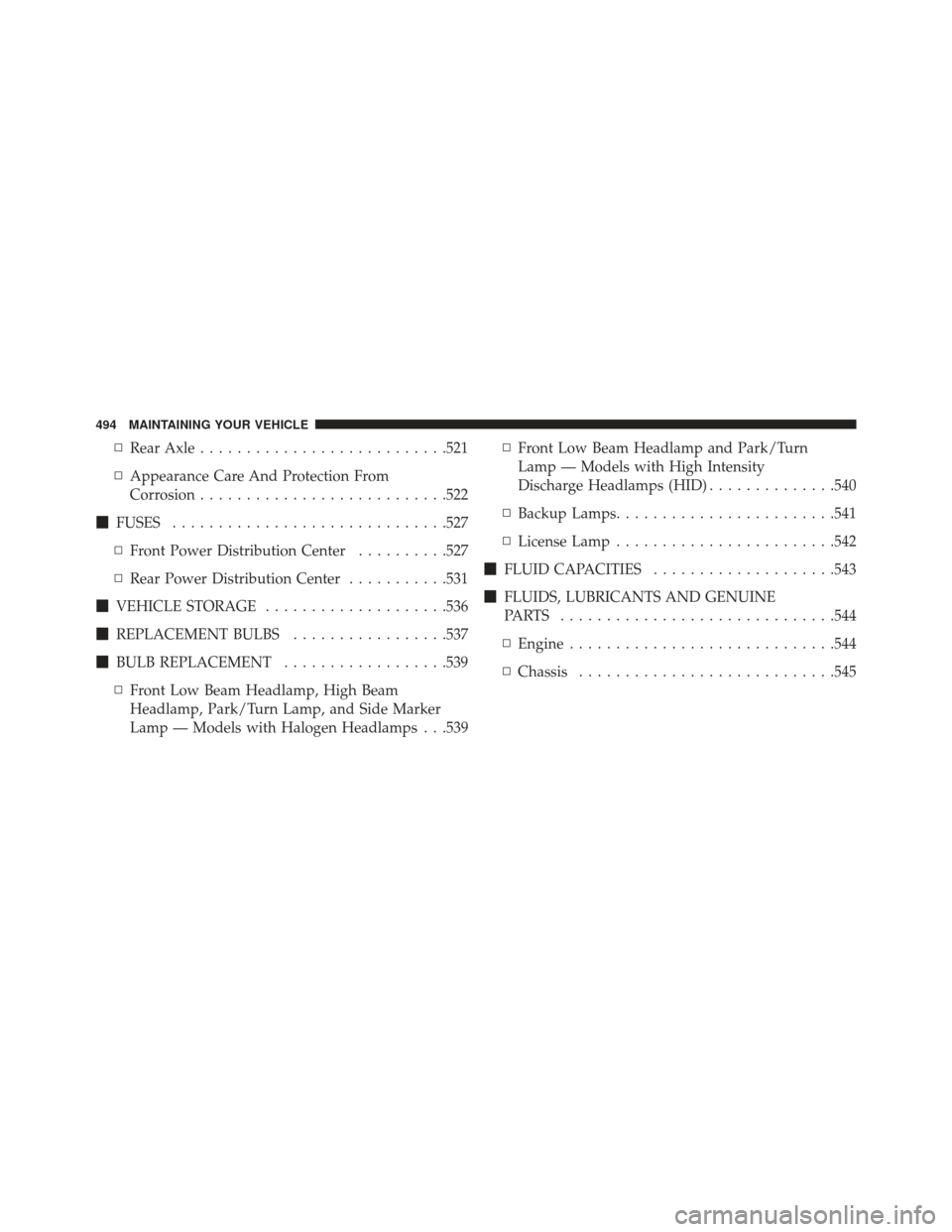

▫Rear Axle .......................... .521
▫ Appearance Care And Protection From
Corrosion .......................... .522
 FUSES ............................. .527
▫ Front Power Distribution Center ..........527
▫ Rear Power Distribution Center ...........531
 VEHICLE STORAGE ....................536
 REPLACEMENT BULBS .................537
 BULB REPLACEMENT ..................539
▫ Front Low Beam Headlamp, High Beam
Headlamp, Park/Turn Lamp, and Side Marker
Lamp — Models with Halogen Headlamps . . .539 ▫
Front Low Beam Headlamp and Park/Turn
Lamp — Models with High Intensity
Discharge Headlamps (HID) ..............540
▫ Backup Lamps ....................... .541
▫ License Lamp ....................... .542
 FLUID CAPACITIES ....................543
 FLUIDS, LUBRICANTS AND GENUINE
PARTS ............................. .544
▫ Engine ............................ .544
▫ Chassis ........................... .545
494 MAINTAINING YOUR VEHICLE

ENGINE COMPARTMENT — 6.4L (392 HEMI)
1 — Remote Jump Start (Positive Battery Post)6 — Air Cleaner Filter
2 — Engine Oil Dipstick 7 — Power Steering Fluid Reservoir
3 — Engine Oil Fill 8 — Integrated Power Module (Fuses)
4 — Brake Fluid Reservoir 9 — Washer Fluid Reservoir
5 — Engine Coolant Reservoir
7
MAINTAINING YOUR VEHICLE 495

Seat Belt Maintenance
Do not bleach, dye, or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the belts need cleaning, use MOPAR® Total Clean, a
mild soap solution, or lukewarm water. Do not remove
the belts from the vehicle to wash them. Dry with a soft
cloth.
Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
Cleaning The Center Console Cupholders
Clean with a damp cloth or towel using a mild detergent
with the cupholder in the center console.
NOTE:The cupholder cannot be removed.
FUSES
Front Power Distribution Center
The Front Power Distribution Center is located in the engine
compartment. This module contains fuses and relays.
Front Power Distribution Center
7
MAINTAINING YOUR VEHICLE 527

Cavity Car-tridgeFuse Mini-
Fuse Description
49 — — Fuse – Spare
50 — — Fuse – Spare
51 — 20 Amp YellowVacuum Pump
52 — — Fuse – Spare
53 — — Fuse – SpareRear Power Distribution Center
There is also a power distribution center located in the
trunk under the spare tire access panel. This center
contains fuses and relays.
Rear Power Distribution Center
7
MAINTAINING YOUR VEHICLE 531

Traction Control System...................418
Electronic Power Distribution Center (Fuses) ......527
Electronic Speed Control (Cruise Control) .....237, 241
Electronic Stability Control (ESC) ..............419
Electronic Vehicle Information Center (EVIC) ......276
Emergency Deck Lid Release ..................45
Emergency, In Case of Freeing Vehicle When Stuck ................487
Hazard Warning Flasher ..................472
Jump Starting ......................... .483
Overheating .......................... .472
Emergency Trunk Release ....................45
Emission Control System Maintenance ..........496
Engine ................................ .495
Air Cleaner .......................... .502
Block Heater ......................... .396
Break-In Recommendations .................94
Checking Oil Level ..................... .499
Compartment ......................... .495Coolant (Antifreeze)
..................512, 544
Cooling ..............................511
Exhaust Gas Caution ..................96, 462
Fails to Start .......................... .394
Flooded, Starting ...................... .394
Fuel Requirements ..................... .458
Jump Starting ......................... .483
Oil .......................... .499, 543, 544
Oil Change Interval ..................329, 500
Oil Filler Cap ......................... .501
Oil Selection ...................... .500, 543
Oil Synthetic ......................... .501
Overheating .......................... .472
Starting ............................. .391
Temperature Gauge ..................... .320
Engine Oil Viscosity ...................... .501
Enhanced Accident Response Feature ............70
