Load space cover

To install:


- position one end of the load space cover
roller in its notch,

- compress the opposite end of the roller
and put it in place,

- release it so that it engages,

- unroll the load space cover to the pillars,

- fix the two hooks on the pillars.


Stowing rings

Use the stowing rings on the rear floor to fix
the net, your loads or luggage.
For safety reasons, on sharp braking, it is
recommended that heavy objects are placed
as far forward as possible. To remove:


- pull the load space cover towards you to
disengage it from its fixings,

- reinsert the load space cover in its roller,

- compress it and remove it from its
support.

You are advised to immobilise the load
by securing it firmly using the stowing
rings on the floor.

88

Rear suspension


Metal suspension

This equipment adopts long movement limiters
which make it possible to guarantee stable
behaviour both when loaded and when empty.
No action on your part is required except to
ensure that maintenance is carried out and that
the authorised loads are complied with. the increasing or lightening of the load on
the vehicle's platform is detected by two
height sensors. When all of the doors are
closed, the sensors trigger the automatic
height correction and determine the optimum
height of the sill for the vehicle's driving
conditions.
Deactivation of automatic height correction
The control which permits deactivation of
automatic regulation is located on the right-
hand side, at the rear of the vehicle.
REAR SUSPENSION

Two types of suspension are available. You must deactivate automatic height
correction manually in the following
situations:


- when working underneath the vehicle,

- when changing a wheel,

- when the vehicle is being transported by
lorry, train, ferry, boat, ...



Rear suspension with pneumatic
height correction
If fitted on your vehicle, this type of
suspension regulates the variations in the
height of the rear platform of your vehicle
irrespective of the weight of the load, within
the limit of the authorised values. On board,
Two functions


1.
Automatic height
correction

2.
Manual height
correction


1 - Automatic correction of the
height of the rear sill
The pneumatic suspension automatically
regulates the variations in the height of the
rear platform of your vehicle.
The automatic height correction is
temporarily inactive:


- if a door / the tailgate is open,

- when braking or when stopped at a red
traffic signal (brake pedal pressed). With the vehicle stationary:


- press and hold,

- release the control.

Return to automatic correction
With the vehicle stationary:


- press and hold,

- release the control.
According to the configurations, a beep may
be heard during these operations.
A red warning light on your
instrument panel fl ashes if the
height is not at its optimum level
and requires correction, drive slowly
until this warning lamp goes off. Return to automatic height correction is
confirmed by the LED which goes off. Deactivation is confirmed by the LED which
is on. It remains on for approximately
30 seconds.

89
Rear suspension
EASE OF USE and COMFOR
T
3
2 - Manual correction of the height of the rear sill

If your vehicle is fitted with this adjustment,
the control is located on the right-hand side
at the rear of the vehicle.
This manual adjustment permits "lowering"
or "raising" of the height of the sill of the rear
platform to facilitate operations in a parking
area.
This adjustment of the height of the sill is
restricted by a lower limit and an upper limit.
First use
To initialise the function, press the control
for approximately 2 seconds.
Malfunctions
If the load sill is not adjusted when the
control is pressed, "3 beeps" indicate a
malfunction for the following reasons:


- foot on the brake pedal with the key in
the ignition,

- excessive use of the manual correction,

- low battery charge,

- other.
If the audible signal persists, contact a
CITROËN dealer or a qualified workshop. Carry out these operations with the vehicle
still stationary and:


- with the front and side doors closed,

- with the parking brake applied,

- do not leave your foot on the brake
pedal.

Lower: downwards adjustment
of the platform sill
Press the control downwards
continuously.
Release the button to stop the movement,
"3 beeps" indicate that you have reached
the maximum limit, the movement stops
automatically.

Raise: upwards adjustment of
the platform sill
Press the control upwards
continuously.
Release the button to stop the movement,
"3 beeps" indicate that you have reached
the maximum limit, the movement stops
automatically.

Return to the optimum sill height
Press the control up or down twice in
succession, the opposite of the position of
the load sill.

90

Rear suspension

Deactivation of manual height correction
Good practice

When stationary and with the ignition key
removed, excessive use of the system
consumes battery power.
Long term parking
Avoid parking for a long duration on ground
which could present a potential obstacle as
your vehicle could lower.
Following a long period out of use, the
height of the platform may change due to the
automatic height correction on unlocking or
on opening one of your vehicle's doors. With the vehicle stationary:


- press and hold,

- release the control.
Deactivation is confirmed by
the LED which is on. It remains on for
approximately 30 seconds.

Return to manual height correction
You must deactivate the manual height
correction in the following situations:


- when working underneath the vehicle,

- when changing a wheel,

- when the vehicle is being transported by
lorry, train, ferry, boat, ...

Driving with the height of the rear platform:


- too low, risks damaging the technical
components underneath the vehicle,

- too high, risks unstable driving.
If you start and the warning lamp flashes, to
switch it off:


- correct the position of the manual
control which is still at the lower or
upper limit,

- or drive slowly at above 6 mph
(10 km/h), until height correction returns
to automatic mode.
Warning lamp
Refer to the "Instruments and controls"
section of chapter 2.
With the vehicle stationary:


- press and hold,

- release the control.
Return to manual correction is
confirmed by the LED which goes off.
According to the configuration, a beep may
be heard during these operations.

91
Mirrors and windows

EASE OF USE and COMFOR
T
3

MIRRORS

If fitted on your vehicle, the mirror is
supplemented by a 2nd lower mirror. This
mirror is convex to broaden the field of side
vision. Objects observed are, in reality,
closer than they appear. Therefore, take this
into account in order to judge the distance
correctly.
MIRRORS AND WINDOWS

Electric folding
If your vehicle is fitted with this function,
the mirrors can be folded electrically from
the inside, with the vehicle parked and the
ignition on:


- Place switch A
in the centre position.

- Pull switch A
rearwards.


Heated mirrors

If your vehicle is fitted with this function,
press the rear screen demisting button. The folding / unfolding on locking / unlocking
can be deactivated.
Contact a CITROËN dealer or a qualified
workshop.


Electric door mirrors



- Move switch A
to the right or to the left
to select the corresponding mirror.

- Move knob B
in all four directions to
adjust.

- Return switch A
to the centre position. From the outside, lock the vehicle using the
remote control or the key.

Electric unfolding
The electric unfolding of the mirrors is
possible with the remote control or the key
on unlocking the vehicle, unless folding
was selected using switch A
. In this case,
pull the switch rearwards from the centre
position again.
Manual door mirrors

Move the lever in all four directions to
adjust.
When the vehicle is parked, the door mirrors
can be folded back manually.
If the mirror casing has come out of its
initial location, with the vehicle stationary,
reposition the mirror casing manually or use
the electric folding switch.
There is no risk of breakage even in the
presence of ice.

92
Mirrors and windows
Manual rear view mirror
The rear view mirror has two positions:


- day (normal),

- night (anti-dazzle).
To change from one to the other, push or
pull the lever on the lower edge of the mirror.
SURVEILLANCE MIRROR

This mirror, placed on top of the central
mirror, enables the driver or front passenger
to observe all the rear seats.
Fitted on its own ball joint, it's manual
adjustment is simple and provides a view of
the rear interior of the vehicle.
It can also be adjusted for improved visibility
during manoeuvres or when overtaking.
REAR WINDOWS


2nd row side windows
If fitted on your vehicle, the 2nd row side
windows can be opened.
Squeeze the two controls then move the
window sideways. 4 notches are available.
While driving, the window must be closed or
secured on one of the 4 notches.

3rd row rear quarter lights
These are fixed.

93
Mirrors and windows

EASE OF USE and COMFOR
T
3

ELECTRIC WINDOWS



1.
Driver's electric window control

2.
Passenger electric window control The electrical functions of the electric
windows are deactivated:


- approximately 45 seconds after the
ignition is switched off,

- after one of the front doors is opened, if
the ignition is off.


Reinitialisation

Following reconnection of the battery,
the safety anti-pinch function must be
reinitialised.
Lower the window fully, then raise it, it will
rise in steps of a few centimetres each time
the control is pressed. Repeat the operation
until the window is fully closed.
Continue to press the control for at least one
second after the window closed position has
been reached.
The safety anti-pinch does not operate
during these operations.
There are two operating modes:

Manual mode

Press or pull the control, without passing the
point of resistance. The window stops when
you release the control.

Automatic mode

Press or pull the control, beyond the point
of resistance. The window opens or closes
fully when the control is released. Pressing
the control again stops the movement of the
window.
Safety anti-pinch
If your vehicle is fitted with the safety anti-
pinch function, when the window rises and
meets an obstacle, it stops and partially
lowers.
In the event of unwanted opening of the
window on closing, press the control until
the window is fully open. Within the next
4 seconds, pull the control until the window
is fully closed.
The safety auto-reverse does not operate
during these operations.


Good practice

If the electric windows meet an obstacle
during operation, you must reverse the
movement of the window. To do this, press
the control concerned.
When the driver operates the passenger
electric window controls, he must ensure
that no one is preventing correct closing of
the windows.
The driver must ensure that the passengers
use the electric windows correctly.
Be aware of children when operating the
windows.

94


Driving safely

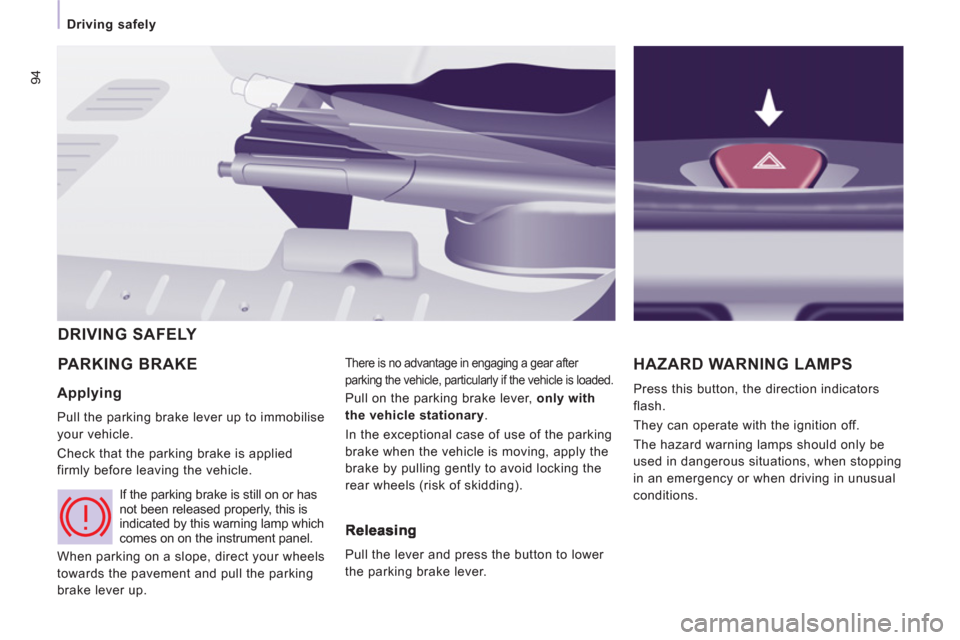

PARKING BRAKE
There is no advantage in engaging a gear after
parking the vehicle, particularly if the vehicle is loaded. HAZARD WARNING LAMPS

Press this button, the direction indicators
flash.
They can operate with the ignition off.
The hazard warning lamps should only be
used in dangerous situations, when stopping
in an emergency or when driving in unusual
conditions.
DRIVING SAFELY
Applying

Pull the parking brake lever up to immobilise
your vehicle.
Check that the parking brake is applied
firmly before leaving the vehicle.
If the parking brake is still on or has
not been released properly, this is
indicated by this warning lamp which
comes on on the instrument panel.
Pull on the parking brake lever, only with
the vehicle stationary
.
In the exceptional case of use of the parking
brake when the vehicle is moving, apply the
brake by pulling gently to avoid locking the
rear wheels (risk of skidding).

When parking on a slope, direct your wheels
towards the pavement and pull the parking
brake lever up.
Pull the lever and press the button to lower
the parking brake lever.
