2013 Citroen JUMPY MULTISPACE Owner's Manual

143
Changing a bulb
QUICK HEL
P
7

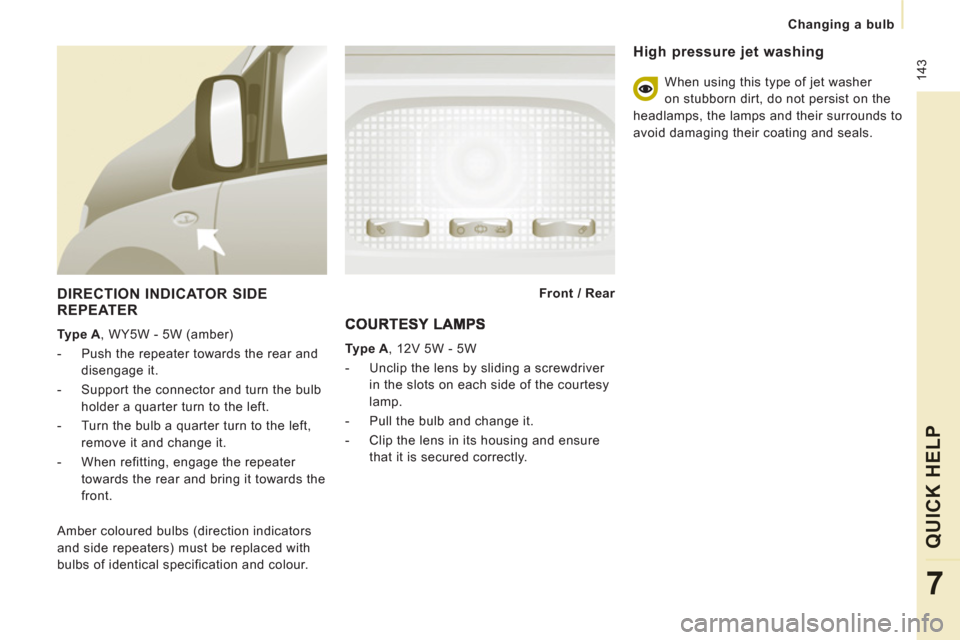

DIRECTION INDICATOR SIDEREPEATER


Type A
, WY5W - 5W (amber)


- Push the repeater towards the rear and
disengage it.

- Support the connector and turn the bulb
holder a quarter turn to the left.

- Turn the bulb a quarter turn to the left,
remove it and change it.

- When refitting, engage the repeater
towards the rear and bring it towards the
front.
Front / Rear


Amber coloured bulbs (direction indicators
and side repeaters) must be replaced with
bulbs of identical specification and colour.
Type A
, 12V 5W - 5W


- Unclip the lens by sliding a screwdriver
in the slots on each side of the courtesy
lamp.

- Pull the bulb and change it.

- Clip the lens in its housing and ensure
that it is secured correctly.


High pressure jet washing

When using this type of jet washer
on stubborn dirt, do not persist on the
headlamps, the lamps and their surrounds to
avoid damaging their coating and seals.

144


Changing a bulb

REAR LAMPS

For more information on bulbs, refer to the
"Types of bulb".

- Identify the faulty bulb then open the
rear doors to 180°. Refer to the "Access"
section of chapter 2.

- Remove the two fixing nuts.
Pull the lens unit from the outside.

- Holding the lamp unit, disconnect the
electrical connector.
- Move aside the 8 tabs then extract the
bulb holder.

- Remove the failed bulb by pressing it
lightly while turning it anticlockwise.

- Change the bulb.


1.
Brake lamps / sidelamps
Type B
, P21/5W - 21/5W

2.
Direction indicators
Type B
, PY21W - 21W (amber)

3.
Reversing lamps
Type B
, P21W - 21W

4.
Foglamps
Type B
, P21W - 21W When refitting, take care to correctly
reposition:


- the 8 tabs,

- the two white lugs in the two rubber
holes to maintain the sealing of the lamp
unit,

- the supply wire to avoid trapping it.

Changing a bulb
QUICK HEL
P
7
THIRD BRAKE LAMP

Type A
, W5W - 5W
Type B
, P21W - 21W

NUMBER PLATE LAMPS


Type A
, W5W - 5W

With tailgate


- Move aside the plastic lens using a
screwdriver, on the point indicated by
the arrow.

- Change the bulb.

- Replace the plastic lens and press on it.


With hinged doors


- Unclip the interior trim.

- Disconnect the connector by moving
aside its tab.

- Remove the plastic cover.

- Turn the bulb holder a quarter turn
anticlockwise.

- Change the bulb.


Lamp located on the outside (hinged
doors)


- Unscrew the two screws using a Torx
TM
20 screwdriver.

- Remove the lamp.

- Change the bulb.
Lamp located on the inside (tailgate)


- Unscrew the two screws using a Torx
TM
20 screwdriver.

- Remove the plastic cover.

- Remove the bulb holder moving aside
the two tabs.

- Remove the failedbulb by pressing it
lightly while turning it anticlockwise.

- Change the bulb.

146


Changing a fuse

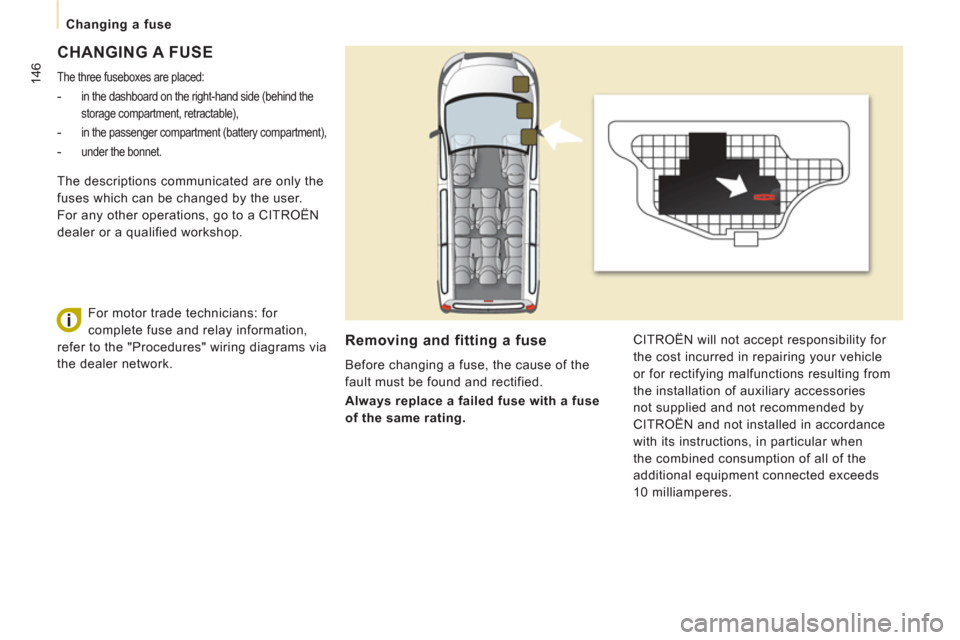

CHANGING A FUSE
The three fuseboxes are placed:



- in the dashboard on the right-hand side (behind the
storage compartment, retractable),

- in the passenger compartment (battery compartment),


-
under the bonnet.
Removing and fitting a fuse

Before changing a fuse, the cause of the
fault must be found and rectified.

Always replace a failed fuse with a fuse
of the same rating. CITROËN will not accept responsibility for
the cost incurred in repairing your vehicle
or for rectifying malfunctions resulting from
the installation of auxiliary accessories
not supplied and not recommended by
CITROËN and not installed in accordance
with its instructions, in particular when
the combined consumption of all of the
additional equipment connected exceeds
10 milliamperes. The descriptions communicated are only the
fuses which can be changed by the user.
For any other operations, go to a CITROËN
dealer or a qualified workshop.
For motor trade technicians: for
complete fuse and relay information,
refer to the "Procedures" wiring diagrams via
the dealer network.

147
Changing a fuse
QUICK HEL
P
7
RIGHT-HAND SIDE DASHBOARD
FUSES


- Tilt the storage compartment then pull it
firmly to access the fuses.

Fuses


A (amps)

Allocation


1


15
Rear wiper


2


-
Free


3


5
Airbag control unit


4


10
Steering wheel angle sensor, Diagnostic socket, DSC sensor,
Manual ventilation, Clutch switch, Headlamp beam height,
Particle emission filter pump


5


30
Electric mirrors, Passenger electric window motor


6


30
Front electric windows supply


7


5
Courtesy lamps and glove box lamp


8


20
Multifunction screen, Anti-theft alarm siren, Audio equipment,
Compact disc changer, Audio/telephone, Trailer fusebox
(accessory)


9


10
Row 2 accessory socket


10


30
Rear ride height corrector, Steering wheel switching,
Instrument panel


11


15
Diagnostic socket, Ignition switch


12


15
Hands-free kit, Airbag control unit, Parking sensors control
unit


13


5
Engine fusebox, Trailer fusebox


14


15
Rain sensor, Rear ventilation, Digital air conditioning,
Instrument panel


15


30
Locking/unlocking/deadlocking


16


-
Free


17


40
Heated rear screen, Heated mirrors

148


Changing a fuse

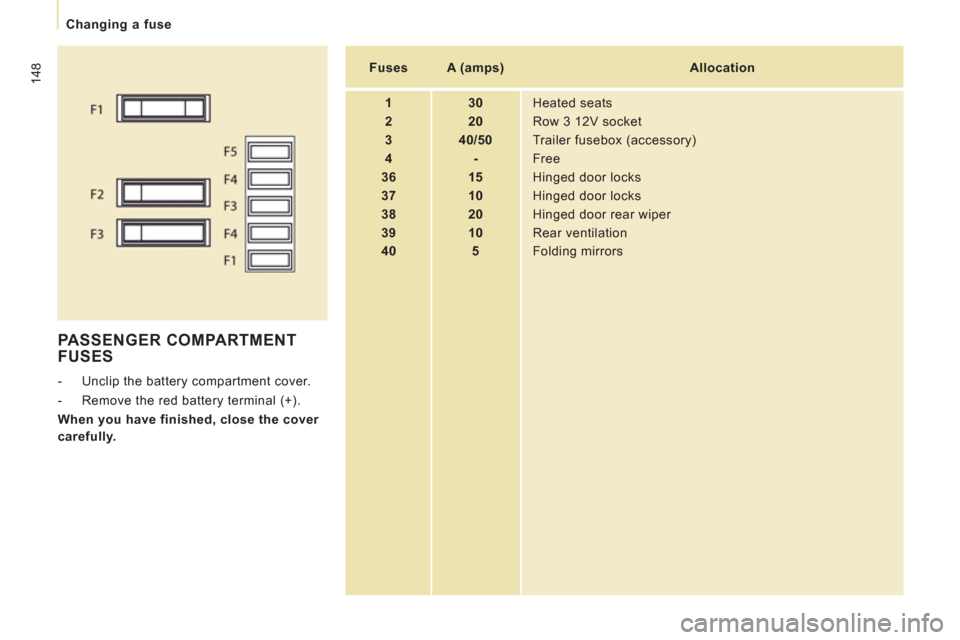

PASSENGER COMPARTMENT
FUSES


- Unclip the battery compartment cover.

- Remove the red battery terminal (+).

When you have finished, close the cover
carefully.

Fuses


A (amps)

Allocation


1


30
Heated seats


2


20
Row 3 12V socket


3


40/50
Trailer fusebox (accessory)


4


-
Free


36


15
Hinged door locks


37


10
Hinged door locks


38


20
Hinged door rear wiper


39


10
Rear ventilation


40


5
Folding mirrors

149
Changing a fuse
QUICK HEL
P
7
FUSES UNDER THE BONNET



- After opening the bonnet, slide aside the
screenwash reservoir support to make
access easier.

- Unclip and tilt the box to access the
fuses.

Fuses


A (amps)

Allocation


1


20
Engine control unit, Fuel supply and air supply systems,
Fan assembly


2


15
Horn


3


10
Front and rear screenwash pump


4


20
Headlamp wash pump


5


15
Fuel supply system


6


10
Power steering, Secondary brake pedal switch


7


10
Braking system (ABS/DSC)


8


20
Starter motor control


9


10
Main brake pedal switch


10


30
Fuel supply and air supply systems, Emissions control
systems


11


40
Front ventilation


12


30
Windscreen wipers


13


40
Built-in systems interface


14


30
Free

150


Changing a wiper blade



Placing the windscreen wiper blades in the special position



- Less than a minute after switching
off the ignition, press the wiper stalk
downwards to position the wiper blades
along the windscreen pillars (special
position).
Changing a front wiper blade


- Lift the wiper arm.

- Unclip the blade and remove it.

- Fit the new blade.

- Push back the wiper arm.
Changing the rear wiper blade


- Lift the wiper arm, then unclip the blade
and remove it.

- Fit the new blade and push back the
wiper arm.


CHANGING A WIPER BLADE

To return the windscreen wipers to their
normal position, switch on the ignition and
operate the wiper stalk.
