Dual-zone digital air conditioning
1. Automatic comfort programme

We recommend the use of one of
the three AUTO modes available:
they provide optimised regulation of
the temperature in the passen
ger compartment according to the comfort value
that you have chosen.
These three modes automatically control the system, according to the desired setting, while also maintaining the desired comfort value.
) Press the "AUTO"
button repeatedly:


- a first indicator lamp comes on; the "low"setting mode is selected,

- a second indicator lamp comes on; the
"medium" setting mode is selected,

- a third indicator lamp comes on; the
"hi
gh" mode setting is selected.

Use the "medium" and "high" settings in
preference to maintain the comfort level at the
rear.

When the engine is cold, the air flow will reach its optimum levelprogressively, taking account of the
weather and the desired comfort levelso as to avoid too great a distributionof cold air.
On entering the vehicle, if the interior temperature is much colder or warmer than the comfort value, there is noneed to change the value displayed in order to obtain the comfort required. Inall seasons, with the windows closed the system corrects the differencein temperature automatically and asquickly as possible.
This s
ystem is designed to operate effectivelyin all seasons, with the windows closed.
Automatic operation

) Switch off the demisting/defrosting
of the rear screen and door mirrorsas soon as appropriate, as lower current consumption results inreduced fuel consumption.

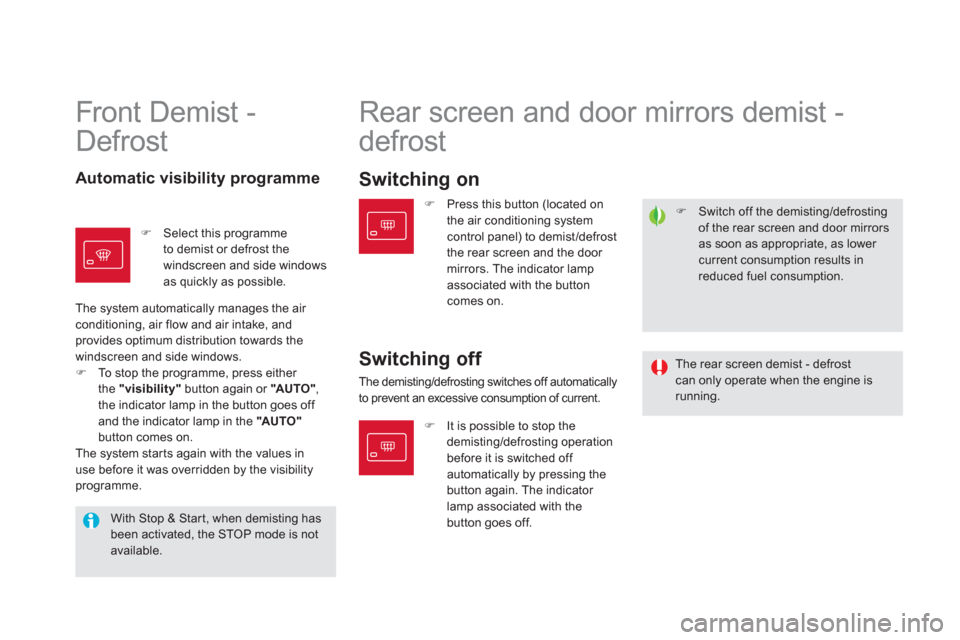

Front Demist -
Defrost







Rear screen and door mirrors demist -
defrost
)It is possible to stop the
demisting/defrosting operation before it is switched off
automatically by pressing the button again. The indicator lamp associated with thebutton goes off.
Automatic visibility programme
Switching on
With Stop & Star t, when demisting hasbeen activated, the STOP mode is notavailable.


Switching off

The demisting/defrosting switches off automatically
to prevent an excessive consumption of current.
)Select this programme
to demist or defrost thewindscreen and side windowsas quickly as possible.
The system automatically manages the air conditioning, air flow and air intake, and provides optimum distribution towards the
windscreen and side windows. )To stop the programme, press either
the "visibility"button again or "AU TO " ,
the indicator lamp in the button goes off and the indicator lamp in the "AU TO "button comes on.The system starts again with the values in
use before it was overridden by the visibility programme.

)Press this button (located on
the air conditioning systemcontrol panel) to demist/defrost
the rear screen and the door
mirrors. The indicator lamp
associated with the button comes on.
The rear screen demist - defrost can only operate when the engine isrunning.

Starting-switching off the engine
)Inser t the electronic key in the reader. )Press the brake pedal for vehicles with automatic gearbox or electronic gearbox
system, or fully declutch for vehicles with amanual gearbox.
Starting using
the electronic key
Startin
g with the "Keyless
Entry and Starting" system


If one of the star ting conditions is not met, a reminder message appears in the instrument panel screen. In some circumstances, it is necessary to turnthe steering wheel slightly while pressingthe "STA R T/STOP" button to assistunlocking of the steering; a messagewarns you when this is needed.
With a manual gearbox, put the gear lever in neutral.With the electronic gearboxsystem
, put the gear lever in N.
With an automatic gearbox
, put the gear lever in Por N
.


For Diesel vehicles
, in
temperatures below zero the engine will not star t until the preheater warning lamp has gone off.
If this warning lamp comes on after pressing "STA R T/STOP", you shouldhold the brake or clutch pedal downuntil the warning lamp goes off anddo not press the STA R T/STOP buttonagain.

)
With the electronic key inside the vehicle(it is not necessary to put it in the reader),
press the brake pedal for vehicles with
automatic
gearbox or electronic gearbox system, or fully declutch for vehicles with a
manual gearbox.
) Press the "START/STOP" button.
The engine star ts (see the
warning below for Diesel
vehicles).
)Press the "START/STOP" button.
The engine star ts (see the
warnin
g below for Diesel
vehicles).

The "Keyless Entry and Starting" devicemust be in the defined zone.
For safety reasons, do not leave thiszone with the vehicle running.

101Driving

Switching off using the
electronic key
)Immobilise the vehicle.


Electronic key left in the reader

If the electronic key is left in the reader, on opening the driver's door a messageappears to warn you.



Stopping with the
"Keyless Entry and
Startin
g" system
)Immobilise the vehicle.
If the vehicle is not immobilised,
the engine will not stop.
Ignition on without starting
the engine
(accessory position)
)
With the electronic key inside
the vehicle, press the "START/
STOP"
button.
The engine stops and thesteering column locks.
)
Press the "START/STOP
" button
The engine stops and thesteering column locks.











Anti-theft protection


Electronic engine immobiliser

The keys contain an electronic chip which has
a secret code. When the ignition is switched on, this code must be recognised in order for starting to be possible.
This electronic engine immobiliser locks theengine management system a few minutes
after the ignition is switched off and preventsstarting of the engine by anyone who does not have the key.
In the event of a malfunction, you are informed
by a message in the instrument panel screen.
In this case, your vehicle does not start; contact
a CITROËN dealer as soon as possible.
With the electronic key in the reader or the
Ke
yless Entry and Starting key inside the
vehicle, pressing the "START/STOP" button,with no action on the pedals, allows the ignition
to be switched on and so activate the ancillaryequipment.
)Remove the electronic key from the reader.
)
Press the "STA R T/STOP" button,
the instrument panel comes on
but the engine does not star t. ) Press the button again to switch
off the ignition and so allow the
vehicle to be locked.

If you use the accessory position for toolong, the system automatically goes intoeconomy mode to avoid the risk of a flatbattery.

Emergency starting with the
Keyless Entry and Starting
system
When the electronic key is in the defined zone and your vehicle does not star t after pressingthe "STA R T/STOP" button: )Inser t the electronic key in the reader. )Press the brake pedal on vehicles withautomatic gearbox or electronic gearbox
system, or fully declutch with a manualgearbox.)Press the "STA R T/STOP" button.The engine starts. In the event o
f an emergency only, the enginecan be switched of without conditions. To dothis, press and hold the "START/STOP" button
for about 3 seconds.
In this case the steering column locks as soon
as the vehicle stops.
I
f the electronic key is no longer in the defined
zone when driving or when you (later) request switching off the engine, a message appears in
the instrument panel.

Emergency switch- off
Electronic key not recognised by
the "Keyless Entry and Starting"
system
)Press and hold the "STA R T/STOP"
button for about 3 seconds if you want to
force switchin
g off the engine (note that restarting will not be possible without
the key).

103Driving

It is recommended that you do not apply the parking brake in very coldconditions (ice) and during towing (breakdown, caravan...). For this, with the ignition on, deactivate the automatic functions and release theparking brake manually:)Manual gearbox:
engage first gear or reverse. )Electronic gearbox system
: select position Aor R.)
Automatic gearbox:
select position Por R.

The electric parking brake combines
2 operating modes:

-
Automatic Application/Release Application is automatic when the engine stops, release is automatic on use of the accelerator (this mode is activated by
default), -Manual Application/Release Manual application of the parking brake is done by pulling control lever A. Manual release is done by pulling
thenreleasing the control lever, while pressing
the brake pedal .

When the driver's door is opened, there is an
audible signal and a message is displayed if the
brake is not applied.
Programming the automatic
mode
Depending on the country of sale of the vehicle,
the automatic application when the engine is switched off and the automatic release when
you press the accelerator can be deactivated.
You can contact a CITROËN dealer or a qualified workshop to have it activated.
In this case, pro
gramming is done via
the configuration menu.








Electric parking brake
If deactivated, the parking brake must
be applied and released manually.
If this warning lamp comes on in the instrument panel, the automatic modeis deactivated.
Never leave the vehicle withoutchecking that the parking brake is on.
This warning lamp comes onfixed.
Label on door panel

With the ignition on or the engine running,
to release the parking brake, pressthe brakepedal , pull
then release control lever A.
The full release of the parking brake
is confirmed b
y:

Manual release



- the braking warning lamp and
the Pwarning lamp in the control lever A going off,

- display of the message "Parking brake off".
I
f you pull the control lever A
without pressing
the brake pedal, the parking brake will not
be released and a message appears in the
instrument panel.
I
f necessary, you can make a maximum application
of the parking brake. It is obtained
by means of a long pull
on control lever A
,
until you see the message "Parking brake
applied fully" and an audible signal is heard.
Maximum application is essential:

- in the case of a vehicle towing a caravan
or a trailer, if the automatic functions are activated but you are applying the parking
brake manually,

- when the slope
you are parked on may
vary (e.g. on a ferry, on a lorry, duringtowing).


Maximum application


In the case of towing, a loaded vehicle or parking on a gradient, make amaximum application of the parking brake then turn the front wheels towardsthe pavement and engage a gear when you park.
After a maximum application, therelease time will be longer.



Before leaving the vehicle, check thatparking brake warning lamps in the instrument panel and the control lever Aare on fixed, not flashing.
With the vehicle stationary, to apply the parkingbrake whether the engine is running or off, pullcontrol lever A.
Manual application
The application of the parking brake is confirmed by:


- illumination of the brakin
g warning
lamp and of the P warning lamp in
the control lever A,
- display of the message "Parkingbrake on".
When the driver
’s door is opened with the engine running, there is an audible signal and amessage is displayed if the parking brake has not been applied, unless the selector lever is
in position P (Park) in the case of an automatic
gearbox.

105
Driving

Before leaving the vehicle, check that parking brake warning lamps in the instrument panel and in the control lever A
are on fixed (not flashing).
Never leave a child alone inside thevehicle with the ignition on, as they could release the parking brake.



Automatic application,
engine off



- illumination of the braking warning
lamp and of the Pwarning lamp in
the control lever A ,

- display of the message "Parkingbrake on". With the vehicle stationar
y, the parking brake is automatically applied when the engine is
switched off. The application of the parking brake is confirmed by:
Automatic release
The electric parking brake releasesautomatically and progressivelywhen you press the accelerator: )Manual gearbox
: fully depress
the clutch pedal, engage 1st or reversegear; press the accelerator pedal
and let up the clutch pedal until
the brake releases.)Electronic gearbox system: select position A, M or R
then press the
accelerator pedal.
)Automatic gearbox: select position D
, Mor R
then press the accelerator pedal.
Full release of the parking brake isconfirmed by:


- the brakin
g warning lamp and
the P warning lamp in the control
lever Agoing off,

- display of the message "Parkingbrake off".
When stationary, with the enginerunning, do not press the accelerator pedal unnecessarily, as you mayrelease the parking brake.




Before leaving the vehicle, check that parking brake warning lamps in the instrument panel and the control lever Aare on fixed, not flashing.


Immobilising the vehicle,
engine running

With the engine running and the vehicle stationary, in order to immobilise the vehicleit is essential to manuallyapply the parking brake by pullingcontrol lever A.
The application of the parking brake isconfirmed by:
- illumination o
f the braking warninglamp and of the P
warning lamp in
the control lever A,
- display of the message "Parking brake on".
When the driver’s door is opened, a loud beep
is heard and a messa
ge is displayed if the
parking brake has not been applied, unless the gear lever is in position P(Park) in the case of
an automatic gearbox.
