Safety
Dynamic stability control (DSC)

Activation
This system is activated automatically eachtime the vehicle is started.
It comes into operation in the event of a grip or
tra
jectory problem.
This is indicated by
flashing of thiswarning lamp in the instrument panel.

Deactivation

In exceptional conditions (starting a vehicle
which is bogged down, stuck in snow, on soft ground...), it may be advisable to deactivate
the DSC system, so that the wheels can move freely and regain grip.

The DSC system offers exceptional
safety in normal driving, but this should not encourage the driver to take extra risks or drive at high speed.
The correct operation of the system depends on obser vation of the manufacturer's recommendationsregarding the wheels (tyres and rims),the braking components, the electronic components and the CITROËN assembly and operation procedures.
After an impact, have the systemchecked by a CITROËN dealer or a qualified workshop.

Operating fault


If this warning lamp comes on,
accompanied by an audible signal
and a message in the instrument
panel screen, this indicates a fault
with the s
ystem.
Contact a CITROËN dealer or a qualifiedworkshop to have the system checked.
Reactivation
The system is reactivated automatically each
time the ignition is switched back on or from 30 mph (50 km/h).
) Press the button.
This warnin
g lamp and the indicator
lamp in the button come on: the
DSC s
ystem no longer acts on theoperation of the engine.
)
Press the button again to
reactivate it manually. But it is recommended that the s
ystem be
reactivated as soon as possible.

191Safety

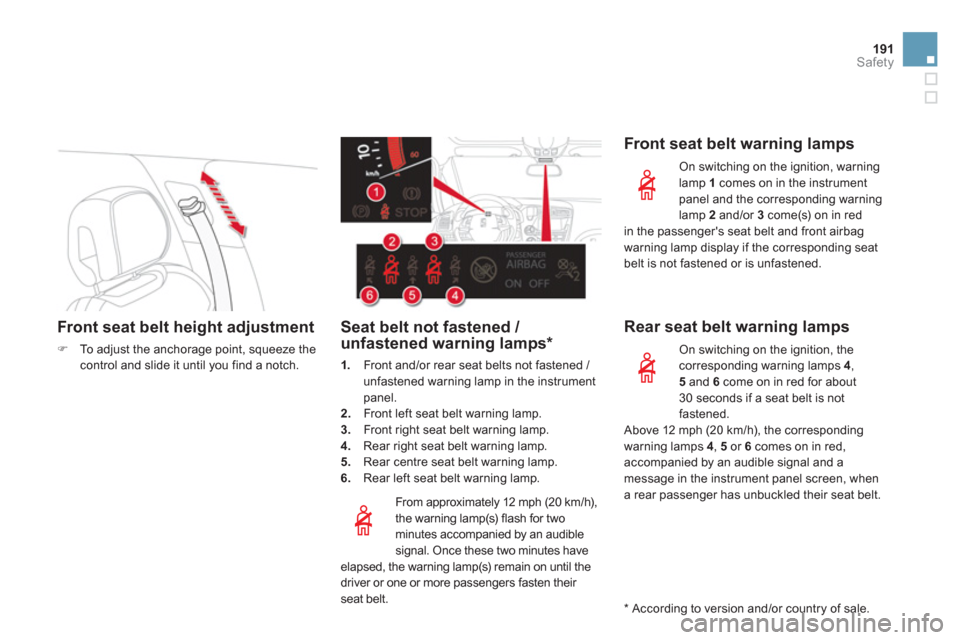

Front seat belt height adjustment
)To adjust the anchorage point, squeeze the control and slide it until you find a notch.



From approximatel
y 12 mph (20 km/h),
the warning lamp(s) flash for two
minutes accompanied by an audiblesignal. Once these two minutes have
elapsed, the warning lamp(s) remain on until the
driver or one or more passengers fasten their
seat belt.




Seat belt not fastened / unfastened warning lamps *
1.Front and/or rear seat belts not fastened / unfastened warning lamp in the instrument
panel.
2
. Front left seat belt warning lamp.3.
Front right seat belt warning lamp.4.
Rear right seat belt warning lamp.
5. Rear centre seat belt warning lamp. 6.
Rear left seat belt warning lamp.


Front seat belt warning lamps
On switching on the ignition, warninglamp 1
comes on in the instrument panel and the corresponding warninglamp 2
and/or 3come(s) on in red
in the passenger's seat belt and front airbagwarning lamp display if the corresponding seatbelt is not fastened or is unfastened.
Rear seat belt warning lamps
On switching on the ignition, the corresponding warning lamps 4,5
and 6
come on in red for about 30 seconds if a seat belt is not fastened.

Above 12 mph (20 km/h), the correspondingwarning lamps 4, 5 or 6
comes on in red,
accompanied by an audible signal and a
messa
ge in the instrument panel screen, when
a rear passenger has unbuckled their seat belt.


*
Accordin
g to version and/or country of sale.

Deactivation
Only the passenger's front airbag can be deactivated:)with the ignition off, inser t the key in thefpassenger airbag deactivation switch, )turn it to the "OFF"position,)then, remove the key keeping the switch in
the new position.
Accordin
g to version, this warning lamp comes on either in the instrument panel
or in the seat belt and passenger's front
airbag warning lamp display when the
ignition is on and until the airbag is reactivated.
To assure the safety of your child,the passenger's front airbag must be deactivated when you install a "rear facing" child seat on the front passenger seat. Otherwise, the child would risk beingseriously injured or killed if the airbag were deployed.
If even one of the two airbag warning lamps comes on continuously, donot install a child seat on the frontpassenger seat.
Have it checked by a CITROËN dealer or qualified workshop.



Reactivation

When you remove the child seat, with the ignition off, turn the switch to the f"ON"
position to reactivate the airbag and so assure
the safety of your front passenger in the event
of an impact.
With the ignition on, this warninglamp comes on in the seat belt andpassenger's front airbag warninglamp display for approximately one minute, if the passenger's front
airbag is activated.


Operating fault

If this warning lamp comes on in theinstrument panel, accompanied by an
audible warning and a message in theinstrument panel screen, contact a CITROËN dealer or a qualified workshop to have
the system checked. The airbags may no longer
be deployed in the event of a serious impact.
If this warnin
g lamp flashes, contact
a CITROËN dealer or a qualified workshop. The passenger's front
airbag may no longer be deployed in
the event of a serious impact.

195
Safety
Lateral airbags

Deployment

The lateral airbags are deployed unilaterally in the event
of a serious side impact applied to all or par t of the side
impact zone B, perpendicular to the longitudinal centreline
of the vehicle on a horizontal plane and directed from the outside towards the inside of the vehicle.
The lateral airbag inflates between the hip and shoulder
of the front occupant of the vehicle and the corresponding
door trim panel.
System which protects the driver and frontpassenger in the event of a serious side impact
in order to limit the risk of injury to the chest,
between the hip and the shoulder.
Each lateral airba
g is fitted in the seat backrest
frame, door side.
Impact detection zones
A. Front impact zone.
B. Side impact zone.


Curtain airbags
System which protects the driver and passengers (with the exception of the rear centre passenger) in the event of a serious sideimpact in order to limit the risk of injury to the side of the head. Each curtain airbag is built into the pillars and
the upper passenger compar tment area.
In the event of a minor impact or bump on the side of the vehicle or if the
vehicle rolls over, the airbag may not be deployed.
In the event of a rear or front collision, the cur tain airbag is not deployed.


Deployment

The cur tain airbag is deployed at the same
time as the corresponding lateral airbag in the event of a serious side impact applied to all or
par t of the side impact zone B , perpendicular
to the longitudinal centreline of the vehicle on a
horizontal plane and directed from the outside
towards the inside of the vehicle.
The cur tain airbag inflates between the front or
rear occupant of the vehicle and the windows.
If this warnin
g lamp comes on in the
instrument panel, accompanied by an audible signal and a message in the instrument panel screen, contact aCITROËN dealer or a qualified workshop to have
the system checked. The airbags may no longer
be deployed in the event of a serious impact.

Operating fault

Engine compartment fuses
The fusebox is placed in the engine compartment near the battery.
Access to the fuses
)Unclip the cover. )Change the fuse (see corresponding paragraph). )When you have finished, close the cover carefully to ensure correct sealing of the
f
usebox.




Fuse N°

Rating (A)Functions
F20
15 Front / rear screenwash pump.
F2120 Headlamp wash pump.
F2215
Horn.
F2
315 Right-hand main beam headlamp.
F2
415 Left-hand main beam headlamp.
F275
Left hand lamp mask.
F2
85 Right hand lamp mask.

System which manages the duration of use of cer tain functions to conser ve a sufficient level of
charge in the battery.
After the engine has stopped, you can still use functions such as the audio and telematics
system, windscreen wipers, dipped beam headlamps, cour tesy lamps, etc. for a maximumcombined duration of about for ty minutes.






Energy economy mode


Switching to economy mode
A message then appears in the instrument
panel screen indicating that the vehicle has
switched to econom
y mode and the active
functions are put on standby.
If a telephone call is being made at this time, it
will be maintained for around 1
0 minutes with
the Bluetooth hands-free system of your audio
system.


Exiting economy mode

These functions are reactivated automaticallynext time the vehicle is driven.
In order to restore the use of these functionsimmediately, star t the engine and let it run:


- for less than ten minutes, to use the
equipment for approximately five minutes,

- for more than ten minutes, to use theequipment for up to approximatelythirty minutes.
Let the engine run for the duration specified toensure that the battery charge is sufficient.
Do not repeatedly and continuously restar t theengine in order to charge the battery.
A flat battery prevents the engine from star ting (refer to the "Battery" section).
In this energy economy mode and whenstarting up the hybrid system, it maytake a few seconds before the Readylamp comes on.









Load reduction mode
System which manages the use of certainfunctions according to the level of chargeremaining in the battery.
When the vehicle is being driven, the loadreduction function temporarily deactivates cer tain functions, such as the air conditioning,
the heated rear screen...
The deactivated functions are reactivated automatically as soon as conditions permit.

Practical information








Changing a wiper blade


Before removing a front
wi
per bladeRemovin
g
) Raise the corresponding wiper arm. )
Unclip the wiper blade and remove it.

Fitting
)
Put the corresponding new wiper blade in
place and clip it.) Fold down the wiper arm carefully.
After fitting a front wiper
blade
)
Switch on the ignition. )
Operate the wiper stalk again to park the
wiper blades.







Recovering the
vehicle on a fl at-bed


Procedure for having your vehicle recovered on
a flat bed lorry or trailer.
Always recover the vehicle on a flat bed lorry or trailer. Never tow the vehicle with the four wheels on the ground (or the front or rear wheels only), you risk damaging the transmission. Place the gear selector in position Nand switch off the engine ( Ready
lamp off).
)Within one minute after switching off
the ignition, operate the wiper stalk toposition the wiper blades ver tically on the
windscreen.

Accessories
A wide range of accessories and genuine par ts is available from the CITROËN dealer network.
These accessories and par ts have been tested and approved for reliability and safety.
They are all adapted to your vehicle and benefit from CITROËN's recommendation and warranty.
"Comfort":
door deflectors, side window blinds, rear screen blind, isotherm module, coat hanger fixed to head restraint, mobile reading lamp, mirror for caravan, parking sensors...
"Transport systems":
child seats and booster cushions, boot carpet,
boot liner, boot net, boot spacers, transverse
roof bars, bicycle carrier, ski carrier, roof boxes,
towbars, wiring harnesses...
If a towbar and wiring harness are fitted
outside the CITROËN dealer network, the installation must be done using the vehicle'selectrical pre-equipment and fitted following the
manufacturer's recommendations.

"Styling":
gear lever knobs, aluminium foot rest, alloy
wheels, chrome mirror shells, chrome door
aperture finishers...

*
To avoid an
y risk of jamming the pedals:
- ensure that mats are correctly positionedand secured,
- never fit one mat on top of another.


"Security and safety":

anti-intrusion alarm, anti-tilt unit, stolen
vehicle tracking system, child seats andbooster cushions, breathalyser, first aid kit, fire extinguisher, warning triangle, high visibility
vest, wheel security bolts, snow chains, non-
slip covers...


"Protection":

mats * , seat covers compatible with lateral
airbags, mud flaps, door protective mouldings, bumper protection strips, vehicle cover...
The rear bodywork has been designed to avoid spray.
