2013 CITROEN DS3 CABRIO Handbook (in English)

11Access

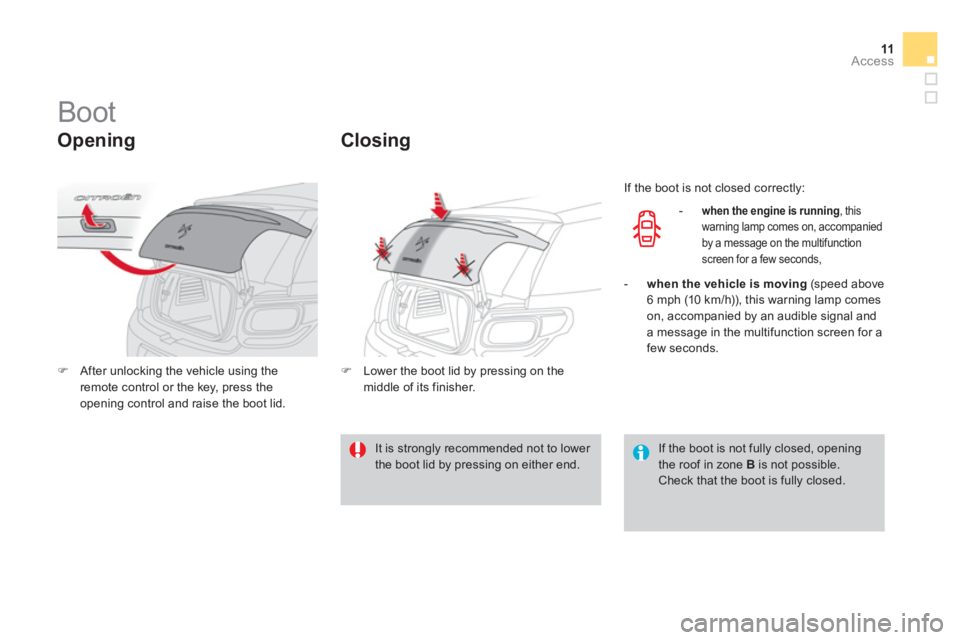

Boot


Opening
)After unlocking the vehicle using theremote control or the key, press the
opening control and raise the boot lid.
Closing
) Lower the boot lid by pressing on the
middle of its finisher.
If the boot is not closed correctl
y:
-
when the engine is running
, this
warnin
g lamp comes on, accompanied
by a message on the multifunctionscreen for a few seconds,
-when the vehicle is moving (speed above 6 mph (10 km/h)), this warning lamp comes
on, accompanied by an audible signal and
a messa
ge in the multifunction screen for a
few seconds.

It is strongly recommended not to lower the boot lid by pressing on either end.

If the boot is not fully closed, openingthe roof in zone Bis not possible.Check that the boot is fully closed.

12Access
If the roof is carrying out an opening operation in zone B, an action on the boot opening
control causes the roof to close. The boot will be released when the roof reaches position 2 . You can then raise the boot lid.
Conditions for opening the boot with the roof in zone B
To avoid inter ference between the boot and the roof in zone B, opening the boot depends
on the position of the roof.
If the roof is carrying out a closing operation in zone B , an action on the boot openingcontrol has no effect on the roof operation, but the boot will only be released once the roof has reached position 2. You can then raise the boot lid.
During an opening or closing operation of the roof in zone B
following an "anti-panic" function, the boot opening control is inhibited. It will work again once the roof has reached position 2
or position 3.
If the roof is position 3
, an action on the boot opening control causes the closing of theroof to position 2. When the roof has reached this position, the boot lid will be released. You can then raise the boot lid.

13Access
System for mechanical unlocking of the boot
in the event of a battery or central lockingmalfunction.

Unlocking
Emergency release
)
Insert a small screwdriver into hole A
of each lateral latch to unlock the boot.
)Fold back the rear seat to gain access to
the two latches, from inside the boot.
Before opening the boot, ensure that the roof is not in zone B.
Alarm

System for the protection and dissuasion
against theft of your vehicle.

For information on the perimeter protection of your vehicle, refer to theDS3 handbook.

The alarm provides only perimeter protection
for your vehicle.

14Fittings
The rear shelf is fixed .






Rear shelf


Before opening the roof completely,check that no object has been left on the shelf.
When the roof is fully open, the rear screen rests on the shelf. Do not placeany object on the screen.

15
Practical information





























Changing a bulb
1.3D LED sidelamps (LEDs).2.LED brake lamps / sidelamps (LEDs).3.LED lateral sidelamps (LEDs).4.Direction indicators (PY21W amber)5.
Foglamp, right hand (H21W red)
Reversing lamp, left hand (H21W).
Access to the bulbs
)
Open the boot. )
Remove the access flap from the corresponding side trim panel.)Unscrew the butterfly nut securing the lamp unit.)
Unclip the lamp unit connector.)
Extract the lamp unit carefully pulling it in line towards the outside.


Changing direction indicator (4) and foglamp or reversing lamp (5) bulbs
)
Turn the bulb a quar ter turn and change it.


Changing LED sidelamps and
brake lamps (LEDs)
For the replacement of this type of LED lamp, contact a CITROËN dealer or a qualified
wor
kshop.

3D rear lamps
To r efit, carry out these operations in reverse order.
Take care to engage the lamp unit in its guides,while keeping it in line with the vehicle.
Amber or red bulbs, such as thosefor the direction indicators and rear foglamp, must be replaced by bulbs of the same rating and colour.

16Practical information
Changing a fuse
)To unclip the upper boot trim, pull it down, star ting on the left.)Remove the trim by tipping it downwards.)Change the fuses.
To reassemble, carry out these operations in reverse order, star ting at the back of the boot.
Fuse under the bonnet
(maxi-fuse)
Fuse N°RatingFunctions
-20 ASoft top roof
-20 ASoft top roof


If the roof is in zone Bwhen a fuse fails, it is then not possible to open the boot. To be able to open the boot and proceed with fuse replacement, first close the roof manually from inside the boot (by folding the rear seats). There are three
fuses for the soft top roof.
Fuses under the rear shelf
Fuse N°RatingFunctions
MF0
840 A Soft top roof.
The maxi-fuses provide additional protection
for the electrical s
ystems. All work on the maxi-fuses must be carried out by a CITROËN
dealer or a qualified workshop.

17Practical information
Recommendations on care of your vehicle
Remove bird droppings or tree resinsas their acidity may damage the roof.

The use of a high pressure jet wash isstrictly prohibited, to avoid damaging the roof.


Never use chemical products,detergents, stain removers, solvents,alcohol, petrol, ... to clean the roof.
The general recommendations on the care o
f your vehicle are given in the ser vicing booklet.

Allow the vehicle to dry in a shaded area and avoid direct exposure tothe sun.


We recommend that you wash your vehicle in an automatic roller car washor using a hose.
To remove marks, sponge them (but never rub them) using soapy water,then immediately rinse with clean water.


To waterproof the roof, use only special waterproofing products for fabric roofs.



Soft top


Before washing the soft top, first remove as much dir t as possible from the sur face using a soft brush or a vacuum cleaner.


For the regular maintenance of the soft top and to conser ve its originalappearance, we recommend an ecological "Fly remover - Soft top roof cleaner" from the "TECHNATURE"range. To obtain this product go to aCITROËN dealer.

18Technical data
MODELS:ENGINES AND GEARBOXES
Model codes:SB...HMZ05FS05FS95FV85FN8 *
PETROL ENGINESVTi 82VTi 120THP 155THP 150 *

Cubic capacity (cc) 1 199
1 598

1 598

Bore x stroke (mm)75 x 90.577 x 85.8

77 x 85.8

Max power: EU standard
(kW) 60
88
115
110
*

Max power engine speed
(rpm)
5 750
6 000 6 000
Max torque: EU standard
(Nm) 118

160240

Max torque en
gine speed (rpm)
2 750

4 250
1 400

F
uel Unleaded Unleaded Unleaded

Catalytic conver ter yes yes
yes
GEARBOXManual
(5-speed)Manual
(5-speed)
Automatic(4-speed)
Manual(6-speed)
OIL CAPACITIES (in litres)

Engine (with filter replacement) 3.25 4.25 4.25
4.25
*
For Belgium.
