Driving

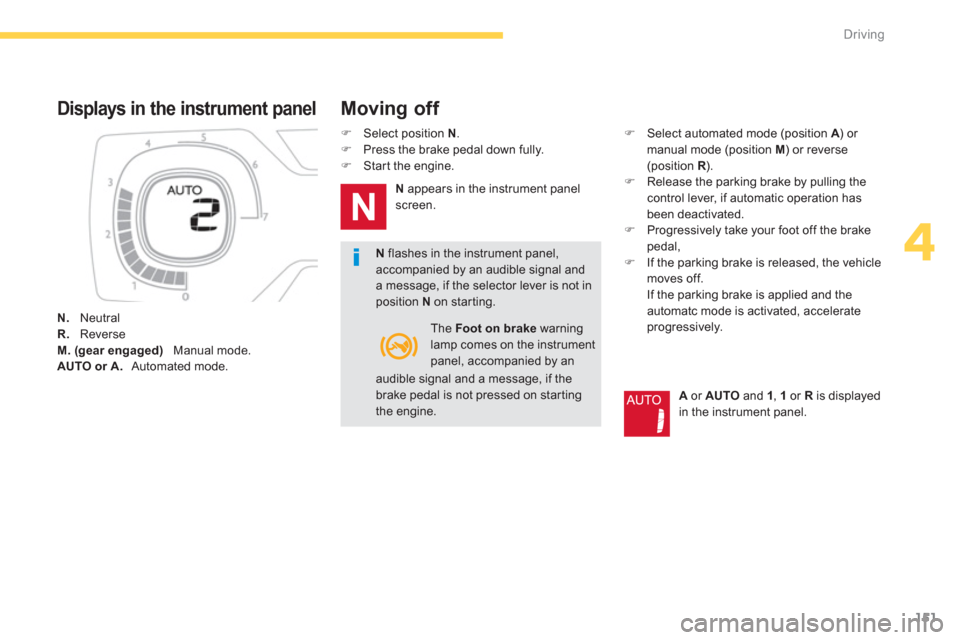

Displays in the instrument panel
N.
Neutral
R.ReverseM.(gear engaged)Manual mode.
AUTO or A.Automated mode.
Nflashes in the instrument panel,accompanied by an audible signal anda message, if the selector lever is not in position N on starting.
Moving off
)
Select position N.)
Press the brake pedal down fully.
)
Start the engine.
Nappears in the instrument panelscreen.
)
Select automated mode (position A) or Amanual mode (position M) or reverse
(position R
). R)
Release the parking brake by pulling thecontrol lever, if automatic operation hasbeen deactivated. )
Progressively take your foot off the brake pedal,)
If the parking brake is released, the vehicle moves off.
If the parking brake is applied and the
automatc mode is activated, accelerate
progressively.
A or AUTO
and 1, 1
or Ris displayed
in the instrument panel.


The Foot on brakewarning lamp comes on the instrument panel, accompanied by an
audible signal and a message, if the brake pedal is not pressed on star ting the engine.

152
Driving
Never select neutral Nwhen driving.
Automated mode
)Select position A.
AUTOor A
and the gear engaged is
displayed in the instrument panel.
The gearbox operates in auto-active mode,
without an
y action on the par t of the driver. Itcontinuously selects the most suitable gear for:
- optimisation of fuel consumption,
- the st
yle of driving,
- the profile of the road.
- t
he vehicle load.


For optimum acceleration, for examplewhen overtaking another vehicle, press the accelerator pedal firmly past the point of resistance.


Te m p o r a ry control of gear changing

You can temporarily take over control of gear changing using the "+"
and "-"steeringmounted paddles. If the engine speed allows,
the instruction to change gear is acted on.
This function allows you to anticipate cer tain
s
ituations such as overtaking a vehicle or the
approach to a corner.
After a few moments without any action on
the control paddles, the gearbox resumes
automatic control of the gears.

)Select position M.
The gears engaged are displayed in succession
in the instrument panel.
The
gear change requests are only acted on if
the engine speed permits.
It is not necessary to release the accelerator
durin
g gear changes.
When braking or slowing down, the gearboxchanges down automatically to allow the
vehicle to accelerate in the correct gear.
On sharp acceleration, the gearbox will notchange up unless the driver acts on thesteering mounted paddles.

Manual mode

You can change mode at any time by movingthe selector lever from A
to Mor the other way
round.

N
ever select neutral N
while the vehicle ismoving.

153
4
Driving
To engage reverse gear R, the vehicle must be
immobilised with your foot on the brake pedal.
)Select position R.


Reverse


Engagement of reverse gear is accompanied
b
y an audible signal.

At low speed, if reverse gear is requested, the Nindicator flashes and the gearbox goes into neutral automatically. To engage reverse, put
the selector lever in position N , then position R.
Before switching off the engine, you can:
- move to position N
to engage neutral,or
- leave the gear engaged; in this case, it will
not be possible to move the vehicle.
Stopping the vehicle
In both cases, if automatic operation of the
electric parking brake has been deactivated, you must apply the parking brakeby pullingthe control lever.
When immobilising the vehicle, withthe engine running, you must place theselector lever in neutral N . Before carrying out any work in the
engine compartment, ensure that theselector lever is in neutral N
and that the parking brake is applied.Whatever the circumstances, you mustmanually apply the parking brake when parking, if automatic operation has been deactivated.
With the i
gnition on, the flashing of Aor
AUTO, accompanied by an audible signal and
a message, indicates a malfunction of thegearbox.

Operating fault

Have it checked by a CITROËN dealer or a qualified workshop.

154
Driving








Automatic gearbox
This gearbox offers two driving modes.
- automatedmode for automatic management of the gears by the gearbox,
without any action on the par t of the driver,-manualmode for sequential gear changingby the driver using the steering mountedpaddles.
P
.Park.


- Immobilisation of the vehicle, parking brake
applied or released.

- Starting the engine.R.
Reverse.


- Reversing, vehicle stationary and engine at
i
dle.
N.Neutral.


- Immobilisation of the vehicle, parking brake
applied.

- Startin
g the engine.D.Automatic operation. M.Manual operation with sequential changingof the six gears.


Gear selector lever


To select position P
, move the gear Pselector to the highest position (towards R), then push it for wards and Rthen to the left. Only engage it when the vehicle is at acomplete stop. In this position, the frontwheels are locked. Ensure that the gear selector is correctly positioned.

To move the gear selector, switch onthe ignition or star t the engine.
If the battery is not sufficiently charged, it is not possible to move the gear selector.


To come out of position P
, move the Pgear selector to the right to the desired position, while keeping your foot on thebrake pedal.


It is possible to change from one modeto the other at any time.
With the automated mode, you cantemporarily take control of the gear changes at any time.

155
4
Driving
+.Control paddle for changing up, to the right
of the steering wheel. )Pull the " +" paddle towards you to change
up.-. Control paddle for changing down, to the
left of the steering wheel. )Pull the "- " paddle towards you to changedown.


Steering mounted control paddles


The steering mounted control paddlescannot be used to select neutral or toselect or come out of reverse.
When
you move the gear selector, the symbol corresponding to its position is displayed in the instrument panel. P.Park. R. Reverse.
N.Neutral.D. Drive (automatic forward drive).
1 to 6.Gears engaged in manual operation.-.Invalid value in manual operation.
Displays in the instrument panel
Moving off
)
With your foot on the brake pedal, selectposition Por N.
)
Start the engine.
IfPis displayed in the instrument panel,although the gear selector is in another position, place the gear selector inposition Pto be able to star t the engine.
)
With the engine running, press the brake pedal. )
Select automated mode (position D),manual mode (position M) or reverse (position R
). R
If you do not press thebrake pedal to come out of position P, this warning lamp P


Other wise, there is an audible signalaccompanied by a message.
or symbol appears in the instrument panel, accompanied by the message"Place automatic gearbox in position P",
flashing of P
in the instrument paneland an audible signal.

156
Driving
)Check that the symbol displayed in the instrument panel agrees with the position
en
gaged.)Progressively release the brake pedal.)If the parking brake is release, the vehicle moves off.
If the parking brake is applied and automatic operation is activated, accelerate away.
Never press the accelerator and brake pedals at the same time. Braking and acceleration should be done only with the right foot. Pressing both pedals together risks damaging the gearbox.

Never leave children unsupervised inthe vehicle when the engine is running.
When carrying out a maintenance operation with the engine running, applythe parking brake and select position P
. P
Never select position P
or Runless thevehicle is a a complete stop with the brake applied. When you want to engage reverse, to avoid jolt, do not accelerate immediatelyafter engaging R.Changing into position Risaccompanied by an audible signal.

Never select position N
when driving.If position N
is engaged in error when moving, allow the engine to idle, thenengage position Dto accelerate.
When the engine is running at idle,brakes releases, if position R, Dor M
is selected, the vehicle will move even if the accelerator is not pressed.

157
4
Driving
Invalid value in manual operation
This symbol is displayed i
f a gear is not engaged correctly (gear selector
between two positions). You can temporaril
y take control of gear changes using the "+
" and "-" steering mounted control paddles. If the engine speed allows, the
instruction to change gear is acted on.
This function allows you to anticipate cer tain situations such as overtaking another vehicle or
approaching a bend.
After a few moments with no action on the control paddles, the gearbox manages thegears automatically again.

Te m p o r a ry manual control of the gears


Manual mode
Dand the gear engaged are displayed in the instrument panel.
The gearbox operates in auto-active
mode, without any action from the driver. It continuously selects the most appropriate gear
according to the following conditions:


- optimisation of fuel consumption,

- drivin
g style,

- relief of the road,

- vehicle load.


Automated mode
)
Select position D.

For maximum acceleration, without touching
the gear selector, press the accelerator fully
down (kick down). The gearbox changes down
automatically and maintains the gear selected
until the maximum en
gine speed is reached.
When braking, the gearbox changes down
automatically for more effective engine braking.
When you take your foot of the accelerator pedal suddenly, the gearbox does not change
up, so as to improve safety.
) Select position M.)
Use the " + " and "- " steering mounted
control paddles to change gear.
The gears engaged are displayed successively
in the instrument panel.
When stationar
y or at very low speed, the gearbox automatically engages 1st
gear.
In manual mode, it is not necessary to release
the accelerator pedal when changing gear.
The change from one gear to another is onlyeffected if the conditions of vehicle speed andengine speed allow; other wise the automatic
laws of operation are imposed temporarily.
If the engine speed is too high or too low,
the display of the gear selected flashes for a few seconds, then the new gear engaged is displayed.
It is possible to change mode at any time, by moving the gear selector from D
to Mor the other way round.

158
Driving
Before switching off the engine, you canchange to position P or Nto be in neutral.
In either case, appl
y the parking brake to
immobilise the vehicle, unless it is programmed
in automatic mode.
If the lever is not in position P, on opening the Pdriver's door or approximately 45 seconds after switching off the ignition there is an audible signal and a message appears: )move the gear selector to position P; the audible signal stops and the message
disappears.

Operating fault
Whenever parking, you must apply the parking
brake to immobilise the vehicle, if automatic
operation has been deactivated.
Parking the vehicle

In all circumstances, ensure that thegear selector is in position Pbefore leaving your vehicle.In th
e event of a fault with the
gearbox, the ser vice warning lamp
comes on in the instrument panel, accompanied by a message and anaudible signal.

In this case the gearbox goes into back-up
mode and stays in 3rdgear. You may then feel
a noticeable jolt when going from P to Rand from N
to R
. This jolt does not present any risk
to the gearbox.
Do not exceed 60 mph (10 0 km/h) while also
observing legal speed limits.
Have it checked by a CITROËN dealer or aqualified workshop.
