2013 Citroen C3 PICASSO Time setting

Monitoring
32
Service indicator zero reset
After each ser vice, the ser vice indicator mustbe reset to zero.
The procedure for resetting to zero is asfollows: )
switch off the ignition,)
press and hold the trip distance recorder
zero reset button,
) switch on the ignition; the distance recorder
display begins a countdown, ) when the display indicates "=0", release
the button; the spanner disappears.
Service overdue
A few seconds after the ignition is switched
on, the distance recorder resumes its normaloperation. The spanner remains on.

Retrieving the serviceinformation

You can access the ser vice information at anytime. )Press the trip distance recorder zero reset button.
The ser vice information is displayed for afew seconds, then disappears.
The distance remaining may be weighted by the time factor, dependingon the type of driving.
Therefore, the spanner may also comeon if you have exceeded the time interval since the last service, indicatedin the ser vicing and warranty booklet.

Following this operation, if you wish todisconnect the battery, lock the vehicleand wait at least five minutes for thezero reset to be taken into account. For a
few seconds after the ignition is switchedon,the spanner flashes to indicate that the
ser vice must be carried out as soon as possible. Example:the ser vice is overdue by 180 miles(300 km).
For a few seconds after the ignition is switched
on, the display indicates:

2
Multifunction screens
37

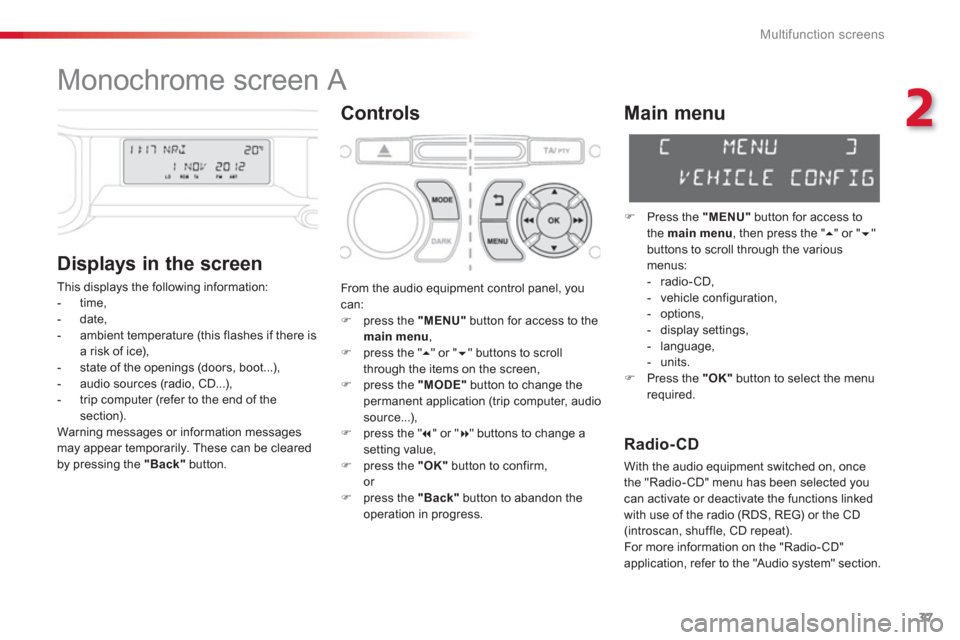

Monochrome screen A
Controls

Displa
ys in the screen

This displays the following information:


- time,

- date,

- ambient temperature
(this flashes if there isa risk of ice),

- state of the openings (doors, boot...),

- audio sources (radio, CD...),

- trip computer (refer to the end of the section).
Warning messages or information messagesmay appear temporarily. These can be cleared
by pressing the "Back"button.


Main menu
)
Press the "MENU"
button for access to
the main menu
, then press the "  " or ""buttons to scroll through the variousmenus:
- radio-CD,
- vehicle configuration,
- options,
- displa
y settings,
- language,
- units.)
Press the "OK"button to select the menurequired.
From the audio equipment control panel, youcan: )
press the "MENU"
button for access to themain menu
, )
press the "
" or " " buttons to scroll
through the items on the screen, ) press the "MODE"
button to change the
permanent application (trip computer, audiosource...),) press the "  " or " " buttons to change asetting value,)
press the "OK"button to confirm,or )
press the "Back"button to abandon the
operation in progress.



Radio-CD
With the audio equipment switched on, once
the "Radio-CD" menu has been selected youcan activate or deactivate the functions linkedwith use of the radio (RDS, REG) or the CD(introscan, shuffle, CD repeat).
For more information on the "Radio- CD"
application, refer to the "Audio s
ystem" section.

Multifunction screens
42
Displays in the eMyWay
s
ystem colour screen

Display confi guration

This menu allows you to adjust the brightness
of the display, the display contrast and the colour of the map (day/night and auto mode), to
set the date and time, the date format, the time format... Set the date and time) Press the SETUP button.)
Select the "Date & Time" function and
press the dial to confirm.
) Select the "Set date & time" function and
press the dial to confirm.
Voice synthesis
This menu allows you to manage the voicesynthesis.
For more information, refer to the "Audio and
telematics" section.
Vehicle parameters
This menu allows you to activate or deactivatecertain systems. This displa
ys the following information:
- time,
- date,
- audio functions,
- navigation system information.


"SETUP" menu

Press the SETUP button to access the
"SETUP"
menu. It gives you access to thefollowing functions:


- Display configuration,

- Voice synthesis,

- Vehicle parameters,

- Tr i p c o m p u t e r.


For safety reasons, configuration of the multifunction screen by the driver mustonly be done when stationary.


Tr ip computer

This menu allows you to display trip computer
information.
)Adjust the settings using the directionalarrows one by one, confirming with the dial.)Select the "Date format" function and press
the dial to confirm. )Confirm the desired format with the dial. )Select the "Time format" function andpress the dial to confirm. )Confirm the desired format with the dial.

2
Multifunction screens
43
This displays the following information:


- time,

- date,

- ambient temperature (this flashes if there isa risk of ice),

- state of the openings (doors, boot, etc.),

- audio sources (radio, CD, USB port, etc.),

- trip computer (refer to the end of the section).
Warnin
g messages or information messagesmay appear temporarily. These can be clearedby pressing the "Back"button.
From the audio equipment control panel, youcan: )
press the "MENU"
button for access to themain menu
, )
press the "
" or " " buttons to scroll
through the items on the screen, ) press the "MODE"
button to change the
permanent application (trip computer, audiosource...),
) press the "  " or " " buttons to change asetting value,)
press the "OK"button to confirm,
or ) press the "Back"button to abandon the
operation in progress.



Main menu
)
Press the "MENU"
button for access to themain menu
:
- audio functions,
- trip computer
(refer to the end of the section),
- personalisation-configuration,
- telephone (hands-free kit). )
Press the "  " or "  " buttons to select themenu required, then confirm by pressing
the "OK"
button.


















Monochrome screen C
Controls
"Au d i o f u n c t i o n s"
menu

With the audio equipment switched on, once
this menu has been selected you can activate or deactivate the functions linked with useof the radio (RDS, REG, RadioText), the CD (introscan, shuffle, CD repeat) or the MP3
player (USB por t).
For more information on the "Audio functions"
application, refer to the Audio system part of
the "Audio and telematics" section.


Displays in the screen

2
Multifunction screens
45

Display confi guration
Once this menu has been selected, you can
gain access to the following settings:


- brightness-video setting,

- date and time setting,

- selection of the units.
Example: setting of the duration of the guide-me-home lighting
)Press the "  " or "  " buttons, then
the "OK"
button to select the menu required.
)Press the "
" or "
" buttons, then
the "OK"
button to select the "Guide-me-home headlamps" line.
)
Press the " " or " " buttons to set the
value required (15, 30 or 60 seconds), then
press the "OK"button to confirm.
) Press the "
" or "" buttons, then
the "OK"button to select the "OK"
box
and confirm or press the "Back" button tocancel.
Once the fuel consumption unit has been changed to mpg, the informationrelating to speed and distance also changes to miles.
Ad
just the date and time) Select the "Date and time adjustment"
function using the "
" or "
" button.)
Press the "OK"button to confirm the selection. )
Adjust the settings one by one usingthe "  " or "
" button then confirm with
the "OK"
button. )
Then select the "OK"box in the screenand then confirm.

Comfort
58








Scented air freshener System permitting the diffusion of a fragrance in the passenger compar tment in accordance with your requirements, by means of the adjustment dial and the various fragrance car tridges available.

Fitting the cartridge
)Remove the cartridge from the sealing case. )Install the car tridge (flower at top right).
)Press the dial and turn it a quarter of a turnclockwise.

Thi
s dial is located on the dashboard or in the
upper glove box.
It allows you to adjust the intensity of diffusion
of the fragrance.)Turn the dial to the right to permit diffusion
of the fragrance.)Turn the dial to the left to stop diffusion of
the
fragrance.

Fragrance cartridge


Removing the cartridge
)Press the dial and turn it a quarter of a turnanti-clockwise. )Remove the cartridge.)Refit its sealing case.

As a safety precaution, do not carry out any action on the car tridge whiledriving. Do not dismantle the car tridges.Do not attempt to refill the fragrancediffuser or the cartridges.
Avoid all contact with the skin and eyes.Keep out of reach of children and animals.
Do not discard the original cartridge as this ser ves as a plug when no fragrance car tridge is in use. In order to preser ve the ser vice life of thecartridge, turn the dial to the left when you no longer wish to diffuse the fragrance in the passenger compartment.

Leave the central vents open.
The intensity of diffusion of the fragrance may depend on the ventilationor air conditioning settings.
Adjustment dial
This car tridge can be removed easily.
You can change it at any time and store it in the
sealed case which keeps it closed once it has been opened.
You can obtain different fragrance car tridges
from a CITROËN dealer or a qualified
workshop.

249
FREQUENTLY ASKED QUESTIONS
QUESTIONANSWER SOLUTION
Certain traffi c jams
along the route are notindicated in real time.
On starting, it is several minutes before the system begins to receive the
traffi c information. Wait until the traffi c information is being received correctly (display of the traffi c information icons on
the map).
Th
e fi lters are too restrictive. Modify the "Geographic fi lter" settings.
In certain countries, onl
y major routes (motorways...) are listed for the
traffi c information. This phenomenon is normal. The system is
dependent on the traffi c information available.

The altitude is not displayed. On starting, the initialisation of the GPS may take up to 3 minutes toreceive more than 4 satellites correctly. Wait until the system has started up completely. Check that there is a GPS coverage of at least
4 satellites (long press on the SETUP button, then select "GPS coverage").
Dependin
g on the geographical environment (tunnel...) or the weather,
the conditions of reception of the GPS signal may vary. This phenomenon is normal. The system
is dependent on the GPS signal receptionconditions.

I cannot connect myBluetooth telephone.The telephone's Bluetooth function may be switched off or the telephone
may not be visible.
- Check that your telephone's Bluetoothfunction is switched on.

-
Check in the telephone settings that it is "visible to all".
The Bluetooth telephone is not compatible with the s
ystem. A list of compatible Bluetooth mobile telephones is available from the dealer network.
Th
e volume of thetelephone connectedin Bluetooth mode isinaudible.
The volume depends both on the system and on the telephone. Increase the volume of the audio system, tomaximum if required, and increase the volume of
the telephone if necessary.
The ambient noise level has an in
fl uence on the quality of telephone communication. Reduce the ambient noise level (close the windows, reduce the booster fan speed, slow down, ...).

.
