2013 CHEVROLET EQUINOX Owners Manual

Black plate (3,1)Chevrolet Equinox Owner Manual - 2013 - CRC - 5/21/12
In Brief 1-3
1.Air Vents on page 8‑6.
2. Turn and Lane-Change Lever. See Turn and Lane-Change
Signals on page 6‑3.
Exterior Lamp Controls on
page 6‑1.
Fog Lamps on page 6‑4 (If
Equipped).
3. Instrument Cluster on page 5‑8.
4. Windshield Wiper/Washer on
page 5‑3.
Rear Window Wiper/Washer on
page 5‑4.
5. Power Door Locks on page 2‑7.
6. Instrument Panel Storage on
page 4‑1 (If Equipped).
Forward Collision Alert (FCA)
Display (If Equipped). See
Forward Collision Alert (FCA)
System on page 9‑37.
Lane Departure Warning (LDW)
Indicator (If Equipped). See
Lane Departure Warning (LDW)
on page 9‑44. 7. Touchscreen (If Equipped).
8.
Safety Locks on page 2‑8.
9. Infotainment on page 7‑1.
Navigation System (If Equipped).
See Infotainment Manual.
10. Hood Release. See Hood on
page 10‑4.
11. Data Link Connector (DLC) (Out of View). See Malfunction
Indicator Lamp on page 5‑13.
12. Cruise Control on page 9‑35.
Forward Collision Alert (FCA)
Button (If Equipped). See
Forward Collision Alert (FCA)
System on page 9‑37.
Lane Departure Warning
(LDW) Button (If Equipped).
SeeLane Departure Warning
(LDW) on page 9‑44.
13. Instrument Panel Illumination
Control on page 6‑4.
14. Steering Wheel Adjustment on
page 5‑2.
15. Horn on page 5‑3. 16.
Steering Wheel Controls on
page 5‑2.
17. Ignition Positions on
page 9‑19.
18. Climate Control Systems on
page 8‑1 (If Equipped).
Automatic Climate Control
System on page 8‑3 (If
Equipped).
19. Shift Lever. See Shifting Into
Park on page 9‑23.
20. Fuel Economy Mode on
page 9‑29 (If Equipped).
21. StabiliTrak
®System on
page 9‑33.
22. Power Outlets on page 5‑6.
23. CD Player on page 7‑13.
24. Driver Information Center Buttons (If Equipped). See
Driver Information Center (DIC)
on page 5‑22.
25. Hazard Warning Flashers on
page 6‑3.

Black plate (4,1)Chevrolet Equinox Owner Manual - 2013 - CRC - 5/21/12
1-4 In Brief
Initial Drive
Information
This section provides a brief
overview about some of the
important features that may or may
not be on your specific vehicle.
For more detailed information, refer
to each of the features which can be
found later in this owner manual.
Remote Keyless Entry
(RKE) System
The Remote Keyless Entry (RKE)
transmitter may work up to
60 m (195 ft) away from the vehicle.
Press this button to extend the key.
The key can be used for the ignition
and all locks.
K:Press to unlock the driver door
or all doors.
For vehicles with the manual
liftgate, press
Ktwice within
5 seconds, to unlock the liftgate.
Q: Press to lock all doors.
Lock and unlock feedback can be
personalized.
V: For vehicles with the power
liftgate, press and hold
Vuntil the
liftgate begins to move.
7: Press and release to initiate
vehicle locator. Press and hold for at
least three seconds to sound the
panic alarm. Press
7again to
cancel the panic alarm.
See Keys on page 2‑1 andRemote
Keyless Entry (RKE) System
Operation on page 2‑3.
Remote Vehicle Start
With this feature the engine can be
started from outside of the vehicle.
Starting the Vehicle
1. Press and releaseQon the
Remote Keyless Entry
transmitter.

Black plate (5,1)Chevrolet Equinox Owner Manual - 2013 - CRC - 5/21/12
In Brief 1-5
2. Immediately press and hold/
for at least two seconds or until
the signal lamps flash.
The parking lamps will turn on
and remain on as long as the
engine is running. The vehicle's
doors will be locked.
3. The key must be inserted and turned to ON/RUN before
driving.
The engine will shut off after
10 minutes unless a time extension
is done or the key is inserted and
turned to ON/RUN.
Canceling a Remote Start
To cancel a remote start, do one of
the following:
.Press/until the parking lamps
turn off.
.Turn on the hazard warning
flashers.
.Insert the key and turn it to ON/
RUN and then back to
LOCK/OFF. See
Remote Vehicle Start on
page 2‑4.
Door Locks
To lock or unlock the vehicle from
the outside, press
QorKon the
Remote Keyless Entry (RKE)
transmitter.
Base Radio Shown, Uplevel
Similar
There is a power door lock switch
on the instrument panel.
There are power door lock switches
on the front door panels.
Q: Press to lock the doors.
K: Press to unlock the doors.
See Door Locks on page 2‑6.
To manually unlock a door from
inside the vehicle, pull once on the
door handle to unlock it, and a
second time to open it.

Black plate (6,1)Chevrolet Equinox Owner Manual - 2013 - CRC - 5/21/12
1-6 In Brief
Base Radio Shown, UplevelSimilar
{:Press for Safety Locks. See
Safety Locks on page 2‑8.
Liftgate
Manual Liftgate Operation
Unlock the vehicle before opening
the liftgate.
To open the liftgate, press the touch
pad under the liftgate handle and
lift up. Do not press the touch pad while
closing the liftgate. This may cause
the liftgate to be unlatched.
Power Liftgate Operation
On vehicles with a power liftgate,
the vehicle must be in P (Park) to
use the power feature. The taillamps
flash when the power liftgate
moves.
Choose the power liftgate mode by
turning the dial on the switch to
either the 3/4 or MAX position.
Press
8to open or close the
liftgate. See
Liftgate on page 2‑8.
Windows
Press the front of the switch to lower
the window. Pull the switch up to
raise it.
Pushing or pulling the switch part of
the way will open or close the
window as long as the switch is
operated.
SeePower Windows on page 2‑17.

Black plate (7,1)Chevrolet Equinox Owner Manual - 2013 - CRC - 5/21/12
In Brief 1-7
Seat Adjustment
Four-Way Power Seat
1. Seat Position Handle
2. Height Adjustment Control
To adjust the seat, if equipped:
.Move the seat forward or
rearward using the handle under
the front of the seat cushion (1).
SeeSeat Adjustment on
page 3‑3.
.Raise or lower the entire seat by
moving the control (2) up
or down. See
Power Seat Adjustment on
page 3‑4.
Eight-Way Power Seat
To adjust a power seat, if equipped:
.Move the seat forward or
rearward by sliding the control
forward or rearward.
.Raise or lower the front or rear
part of the seat cushion by
moving the front or rear of the
control up or down.
.Raise or lower the entire seat by
moving the entire control up
or down.
See Power Seat Adjustment on
page 3‑4.
Lumbar Adjustment
Eight-Way Power Seat Shown,
Four-Way Similar
If available, press and hold the front
or rear of the switch to increase or
decrease lumbar support. Release
the switch when the seatback
reaches the desired level of lumbar
support.

Black plate (8,1)Chevrolet Equinox Owner Manual - 2013 - CRC - 5/21/12
1-8 In Brief
SeeLumbar Adjustment on
page 3‑5.
Reclining Seatbacks
Manual Reclining Seatbacks
To recline a manual seatback:
1. Lift the lever. 2. Move the seatback to the
desired position, and then
release the lever to lock the
seatback in place.
3. Push and pull on the seatback to make sure it is locked.
To return the seatback to the upright
position:
1. Lift the lever fully without applying pressure to the
seatback, and the seatback will
return to the upright position.
2. Push and pull on the seatback to make sure it is locked. Power Reclining Seatbacks
To adjust a power seatback,
if available:
.Tilt the top of the control
rearward to recline.
.Tilt the top of the control forward
to raise.
See Reclining Seatbacks on
page 3‑5.

Black plate (9,1)Chevrolet Equinox Owner Manual - 2013 - CRC - 5/21/12
In Brief 1-9

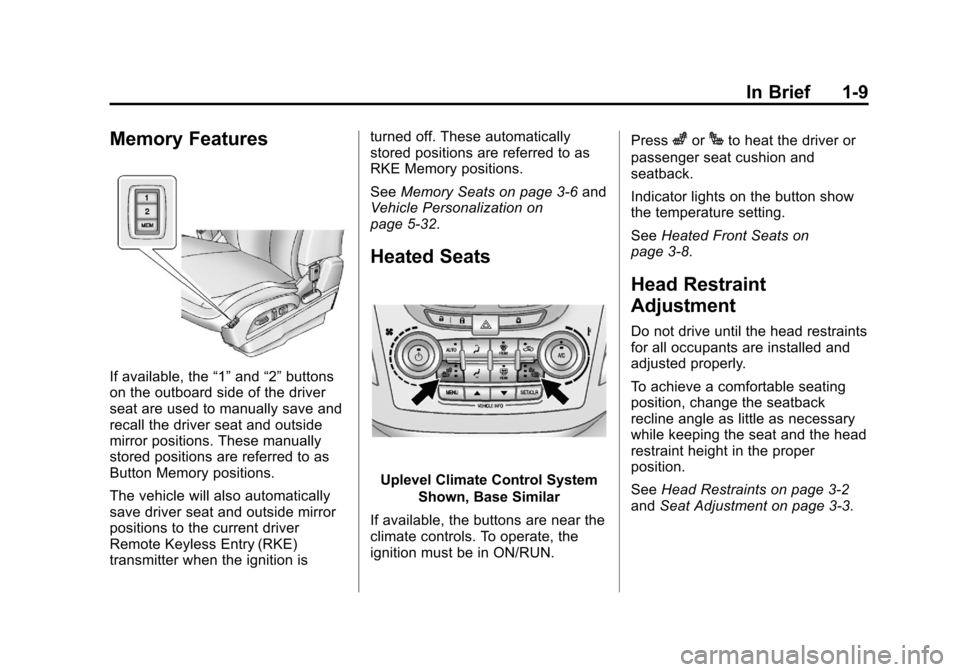

Memory Features
If available, the“1”and “2”buttons
on the outboard side of the driver
seat are used to manually save and
recall the driver seat and outside
mirror positions. These manually
stored positions are referred to as
Button Memory positions.
The vehicle will also automatically
save driver seat and outside mirror
positions to the current driver
Remote Keyless Entry (RKE)
transmitter when the ignition is turned off. These automatically
stored positions are referred to as
RKE Memory positions.
See
Memory Seats on page 3‑6 and
Vehicle Personalization on
page 5‑32.
Heated Seats
Uplevel Climate Control System
Shown, Base Similar
If available, the buttons are near the
climate controls. To operate, the
ignition must be in ON/RUN. Press
zorJto heat the driver or
passenger seat cushion and
seatback.
Indicator lights on the button show
the temperature setting.
See Heated Front Seats on
page 3‑8.
Head Restraint
Adjustment
Do not drive until the head restraints
for all occupants are installed and
adjusted properly.
To achieve a comfortable seating
position, change the seatback
recline angle as little as necessary
while keeping the seat and the head
restraint height in the proper
position.
See Head Restraints on page 3‑2
and Seat Adjustment on page 3‑3.

Black plate (10,1)Chevrolet Equinox Owner Manual - 2013 - CRC - 5/21/12
1-10 In Brief

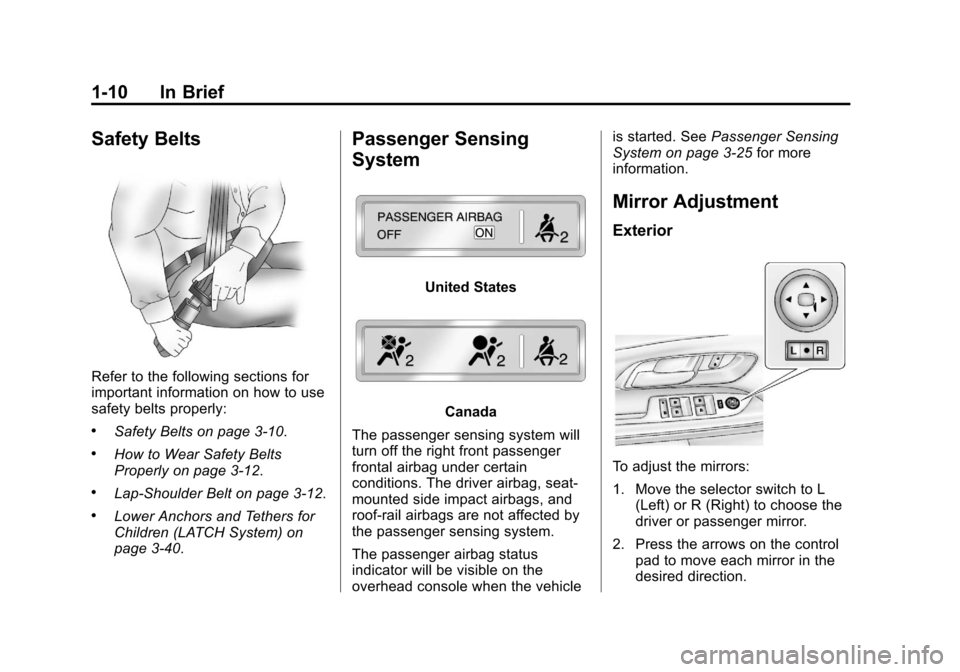

Safety Belts
Refer to the following sections for
important information on how to use
safety belts properly:
.Safety Belts on page 3‑10.
.How to Wear Safety Belts
Properly on page 3‑12.
.Lap-Shoulder Belt on page 3‑12.
.Lower Anchors and Tethers for
Children (LATCH System) on
page 3‑40.
Passenger Sensing
System
United States
Canada
The passenger sensing system will
turn off the right front passenger
frontal airbag under certain
conditions. The driver airbag, seat‐
mounted side impact airbags, and
roof‐rail airbags are not affected by
the passenger sensing system.
The passenger airbag status
indicator will be visible on the
overhead console when the vehicle is started. See
Passenger Sensing
System on page 3‑25 for more
information.
Mirror Adjustment
Exterior
To adjust the mirrors:
1. Move the selector switch to L (Left) or R (Right) to choose the
driver or passenger mirror.
2. Press the arrows on the control pad to move each mirror in the
desired direction.
