Downloaded from www.Manualslib.com manuals search engine MMI® ControlsAudio & NavigationThe MMI® system consists of the MMI® display screen
and the MMI® control panel. This panel is composed of a
control knob with joystick, control buttons and function
buttons.
Pressing one of the six “function buttons” such as
“RADIO” or “NAV” (Navigation) displays that feature’s
options in each corner of the MMI® screen. For instance,
after pressing the “RADIO” function button, the four
corners of the MMI® screen read “Presets”, “Band”,
“Functions” and “Settings”.To select one of these options, use one of the four corresponding
buttons, known as the “control buttons,” surrounding the “control
knob.” While operating the function options, you can return to a
previous screen by pressing the “BACK” button.
You can access sub-menus and lists by turning the control knob,
which scrolls through the listings on the MMI® screen. To make a
selection, simply press the center button of the control knob.
To move to a specifi c location within the Navigation Map or to control
the main menu of a DVD, a joystick located directly on top of the
control knob provides additional convenience.
Do not text and drive. Message and data rates may apply. TEXT A5NAV1 to 38981
MMI® Controls

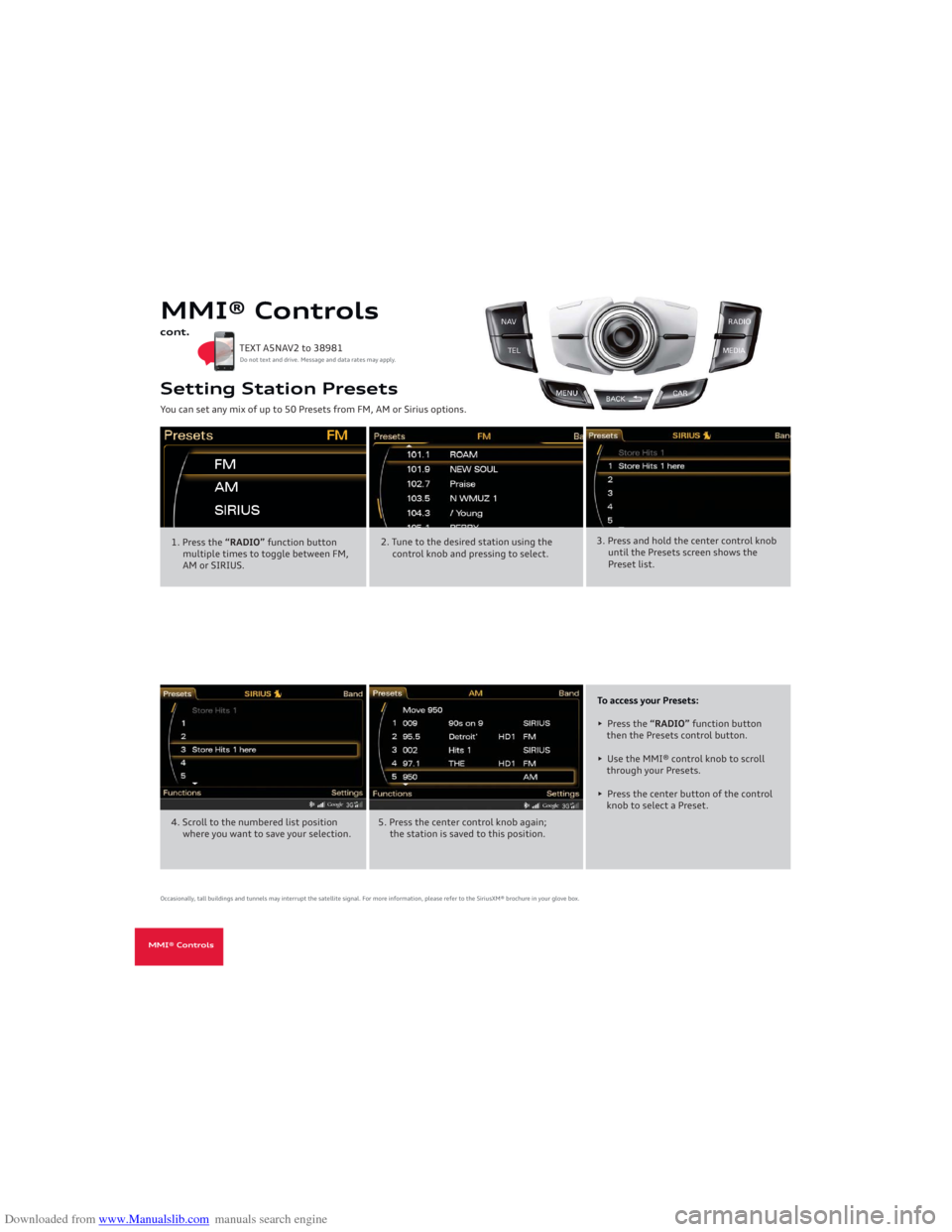

Downloaded from www.Manualslib.com manuals search engine You can set any mix of up to 50 Presets from FM, AM or Sirius options. Setting Station Presets
Do not text and drive. Message and data rates may apply. TEXT A5NAV2 to 38981
1. Press the “RADIO” function button
multiple times to toggle between FM,
7 C e h I ? H ? K I $
2. Tune to the desired station using the
control knob and pressing to select.3. Press and hold the center control knob
until the Presets screen shows the
Preset list.
MMI® Controlscont.MMI® Controls
To access your Presets:
