2013 AUDI A5 display

Downloaded from www.Manualslib.com manuals search engine MMI® ControlsAudio & NavigationThe MMI® system consists of the MMI® display screen
and the MMI® control panel. This panel is composed of a
control knob with joystick, control buttons and function
buttons.
Pressing one of the six “function buttons” such as
“RADIO” or “NAV” (Navigation) displays that feature’s
options in each corner of the MMI® screen. For instance,
after pressing the “RADIO” function button, the four
corners of the MMI® screen read “Presets”, “Band”,
“Functions” and “Settings”.To select one of these options, use one of the four corresponding
buttons, known as the “control buttons,” surrounding the “control
knob.” While operating the function options, you can return to a
previous screen by pressing the “BACK” button.
You can access sub-menus and lists by turning the control knob,
which scrolls through the listings on the MMI® screen. To make a
selection, simply press the center button of the control knob.
To move to a specifi c location within the Navigation Map or to control
the main menu of a DVD, a joystick located directly on top of the
control knob provides additional convenience.
Do not text and drive. Message and data rates may apply. TEXT A5NAV1 to 38981
MMI® Controls

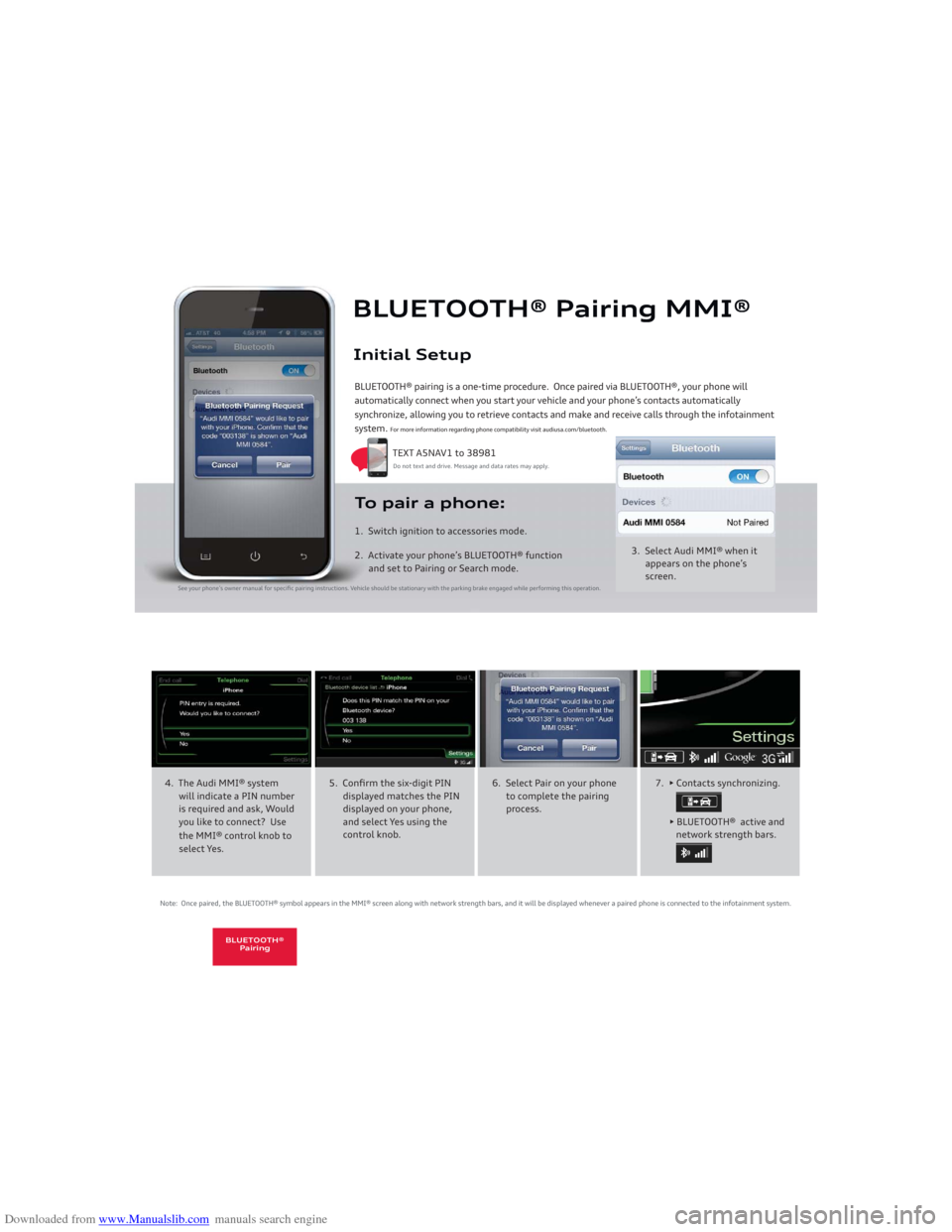

Downloaded from www.Manualslib.com manuals search engine BLUETOOTH® Pairing MMI®Initial Setup
3. Select Audi MMI® when it
appears on the phone’s
screen.
To pair a phone: 1. Switch ignition to accessories mode.
2. Activate your phone’s BLUETOOTH® function
and set to Pairing or Search mode.
Do not text and drive. Message and data rates may apply.
See your phone’s owner manual for specifi c pairing instructions. Vehicle should be stationary with the parking brake engaged while performing this operation.

TEXT A5NAV1 to 38981
BLUETOOTH® pairing is a one-time procedure. Once paired via BLUETOOTH®, your phone will
automatically connect when you start your vehicle and your phone’s contacts automatically
synchronize, allowing you to retrieve contacts and make and receive calls through the infotainment
system.
For more information regarding phone compatibility visit audiusa.com/bluetooth.
4. The Audi MMI® system
will indicate a PIN number
is required and ask, Would
you like to connect? Use
the MMI® control knob to
select Yes.
5. Confi rm the six-digit PIN
displayed matches the PIN
displayed on your phone,
and select Yes using the
control knob.
Note: Once paired, the BLUETOOTH® symbol appears in the MMI® screen along with network strength bars, and it will be displayed whenever a paired phone is connected to the infotainment system.
6. Select Pair on your phone
to complete the pairing
process.
-$

Downloaded from www.Manualslib.com manuals search engine Audi Navigationcont. Destinations can also be chosen from Online Destinations, Points of Interest, or a list of
Favorites you create. You may also speak natural language commands using the Talk
button (See Voice Recognition.) Verbal destination commands can be given while in
any screen.Setting a Destination (Voice Recognition)To set a Destination with voice commands:1. Press the “TALK” Button.
2. Say “Enter Address”(Other commands are available on screen.)
See Owner’s Manual for complete list of commands.
3. After the beep, speak the address; for example “2024 Main St, Los Angeles, California”. The system will respond with repeating the address
for confirmation.
4. System will respond, “The list is being loaded,” it will repeat the address, and then ask if you would like to start route guidance; after the beep
say, “Yes” and guidance will begin.Note: The MMI® will display the most frequently used voice commands while waiting for your response.
When pressing the “iNAV” button, the last navigation announcement will be repeated. Google™ Local Search (Online Destinations):
TEXT A5NAV5 to 38981 1. Press the “TALK” button.
2. Say “Search” or “Online
Destinations” followed by a keyword
such as “Search Coff ee Shop”.
Cellular connectivity is dependent on available cellular signal.
Do not text and drive. Message and data rates may apply.*Google Voice™ Local Search requires Audi connect®, and may require an additional subscription with separate terms and conditions.
The features and technologies discussed are optional, and should be used only when it is safe and appropriate.
3. The system will respond with
“retrieving requested information”
and display a list.
4. Make your selection from the list
displayed by speaking the line
number. The system will confi rm
your selection.
5. Say “Start route guidance” to start
the navigation to your destination.
Navigation
Important Warnings and Safety Information, which you must read,
are listed on the last panel under Navigation - Voice Recognition.

Downloaded from www.Manualslib.com manuals search engine Your Climate Control System will maintain the
cabin temperature to your selected temperature.
This will automatically regulate the temperature,
fan speed and airflow. Once activated, there is
no need to alter the settings.
When “AUTO” is selected, “AC ” will come on
automatically to condition the air.AUTO SettingNote: AC is used to dehumidify the air.Automatic Climate ControlTemperature and airfl ow can be operated independently
for each side of the cabin. The airfl ow selector directs
air to the fl oor, panel or defrost vents, or a combination.
The MMI® display will indicate the best fan speed for the
chosen temperature.

Dual Controls
Automatic
Climate Control

Downloaded from www.Manualslib.com manuals search engine To activate, pull the control stalk
toward you.At your desired speed, press the “SET” button
at the end of the stalk. The set speed and a
green cruise symbol are shown in the Driver
Information Display.Cruise Control

Set Cruising Speed Activate

Important Warnings and Safety Information, which you must read, are listed on the last panel under cruise control.
Changing Speed
To cancel and resume cruise control:
1. Press the brake pedal or push the stalk
slightly away from you.
2. The CRUISE light will go off.
3. To resume, pull the stalk towards you;
you will return to your set speed.
Your most recently set speed appears as a
small icon in the Driver Information Display.
It remains in memory until you turn your
Audi off.Cancel/Resume
There are three ways to change your
speed:
1. Accelerate or decelerate, then press
“SET” again.
2. To increase/decrease speed in 1 mph
increments, tap the stalk up or down.
3. Hold the stalk up or down to
increase/decrease speed in 5 mph
increments; release when desired
speed is reached.
Cruise Control

Downloaded from www.Manualslib.com manuals search engine Clock Settings: MMI®
1. Press the “MENU” function button.
2. Press the Time control button.
3. Using the control knob, scroll to Time source.
4. Make sure the Time source is set to GPS.To set time with GPS:
1. Rotate the knob to Manual and select.
2. Turn the knob until you reach Time; select to activate.
3. Turn the knob to the desired hour and press set.
4. The minute display is now highlighted; repeat the selection process.
5. Save the time by pressing the control knob.To manually adjust the time:
Note: Ensure time zone is accurate for your location.
Clock Setting:
Audi concert radio
1. Press the “SETUP” function button.
2. Press the Time/Date control button to enter the Time Setup menu.
3. Rotate the control knob to time, select to highlight the hour.
4. Turn the knob to the desired hour and press to set.
5. The minute display is now highlighted; repeat the selection process.
6. Save the time by pressing the control knob.
To adjust the time:
Vehicle should be stationary with the parking brake set before performing these operations.
Clock Setting
