2013.5 Citroen DS4 RHD menu

07
333
RADIO







Access to the "RADIO" menu



" FM / AM band / DAB
"

" Change waveband
"
(" AM / FM / DAB
")
" Guidance options
" (" TA, RDS,
FM alternative frequencies /
DAB
")
" Audio settings
" (see this section)
" Update radio list
"

Alphabetical list of stations
received.

Press 
or 
or use the rotary control to select the
previous or next station in the list.

This list can also be displayed by pressing LIST
on the
steering mounted controls.
Go from the list to the menu (left/right).
or

A long press on LIST
refreshes
the list of stations received.
Press RADIO
.

07 RADIO


By alphabetical list
Press RADIO
or LIST
, select the station
of your choice and confi rm.

By automatic frequency search
Press 
or 
for the automatic search
for a lower or higher radio frequency.
Or turn the thumb wheel at the steering
mounted controls.

By manual frequency search
Press 
or 
to adjust the radio
frequency step by step.








Selecting a station


The external environment (hill, building, tunnel, underground car park...) may interfere with the reception, including in RDS station tracking mode.
This phenomenon is a normal result of the way in which radio waves are transmitted and does not in any way indicate a fault with the audio system.

The quality of reception is represented by the number of
active waves in this symbol.

Press RADIO
or OK
to display the
contextual menu.






Changing waveband


Select " Change waveband
".

Select " AM / FM
" and confi rm.

08
337

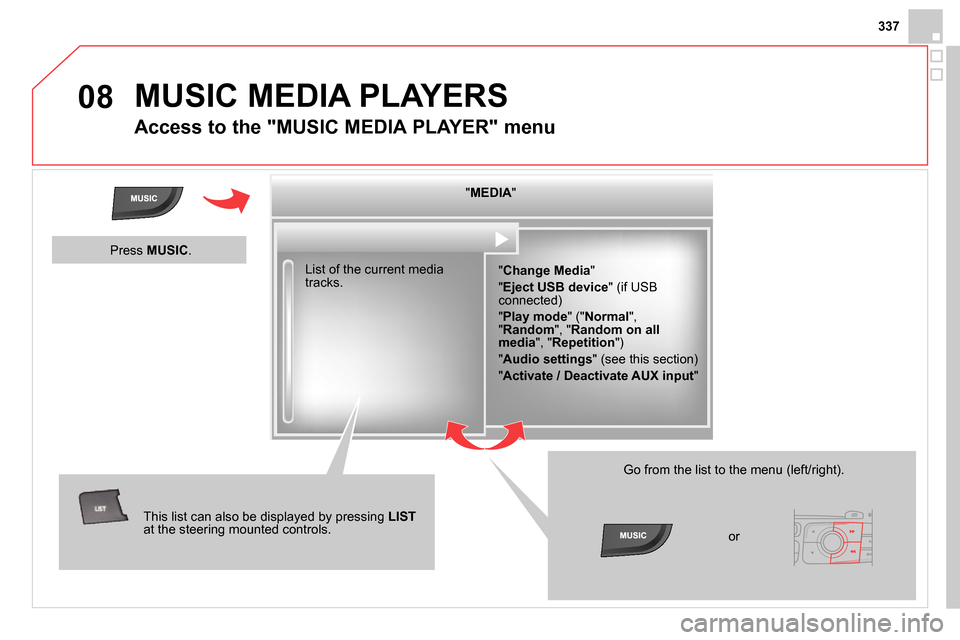

MUSIC MEDIA PLAYERS







Access to the "MUSIC MEDIA PLAYER" menu


" MEDIA
"

" Change Media
"
" Eject USB device
" (if USB
connected)
" Play mode
" (" Normal
",
" Random
", " Random on all
media
", " Repetition
")
" Audio settings
" (see this section)
" Activate / Deactivate AUX input
" List of the current media
tracks.

This list can also be displayed by pressing LIST

at the steering mounted controls.
Go from the list to the menu (left/right).
or

Press MUSIC
.

08
339
MUSIC MEDIA PLAYERS



Sources

Insert the CD in the player, insert the USB memory
stick in the USB player or connect the USB
peripheral to the USB port using a suitable cable
(not supplied) .
The system builds playlists (in temporary memory),
an operation which can take from a few seconds to
several minutes at the fi rst connection.
Reduce the number of non-music fi les and the
number of folders to reduce the waiting time.
The playlists are updated every time the ignition is
switched off or connection of a USB memory stick.
However, the system memorises these lists and
if they are not modifi ed, the loading time will be
shorter.
Play starts automatically after a period which
depends on the capacity of the USB memory stick.


Selection of source
The SOURCE
button on the steering mounted controls allows a
direct change to the next media source.
" CD / CD MP3
"
" USB, iPod
"
" AUX
"
" STREAMING
" " RADIO
"

Press MUSIC
to display the " MEDIA
"
menu.

Select " Following media source
" and
confi rm.

Repeat the operation as many times as necessary to obtain the
desired media source (except for radio which is accessible either
with SOURCE
or RADIO
).

08
/
/
//
//
// +/


SELECTING A TRACK

MUSIC MEDIA PLAYERS


Previous track.

Next track.

Previous folder.

Next folder.

Fast forward.

Fast backward.

Pause: long press on SRC
.


LIST: List of USB or CD tracks or
folders

Up or down in the list.

Confi rm, next menu level.

Up one menu level.
Long press
Long press

08
341

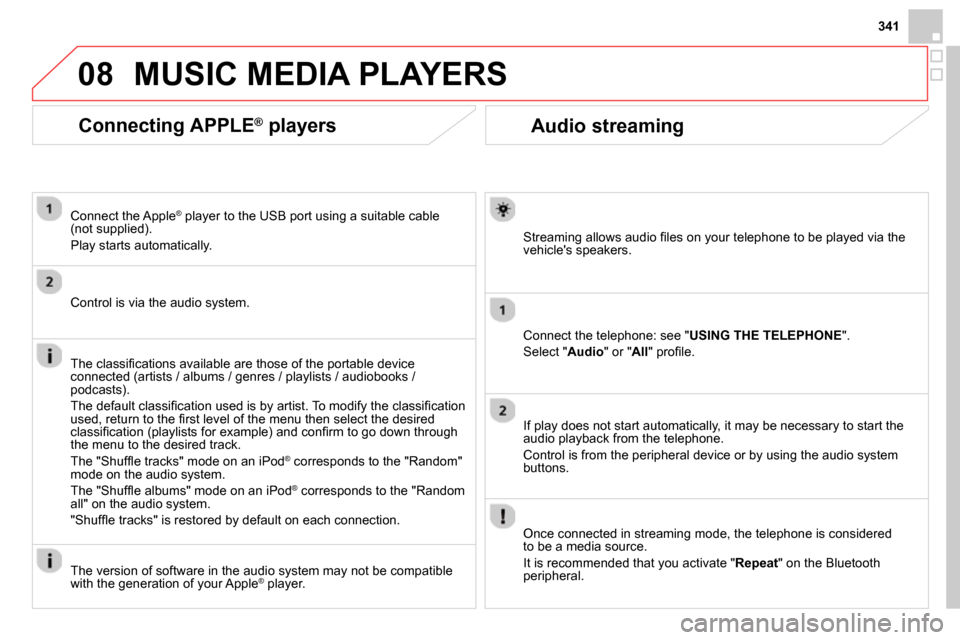

Audio streaming


Streaming allows audio fi les on your telephone to be played via the
vehicle's speakers.

Connect the telephone: see " USING THE TELEPHONE
".
Select " Audio
" or " All
" profi le.

If play does not start automatically, it may be necessary to start the
audio playback from the telephone.
Control is from the peripheral device or by using the audio system
buttons.

Once connected in streaming mode, the telephone is considered
to be a media source.
It is recommended that you activate " Repeat
" on the Bluetooth
peripheral.


MUSIC MEDIA PLAYERS


Connecting APPLE ®
players


Connect the Apple ®
player to the USB port using a suitable cable
(not supplied).
Play starts automatically.

Control is via the audio system.

The classifi cations available are those of the portable device
connected (artists / albums / genres / playlists / audiobooks /
podcasts).
The default classifi cation used is by artist. To modify the classifi cation
used, return to the fi rst level of the menu then select the desired
classifi cation (playlists for example) and confi rm to go down through
the menu to the desired track.
The "Shuffl e tracks" mode on an iPod
®
corresponds to the "Random"
mode on the audio system.
The "Shuffl e albums" mode on an iPod
®
corresponds to the "Random
all" on the audio system.
"Shuffl e tracks" is restored by default on each connection.

The version of software in the audio system may not be compatible
with the generation of your Apple
® player.

08 MUSIC MEDIA PLAYERS
















USING THE AUXILIARY INPUT (AUX)
JACK/RCA AUDIO CABLE NOT SUPPLIED

Connect the portable device (MP3, WMA player…) to the RCA audio
sockets (white and red) using a JACK-RCA audio cable.
Press MUSIC
to display the " MUSIC
"
menu.

Select " Activate / Deactivate AUX
input
" and confi rm.
First adjust the volume of your portable
device (to a high level). Then adjust the
volume of your audio system.

Display and management of the controls are via the portable device.

10 CONFIGURATION


Press SETUP
to display the
" Confi guration
" menu.
Select " Choose colour
" and confi rm to
select the screen colour harmony and
the map presentation mode:


- day mode,

- night mode,

- automatic day/night mode,
according to whether the
headlamps are on.


Select " Adjust luminosity
" and confi rm
to adjust the screen brightness.
Press " OK
" to save the changes.
The settings for day and night are
independent.

Select " Display confi guration
" and
confi rm.


Display configuration
