Rim size:9 x 8.0ATFront brake:Type:
Disc brake
Operation: Right hand operation
Specified brake fluid: DOT 4Rear brake:Type:Disc brake
Operation: Right foot operation
Specified brake fluid:
DOT 4Front suspension:Type:Double wishbone
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel: 230 mm (9.1 in)Rear suspension:Type:
Swingarm (link suspension)
Spring/shock absorber type: Coil spring/gas-oil damper
Wheel travel: 270 mm (10.6 in)
Electrical system:Ignition system:DC CDI
Charging system:
AC magnetoBattery:Model:GT7B-4
Voltage, capacity:
12 V, 6.5 AhHeadlight:Bulb type:Krypton bulbBulb voltage, wattage × quantity:Headlight:
12 V, 30.0/30.0 W × 2
Tail/brake light: 12 V, 5.0/21.0 W × 1
Neutral indicator light:
12 V, 1.7 W × 1
Coolant temperature warning light: 12 V, 1.7 W × 1Fuses:Main fuse:
15.0 A
U1PD60E0.book Page 4 Monday, June 13, 2011 2:57 PM
Page 146 of 152
10-5
10
EBU30400For EUR only

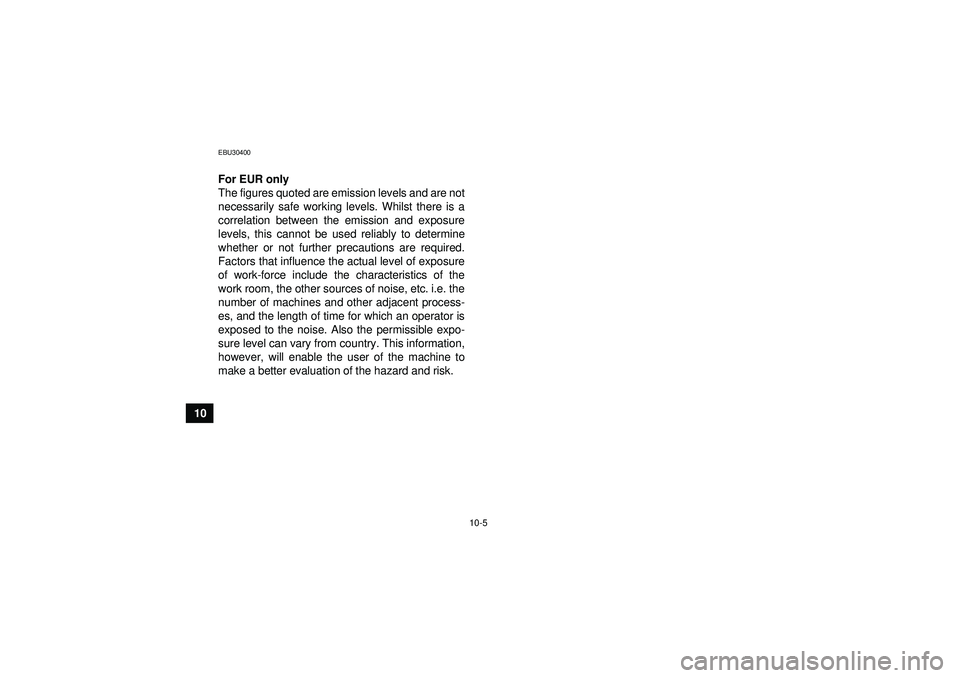

The figures quoted are emission levels and are not
