2012 YAMAHA XCITY 125 Owners Manual

SPECIFICATIONS
8-2
8
Caster angle:
26.00 °
Trail:
96 mm (3.8 in)Front tire:Type:
Tubeless
Size:
120/70-16 M/C 57P
Manufacturer/model:
PIRELLI/SPORT DEMON FRONTRear tire:Type:
Tubeless
Size:
140/70-15 M/C 69P
Manufacturer/model:
PIRELLI/SPORT DEMONLoading:Maximum load:
185 kg (408 lb)
(Total weight of rider, passenger, cargo and
accessories)Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)
Front:
170 kPa (1.70 kgf/cm², 25 psi)
Rear:
190 kPa (1.90 kgf/cm², 28 psi)
Loading condition:
90–185 kg (198–408 lb)Front:
180 kPa (1.80 kgf/cm², 26 psi)
Rear:
200 kPa (2.00 kgf/cm², 29 psi)
Front wheel:Wheel type:
Cast wheel
Rim size:
16 M/C x MT3.00Rear wheel:Wheel type:
Cast wheel
Rim size:
15 M/C x MT4.00Front brake:Type:
Single disc brake
Operation:
Right hand operation
Specified brake fluid:
DOT 4Rear brake:Type:
Single disc brake
Operation:
Left hand operation
Specified brake fluid:
DOT 4Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damperWheel travel:
100.0 mm (3.94 in)
Rear suspension:Type:
Unit swing
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
105.0 mm (4.13 in)Electrical system:Ignition system:
TCI
Charging system:
AC magnetoBattery:Model:
GTX9-BS
Voltage, capacity:
12 V, 8.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Low beam headlight:
12 V, 55.0 W × 1
High beam headlight:
12 V, 55.0 W × 1
Tail/brake light:
12 V, 5.0 W/21.0 W × 2
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
U16PE3E0.book Page 2 Tuesday, June 19, 2012 5:17 PM

SPECIFICATIONS
8-3
8
Auxiliary light:
12 V, 5.0 W × 2
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
High beam indicator light:
LED
Turn signal indicator light:
LED x 2
Fuel level warning light:
LED
Engine trouble warning light:
LED
Immobilizer system indicator light:
LEDFuses:Main fuse:
30.0 A
Headlight fuse:
15.0 A
Signaling system fuse:
15.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
10.0 A
ECU fuse:
5.0 A
Backup fuse:
5.0 A
U16PE3E0.book Page 3 Tuesday, June 19, 2012 5:17 PM

CONSUMER INFORMATION
9-1
9
EAU48612

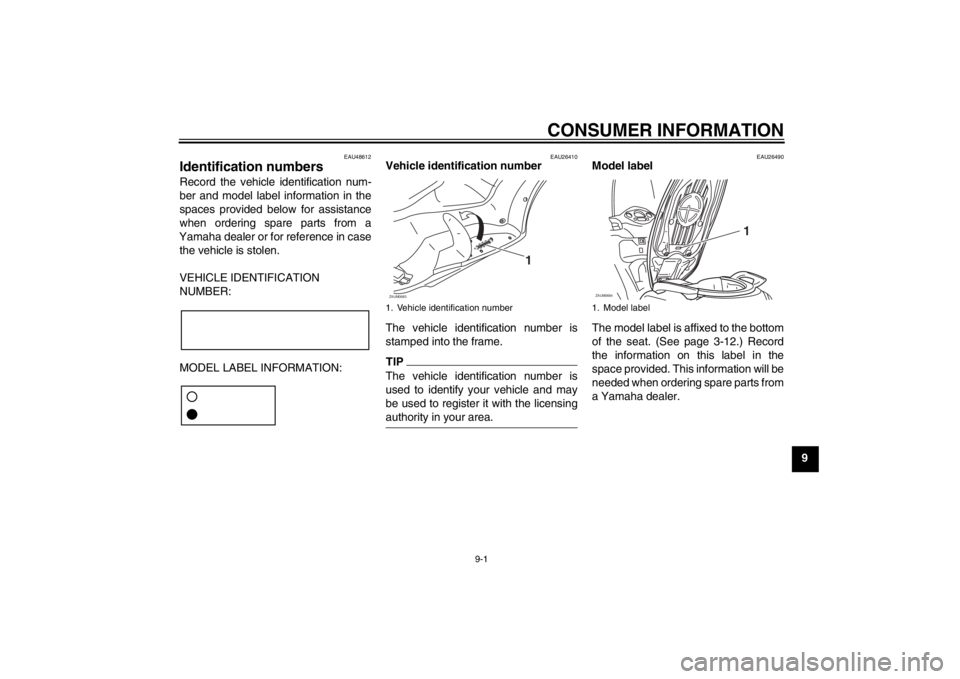

Identification numbers Record the vehicle identification num-
ber and model label information in the
spaces provided below for assistance
when ordering spare parts from a
Yamaha dealer or for reference in case
the vehicle is stolen.
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26410
Vehicle identification number
The vehicle identification number is
stamped into the frame.TIPThe vehicle identification number is
used to identify your vehicle and may
be used to register it with the licensing
authority in your area.
EAU26490
Model label
The model label is affixed to the bottom
of the seat. (See page 3-12.) Record
the information on this label in the
space provided. This information will be
needed when ordering spare parts from
a Yamaha dealer.
1. Vehicle identification numberZAUM0683
1
1. Model labelZAUM0684
1
U16PE3E0.book Page 1 Tuesday, June 19, 2012 5:17 PM

INDEXAAcceleration and deceleration................. 5-3
Air filter and V-belt case air filter
elements ............................................. 6-15
Auxiliary light bulb, replacing ................ 6-31BBattery................................................... 6-25
Brake fluid, changing ............................ 6-22
Brake fluid level, checking .................... 6-21
Brake lever, front..................................... 3-9
Brake lever, rear ..................................... 3-9
Brake levers, lubricating........................ 6-23
Braking .................................................... 5-3CCables, checking and lubricating .......... 6-22
Care ........................................................ 7-1
Carrier ................................................... 3-16
Catalytic converters .............................. 3-12
Centerstand and sidestand, checking
and lubricating .................................... 6-23
Coolant.................................................. 6-14
Coolant temperature gauge .................... 3-5
Cowlings and panels, removing and
installing................................................ 6-8DDimmer switch ........................................ 3-9
Display, multi-function ............................. 3-5EEngine break-in ....................................... 5-4
Engine oil .............................................. 6-10
Engine trouble warning light.................... 3-3FFinal transmission oil ............................ 6-13
Front and rear brake lever free play...... 6-19Front and rear brake pads, checking .... 6-20
Front fork, checking .............................. 6-24
Fuel....................................................... 3-10
Fuel consumption, tips for reducing........ 5-4
Fuel gauge.............................................. 3-5
Fuel tank cap ........................................ 3-10
Fuses, replacing ................................... 6-27
HHandlebar switches ................................ 3-8
Headlight bulb, replacing ...................... 6-28
High beam indicator light ........................ 3-3
Horn switch ............................................. 3-9IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-17
Immobilizer system ................................. 3-1
Immobilizer system indicator light........... 3-3
Indicator lights and warning light ............ 3-3LLicense plate light bulb, replacing ........ 6-31
Luggage hook ....................................... 3-16MMain switch/steering lock........................ 3-2
Maintenance and lubrication, periodic .... 6-4
Maintenance, emission control system... 6-3
Model label ............................................. 9-1PParking ................................................... 5-5
Part locations .......................................... 2-1SSafe-riding points.................................... 1-5
Safety information................................... 1-1
Seat ...................................................... 3-12Shock absorber assemblies,
adjusting ............................................. 3-15
Sidestand .............................................. 3-16
Spark plug, checking ............................... 6-9
Specifications .......................................... 8-1
Speedometer........................................... 3-4
Starting off ............................................... 5-2
Starting the engine .................................. 5-1
Start switch.............................................. 3-9
Steering, checking................................. 6-25
Storage.................................................... 7-3
Storage compartments .......................... 3-13
TTail/brake light bulb or rear turn signal
light bulb, replacing ............................. 6-30
Throttle grip and cable, checking and
lubricating ........................................... 6-23
Throttle grip free play, checking ............ 6-16
Tires ...................................................... 6-17
Tool kit..................................................... 6-2
Troubleshooting .................................... 6-31
Troubleshooting charts.......................... 6-33
Turn signal indicator light ........................ 3-3
Turn signal light bulb (front),
replacing ............................................. 6-29
Turn signal switch ................................... 3-9VValve clearance..................................... 6-17
Vehicle identification number .................. 9-1WWheel bearings, checking ..................... 6-25
Wheels .................................................. 6-19
Windshield............................................. 3-14
