PERIODIC MAINTENANCE AND MINOR REPAIR
6-11
Recommended engine oil:
See page 8-1.
Oil quantity:
Without oil filter element
replacement:
3.0 L (3.17 US qt) (2.64 Imp.qt)
With oil filter element replacement:
3.1 L (3.28 US qt) (2.72 Imp.qt)
ECA11620CAUTION:
●In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a
higher quality than specified. In
addition, do not use oils la-
beled “ENERGY CONSERVING
II” or higher.
●Make sure that no foreign ma-
terial enters the crankcase.11. Start the engine, and then let it
idle for several minutes while
checking it for oil leakage. If oil is
leaking, immediately turn the en-
gine off and check for the cause.
12. Turn the engine off, and then
check the oil level and correct it if
necessary.
ECAB0030CAUTION:
The engine oil tank must be filled in
2 steps. First, fill the engine oil tank
with 2.0 L (2.11 US qt) (1.75 Imp.qt)
of the recommended engine oil.
Then, start the engine, race it 5 or 6
times, turn it off, and then add the
remainder of the engine oil.

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU20070
Coolant
The coolant level should be checked
before each ride. In addition, the
coolant must be changed at the inter-
vals specified in the periodic mainte-
nance and lubrication chart.
EAU20090
To check the coolant level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.
NOTE:
●The coolant level must be
checked on a cold engine since
the level varies with engine tem-
perature.
●Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to the
side can result in a false reading.
2. Check the coolant level in the
coolant reservoir.
NOTE:
The coolant should be between the
minimum and maximum level marks.
1. Coolant reservoir
2. Maximum level mark
3. Minimum level mark
4. Reservoir cap
3. If the coolant is at or below the
minimum level mark, open the
reservoir cap, add coolant to the
maximum level mark, and then
close the reservoir cap.
ECA10470CAUTION:
●If coolant is not available, use
distilled water or soft tap water
instead. Do not use hard water
or salt water since it is harmful
to the engine.
●If water has been used instead
of coolant, replace it with
coolant as soon as possible,
otherwise the engine may not
be sufficiently cooled and the
cooling system will not be pro-
tected against frost and corro-
sion.
●If water has been added to the
coolant, have a Yamaha dealer
check the antifreeze content of
the coolant as soon as possi-
ble, otherwise the effective-
ness of the coolant will be re-
duced.
6-12
1
2
3
4
5
6
7
8
9
10
Coolant reservoir capacity:
0.25 L (0.26 US qt) (0.22 Imp.qt)

1
2
3
4
5
6
7
8
9
10
PERIODIC MAINTENANCE AND MINOR REPAIR
EWA10380
WARNING0
Never attempt to remove the radia-
tor cap when the engine is hot.
NOTE:
●The radiator fan is automatically
switched on or off according to
the coolant temperature in the ra-
diator.
●If the engine overheats, see page
3-4 for further instructions.
EAU33030
Changing the coolant
EWA10380
WARNING0
Never attempt to remove the radia-
tor cap when the engine is hot.
The coolant must be changed at the
intervals specified in the periodic
maintenance and lubrication chart.
Have a Yamaha dealer change the
coolant.
EAUB1280
Replacing the air filter
element and cleaning the
check hoses
The air filter element should be re-
placed at the intervals specified in the
periodic maintenance and lubrication
chart. Replace the air filter element
more frequently if you are riding in un-
usually wet or dusty areas. In addition,
the air filter check hoses must be fre-
quently checked and cleaned if neces-
sary. To replace the air filter element
1. Air filter case
2. Screws
1. Remove the air filter case cover
by removing the screws.
2. Pull the air filter element out.
3. Insert a new air filter element into
the air filter case as shown.
6-13

PERIODIC MAINTENANCE AND MINOR REPAIR
1. Air filter element
ECA10480CAUTION:
●Make sure that the air filter ele-
ment is properly seated in the
air filter case.
●The engine should never be op-
erated without the air filter ele-
ment installed, otherwise the
piston(s) and/or cylinder(s) may
become excessively worn.
4. Install the air filter case cover by
installing the screws.
To clean the air filter check hoses
1. Air filter check hose (case cover)
1. Check the hoses shown for accu-
mulated dirt, water or oil.
2. If dirt, water or oil is visible, re-
move the hose, clean it, and then
install it in its original position.
EAU34300
Adjusting the engine idling
speed
1. Idle adjusting screw
The engine idling speed must be
checked and, if necessary, adjusted
as follows at the intervals specified in
the periodic maintenance and lubrica-
tion chart.
The engine should be warm before
making this adjustment.
NOTE:
The engine is warm when it quickly re-
sponds to the throttle.
6-14
1
2
3
4
5
6
7
8
9
10

1
2
3
4
5
6
7
8
9
10
PERIODIC MAINTENANCE AND MINOR REPAIR
Check the engine idling speed and, if
necessary, adjust it to specification by
turning the idle adjusting screw. To in-
crease the engine idling speed, turn
the screw in direction (a). To decrease
the engine idling speed, turn the screw
in direction (b).
NOTE:
If the specified idling speed cannot be
obtained as described above, have a
Yamaha dealer make the adjustment.
EAU21381
Checking the throttle cable
free play
1. Throttle cable free play
The throttle cable free play should
measure 3.0-5.0 mm (0.12-0.20 in) at
the throttle grip. Periodically check the
throttle cable free play and, if neces-
sary, have a Yamaha dealer adjust it.
6-15
Engine idling speed:
1300-1500 r/min
1400-1600 r/min (EU3 version)
EAU21401
Valve clearance
The valve clearance changes with
use, resulting in improper air-fuel mix-
ture and/or engine noise. To prevent
this from occurring, the valve clear-
ance must be adjusted by a Yamaha
dealer at the intervals specified in the
periodic maintenance and lubrication
chart.

1
2
3
4
5
6
7
8
9
10
PERIODIC MAINTENANCE AND MINOR REPAIR
6-25
2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive
chain with a special O-ring chain
lubricant.
ECA11110CAUTION:
Do not use engine oil or any other
lubricants for the drive chain, as
they may contain substances that
could damage the O-rings.
EAU23100
Checking and lubricating
the cables
The operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubri-
cated if necessary. If a cable is dam-
aged or does not move smoothly,
have a Yamaha dealer check or re-
place it.
Recommended lubricant:
Engine oil
EWA10720
WARNING0
Damage to the outer sheath may in-
terfere with proper cable operation
and will cause the inner cable to
rust. Replace a damaged cable as
soon as possible to prevent unsafe
conditions.
EAU23111
Checking and lubricating
the throttle grip and cable
The operation of the throttle grip
should be checked before each ride.
In addition, the cable should be lubri-
cated at the intervals specified in the
periodic maintenance chart.

PERIODIC MAINTENANCE AND MINOR REPAIR
ECA10590CAUTION:
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-
pair it.
EAU23280
Checking the steering
Worn or loose steering bearings may
cause danger. Therefore, the opera-
tion of the steering must be checked
as follows at the intervals specified in
the periodic maintenance and lubrica-
tion chart.
1. Place a stand under the engine to
raise the front wheel off the
ground.
6-28
1
2
3
4
5
6
7
8
9
10
EWA10750
WARNING0
Securely support the motorcycle so
that there is no danger of it falling
over.
2. Hold the lower ends of the front
fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steering.

PERIODIC MAINTENANCE AND MINOR REPAIR

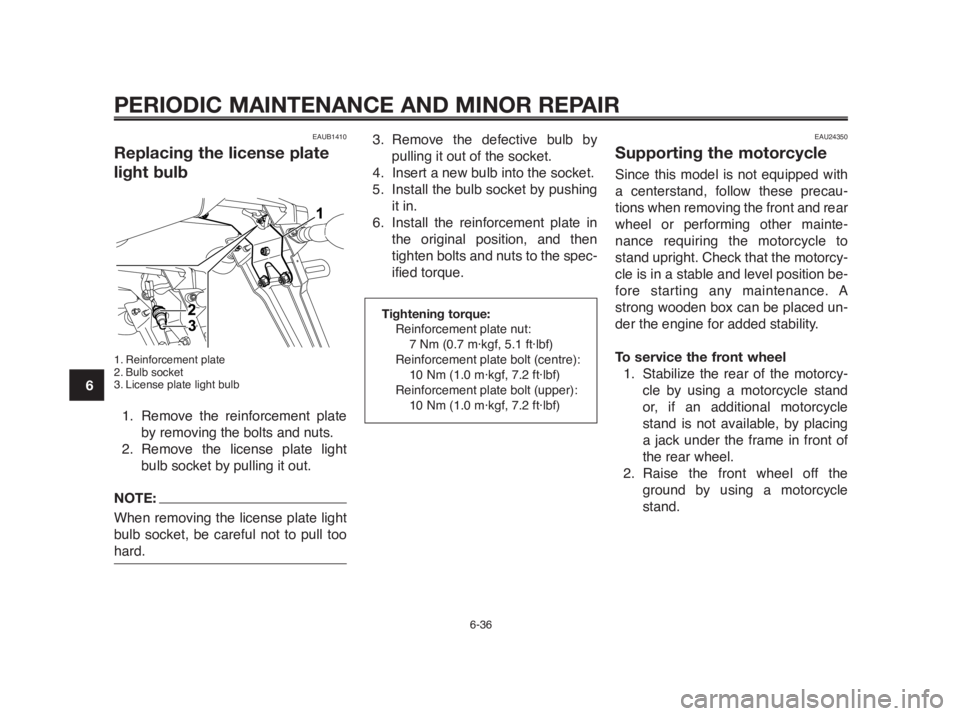

EAUB1410
Replacing the license plate
light bulb
1. Reinforcement plate
2. Bulb socket
3. License plate light bulb
1. Remove the reinforcement plate
by removing the bolts and nuts.
2. Remove the license plate light
bulb socket by pulling it out.
NOTE:
When removing the license plate light
bulb socket, be careful not to pull too
hard.
EAU24350
Supporting the motorcycle
Since this model is not equipped with
a centerstand, follow these precau-
tions when removing the front and rear
wheel or performing other mainte-
nance requiring the motorcycle to
stand upright. Check that the motorcy-
cle is in a stable and level position be-
fore starting any maintenance. A
strong wooden box can be placed un-
der the engine for added stability.
To service the front wheel
1. Stabilize the rear of the motorcy-
cle by using a motorcycle stand
or, if an additional motorcycle
stand is not available, by placing
a jack under the frame in front of
the rear wheel.
2. Raise the front wheel off the
ground by using a motorcycle
stand.
6-36
1
2
3
4
5
6
7
8
9
10
3. Remove the defective bulb by
pulling it out of the socket.
4. Insert a new bulb into the socket.
5. Install the bulb socket by pushing
it in.
6. Install the reinforcement plate in
the original position, and then
tighten bolts and nuts to the spec-
ified torque.
Tightening torque:
Reinforcement plate nut:
7 Nm (0.7 m·kgf, 5.1 ft·lbf)
Reinforcement plate bolt (centre):
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Reinforcement plate bolt (upper):
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
