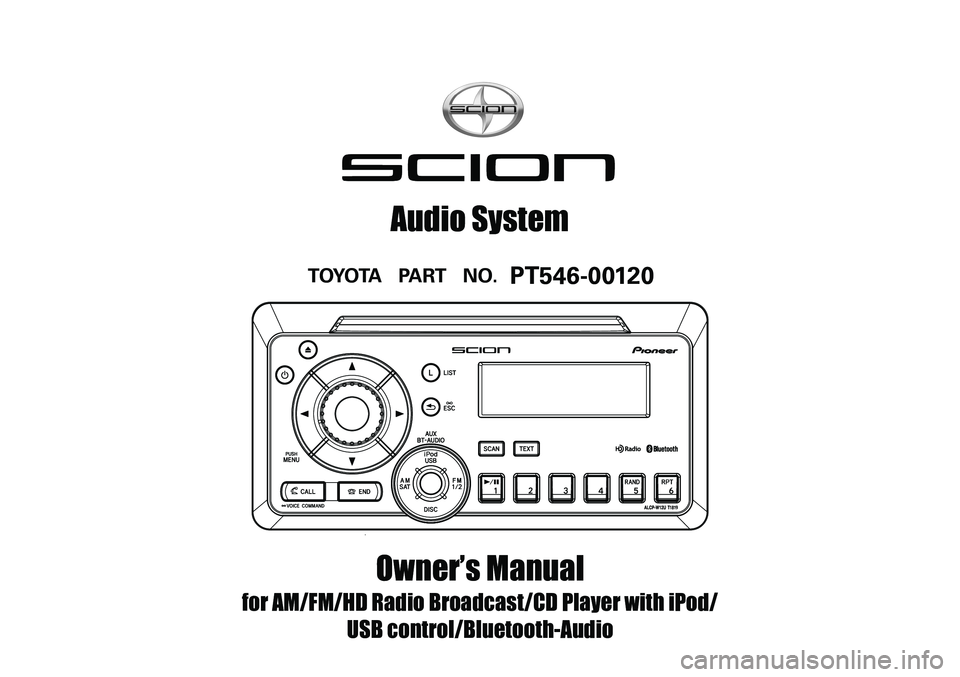

2012 TOYOTA xD bluetooth

Owner’s Manual
for AM/FM/HD Radio Broadcast/CD Player with iPod/
USB control/Bluetooth-Audio
Audio System
TOYOTA PART NO. PT546-00120

4
4

About iPod
Reproducing and playing back
non-copyrighted material and
material that can legally be
reproduced and played back for
private use is permitted with the
iPod. Infringement of copyright is
legally prohibited.
iPod and iPhone are trademarks
of Apple Inc., registered in the
U.S. and other countries.
“Made for iPod” and “Made for
iPhone” mean that an electronic
accessory has been designed
to connect specifically to iPod
or iPhone, respectively, and has
been certified by the developer
to meet Apple performance
standards. Apple is not
responsible for the operation of
this device or its compliance with
safety and regulatory standards.
Please note that the use of this
accessory with iPod or iPhone
may af fect wireless performance.
•
•
•
Apple is not responsible for
the operation of this device or
its compliance with safety and
regulatory standards.
In this manual, iPod and iPhone
will be referred to as iPod.
About XM radio

XM Satellite Radio and all related
marks and logos are trademarks of
Sirius XM Radio Inc. and its subsid-
iaries. All rights reserved. Service
not available in Alaska and Hawaii.
•
•
About HD Radio™
Technology

HD RadioTM Technology manu-
factured under license from iBiq-
uity Digital Corporation. U.S. and
Foreign Patents. HD RadioTM and
the HD, HD Radio, and “Arc” logos
are proprietary trademarks of iBiq-
uity Digital Corp.
About Bluetooth

The Bluetooth® word mark and
logos are registered trademarks
owned by Bluetooth SIG, Inc. and
any use of such marks by Pioneer
Corporation is under license. Other
trademarks and trade names are
those of their respective owners.

6
6

Contents
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3About WMA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3About iPod. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4About XM radio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4About HD Radio Technology. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4About Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4Impor tant information about this manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5To ensure the correct audio system operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5The Safet y of Your Ears is in Your Hands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5Main Displays and Possible Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7Basic Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-11Listening to the RADIO. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-13Listening to the HD Radio broadcast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-15Listening to a CD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16-17Listening to MP3/ WMA /A AC DISC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18- 0About handling the iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0 - 1Connecting the iPod. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-Disconnecting the iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Listening to songs on the iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 - 5ABC SEARCH on an iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6About handling the USB por table audio player/USB memor y. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7Connecting the USB por table audio player/USB memor y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7Listening to USB por table audio player/USB memor y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8How to subscribe to XM Satellite Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31Display the RADIO ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31Listening to a XM Satellite Radio broadcast. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34-35Using the AUX. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36-37Bluetooth Set tings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38- 40Listening to Bluetooth-Audio player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4- 4 3Phone Set tings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44- 47Using Hands-Free Phoning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48Making a Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49Changing the Opening Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50-51Initial Set ting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5Connecting an ex ternal amplifier. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53Using the Steering Controller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53-54MP3, WMA and A AC files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54MP3 additional information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55WMA additional information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55A AC additional information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55About folders and MP3/ WMA /A AC files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56USB por table audio player/ USB memor y compatibilit y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58CD player and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59CD -R and CD -RW discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59DualDiscs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60Error indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60- 63Changing or disconnecting your bat ter y. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

7
7

Main Displays and Possible Operations
or
RIGHTLEFT
UP
DOWN
ROTARY ENCODER
Possible operations are indicated.
The following are the main displays that appear during
UP/DOWN/RIGHT/LEFT and ROTARY ENCODER operation.
Each display indicates the operations that are currently
available.
You can select the next or the previous track
on a CD or iPod by pressing the RIGHT/LEFT.
You can select a setting option, etc. by
pressing the UP/DOWN/RIGHT/LEFT or
UP/DOWN.
You can select a setting option, etc. by
pressing the center of the ROTARY
ENCODER.
You can navigate a list or edit the OPENING
TITLE by pressing the ROTARY ENCODER in
the center or the UP/DOWN/RIGHT/LEFT.
You can select the next or the previous track or select a
folder on a CD , in a USB memory or Bluetooth-Audio
player by pressing the UP/DOWN/RIGHT/LEFT.
You can tune or seek a radio frequency by
pressing the UP/DOWN/RIGHT/LEFT.
You can tune the Satellite Radio broadcasting
frequency or display and switch the category
by pressing the UP/DOWN/RIGHT/LEFT.
Turn the ROTARY ENCODER to the right or left to
adjust the volume level, select a menu or select
an item from a list. Press the ROTARY ENCODER
in the center to set a selecting an item.

8
8

Basic Operation
Your audio system works when the
ignition switch is in the “ACC” or
“ON” position.
NOTICE
To avoid draining the battery,
do not leave the car audio on
longer than necessary when the
engine is not running.
1 POWERPress to turn the unit on or off.
2 ROTARY ENCODER/VOLUMETurn the ROTARY ENCODER to raise/lower the volume levels (total volume step is 64). ROTARY ENCODER operation varies depend-ing on the audio source or Menu. (Refer to page 7.)To select the following set-ting options, press the ROTARY ENCODER to switch to the AUDIO MENU. Turn the ROTARY ENCODER clockwise or counterclockwise to select an item and press the ROTARY ENCODER. You can select SET TINGS in TUNER mode or iPod mode.
SSP  AUDIO CTRL  SETTINGS 
BLUETOOTH  PHONE

10
10

NOTICE
The ASR function can only be
selected when playing MP3/
WMA /A AC from CD and iPod,
USB portable audio player/
USB memory/Bluetooth-
Audio.
The ASR function does not
support external compressed
audio media.
Switching of ASR settings is
disabled in Bluetooth-Audio
mode when no Bluetooth
device is connected or when
settings cannot be switched.
BASS function and TREBLE
function values can be set for
each of the modes (AM, FM,
CD/MP3/ WMA /A AC, iPod/USB
portable audio player/USB
memory, XM Satellite Radio,
Bluetooth audio player, AUX).
When you switch modes, the
settings change to the BASS
and TREBLE values set for the
selected mode.
The ASL function is only
effective when the vehicle is
moving.
•
•
•
•
•
SETTINGS
You can select this item in TUNER mode or iPod mode.If you select SET TINGS, you can set the following items.• HD ON/OFF (in TUNER mode)
• IPOD DIRECT (in iPod mode)
• AUDIO BOOK (in iPod mode)
To select a setting option in iPod mode, turn the ROTARY ENCODER clockwise or counterclockwise and press the ROTARY ENCODER.
IPOD DIRECT  AUDIO BOOK
HD ON/OFF:If you set HD ON/OFF to ON, digital broadcasting is preferentially selected. During SCAN or SEEK operations, the tuner searches for all digital and analog broadcasting stations.
If you set HD ON/OFF to OFF, only analog broadcasting is selected. During SCAN or SEEK operations, the tuner searches only for analog broadcasting stations.
When the ROTARY ENCODER is pressed, switches in the following order:
ON  OFF
• The setting can only be changed in
RADIO mode.
•IPOD DIRECT:A menu for turning on or off iPod direct control (in iPod mode). If you select ON, you can control iPod operations on the iPod, and you can control only the vol-ume of iPod from this unit. If you select OFF, you can control iPod operations from this unit. When the ROTARY ENCODER is pressed, switches in the following order:
OFF  ON
• The setting can only be changed in
iPod mode.
AUDIO BOOK:You can change the iPod Audiobook playback speed.
Pressing the ROTARY ENCODER repeatedly switches the setting in the following order:
NORMAL  FASTER  SLOWER
• The speed can only be changed in
iPod mode.
• While IPOD DIRECT is set to ON, the
speed cannot be changed.
NOTICE
iPod (5th generation) and iPod
nano (1st generation) do not
support iPod direct control.

11
11

BLUETOOTH
If you select BLUETOOTH, you can make the settings for connecting and controlling Bluetooth devices.To select the following setting options, turn the ROTARY ENCODER clockwise or counterclockwise and press the ROTARY ENCODER. Refer to page 38 “Bluetooth Settings.”
BT PAIRING  LIST PHONE  LIST
AUDIO  SET PASSKEY  BT POWER
ON/BT POWER OFF  BT INFO 
DISPLAY ON/DISPLAY OFF  INITIALIZE
BT PAIRING:You can connect your Bluetooth devices.
LIST PHONE:You can connect or disconnect a reg-istered Bluetooth- compatible mobile phone, or delete it from the list.
LIST AUDIO:You can connect or disconnect a reg-istered Bluetooth device, delete the device from the list, and select the connection method.
SET PASSKEY:You can set the passkey.
BT POWER ON/BT POWER OFF:You can select whether or not to auto-matically connect a Bluetooth device when the ignition switch is set to ON.
BT INFO:You can check the name and address of this unit.
•DISPLAY ON/DISPLAY OFF:You can select whether or not to dis-play the connection confirmation when a Bluetooth device is connected by setting the ignition switch to ON.
INITIALIZE:You can initialize certain setting infor-mation or all settings.
PHONE
If you select PHONE, you can edit the phonebook, set the ring tone or transfer the call histories.To select the following items, turn the ROTARY ENCODER clockwise or counterclockwise and press the ROTARY ENCODER.
PHONE BOOK  SET HF SOUND  SEND
HISTORYPHONE BOOK:You can edit the phonebook in this unit.
SET HF SOUND:When a mobile phone is connected, you can select the ring tone and adjust the volume of the call tone and ring tone.
SEND HISTORY:You can transfer the call histories on the connected mobile phone to this unit.
When the ROTARY ENCODER is pressed, switches in the following order:
YES  NO
•
3 BACKPress the BACK button to exit from the menu.Press and hold the BACK button to exit from a list that was displayed by pressing the LIST button.

38
38

Bluetooth Settings
With this unit, you can make calls
from a Bluetooth-compatible
mobile phone or play music on the
audio player.
The following Bluetooth profiles/
protocols are compatible with this
unit.
HFP
OPP
PBAP
ADP
AVRCP
SDP
To make the settings for the
Bluetooth device, display the
BLUETOOTH menu by the follow-
ing operation.
1 Press the ROTARY ENCODER to
display the AUDIO menu.
2 Turn the ROTARY ENCODER to
select BLUETOOTH, and press
the ROTARY ENCODER.
•
•
•
•
•
•
Connecting a Bluetooth DeviceYou can connect a Bluetooth device by the following operation.
1 Turn the ROTARY ENCODER
to select BT PAIRING, and press the ROTARY ENCODER.
2 Send the passkey from the
mobile phone. Connection is completed when “CONNECTED” is displayed. The device is registered in the Bluetooth list in this unit. You can register up to five devices.
Connecting a Pre-registered Bluetooth Mobile PhoneYou can connect a registered Bluetooth mobile phone by the fol-lowing operation.
1 Turn the ROTARY ENCODER
to select LIST PHONE, and press the ROTARY ENCODER.
2 Turn the ROTARY ENCODER
to select the phone you want to connect from the phone list, and press the ROTARY ENCODER.
3 Turn the ROTARY ENCODER
to select SELECT, and press the ROTARY ENCODER. If another phone is already connected, turn the ROTARY ENCODER to select YES (disconnect) or NO (not dis-connect). Disconnection is completed when indi-cated “DISCONNECTIN BLUETOOTH DEVICE” is disappeared. Return to step 2, when disconnection is
completed.Connection is com-pleted when “CONNECTED” is displayed.
Connecting a Registered Bluetooth Audio PlayerYou can connect a registered Bluetooth audio player by the fol-lowing operation.
1 Turn the ROTARY ENCODER
to select LIST AUDIO, and press the ROTARY ENCODER.
Subsequent operation is the same as from Step 2 on in “Connecting a Registered Bluetooth Mobile Phone.”
Disconnecting a Bluetooth Mobile PhoneYou can disconnect a Bluetooth mobile phone by the following operation.
1 Turn the ROTARY ENCODER
to select LIST PHONE, and press the ROTARY ENCODER.
2 Turn the ROTARY ENCODER
to select the phone you want to disconnect from the phone list, and press the ROTARY ENCODER.
3 Turn the ROTARY ENCODER
to select DISCONNECT, and press the ROTARY ENCODER.
4 Turn the ROTARY ENCODER
to select YES, and press the ROTARY ENCODER. Disconnection is com-pleted when indicated “DISCONNECTIN BLUETOOTH DEVICE” is disappeared.
