2012 TOYOTA VERSO steering

276 2-5. Driving information
VERSO_WE_OM64524E
CAUTION
Storage precautions
Observe the following precautions.
Failing to do so may result in death or serious injury.
Do not stack anything in the luggage compartment higher than the seat-
backs.
Such items may be thrown about and possibly injure people in the vehicle
in the event of sudden braking or in an accident.
Do not place cargo or luggage in or on the following locations as the items
may get under the clutch, brake or accelerator pedal and prevent the ped-
als from being depressed properly, block the driver’s vision, or hit the
driver or passengers, causing an accident.
• At the feet of the driver
• On the front passenger or rear seats (when stacking items)
• On the luggage cover
• On the instrument panel
• On the dashboard
Secure all items in the occupant compartment, as they may shift and injure
someone during sudden braking, sudden swerving or an accident.
Never allow anyone to ride in the luggage compartment. It is not designed
for passengers. They should ride in their seats with their seat belts prop-
erly fastened. Otherwise, they are much more likely to suffer death or seri-
ous bodily injury, in the event of sudden braking, sudden swerving or an
accident.
Load and distribution
Do not overload your vehicle.
Do not apply loads unevenly.
Improper loading may cause deterioration of steering or braking control
which may cause death or serious injury.

288 2-5. Driving information
VERSO_WE_OM64524E
Guidance
Your vehicle will handle differently when towing a trailer. In order to
avoid accident, death or serious injury, keep the following in mind
when towing:
Checking connections between trailer and lights
Stop the vehicle and check the operation of the connection
between the trailer and lights after driving for a brief period as well
as before setting off.
Practicing driving with a coupled trailer
Get the feel for turning, stopping and reversing with the trailer
coupled by practicing in an area with no or light traffic.
When reversing with a coupled trailer, hold the section of the
steering wheel nearest to you and rotate clockwise to turn the
trailer left or counterclockwise to turn right. Always rotate gradu-
ally to prevent steering error. Have someone guide you when
reversing to lessen the risk of accident.
Increasing vehicle-to-vehicle distance
At a speed of 10 km/h (6 mph), the distance to the vehicle running
ahead of you should be equivalent to or greater than the combined
length of your vehicle and trailer. Avoid sudden braking that may
cause skidding. Otherwise, the vehicle may spin out of control.
This is especially true when driving on wet or slippery road sur-
faces.
Sudden acceleration/steering input/cornering
Executing sharp turns when towing may result in the trailer collid-
ing with your vehicle. Decelerate well in advance when approach-
ing turns and take them slowly and carefully to avoid sudden
braking.

3Interior features
291
VERSO_WE_OM64524E
3-1. Using the air conditioning
system and defogger
Manual air conditioning
system ............................ 292
Automatic air conditioning
system ............................ 297
Power heater .................... 304
Rear window and outside
rear view mirror
defoggers ....................... 306
3-2. Using the audio system
Audio system types .......... 308
Using the radio ................. 314
Using the CD player ......... 319
Playing back MP3 and
WMA discs...................... 324
Operating an iPod............. 330
Operating a USB
memory........................... 336
Optimal use of the audio
system ............................ 343
Using the AUX port ........... 345
Using the steering wheel
audio switches ................ 346
3-3. Using the interior lights
Interior lights list................ 349
• Personal/interior lights
main switch ..................... 350
• Personal/interior lights .... 3513-4. Using the storage features
List of storage features ..... 352
• Glove box ....................... 353
• Console box.................... 354
• Overhead console .......... 355
• Cup holders .................... 356
• Bottle holders.................. 357
• Auxiliary boxes ............... 358
3-5. Other interior features
Sun visors ......................... 361
Vanity mirror ..................... 362
Conversation mirror .......... 363
Portable ashtray................ 364
Cigarette lighter ................ 365
Power outlet ...................... 366
Seat heaters ..................... 368
Armrest ............................. 370
Front seatback table ......... 371
Panoramic roof shade....... 373
Rear side sunshades ........ 376
Floor mat........................... 377
Luggage compartment
features........................... 379

309 3-2. Using the audio system
3
Interior features
VERSO_WE_OM64524E
Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular
phone is being used inside or close to the vehicle while the audio system is
operating.
TitlePage
Using the radioP. 314
Using the CD playerP. 319
Playing back MP3 and WMA discsP. 324
Operating an iPodP. 330
Operating a USB memoryP. 336
Optimal use of the audio systemP. 343
Using the AUX portP. 345
Using the steering wheel audio switchesP. 346

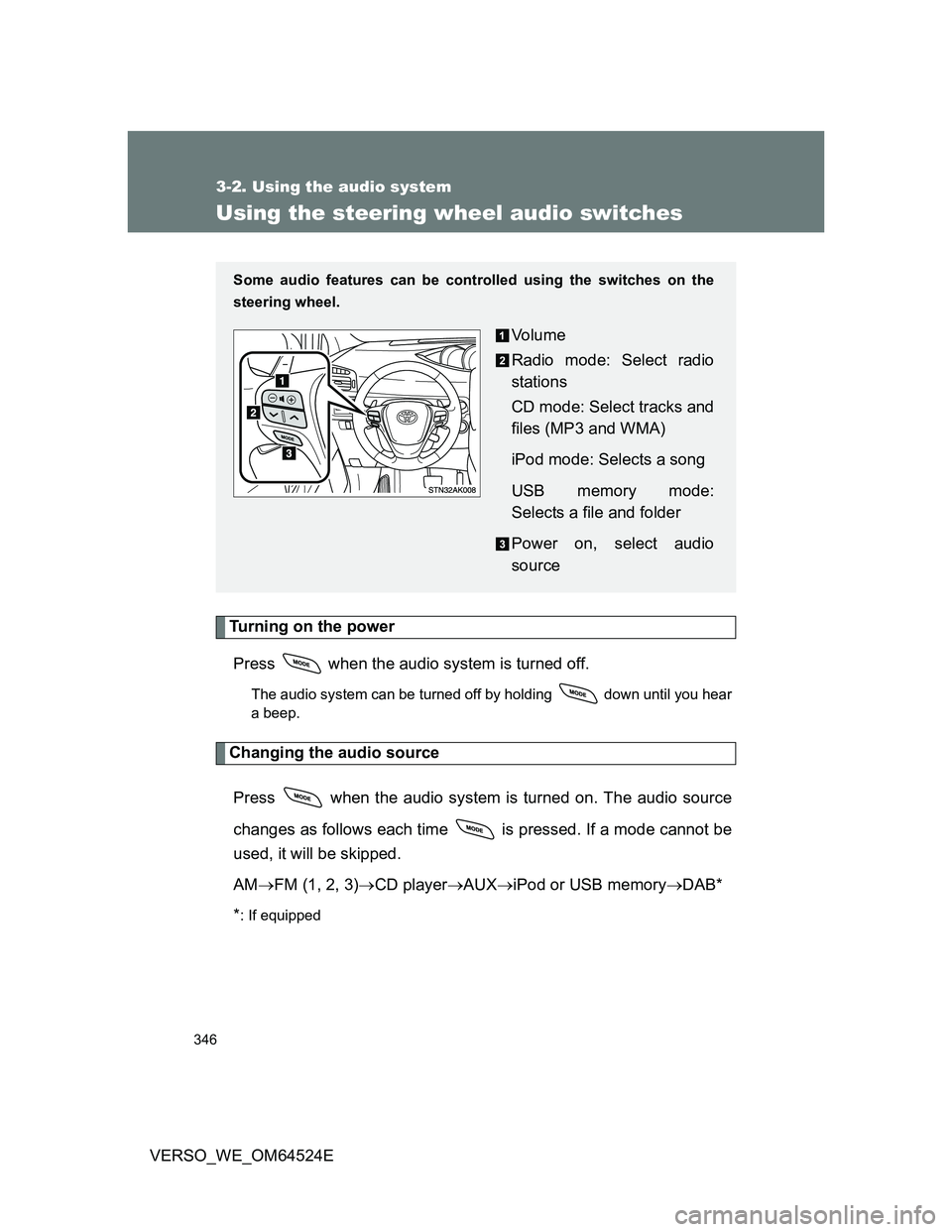

346
3-2. Using the audio system
VERSO_WE_OM64524E
Using the steering wheel audio switches
Turning on the power
Press when the audio system is turned off.
The audio system can be turned off by holding down until you hear
a beep.
Changing the audio source
Press when the audio system is turned on. The audio source
changes as follows each time is pressed. If a mode cannot be
used, it will be skipped.
AMFM (1, 2, 3)CD playerAUXiPod or USB memoryDAB*
*
: If equipped
Some audio features can be controlled using the switches on the
steering wheel.
Vo l u m e
Radio mode: Select radio
stations
CD mode: Select tracks and
files (MP3 and WMA)
iPod mode: Selects a song
USB memory mode:
Selects a file and folder
Power on, select audio
source

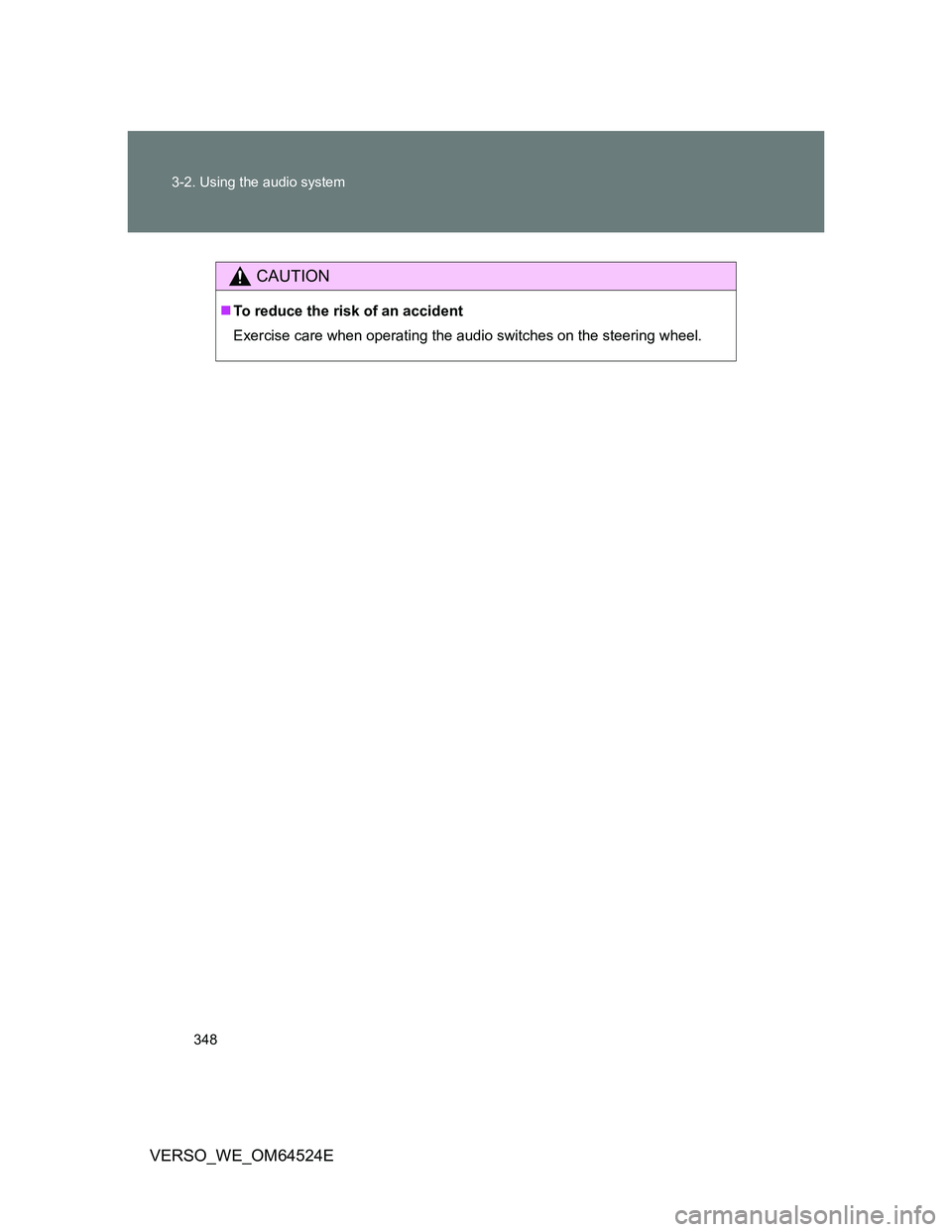

348 3-2. Using the audio system
VERSO_WE_OM64524E
CAUTION
To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.

442 4-3. Do-it-yourself maintenance
VERSO_WE_OM64524E
7 EPS 80 A Electric power steering
8GLOW
*180 A Engine glow system
9P-SYSTEM
*230 A VALVEMATIC system
10 P/I 50 A EFI MAIN, HORN, IG2, EDU
11 H-LP MAIN 50 AH-LP LH LO, H-LP RH LO, H-LP
LH HI, H-LP RH HI
12 E-PKB 30 A No circuit
13 SPARE 10 A Spare fuse
14 SPARE 30 A Spare fuse
15 SPARE 20 A Spare fuse
16 AMP 30 A No circuit
17 DOOR NO.2 25 A Main body ECU
18 ECU-B2 10 ASmart entry & start system, air con-
ditioning system, power windows
19 ECU-B 10 AGauges and meters, main body
ECU, steering sensor, double lock-
ing system, wireless remote con-
trol, smart entry & start system
20 RAD NO.1 15 A Audio system
21 DOME 10 ALuggage compartment light, vanity
lights, engine switch light, front
door courtesy lights, personal/inte-
rior lights, personal lights, foot
lights
22 AM2 NO.2 7.5 A Starting system
23 ALT-S 7.5 A No circuit
24 TURN-HAZ 10 ATurn signal lights, emergency
flashers
25 ETCS
*210 A Electronic throttle control system
26 AM2 30 A Starting system
FuseAmpereCircuit

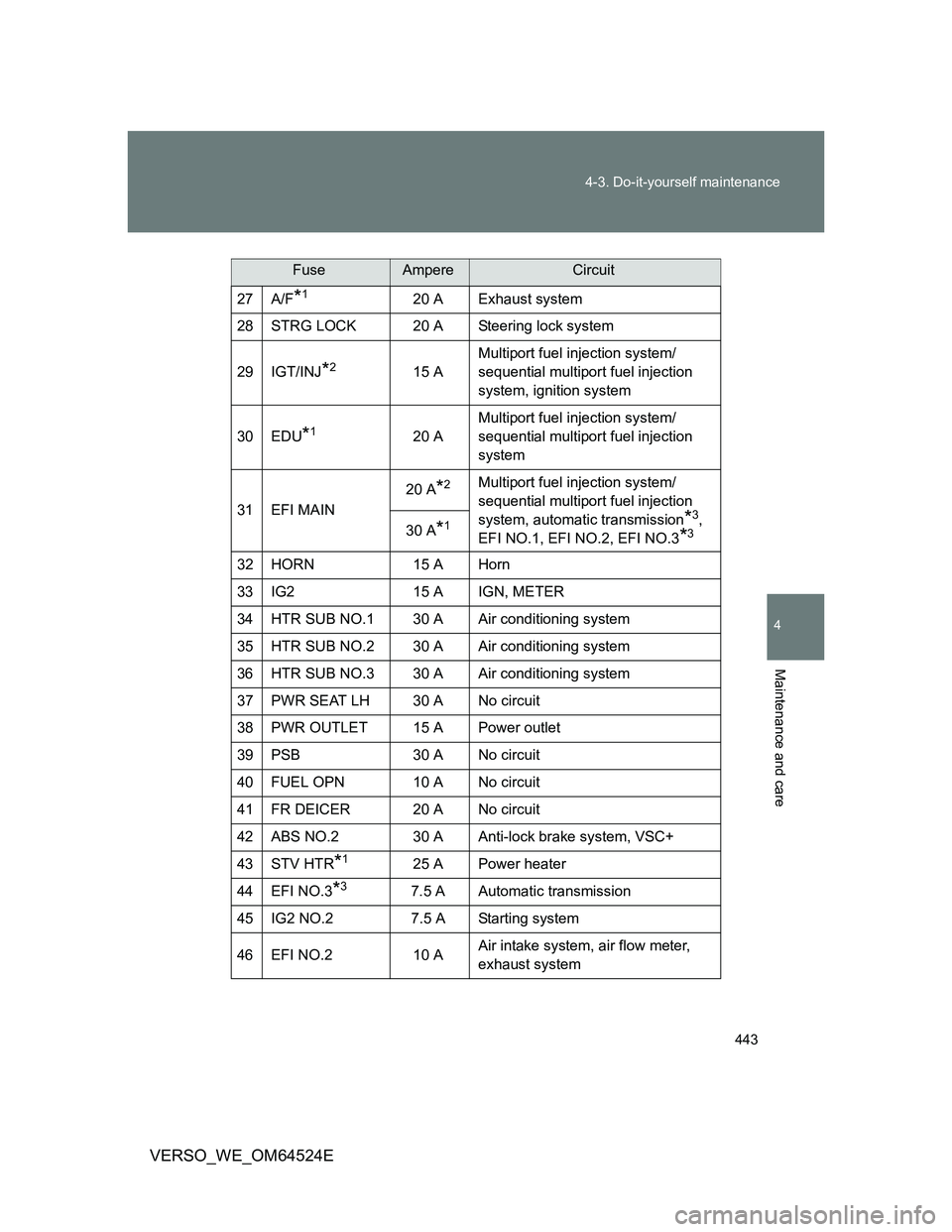

443 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_WE_OM64524E
27 A/F*120 A Exhaust system
28 STRG LOCK 20 A Steering lock system
29 IGT/INJ
*215 AMultiport fuel injection system/
sequential multiport fuel injection
system, ignition system
30 EDU
*120 AMultiport fuel injection system/
sequential multiport fuel injection
system
31 EFI MAIN20 A
*2Multiport fuel injection system/
sequential multiport fuel injection
system, automatic transmission
*3,
EFI NO.1, EFI NO.2, EFI NO.3
*330 A*1
32 HORN 15 A Horn
33 IG2 15 A IGN, METER
34 HTR SUB NO.1 30 A Air conditioning system
35 HTR SUB NO.2 30 A Air conditioning system
36 HTR SUB NO.3 30 A Air conditioning system
37 PWR SEAT LH 30 A No circuit
38 PWR OUTLET 15 A Power outlet
39 PSB 30 A No circuit
40 FUEL OPN 10 A No circuit
41 FR DEICER 20 A No circuit
42 ABS NO.2 30 A Anti-lock brake system, VSC+
43 STV HTR
*125 A Power heater
44 EFI NO.3
*37.5 A Automatic transmission
45 IG2 NO.2 7.5 A Starting system
46 EFI NO.2 10 AAir intake system, air flow meter,
exhaust system
FuseAmpereCircuit
