2012 TOYOTA VERSO steering

5

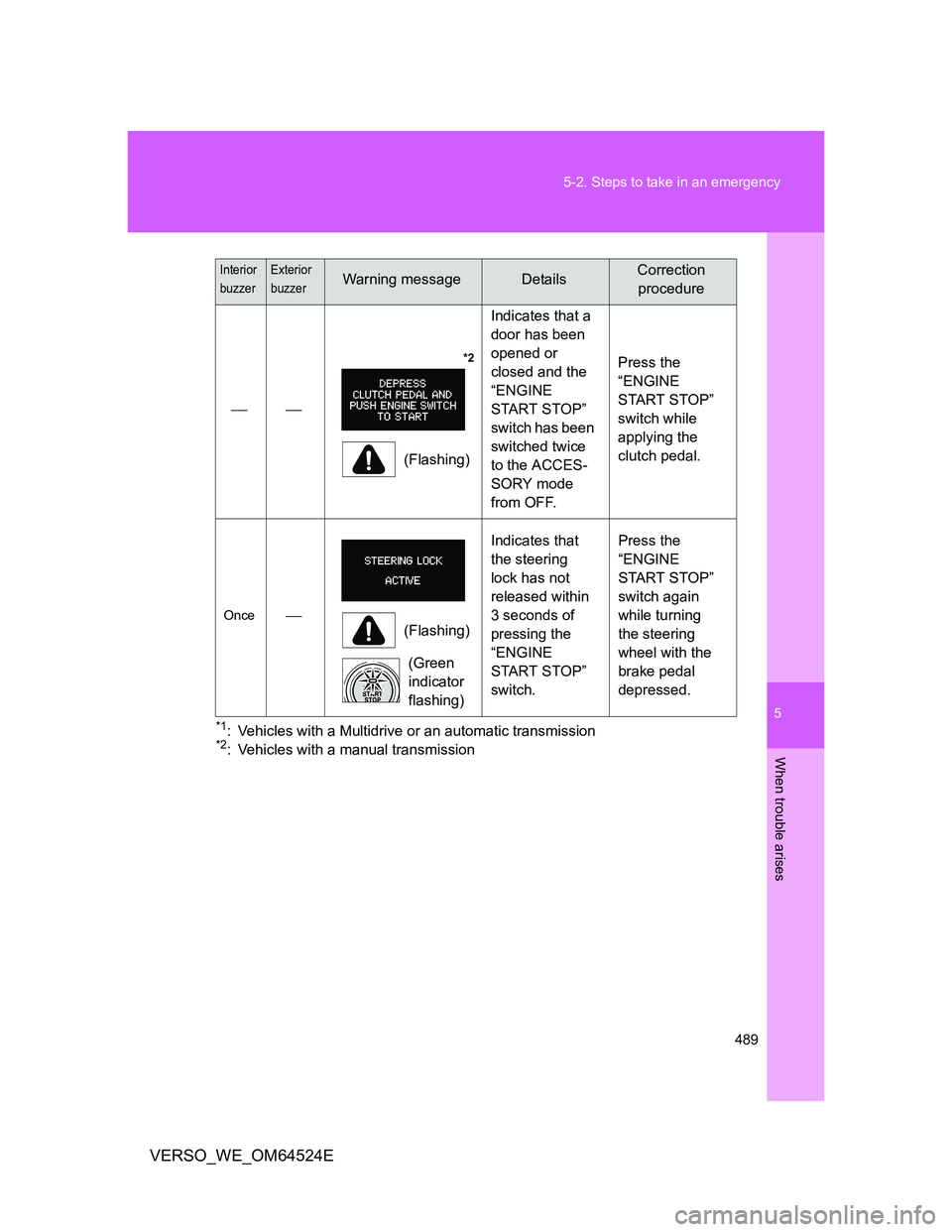

489 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64524E
*1: Vehicles with a Multidrive or an automatic transmission*2: Vehicles with a manual transmission
*2
(Flashing)Indicates that a
door has been
opened or
closed and the
“ENGINE
START STOP”
switch has been
switched twice
to the ACCES-
SORY mode
from OFF.Press the
“ENGINE
START STOP”
switch while
applying the
clutch pedal.
Once
(Flashing)
(Green
indicator
flashing)Indicates that
the steering
lock has not
released within
3 seconds of
pressing the
“ENGINE
START STOP”
switch.Press the
“ENGINE
START STOP”
switch again
while turning
the steering
wheel with the
brake pedal
depressed.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure

5
519
5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64524E
If the engine will not start
If the engine still does not start after following the correct starting
procedure (P. 186, 190) or releasing the steering lock (P. 188,
193), confirm the following points.
The engine will not start even if you are carrying the correct
key
One of the following may be the cause of the problem.
There may not be sufficient fuel in the vehicle’s tank.
Gasoline engine: Refuel the vehicle.
Diesel engine: (P. 535)
The engine may be flooded. (gasoline engine)
Try to restart the engine once more following correct starting
procedures. (P. 186, 190)
There may be a malfunction in the engine immobilizer system.
(P. 112)
The starter motor turns over slowly, the personal/interior
lights and headlights are dim, or the horn does not sound or
sounds at a low volume
One of the following may be the cause of the problem.
The battery may be discharged. (P. 528)
The battery terminal connections may be loose or corroded.
The starter motor does not turn over (vehicles with smart
entry & start system)
The engine starting system may be malfunctioning due to an
electrical problem such as an open circuit or a blown fuse. How-
ever, an interim measure is available to start the engine.
(P. 520)

520 5-2. Steps to take in an emergency
VERSO_WE_OM64524E
Emergency start function (vehicles with smart entry & start system)
When the engine does not start, the following steps can be used as
an interim measure to start the engine if the “ENGINE START STOP”
switch is functioning normally.
Vehicles with a Multidrive or an automatic transmission
Set the parking brake.
Put the shift lever in “P”.
Set the “ENGINE START STOP” switch to the ACCESSORY
mode.
Press and hold the “ENGINE START STOP” switch about 15
seconds while depressing the brake pedal firmly.
The starter motor does not turn over, the personal/interior
lights and headlights do not turn on, or the horn does not
sound
One of the following may be the cause of the problem.
One or both of the battery terminals may be disconnected.
The battery may be discharged. (P. 528)
There may be a malfunction in the steering lock system. (vehi-
cles with smart entry & start system)
Contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional, if the problem cannot be
repaired, or if repair procedures are unknown.

5

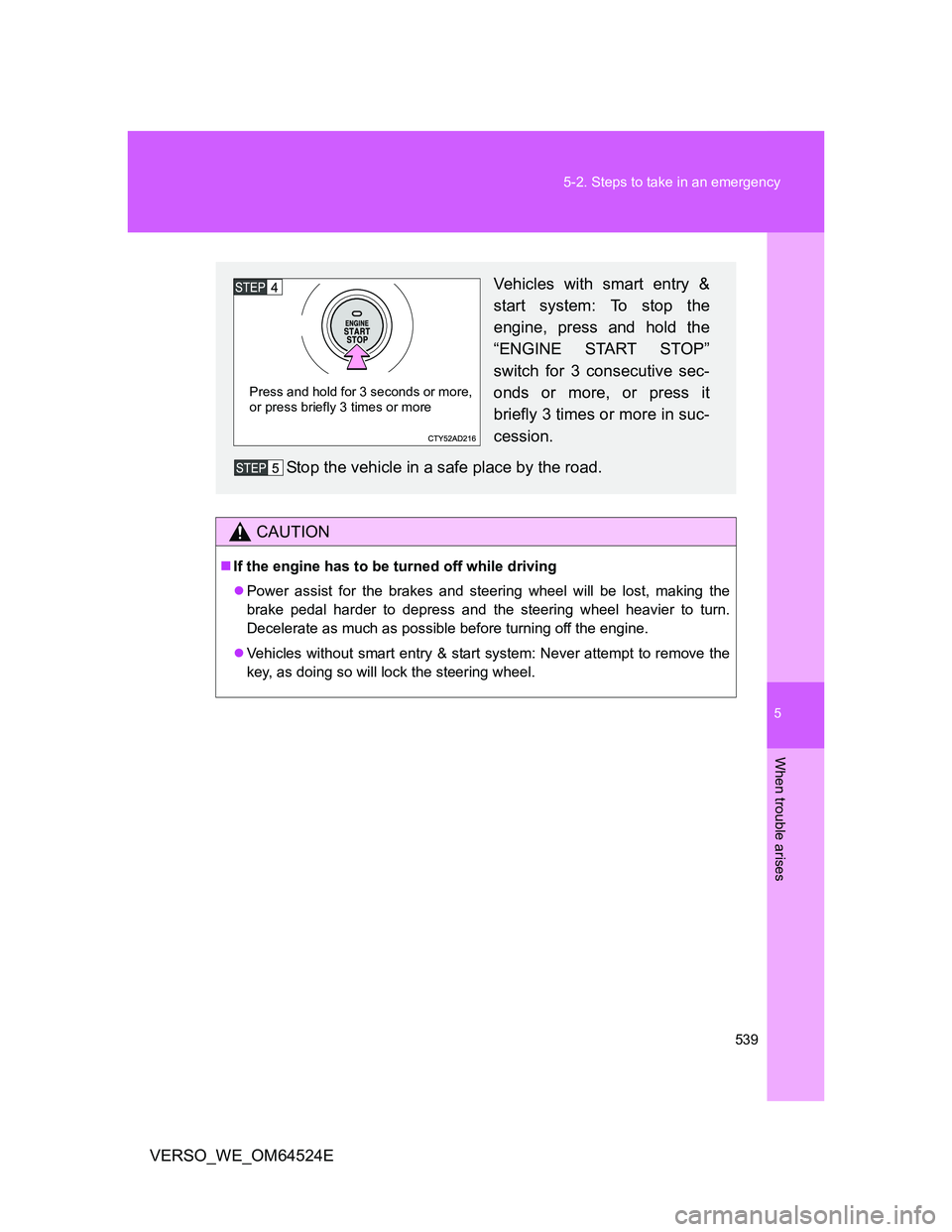

539 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64524E
CAUTION
If the engine has to be turned off while driving
Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
Vehicles without smart entry & start system: Never attempt to remove the
key, as doing so will lock the steering wheel.
Vehicles with smart entry &
start system: To stop the
engine, press and hold the
“ENGINE START STOP”
switch for 3 consecutive sec-
onds or more, or press it
briefly 3 times or more in suc-
cession.
Stop the vehicle in a safe place by the road.
Press and hold for 3 seconds or more,
or press briefly 3 times or more

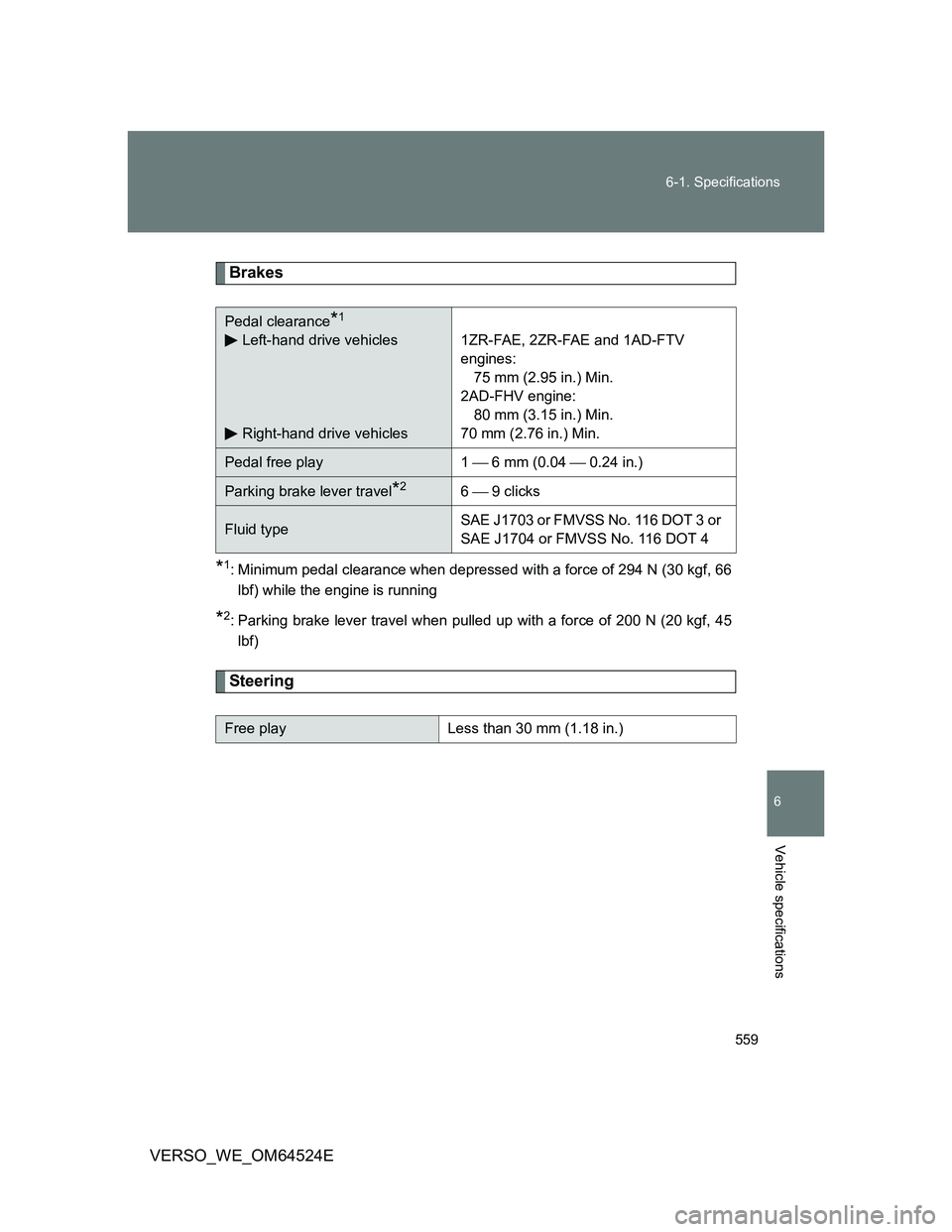

559 6-1. Specifications
6
Vehicle specifications
VERSO_WE_OM64524E
Brakes
*1: Minimum pedal clearance when depressed with a force of 294 N (30 kgf, 66
lbf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 200 N (20 kgf, 45
lbf)
Steering
Pedal clearance*1
Left-hand drive vehicles
Right-hand drive vehicles1ZR-FAE, 2ZR-FAE and 1AD-FTV
engines:
75 mm (2.95 in.) Min.
2AD-FHV engine:
80 mm (3.15 in.) Min.
70 mm (2.76 in.) Min.
Pedal free play 1  6 mm (0.04  0.24 in.)
Parking brake lever travel*26  9 clicks
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3 or
SAE J1704 or FMVSS No. 116 DOT 4
Free playLess than 30 mm (1.18 in.)

574
VERSO_WE_OM64524E
Abbreviation list
Abbreviation/Acronym list
ABBREVIATIONSMEANING
ABS Anti-lock Brake System
CRS Child Restraint System
DISP Display
ECU Electronic Control Unit
ELR Emergency Locking Retractor
EPS Electric Power Steering
GVM Gross Vehicle Mass
LED Light Emitting Diode
MPAC Maximum Permissible Axle Capacity
SRS Supplemental Restraint System
TRC Traction Control
TWI Treadwear Indicators
VIN Vehicle Identification Number
VSC+ Vehicle Stability Control+

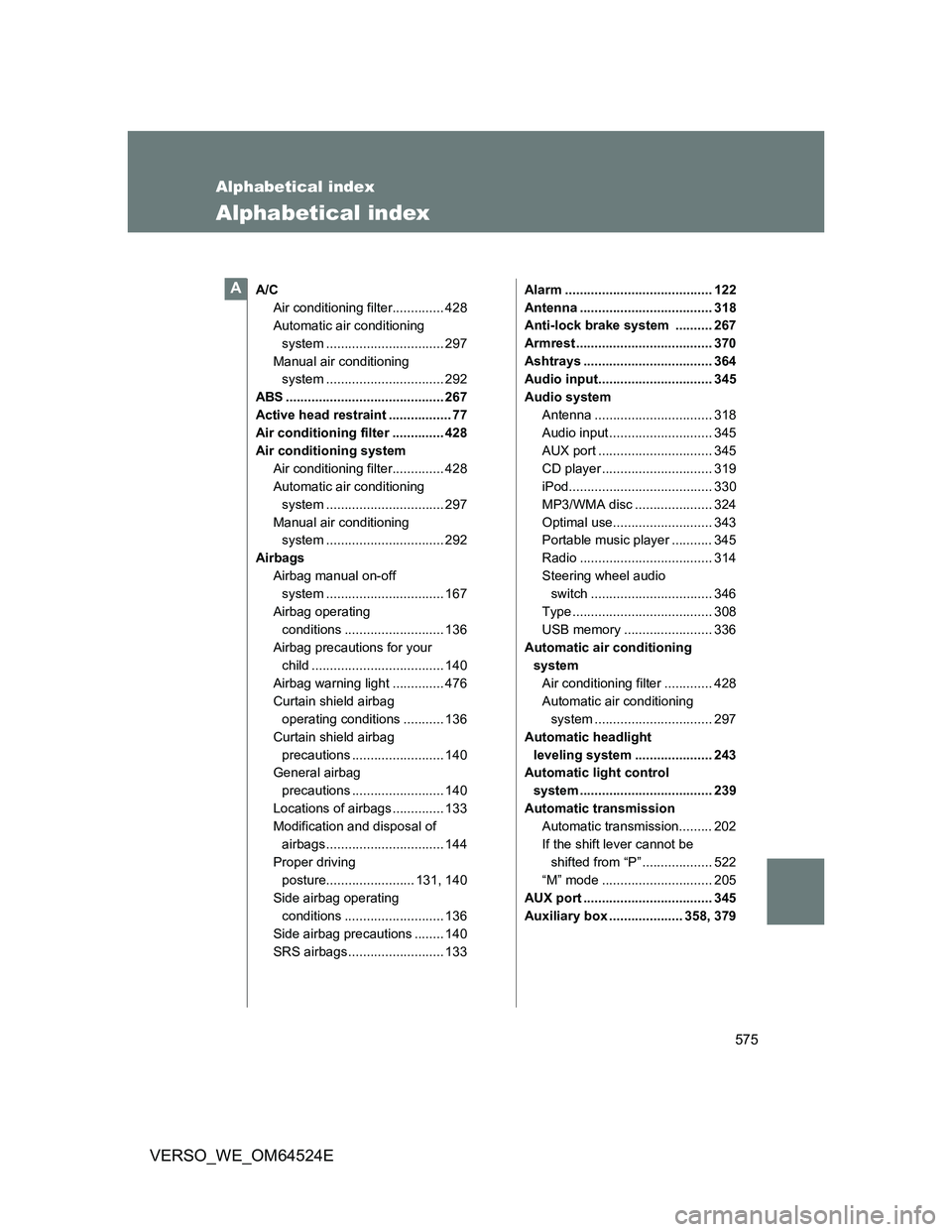

575
VERSO_WE_OM64524E
Alphabetical index
Alphabetical index
A/C
Air conditioning filter.............. 428
Automatic air conditioning
system ................................ 297
Manual air conditioning
system ................................ 292
ABS ........................................... 267
Active head restraint ................. 77
Air conditioning filter .............. 428
Air conditioning system
Air conditioning filter.............. 428
Automatic air conditioning
system ................................ 297
Manual air conditioning
system ................................ 292
Airbags
Airbag manual on-off
system ................................ 167
Airbag operating
conditions ........................... 136
Airbag precautions for your
child .................................... 140
Airbag warning light .............. 476
Curtain shield airbag
operating conditions ........... 136
Curtain shield airbag
precautions ......................... 140
General airbag
precautions ......................... 140
Locations of airbags .............. 133
Modification and disposal of
airbags ................................ 144
Proper driving
posture........................ 131, 140
Side airbag operating
conditions ........................... 136
Side airbag precautions ........ 140
SRS airbags .......................... 133Alarm ........................................ 122
Antenna .................................... 318
Anti-lock brake system .......... 267
Armrest ..................................... 370
Ashtrays ................................... 364
Audio input............................... 345
Audio system
Antenna ................................ 318
Audio input ............................ 345
AUX port ............................... 345
CD player .............................. 319
iPod....................................... 330
MP3/WMA disc ..................... 324
Optimal use........................... 343
Portable music player ........... 345
Radio .................................... 314
Steering wheel audio
switch ................................. 346
Type ...................................... 308
USB memory ........................ 336
Automatic air conditioning
system
Air conditioning filter ............. 428
Automatic air conditioning
system ................................ 297
Automatic headlight
leveling system ..................... 243
Automatic light control
system .................................... 239
Automatic transmission
Automatic transmission......... 202
If the shift lever cannot be
shifted from “P” ................... 522
“M” mode .............................. 205
AUX port ................................... 345
Auxiliary box .................... 358, 379A

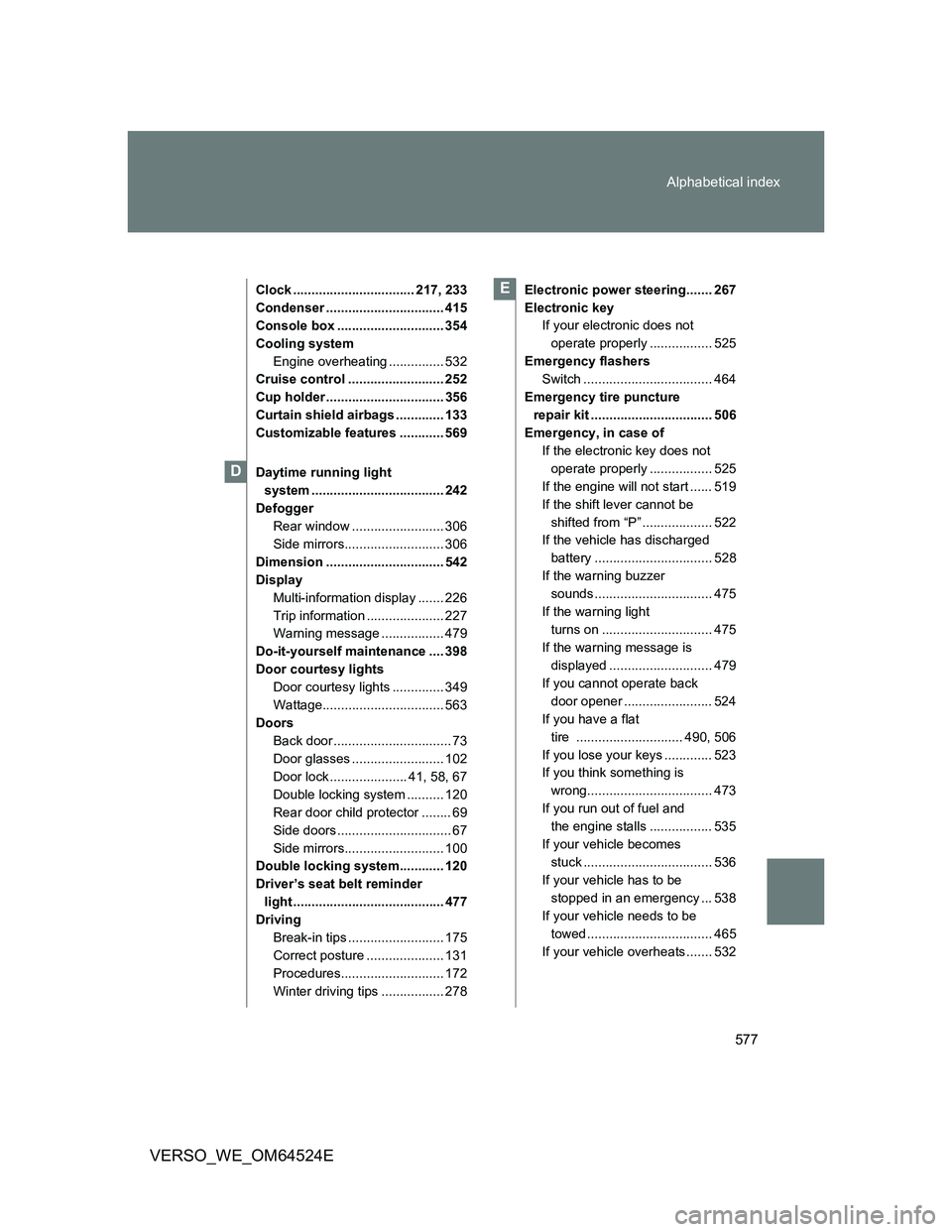

577 Alphabetical index
VERSO_WE_OM64524E
Clock ................................. 217, 233
Condenser ................................ 415
Console box ............................. 354
Cooling system
Engine overheating ............... 532
Cruise control .......................... 252
Cup holder ................................ 356
Curtain shield airbags ............. 133
Customizable features ............ 569
Daytime running light
system .................................... 242
Defogger
Rear window ......................... 306
Side mirrors........................... 306
Dimension ................................ 542
Display
Multi-information display ....... 226
Trip information ..................... 227
Warning message ................. 479
Do-it-yourself maintenance .... 398
Door courtesy lights
Door courtesy lights .............. 349
Wattage................................. 563
Doors
Back door ................................ 73
Door glasses ......................... 102
Door lock ..................... 41, 58, 67
Double locking system .......... 120
Rear door child protector ........ 69
Side doors ............................... 67
Side mirrors........................... 100
Double locking system............ 120
Driver’s seat belt reminder
light ......................................... 477
Driving
Break-in tips .......................... 175
Correct posture ..................... 131
Procedures............................ 172
Winter driving tips ................. 278Electronic power steering....... 267
Electronic key
If your electronic does not
operate properly ................. 525
Emergency flashers
Switch ................................... 464
Emergency tire puncture
repair kit ................................. 506
Emergency, in case of
If the electronic key does not
operate properly ................. 525
If the engine will not start ...... 519
If the shift lever cannot be
shifted from “P” ................... 522
If the vehicle has discharged
battery ................................ 528
If the warning buzzer
sounds ................................ 475
If the warning light
turns on .............................. 475
If the warning message is
displayed ............................ 479
If you cannot operate back
door opener ........................ 524
If you have a flat
tire ............................. 490, 506
If you lose your keys ............. 523
If you think something is
wrong.................................. 473
If you run out of fuel and
the engine stalls ................. 535
If your vehicle becomes
stuck ................................... 536
If your vehicle has to be
stopped in an emergency ... 538
If your vehicle needs to be
towed .................................. 465
If your vehicle overheats ....... 532
D
E
