2012 TOYOTA SIENNA ECO mode

768 5-2. Steps to take in an emergency
SIENNA_U (OM45477U)
Changing “ENGINE START STOP” switch modes and starting the
engine
Shift the shift lever to P and apply the brakes. Touch the Toyota emblem side of
the electronic key to the
“ENGINE START STOP” switch.
An alarm will sound to indicate
that the start function cannot
detect the electronic key that is
touched to the “ENGINE START
STOP” switch if any of the doors
is opened and closed while the
key is touched to the switch.
To change “ENGINE START STOP” switch modes: Within 10
seconds of the buzzer soundin g, release the brake pedal and
press the “ENGINE START STOP” switch. Modes can be
changed each time the sw itch is pressed. (P. 231)
To start the engine: Press the “ENGINE START STOP” switch
within 10 seconds after the buz zer sounds, keeping the brake
pedal depressed.
In the event that the “ENGINE START STOP” switch cannot be oper-
ated, contact your Toyota dealer.
STEP1
STEP2
STEP3

772 5-2. Steps to take in an emergency
SIENNA_U (OM45477U)

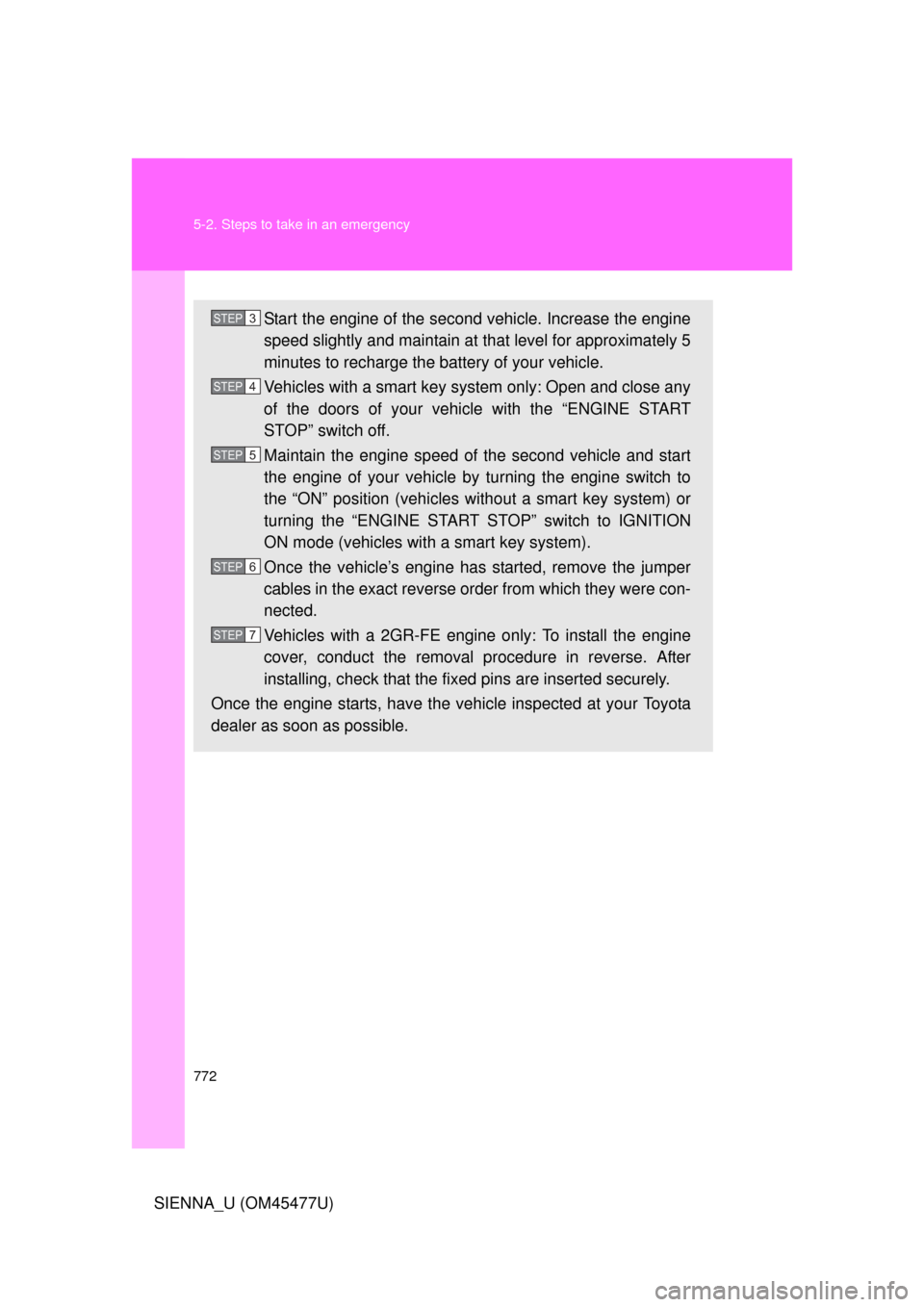

Start the engine of the second vehicle. Increase the engine
speed slightly and maintain at that level for approximately 5
minutes to recharge the battery of your vehicle.
Vehicles with a smart key system only: Open and close any
of the doors of your vehicle with the “ENGINE START
STOP” switch off.
Maintain the engine speed of the second vehicle and start
the engine of your vehicle by turning the engine switch to
the “ON” position (vehicles without a smart key system) or
turning the “ENGINE START STOP” switch to IGNITION
ON mode (vehicles with a smart key system).
Once the vehicle’s engine has started, remove the jumper
cables in the exact reverse or der from which they were con-
nected.
Vehicles with a 2GR-FE engine only: To install the engine
cover, conduct the removal procedure in reverse. After
installing, check that the fixed pins are inserted securely.
Once the engine starts, have the vehicle inspected at your Toyota
dealer as soon as possible.STEP3
STEP4
STEP5
STEP6
STEP7

847
Alphabetical index
SIENNA_U (OM45477U)
Electric power steering........... 327
Electronic key
If your electronic key
does not operate
properly .............................. 767
Emergency, in case of
If the back door opener is inoperative ........................... 86
If the electronic key
does not operate
properly .............................. 767
If the engine will not start...... 762
If the shift lever cannot be
shifted ................................ 764
If the vehicle has
discharged battery ............. 770
If the warning buzzer sounds... ........................... 729
If the warning light turns on .............................. 729
If the warning message is displayed ............................ 744
If you have a flat tire .... 745, 747
If you lose your keys............. 766
If you think something is wrong ................................. 727
If your vehicle becomes stuck................................... 778
If your vehicle has to be stopped in an emergency ................ 780
If your vehicle needs to be
towed ................................. 723
If your vehicle overheats ...... 775
Emergency flashers ................ 722 Engine
Accessory mode....................231
Compartment ........................655
Engine switch ................226, 229
Hood......................................651
How to start the engine .........................226, 229
Identification number .............785
If the engine will not start ......762
Ignition switch................226, 229
Overheating...........................775
Engine coolant
Capacity ................................790
Checking ...............................662
Preparing and checking before winter .......................352
Engine coolan t temperature
gauge ......................................244
Engine immobilizer system.....159
Engine oil Capacity ................................788
Checking ...............................657
Preparing and checking before winter .......................352
Engine switch ...................226, 229
EPS ............................................327
Event data recorder ...................27E
