2012 TOYOTA SIENNA fuel cap

TABLE OF CONTENTSIndex
2
SIENNA_U (OM45477U)
1-1. Key informationKeys ..................................... 32
1-2. Opening, closing and locking
the doors
Smart key system................. 36
Wireless remote control ....... 53
Front doors ........................... 60
Sliding doors ........................ 67
Back door ............................. 82
1-3. Adjustable components (seats, mirrors, steering
wheel)
Front seats ........................... 95
Rear seats .......................... 100
Driving position memory ............................ 120
Head restraints ................... 125
Seat belts ........................... 128
Steering wheel ................... 137
Inside rear view mirror........ 138
Outside rear view mirrors .............................. 140 1-4. Openi
ng and closing the
win dows and moon roof
Power windows................... 144
Quarter windows................. 148
Moon roof ........................... 150
1-5. Refueling Opening the fuel tank cap ............................ 155
1-6. Theft deterrent system Engine immobilizer system .............................. 159
Alarm .................................. 162
Theft prevention labels (for U.S.A.) ....................... 165
1-7. Safety information Correct driving posture ....... 166
SRS airbags ....................... 168
Front passenger occupant classification system ......... 183
Child restraint systems ....... 189
Installing child restraints ..... 194

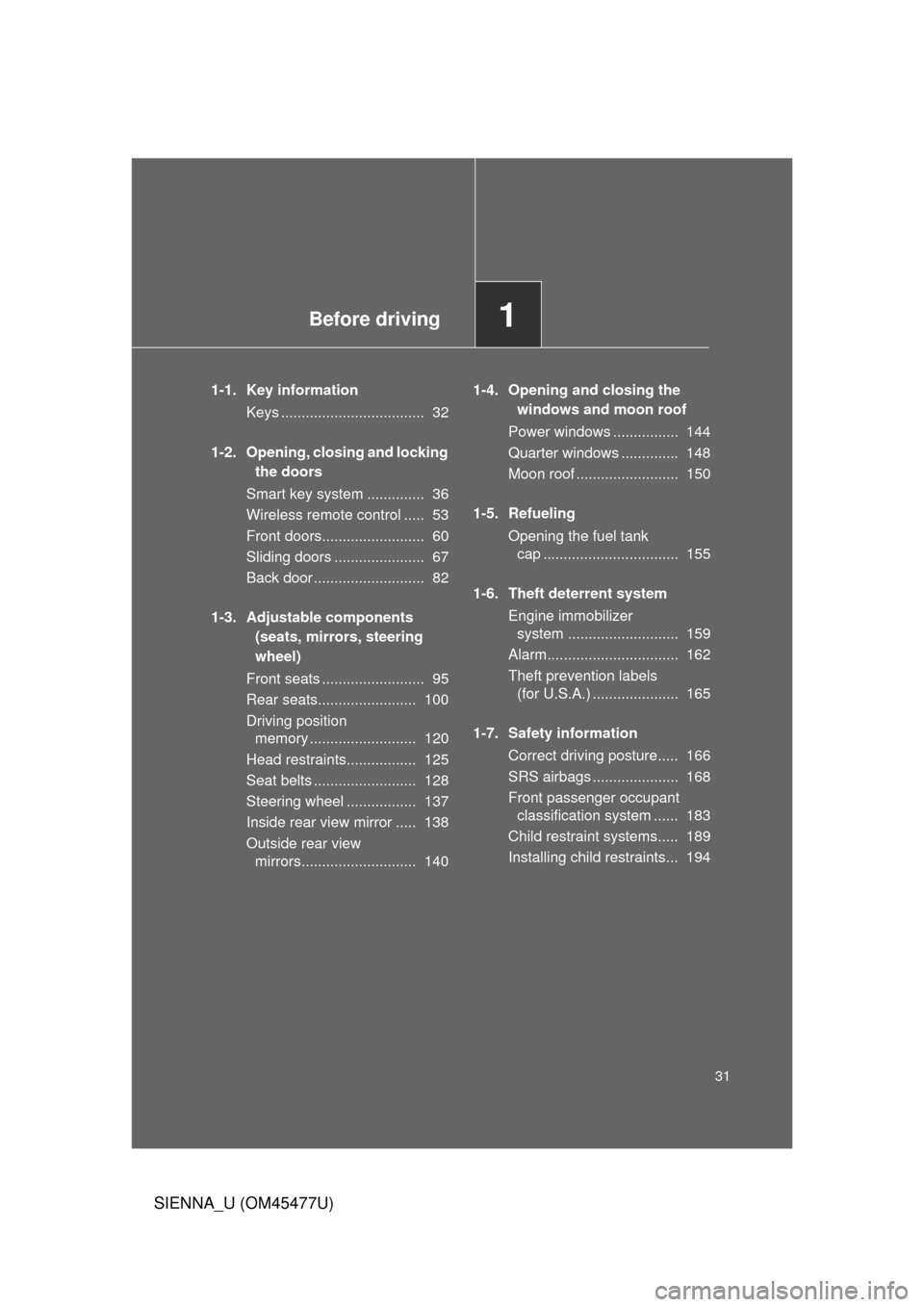

1Before driving

Before driving1
31
SIENNA_U (OM45477U)
1-1. Key informationKeys ................................... 32
1-2. Opening, closing and locking the doors
Smart key system .............. 36
Wireless remote control ..... 53
Front doors......................... 60
Sliding doors ...................... 67
Back door ........................... 82
1-3. Adjustable components (seats, mirrors, steering
wheel)
Front seats ......................... 95
Rear seats........................ 100
Driving position memory .......................... 120
Head restraints................. 125
Seat belts ......................... 128
Steering wheel ................. 137
Inside rear view mirror ..... 138
Outside rear view mirrors............................ 140 1-4. Opening and closing the
windows and moon roof
Power windows ................ 144
Quarter windows .............. 148
Moon roof ......................... 150
1-5. Refueling Opening the fuel tank cap ................................. 155
1-6. Theft deterrent system Engine immobilizer system ........................... 159
Alarm................................ 162
Theft prevention labels (for U.S.A.) ..................... 165
1-7. Safety information Correct driving posture..... 166
SRS airbags ..................... 168
Front passenger occupant classification system ...... 183
Child restraint systems..... 189
Installing child restraints... 194

155
1
Before driving
SIENNA_U (OM45477U)

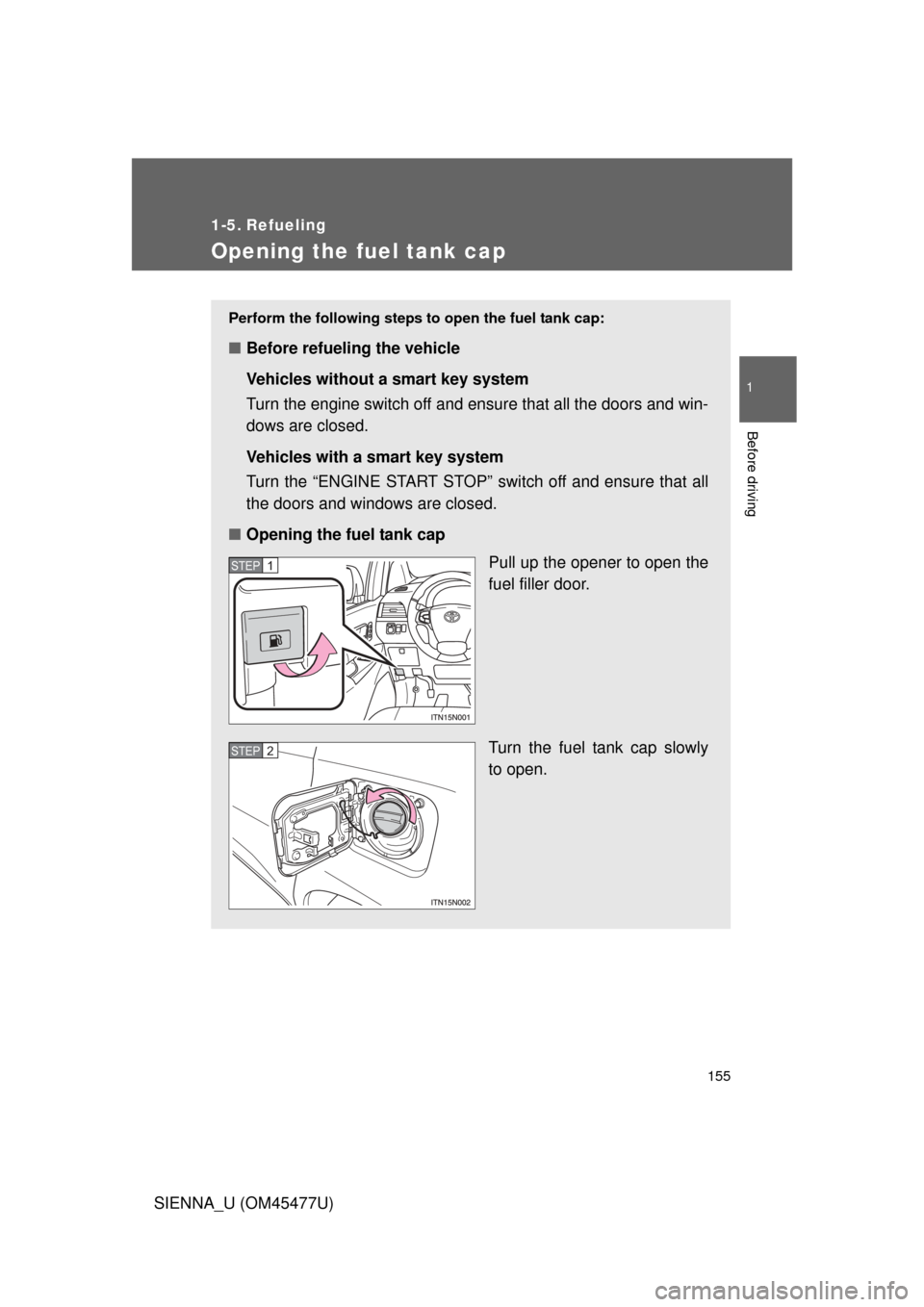

1-5. Refueling
Opening the fuel tank cap
Perform the following steps to open the fuel tank cap:
■Before refueling the vehicle
Vehicles without a smart key system
Turn the engine switch off and ensure that all the doors and win-
dows are closed.
Vehicles with a smart key system
Turn the “ENGINE START STOP” switch off and ensure that all
the doors and windows are closed.
■ Opening the fuel tank cap
Pull up the opener to open the
fuel filler door.
Turn the fuel tank cap slowly
to open.
STEP1
STEP2

156 1-5. Refueling
SIENNA_U (OM45477U)
Closing the fuel tank capAfter refueling, turn the fuel tank
cap until you hear a click. Once
the cap is released, it will turn
slightly in the opposite direction.
Hang the fuel tank cap on the
back of the fuel filler door.STEP3
■Fuel type
Use unleaded gasoline (Octane rating 87 [Research Octane Number 91] or
higher)
■ Fuel tank capacity (reference)
20.9 gal. (79 L, 17.4 Imp.gal.)

157
1-5. Refueling
1
Before driving
SIENNA_U (OM45477U)
CAUTION
■
When refueling the vehicle
Observe the following precautions while refueling the vehicle.
Failure to do so may result in death or serious injury.
● After exiting the vehicle and before opening the fuel door, touch an
unpainted metal surface to discharge any st atic electricity. It is important to
discharge static electricity before refueling because sparks resulting from
static electricity can cause fuel vapors to ignite while refueling.
● Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap.
In hot weather, pressurized fuel may spray out of the filler neck and cause
injury.
● Do not allow anyone that has not discharged static electricity from their
body to come close to an open fuel tank.
● Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
● Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
● Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition
hazard.

158 1-5. Refueling
SIENNA_U (OM45477U)
CAUTION
■When refueling
Securely insert the fuel nozzle into the fuel filler neck. If fuel is added with
the nozzle slightly lifted away from the fuel filler neck, the automatic shut off
function may not operate, resulting in fuel overflowing from the tank.
■ When replacing the fuel cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Doing so may cause a fire or other incident which may result in
death or serious injury.
NOTICE
■Refueling
Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the emission control
systems to operate abnormally or damaging fuel system components or the
vehicle’s painted surface.

343
2
When driving
SIENNA_U (OM45477U)

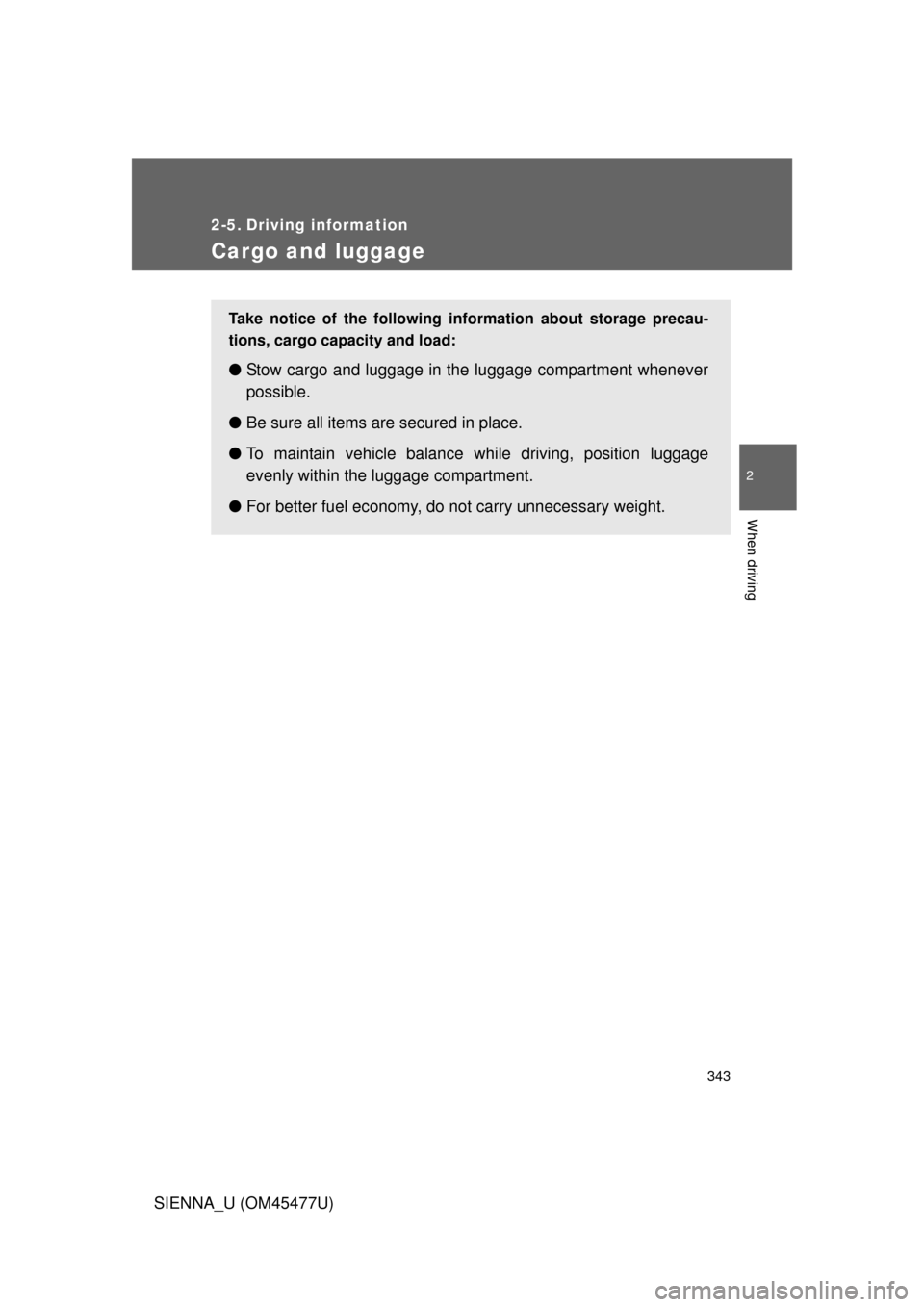

2-5. Driving information
Cargo and luggage
Take notice of the following information about storage precau-
tions, cargo capacity and load:
●Stow cargo and luggage in the luggage compartment whenever
possible.
● Be sure all items are secured in place.
● To maintain vehicle balance while driving, position luggage
evenly within the luggage compartment.
● For better fuel economy, do no t carry unnecessary weight.

646
4-2. Maintenance
SIENNA_U (OM45477U)
Emission inspection and maintenance (I/M) programs
Some states have vehicle emission inspection programs which
include OBD (On Board Diagnostics) checks. The OBD system moni-
tors the operation of th e emission control system.
■If the malfunction indicator lamp comes on
The OBD system determines that a problem exists somewhere
in the emission control system. Your vehicle may not pass the I/
M test and may need to be repaired. Contact your Toyota dealer
to service the vehicle.
■ Your vehicle may not pass the I/M test in the following situa-
tions:
●When the battery is disconnected or discharged
Readiness codes that are se t during ordinary driving are
erased.
Also, depending on your driving habits, the readiness codes
may not be completely set.
● When the fuel tank cap is loose
The malfunction indicator lamp comes on indicating a tempo-
rary malfunction and your vehi cle may not pass the I/M test.
■ When the malfunction indicator lamp still remains on after
several driving trips
The error code in the OBD system will not be cleared unless the
vehicle is driven 40 or more times.
■ If your vehicle does not pass the I/M test
Contact your Toyota dealer to prepare the vehicle for re-testing.
