2012 TOYOTA PRIUS PLUG-IN HYBRID Owners Manual

9
1. Charging operation
PLUG-IN QG_U (OM47747U)
■
Charging timer function
By using the charging timer function, deterioration of the hybrid bat-
tery (traction battery) charge can be suppressed, and off-peak elec-
tricity can be used effectively.
● A charging time can be assigned by setting the charging start time
or finish time.
● Once the time has been set, the time can be assigned again next
time simply by pressing the charging timer switch.
■ Setting the charging timer function
Stop the vehicle and press the
charging timer switch.
The multi-information display will
switch to timer charging time dis-
play.
If not changing the set time: go to
Press and hold the charging
timer switch.
The time display will change from
solid to flashing.
STEP1
STEP6
STEP2

10 1. Charging operation
PLUG-IN QG_U (OM47747U)Press the charging timer switch
to select a setting mode.
Start time setting mode
Finish time setting mode
The mode will switch with each
press of the charging timer
switch.
Adjust the set time using the time
adjustment button.Adjust hours.
Adjust minutes.
Round to the nearest hour.
*
*
: e.g. 1:00 to 1:29 1:00
1:30 to 1:59 2:00
Press and hold the charging
timer switch.
Once set, the time display will
change from flashing to solid, and
the charging timer indicator on
the instrument cluster will come
on.
STEP3
STEP4
STEP5

11

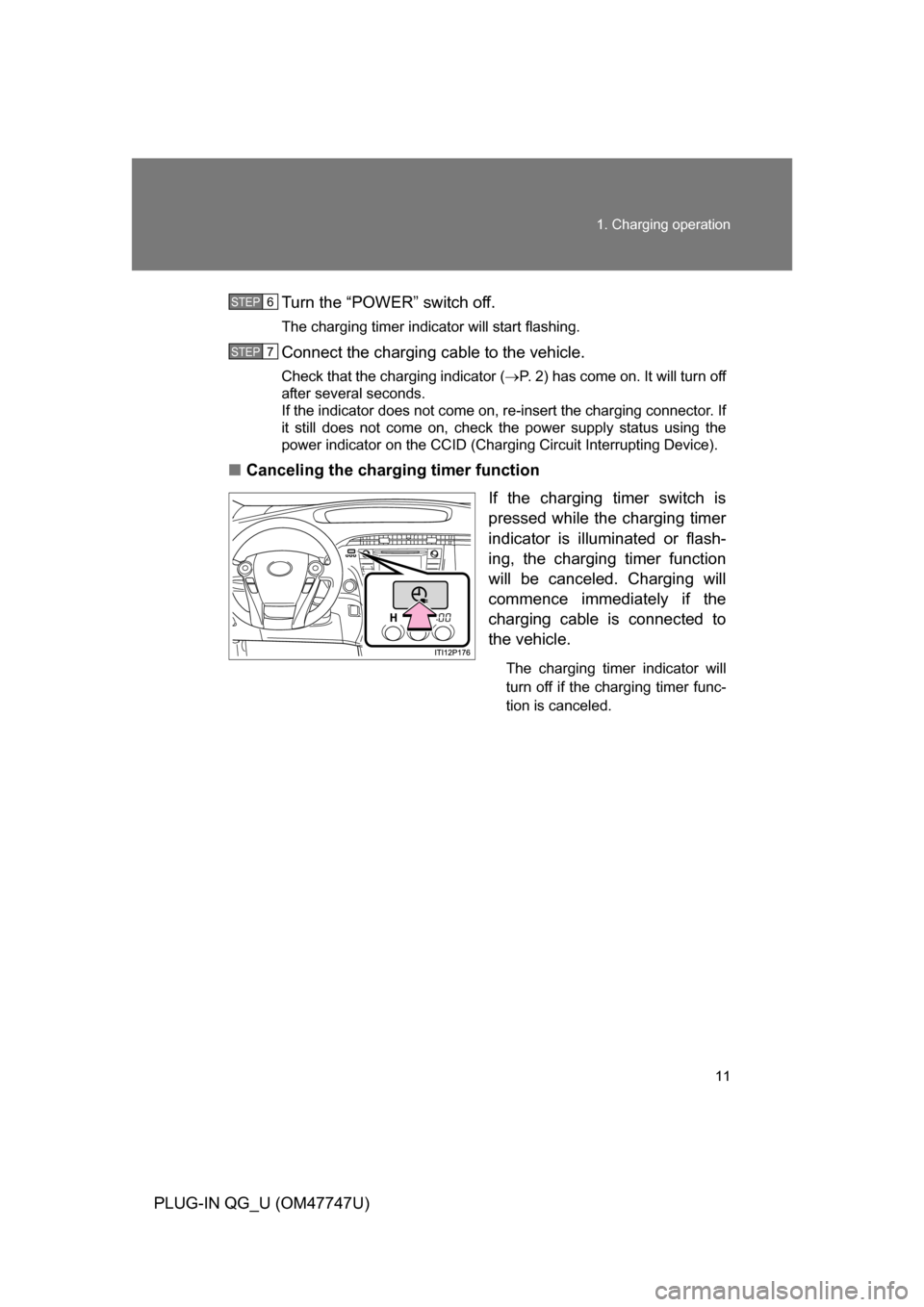

1. Charging operation
PLUG-IN QG_U (OM47747U)
Turn the “POWER” switch off.
The charging timer indicator will start flashing.
Connect the charging cable to the vehicle.
Check that the charging indicator (
P. 2) has come on. It will turn off
after several seconds.
If the indicator does not come on, re-insert the charging connector. If
it still does not come on, check the power supply status using the
power indicator on the CCID (Charging Circuit Interrupting Device).
■ Canceling the charging timer function
If the charging timer switch is
pressed while the charging timer
indicator is illuminated or flash-
ing, the charging timer function
will be canceled. Charging will
commence immediately if the
charging cable is connected to
the vehicle.
The charging timer indicator will
turn off if the charging timer func-
tion is canceled.
STEP6
STEP7

12 1. Charging operation
PLUG-IN QG_U (OM47747U)■
Displays shown on the multi-information display
Each type of information related to recharging is displayed on the
multi-information display.
Time until charging is complete If the “POWER” switch is turned
to ON mode during charging, the
current charging status and the
amount of time needed until
charging is complete will be dis-
played on the energy monitor.
After confirming, switch the
“POWER” switch to OFF and turn
off the display. The “POWER”
switch will turn off automatically
after several tens of seconds.
Charging messagesThe first time the “POWER”
switch is turned to ON mode
after charging is completed, a
message detailing the results of
the charging will be displayed.
Also, if an operation which can-
not be carried out is attempted
during charging, a warning mes-
sage will be displayed.
Comply with the instructions in
the message and carry out any
necessary operations.
The message may not be dis-
played if the Remote Air Condi-
tioning System has been used.

13
1. Charging operation
PLUG-IN QG_U (OM47747U)
■

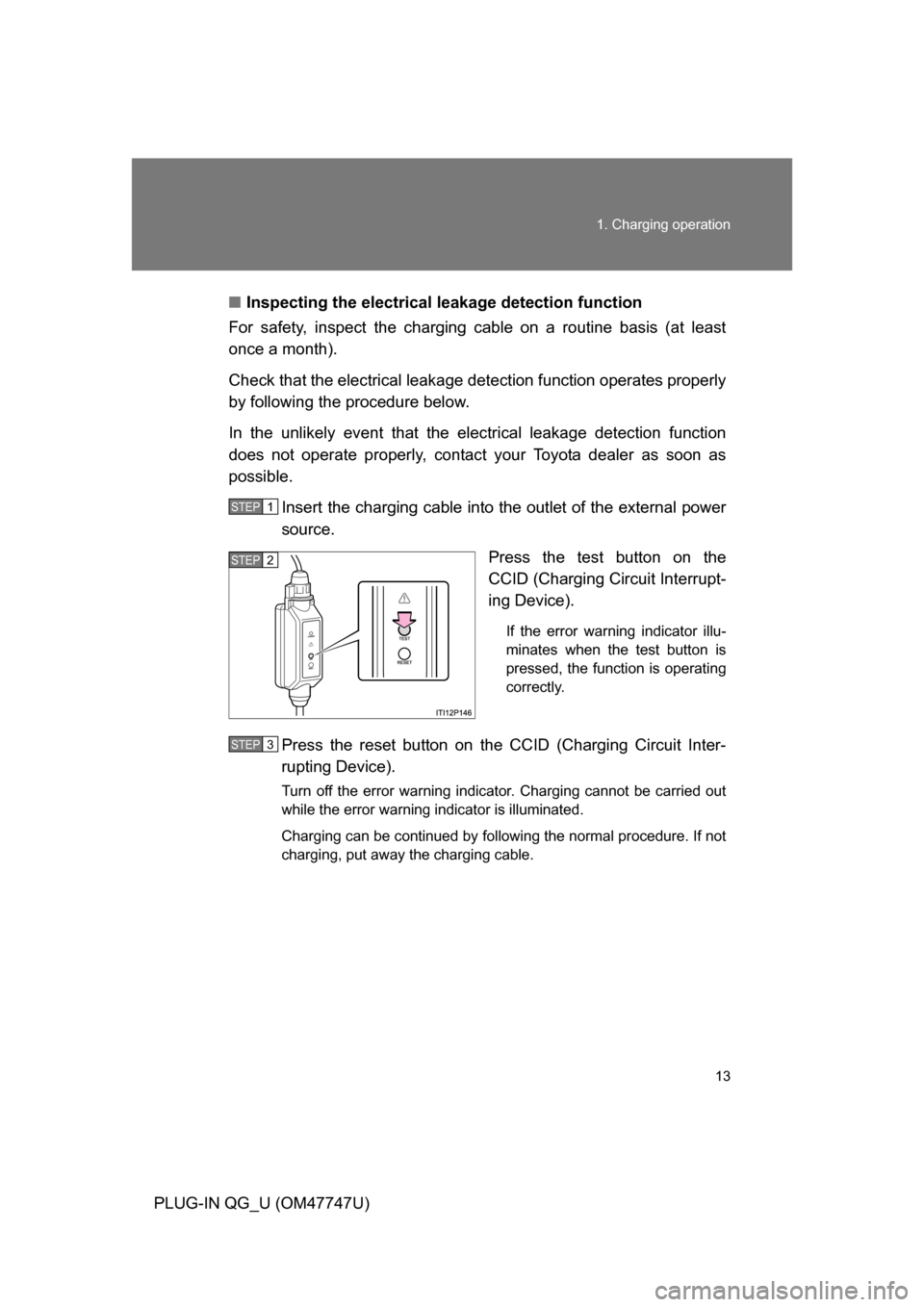

Inspecting the electrical leakage detection function
For safety, inspect the charging cable on a routine basis (at least
once a month).
Check that the electrical leakage det ection function operates properly
by following the procedure below.
In the unlikely event that the elec trical leakage detection function
does not operate properly, contac t your Toyota dealer as soon as
possible.
Insert the charging cable into the outlet of the external power
source. Press the test button on the
CCID (Charging Circuit Interrupt-
ing Device).
If the error warning indicator illu-
minates when the test button is
pressed, the function is operating
correctly.
Press the reset button on the CCID (Charging Circuit Inter-
rupting Device).
Turn off the error warning indicator. Charging cannot be carried out
while the error warning indicator is illuminated.
Charging can be continued by following the normal procedure. If not
charging, put away the charging cable.
STEP1
STEP2
STEP3

14 1. Charging operation
PLUG-IN QG_U (OM47747U)
■Safety functions
● The hybrid system will not start while the charging cable is attached to
the vehicle, even if the “POWER” switch is operated.
● If the charging cable is connected while the “READY” indicator is illumi-
nated, the hybrid system will stop automatically and driving will not be
possible.
● When the charging cable is connected to the vehicle, the shift position
cannot be changed from P to another position.
● If the latch release button is pressed, charging will not begin even if the
charging cable is connected.
Also, charging will be stopped if the latch release button is pressed and
held for several seconds during charging. When restarting charging, rein-
sert the charging connector after pulling it out, and check that the charg-
ing indicator illuminates.

15
1. Charging operation
PLUG-IN QG_U (OM47747U)

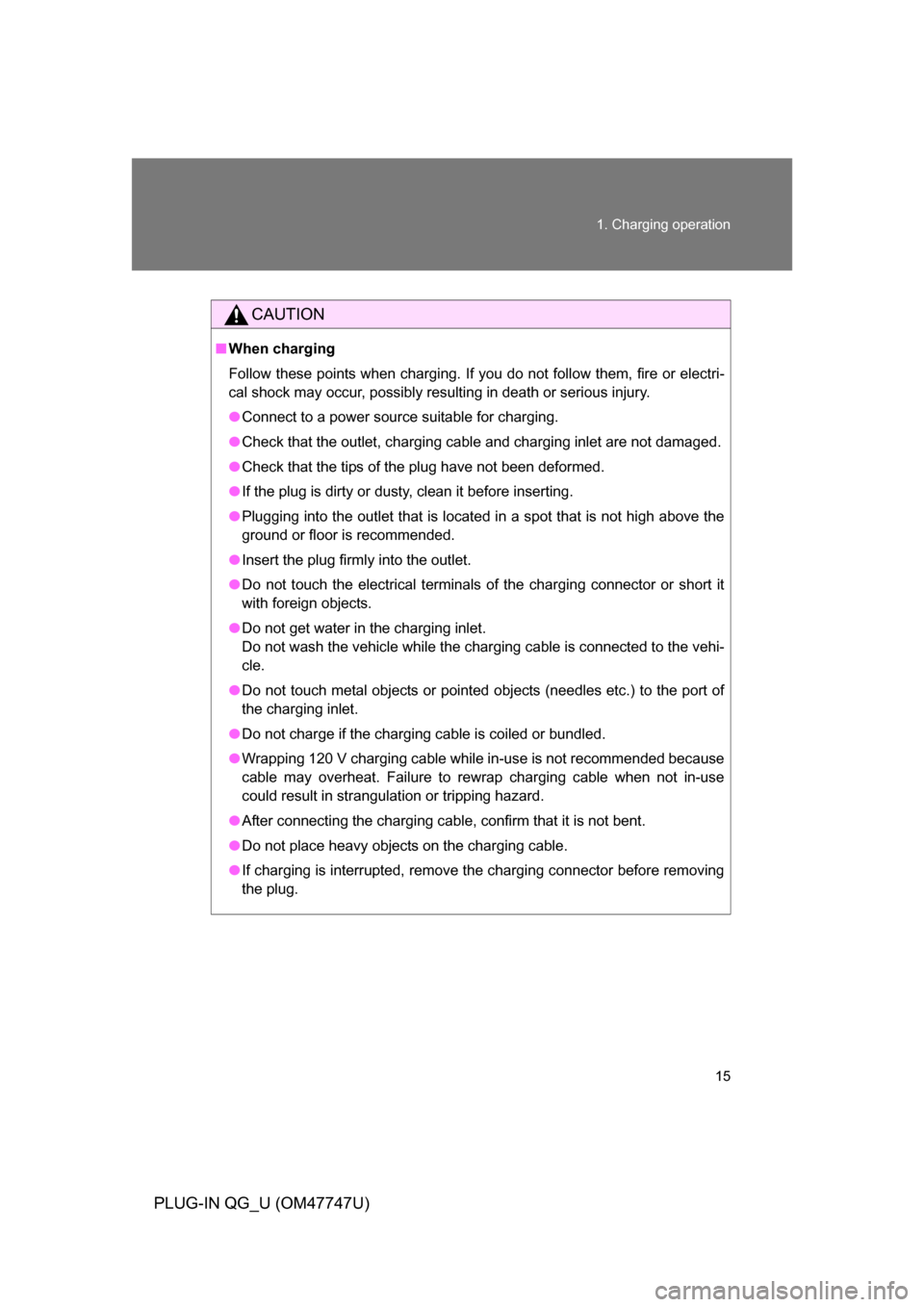

CAUTION
■
When charging
Follow these points when charging. If you do not follow them, fire or electri-
cal shock may occur, possibly resulting in death or serious injury.
● Connect to a power source suitable for charging.
● Check that the outlet, charging cable and charging inlet are not damaged\
.
● Check that the tips of the plug have not been deformed.
● If the plug is dirty or dusty, clean it before inserting.
● Plugging into the outlet that is located in a spot that is not high above the
ground or floor is recommended.
● Insert the plug firmly into the outlet.
● Do not touch the electrical terminals of the charging connector or short it
with foreign objects.
● Do not get water in the charging inlet.
Do not wash the vehicle while the charging cable is connected to the vehi-
cle.
● Do not touch metal objects or pointed objects (needles etc.) to the port of
the charging inlet.
● Do not charge if the charging cable is coiled or bundled.
● Wrapping 120 V charging cable while in-use is not recommended because
cable may overheat. Failure to rewrap charging cable when not in-use
could result in strangulation or tripping hazard.
● After connecting the charging cable, confirm that it is not bent.
● Do not place heavy objects on the charging cable.
● If charging is interrupted, remove the charging connector before removing
the plug.

16 1. Charging operation
PLUG-IN QG_U (OM47747U)

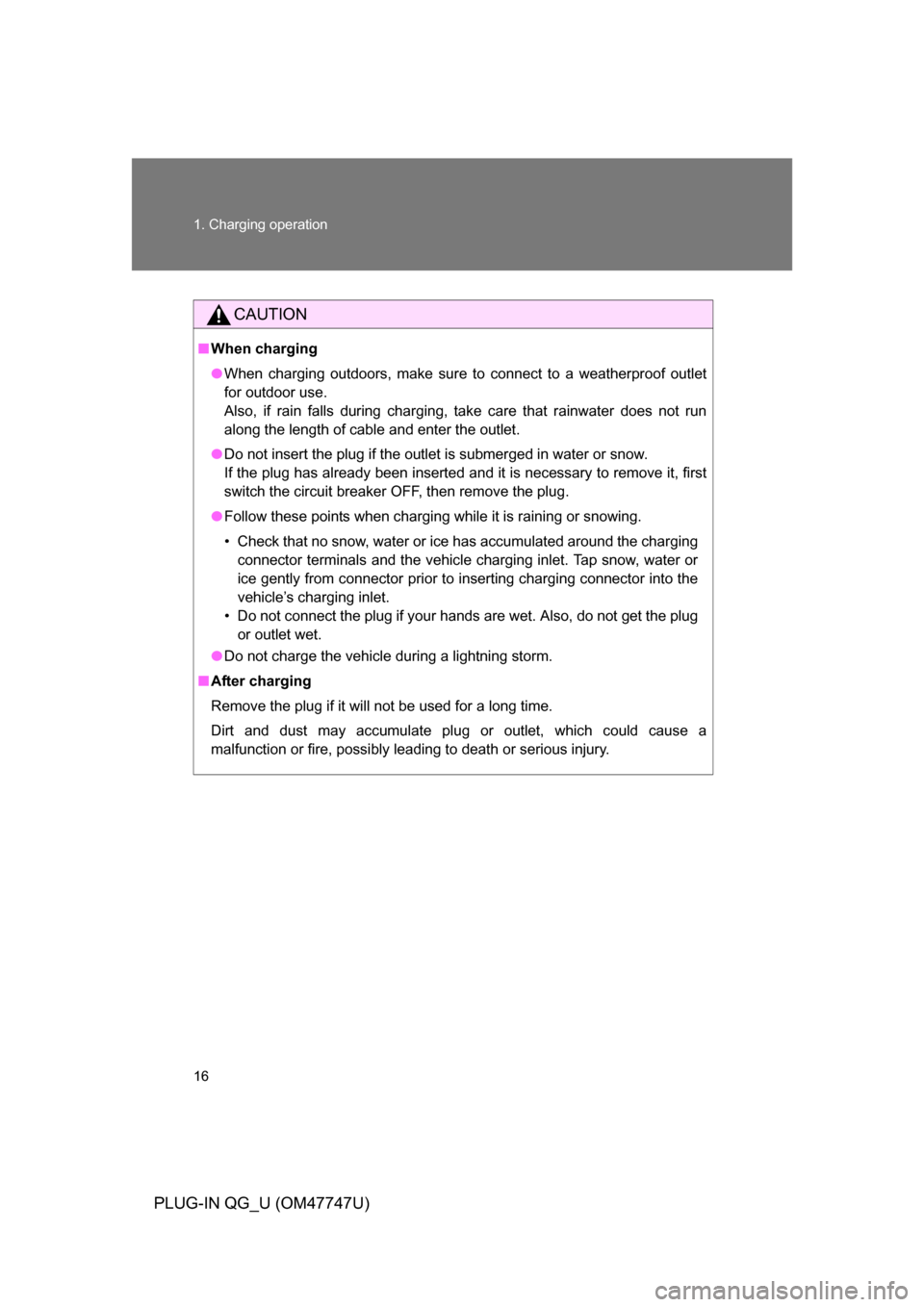

CAUTION
■When charging
● When charging outdoors, make sure to connect to a weatherproof outlet
for outdoor use.
Also, if rain falls during charging, take care that rainwater does not run
along the length of cable and enter the outlet.
● Do not insert the plug if the outlet is submerged in water or snow.
If the plug has already been inserted and it is necessary to remove it, first
switch the circuit breaker OFF, then remove the plug.
● Follow these points when charging while it is raining or snowing.
• Check that no snow, water or ice has accumulated around the charging
connector terminals and the vehicle charging inlet. Tap snow, water or
ice gently from connector prior to inserting charging connector into the
vehicle’s charging inlet.
• Do not connect the plug if your hands are wet. Also, do not get the plug or outlet wet.
● Do not charge the vehicle during a lightning storm.
■ After charging
Remove the plug if it will not be used for a long time.
Dirt and dust may accumulate plug or outlet, which could cause a
malfunction or fire, possibly leading to death or serious injury.
