1. Charging operation
PLUG-IN QG_U (OM47747U)
CAUTION
■

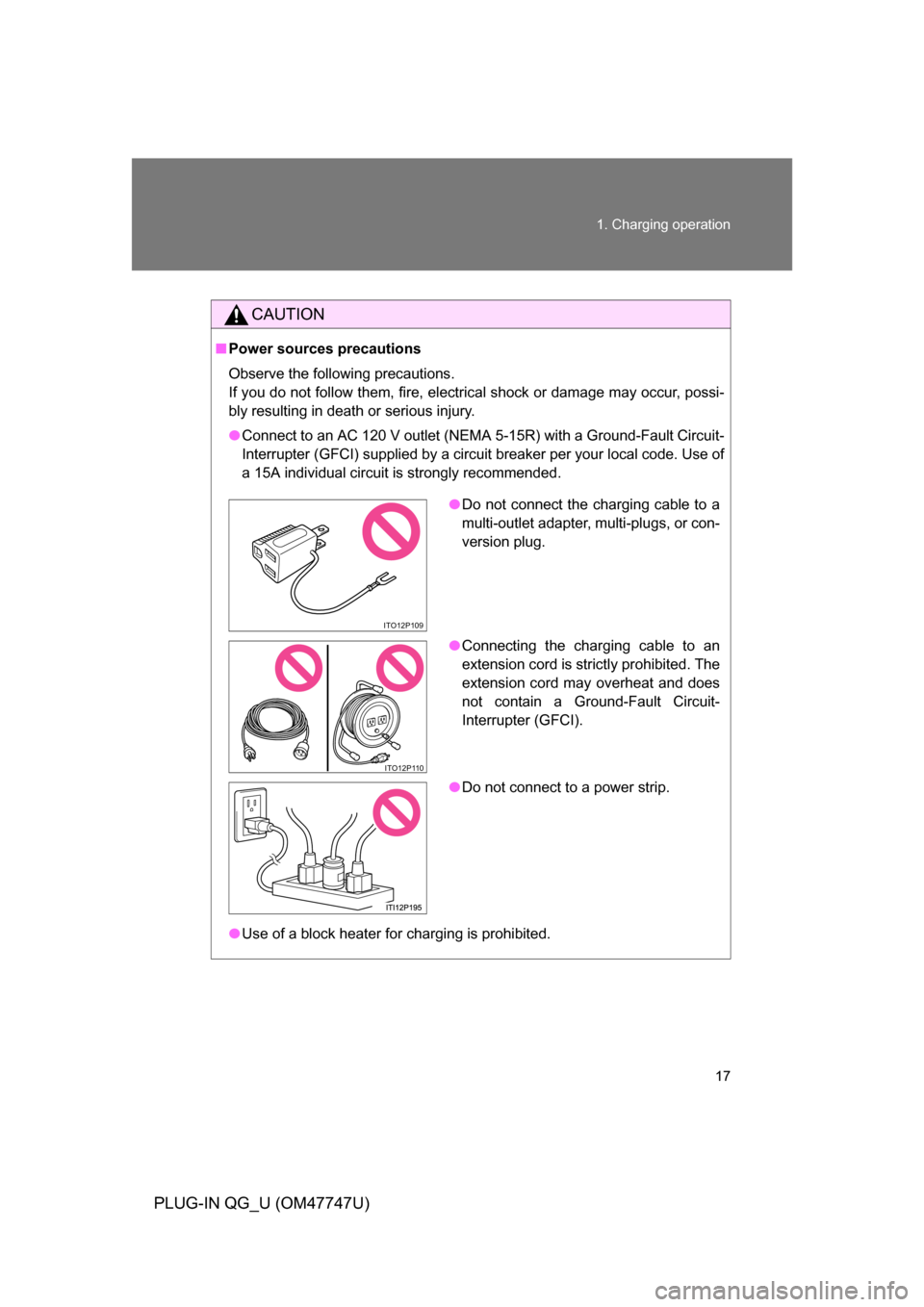

Power sources precautions
Observe the following precautions.
If you do not follow them, fire, electrical shock or damage may occur, possi-
bly resulting in death or serious injury.
● Connect to an AC 120 V outlet (NEMA 5-15R) with a Ground-Fault Circuit-
Interrupter (GFCI) supplied by a circuit breaker per your local code. Use of
a 15A individual circuit is strongly recommended.
● Use of a block heater for charging is prohibited.
●Do not connect the charging cable to a
multi-outlet adapter, multi-plugs, or con-
version plug.
● Connecting the charging cable to an
extension cord is strictly prohibited. The
extension cord may overheat and does
not contain a Ground-Fault Circuit-
Interrupter (GFCI).
● Do not connect to a power strip.
ITO12P109
ITO12P110

18 1. Charging operation
PLUG-IN QG_U (OM47747U)
CAUTION

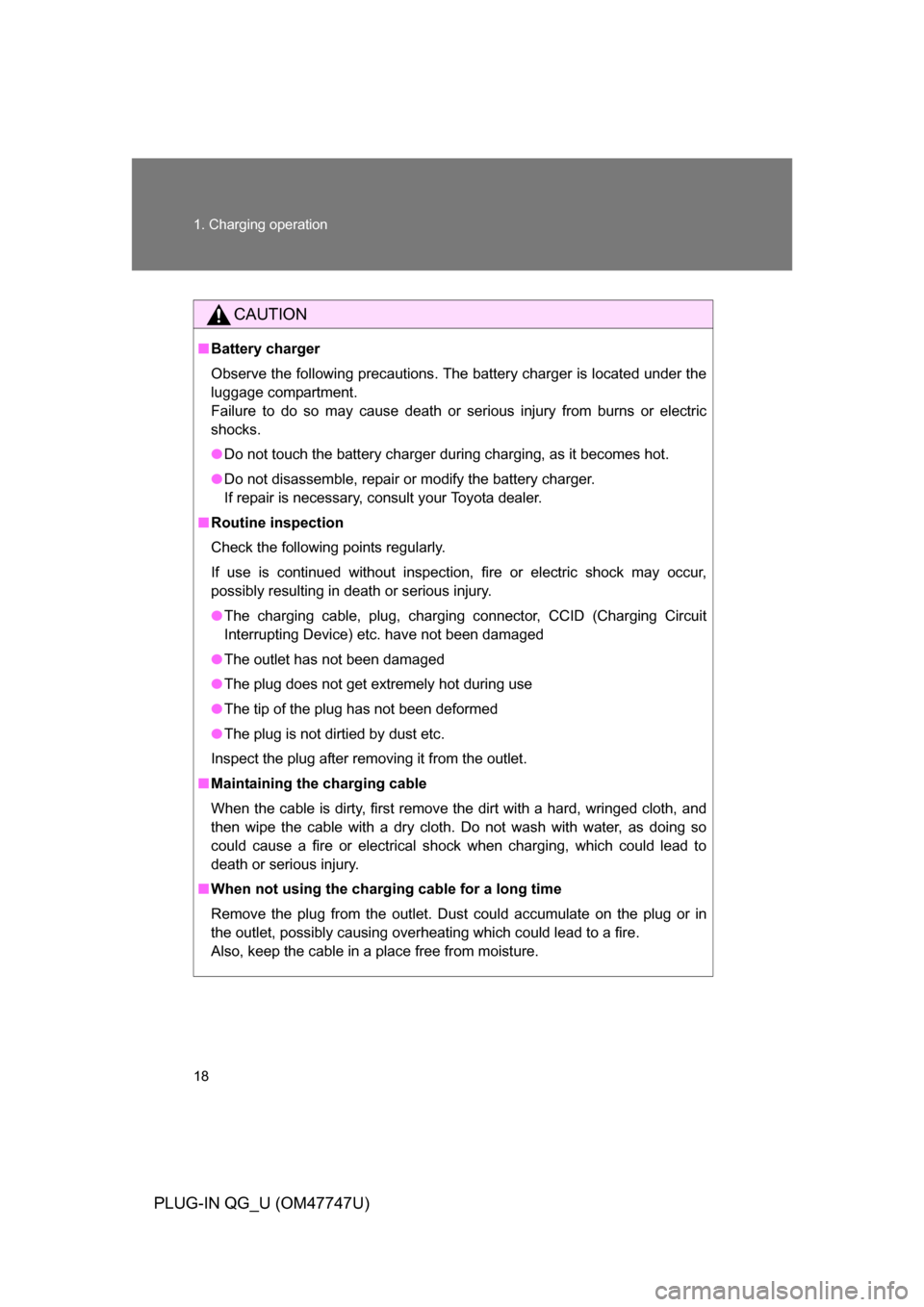

■Battery charger
Observe the following precautions. The battery charger is located under the
luggage compartment.
Failure to do so may cause death or serious injury from burns or electric
shocks.
● Do not touch the battery charger during charging, as it becomes hot.
● Do not disassemble, repair or modify the battery charger.
If repair is necessary, consult your Toyota dealer.
■ Routine inspection
Check the following points regularly.
If use is continued without inspection, fire or electric shock may occur,
possibly resulting in death or serious injury.
● The charging cable, plug, charging connector, CCID (Charging Circuit
Interrupting Device) etc. have not been damaged
● The outlet has not been damaged
● The plug does not get extremely hot during use
● The tip of the plug has not been deformed
● The plug is not dirtied by dust etc.
Inspect the plug after removing it from the outlet.
■ Maintaining the charging cable
When the cable is dirty, first remove the dirt with a hard, wringed cloth, and
then wipe the cable with a dry cloth. Do not wash with water, as doing so
could cause a fire or electrical shock when charging, which could lead to
death or serious injury.
■ When not using the charging cable for a long time
Remove the plug from the outlet. Dust could accumulate on the plug or in
the outlet, possibly causing overheating which could lead to a fire.
Also, keep the cable in a place free from moisture.

19
PLUG-IN QG_U (OM47747U)
2. Plug-in Hybrid Applications
Plug-in Hybrid Applications is a service for plug-in hybrid vehicles.
These are added to the Safety Connect and Entune products.
The contents provide charge support, comfort support and drive sup-
port via the vehicle’s navigation system and the owner’s Smartphone.
Both of the following accounts are required for the services.
●Active Safety Connect account
● Active Toyota Entune account
Plug-in Hybrid Applications operation
The following functions can be us ed with the navigation system.
● Download of nearby charging stat ions to the map screen (Type A)
● View list of nearby charging stations and corresponding charging
station information (such as voltage supported) (Type B)
The function of Type B is a function added to Entune.
For details about the function, re fer to http://www.toyota.com/entune/
.

20
PLUG-IN QG_U (OM47747U)
3. Basic operation

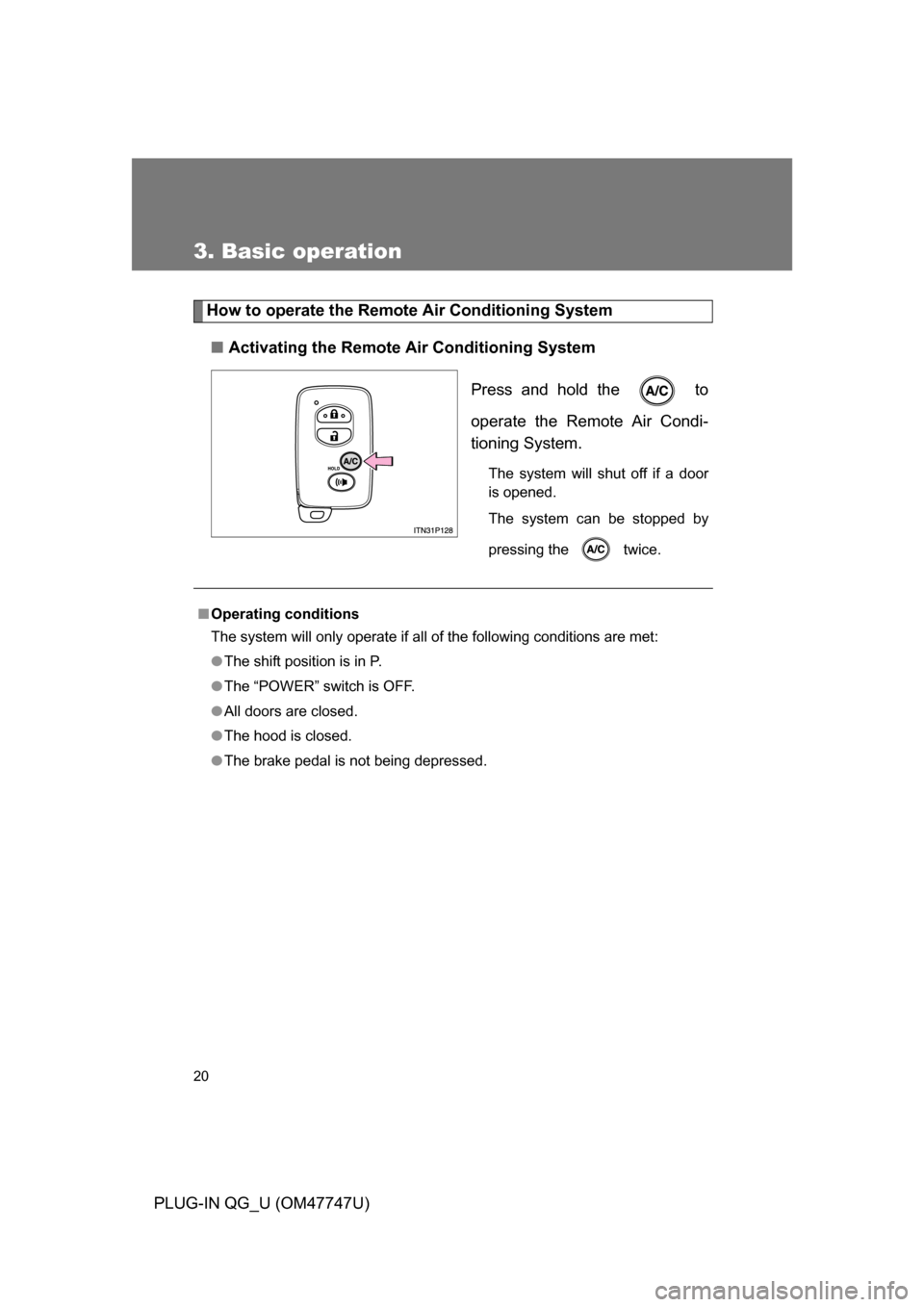

How to operate the Remote Air Conditioning System■ Activating the Remote Air Conditioning System
Press and hold the to
operate the Remote Air Condi-
tioning System.
The system will shut off if a door
is opened.
The system can be stopped by
pressing the twice.
■Operating conditions
The system will only operate if all of the following conditions are met:
● The shift position is in P.
● The “POWER” switch is OFF.
● All doors are closed.
● The hood is closed.
● The brake pedal is not being depressed.

21
3. Basic operation
PLUG-IN QG_U (OM47747U)
How to operate unlocking and locking the doors
■ Front door handles (including fr ont passenger door handle if
equipped with entry function)
Grip the driver’s door handle to
unlock the door. Grip the passen-
ger’s door handle to unlock all
the doors.
*
Make sure to touch the sensor on
the back of the handle.
The doors cannot be unlocked for
3 seconds after the doors are
locked.
*: The door unlock settings can bechanged. (Refer to “Owner’s
Manual”.)
Touch the lock sensor (the
indentation on the upper part of
the door handle) to lock the
doors.

22 3. Basic operation
PLUG-IN QG_U (OM47747U)■

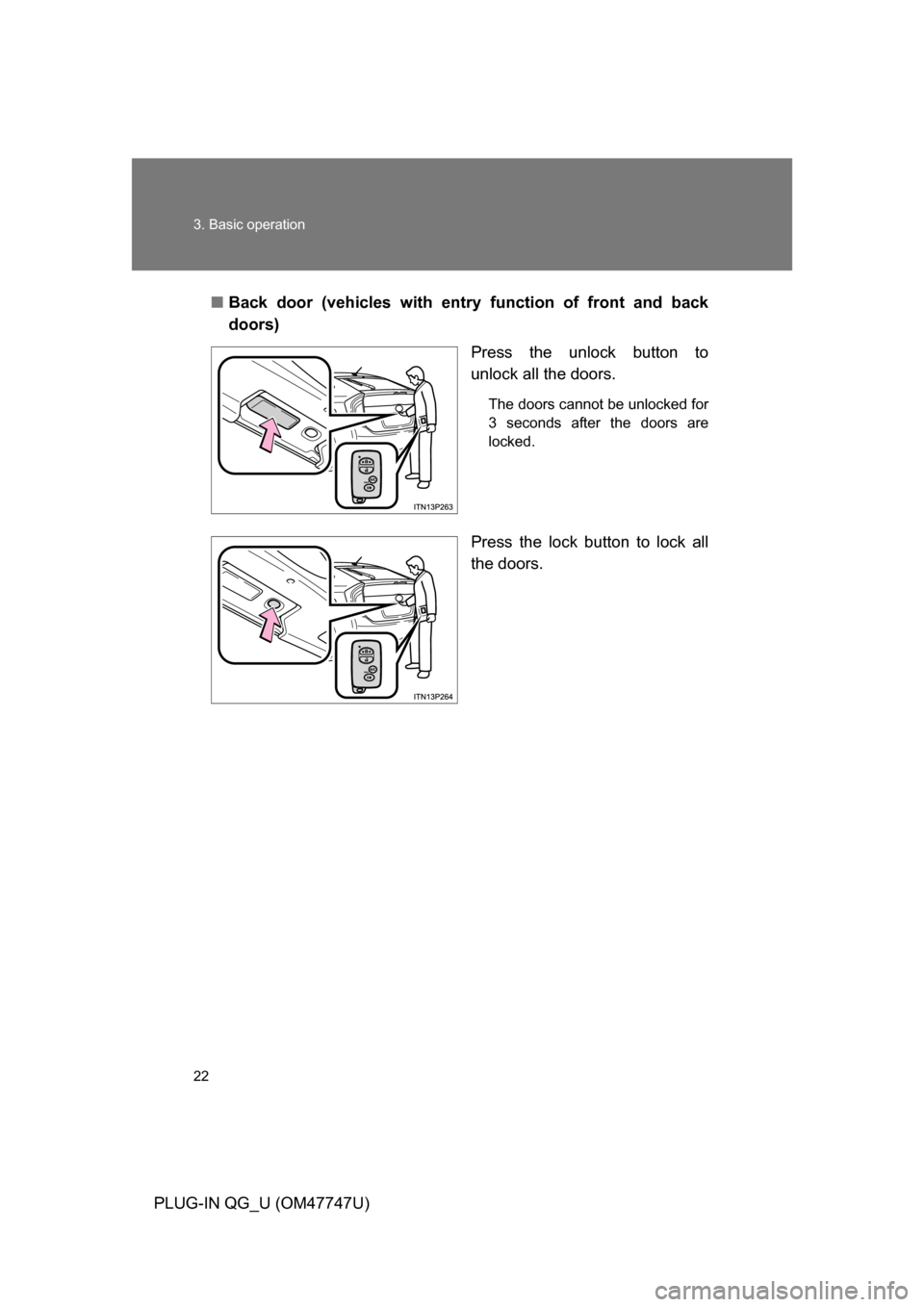

Back door (vehicles with entry function of front and back
doors)
Press the unlock button to
unlock all the doors.
The doors cannot be unlocked for
3 seconds after the doors are
locked.
Press the lock button to lock all
the doors.

23
3. Basic operation
PLUG-IN QG_U (OM47747U)
How to operate the power (ignition) switch
■ Starting the hybrid system
Check that the charging cable is disconnected.
Check that the parking brake is set.
Firmly depress the brake pedal.
Check that the “POWER” switch indicator turns green. If the indica-
tor does not turn green, the hybrid system cannot be started.
When the shift position is N, the hybrid system cannot start. Shift the
shift position to P when starting the hybrid system.
Press the “POWER” switch.
The hybrid system can be started
from any “POWER” switch mode.
Continue depressing the brake
pedal until the hybrid system is
completely started.
Check that the “READY” indicator is on.
If the “READY” indicator changes from a flashing light to a solid light
and the buzzer sounds, the hybrid system is starting normally.
The vehicle will not move when the “READY” indicator is off.
The vehicle can move when the “READY” indicator is on even if the
engine is stopped. (The gasoline engine starts or stops automatically
in accordance with the state of the vehicle.)
STEP1
STEP2
STEP3
STEP4
STEP5

24 3. Basic operation
PLUG-IN QG_U (OM47747U)■

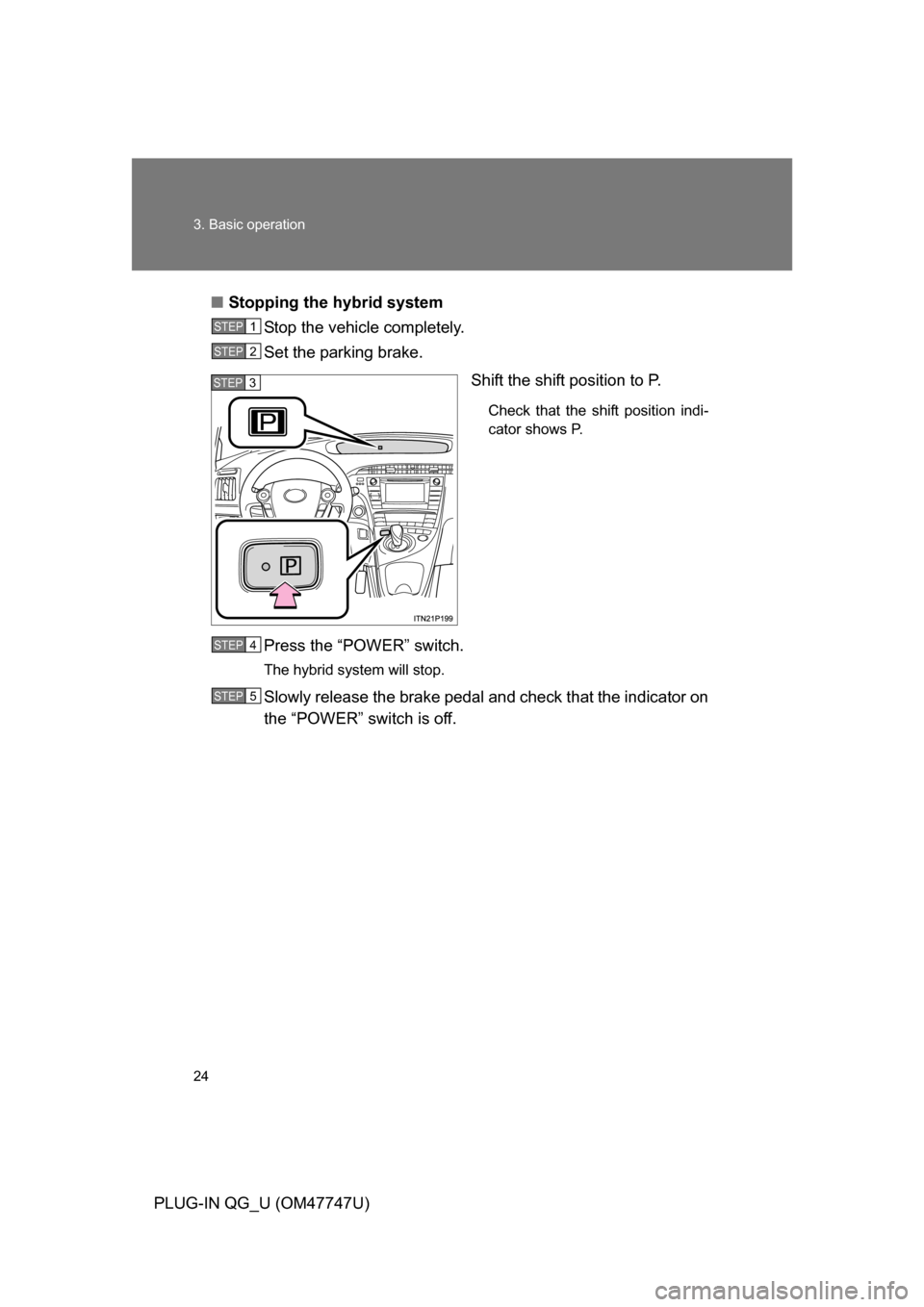

Stopping the hybrid system
Stop the vehicle completely.
Set the parking brake.
Shift the shift position to P.
Check that the shift position indi-
cator shows P.
Press the “POWER” switch.
The hybrid system will stop.
Slowly release the brake pedal an d check that the indicator on
the “POWER” switch is off.
STEP1
STEP2
STEP3
STEP4
STEP5
